Key Specifications

Speaker Type

Active Loudspeaker / Stage Monitor

Configuration

2-Way Bass-Reflex

Total Output Power

2100 W Peak

Amplifier Power Rating

LF: 1400 W Peak / MF: 700 W Peak

Amplifier Class

Class-D

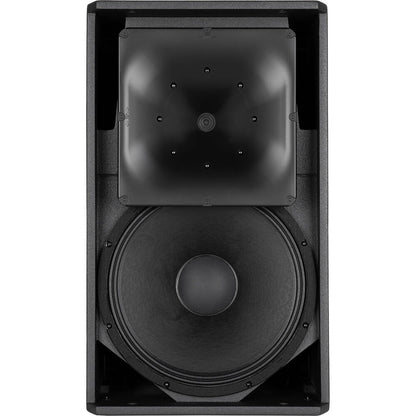

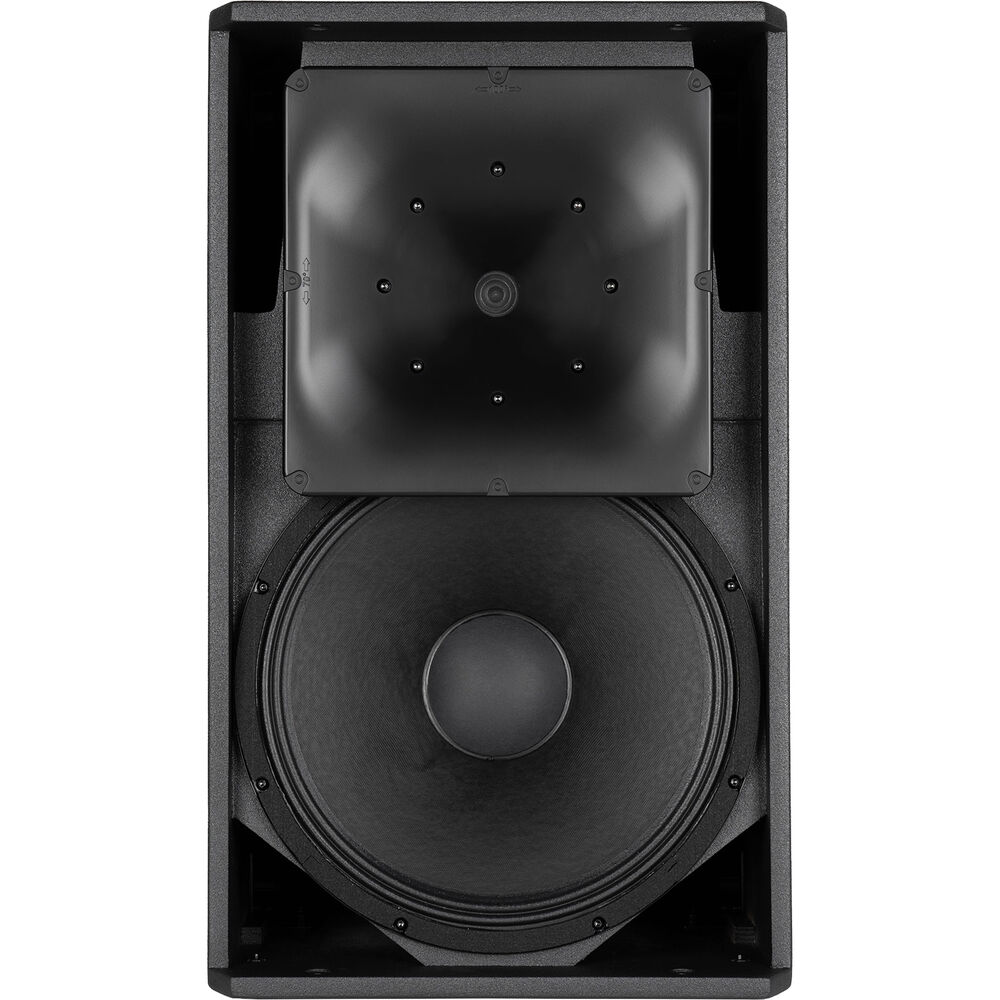

Transducers / Drivers

LF Driver

1x 15" / 38 cm Woofer

LF Voice Coil / Magnet

3.5" / 88.9 mm (Neodymium)

HF Driver

1x 1.4" / 35.6 mm Polyimide Compression Driver

HF Voice Coil / Magnet

3" / 76.2 mm (Neodymium)

Performance Data

Frequency Range/Response

45 Hz to 20 kHz

Maximum SPL

135 dB (Peak)

Coverage Angle

100° H x 70° V

Protections

RMS, Signal Limiter, Thermal

Crossover Frequency

650 Hz

Digital Signal Processing

FIR Filter, Venue Settings, Soft Limiter

EQ / Delay / Auto-Gain

No / No / No

Connectivity & Power

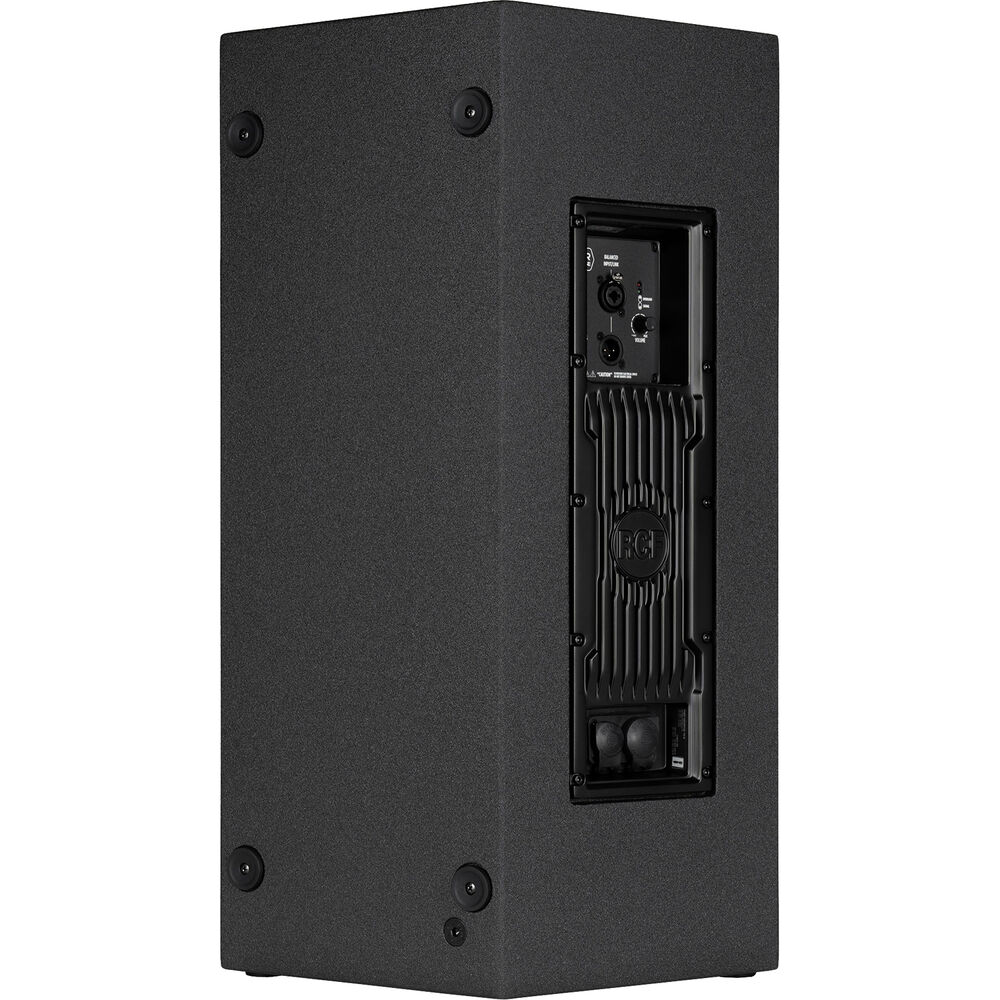

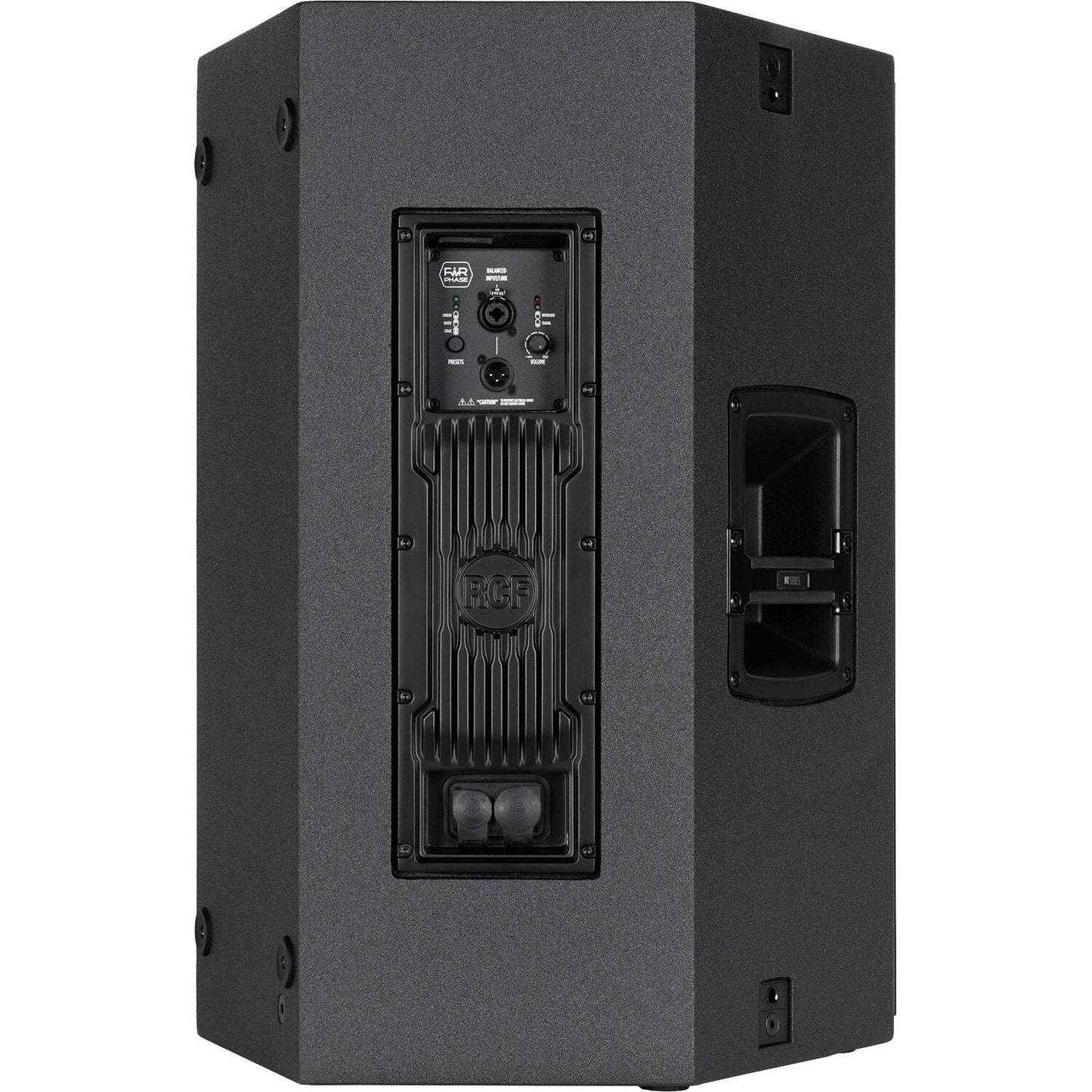

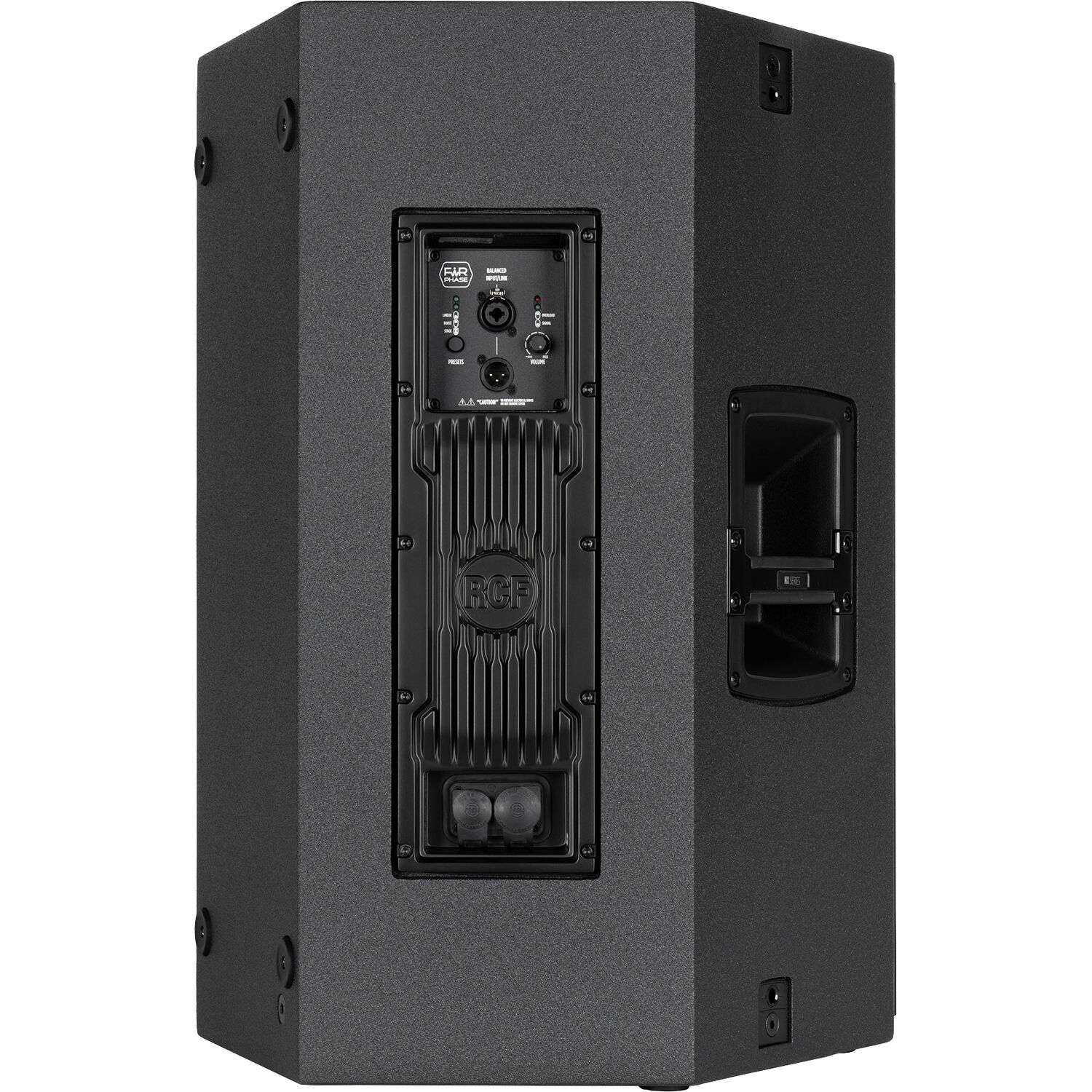

Audio I/O

1x Combo XLR-1/4" TRS In / 1x XLR 3-Pin Thru Out

Network / USB / Wireless

No / No / No

AC Input Power

100 to 120 VAC, 60 Hz

AC Power I/O

1x powerCON Input

Power Consumption

300 W

Physical Specifications

Construction Material

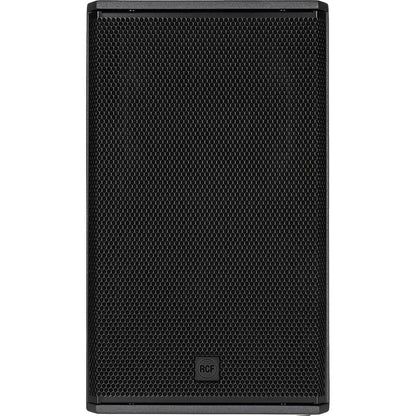

Plywood, Stainless Steel Grille

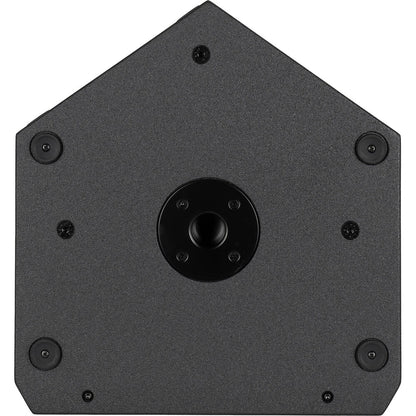

Mounting

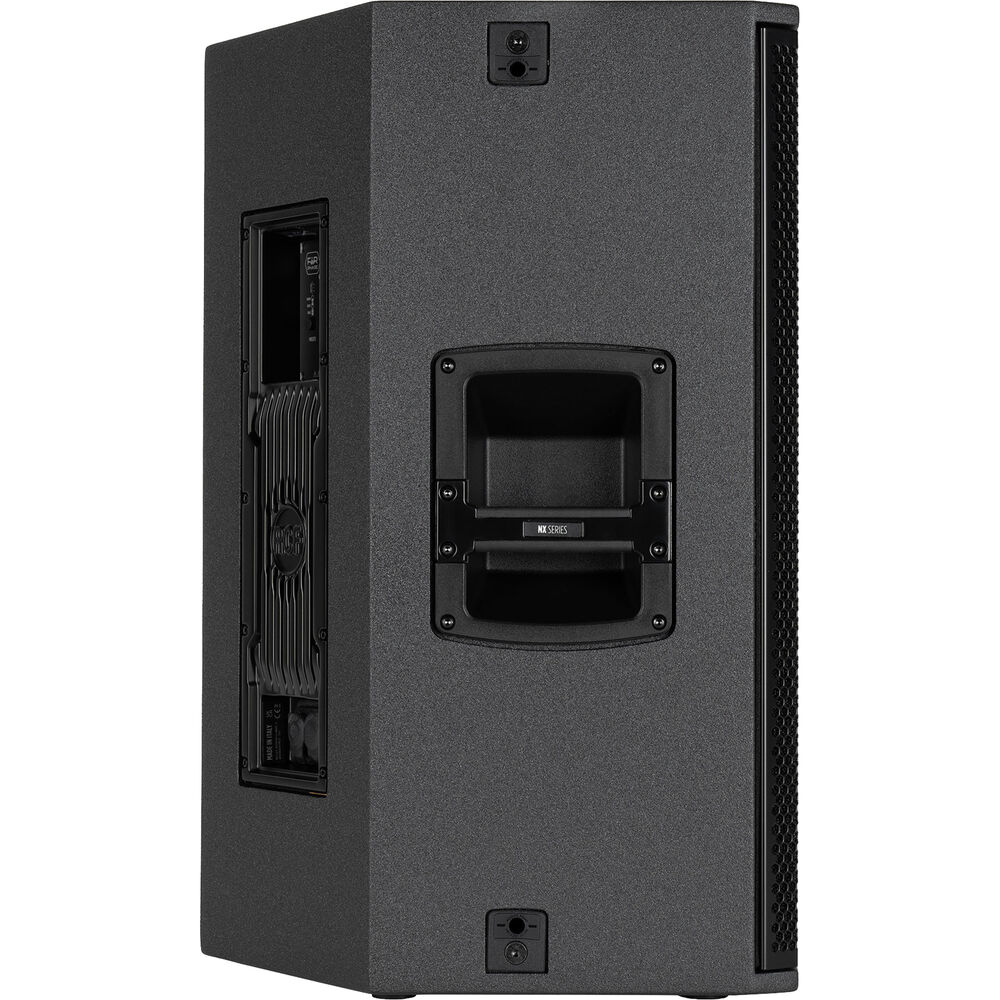

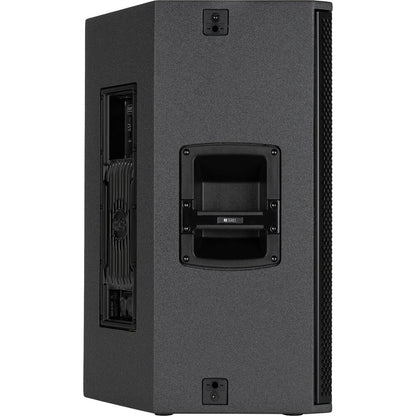

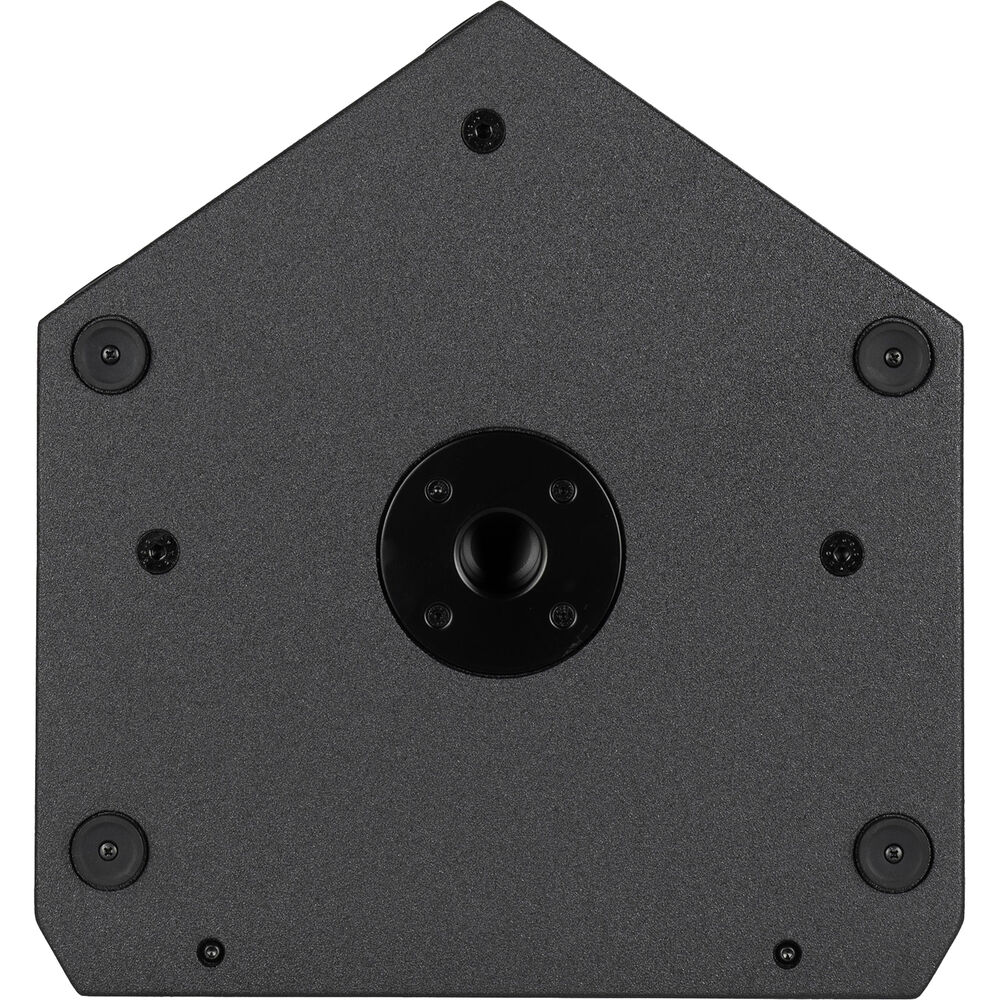

Pole Socket (Bottom), 1x Each Side Handles

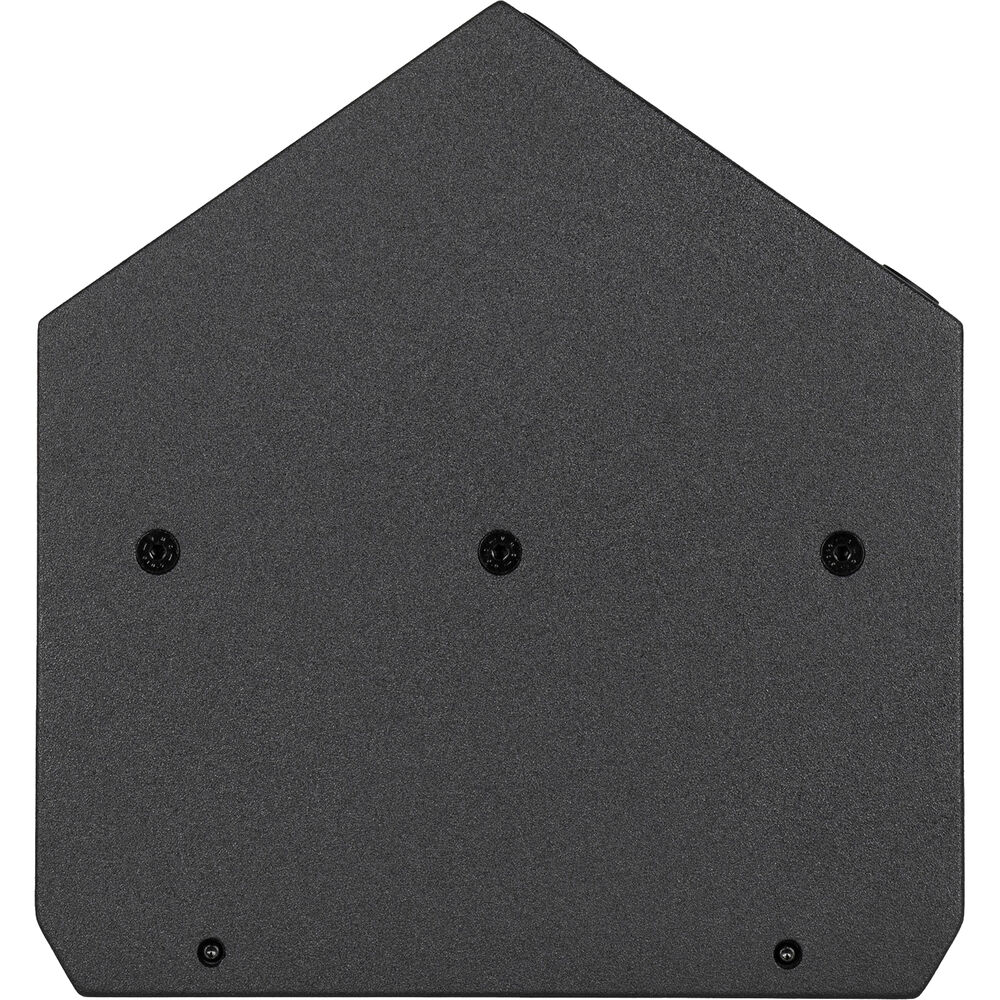

Suspension Points

2x Top, 1x Side (each), 1x Rear M10 Fly Points

Dimensions (H x W x D)

27.8 x 17.7 x 16.5" / 70.6 x 45 x 41.9 cm

Net Weight

60.2 lb / 27.3 kg

Package Weight / Box Size

67 lb / 30 x 19.75 x 18.5"
