Key Specifications

Speaker Type

Active Loudspeaker

Configuration

2-Way

Enclosure Type

Bass-Reflex

Total Output Power

2100 W Peak

Frequency Range / Response

70 Hz to 20 kHz

Maximum SPL

128 dB

Coverage Angle

100° Horizontal × 70° Vertical

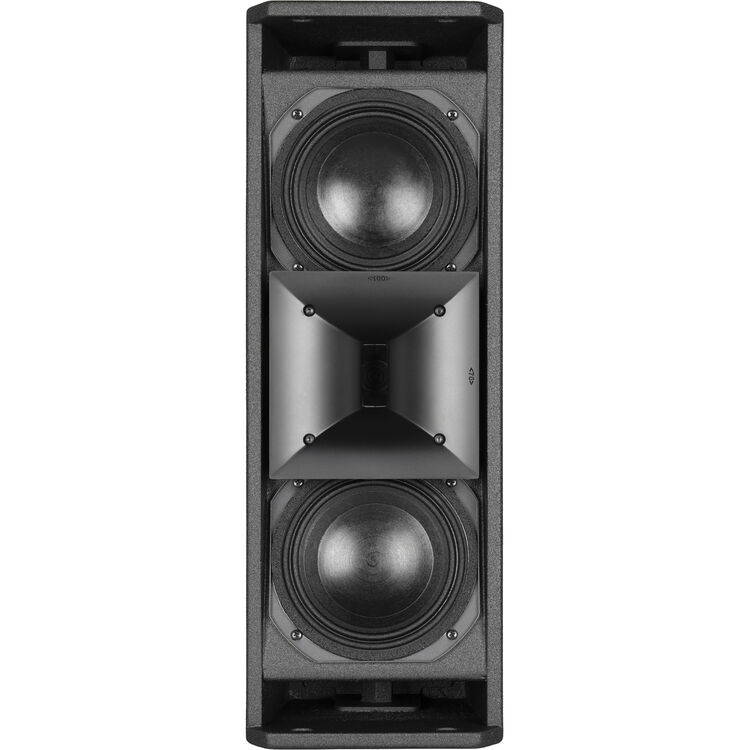

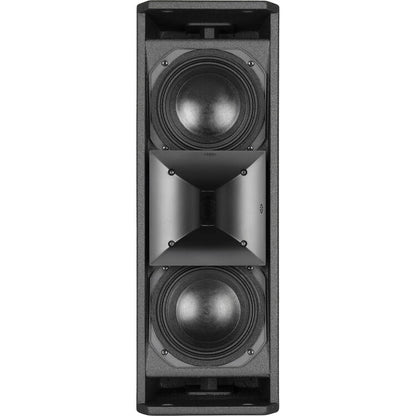

Drivers

Low Frequency Driver

2 × 6" / 15.2 cm Woofer
Voice Coil: 2" / 50.8 mm
Magnet: Neodymium

High Frequency Driver

1 × 1" / 25.4 mm Horn-Loaded Titanium Dome Compression Driver
Voice Coil: 1.75" / 44.45 mm
Magnet: Neodymium

Amplifier Power Rating

Low Frequency (LF)

1400 W Peak

Mid Frequency (MF)

700 W Peak

Amplifier Class

Class-D

Signal Processing

Crossover Frequency

1200 Hz

EQ & Filters

No

Dynamic Processing

Soft Limiter

Alignment Delay

No

Digital Signal Processing

User Settings

Protections

Excursion, RMS, Thermal

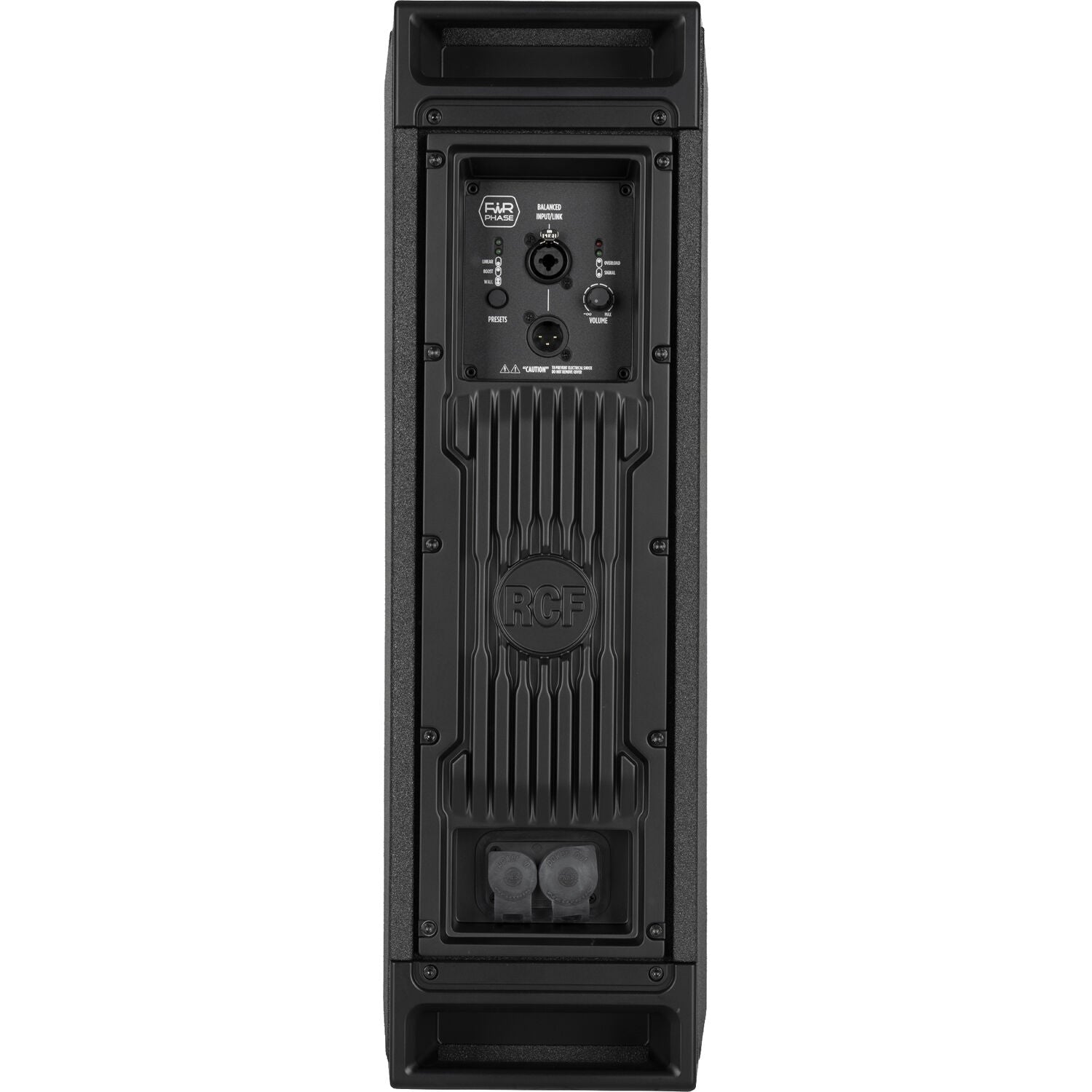

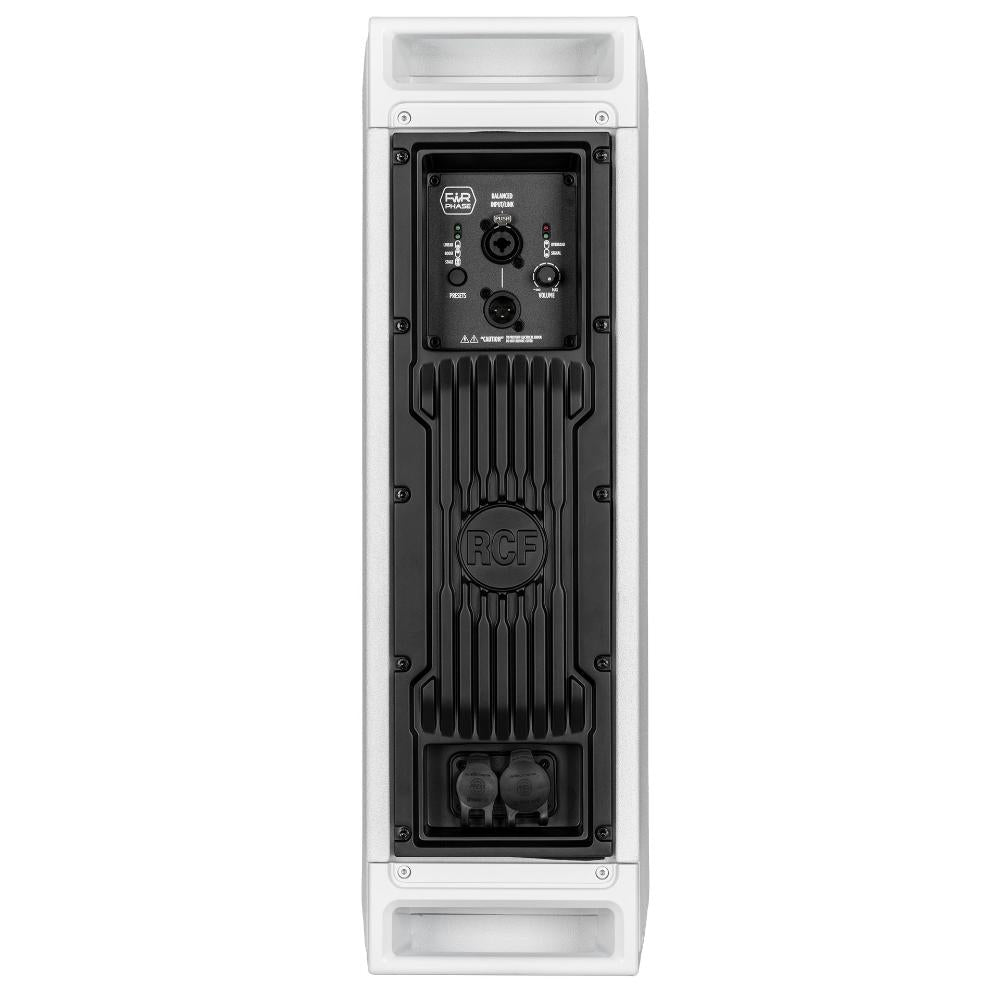

Connectivity

Audio I/O

1 × Combo XLR-1/4" TRS Line Input
1 × XLR 3-Pin Line Output

Network I/O

No

USB I/O

No

Wireless

No

Mobile App Compatible

No

Power

AC Input Power

100 to 120 VAC, 60 Hz

AC Power I/O

1 × powerCON TRUE1 Input
1 × powerCON TRUE1 Output

Physical

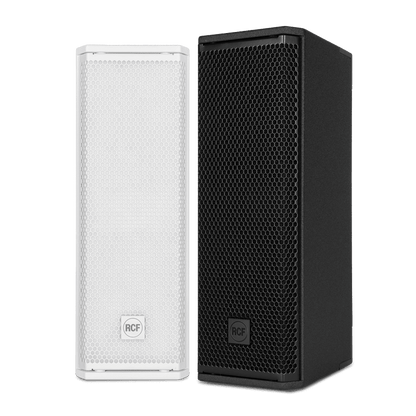

Color

Black

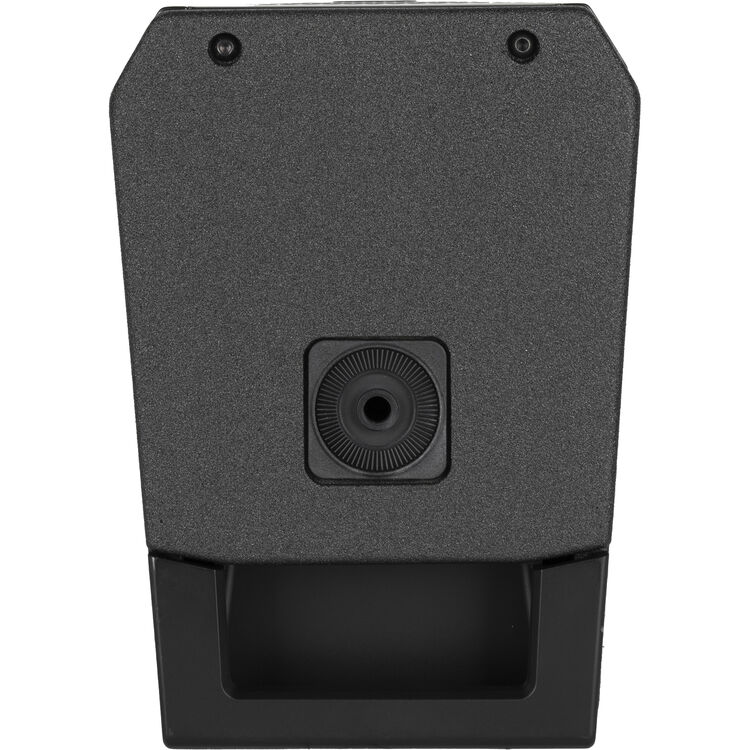

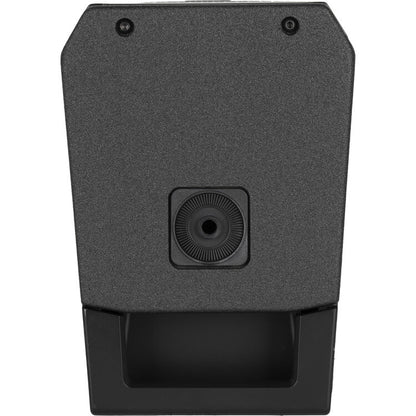

Mounting

2 × M10 Fly Points

Handles

1 × Top, 1 × Bottom

Construction Material

Plywood, Stainless Steel Grille

Environmental Resistance

No

Dimensions (W × H × D)

22.3 × 10.6 × 7.8" / 56.6 × 26.9 × 19.8 cm

Weight

28.2 lb / 12.8 kg

Packaging Info

Package Weight

32.315 lb

Box Dimensions (L × W × H)

25.9 × 11.6 × 9.4"
