Key Specifications

Speaker Type

Active Column Array

Configuration

2-Way

Enclosure Type

Bass-Reflex

Total Output Power

2100 W Peak

Frequency Range / Response

45 Hz to 20 kHz

Maximum SPL

135 dB

Coverage Angle

100° Horizontal × 25° Vertical

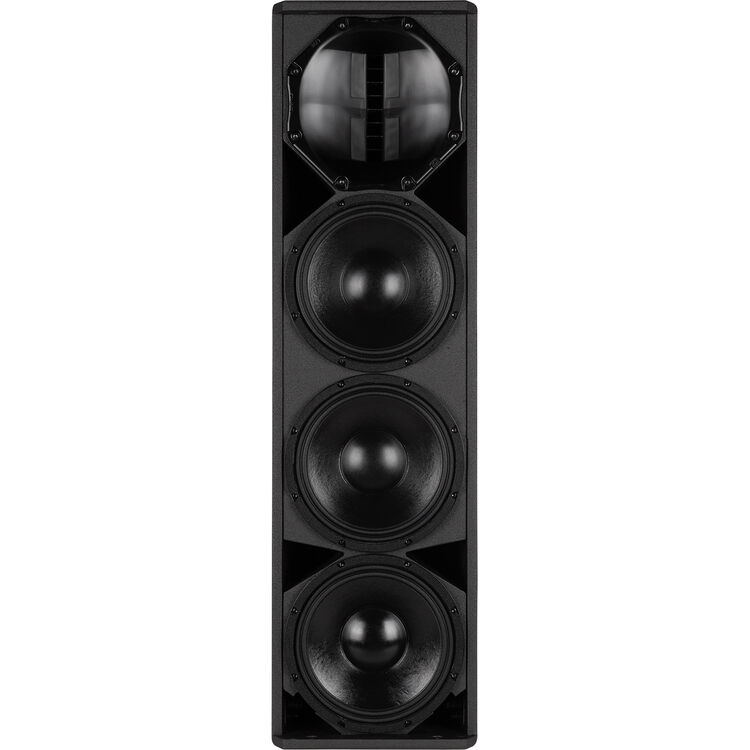

Drivers

Low Frequency Driver

3 × 10" / 25.4 cm Woofer
Voice Coil: 2.5" / 63.5 mm
Magnet: Neodymium

High Frequency Driver

1 × 1.4" / 35.6 mm Horn-Loaded Titanium Dome Compression Driver
Voice Coil: 3" / 76.2 mm
Magnet: Neodymium

Amplifier Power Rating

Low Frequency (LF)

1400 W Peak

Mid Frequency (MF)

700 W Peak

Amplifier Class

Class-D

Signal Processing

Crossover Frequency

800 Hz

EQ & Filters

High-Pass Filter

Dynamic Processing

Soft Limiter

Alignment Delay

No

Digital Signal Processing

User Settings

Protections

Excursion, RMS, Thermal

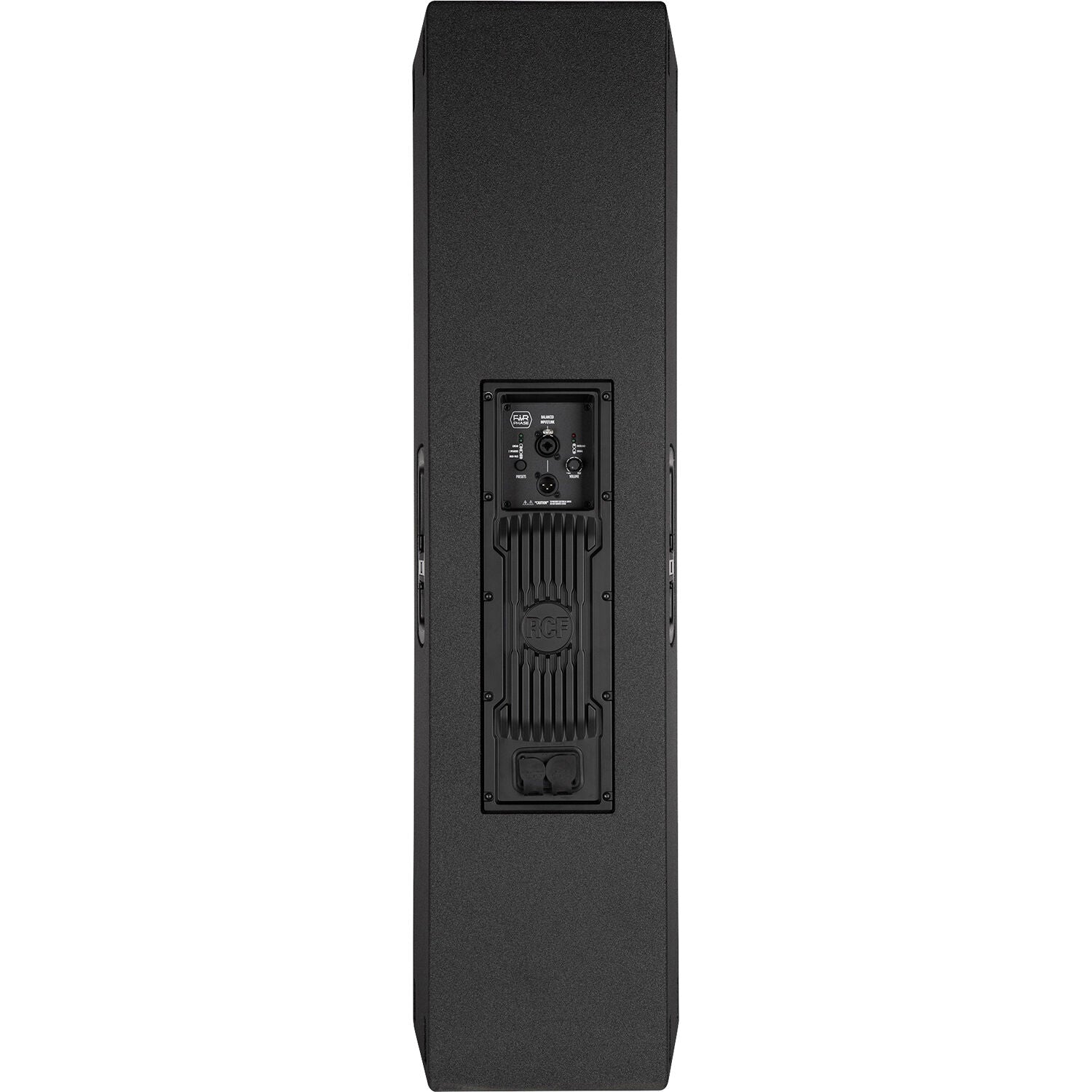

Connectivity

Audio I/O

1 × Combo XLR-1/4" TRS Line Input
1 × XLR 3-Pin Line Output

Network I/O

No

USB I/O

No

Wireless

No

Mobile App Compatible

No

Power

AC Input Power

100 to 120 VAC, 60 Hz

AC Power I/O

1 × powerCON TRUE1 Input
1 × powerCON TRUE1 Output

Physical

Color

Black

Mounting

Stand Mount

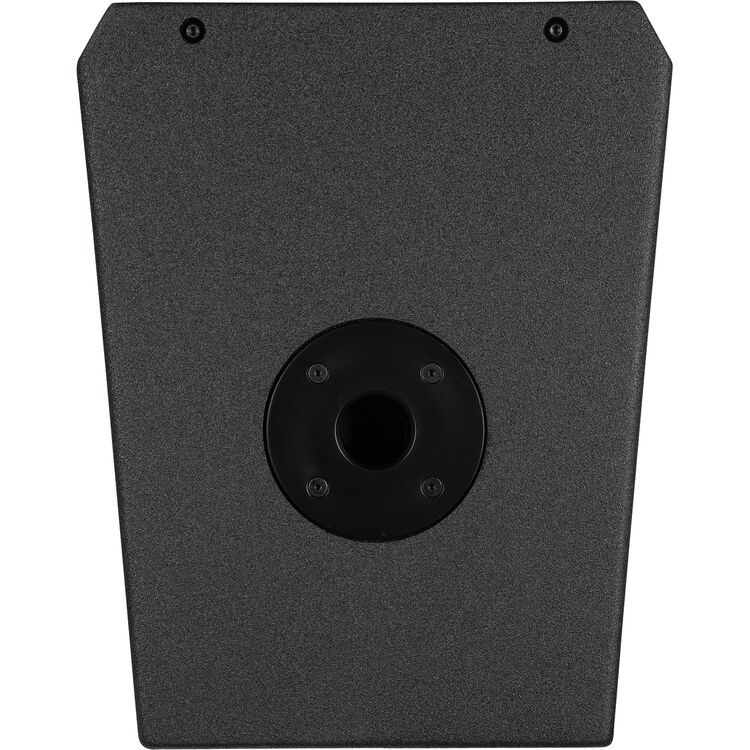

1 × Pole Socket (Bottom, Size Unspecified)
Suspension Points
8 × M8 Fly Points
8 × Integrated Rigging

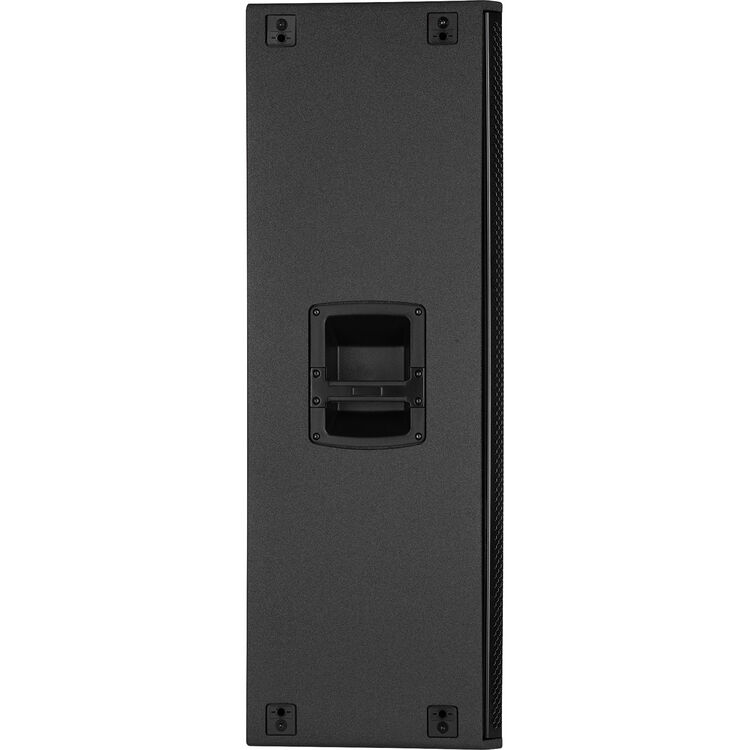

Handles

1 × Each Side

Construction Material

Plywood, Stainless Steel Grille

Environmental Resistance

No

Dimensions (W × H × D)

42.5 × 14.7 × 11.7" / 108 × 37.3 × 29.7 cm

Weight

73.6 lb / 33.4 kg

Packaging Info

Package Weight

78.5 lb

Box Dimensions (L × W × H)

43.75 × 16.25 × 13.25"
