Key Specifications

Product Model

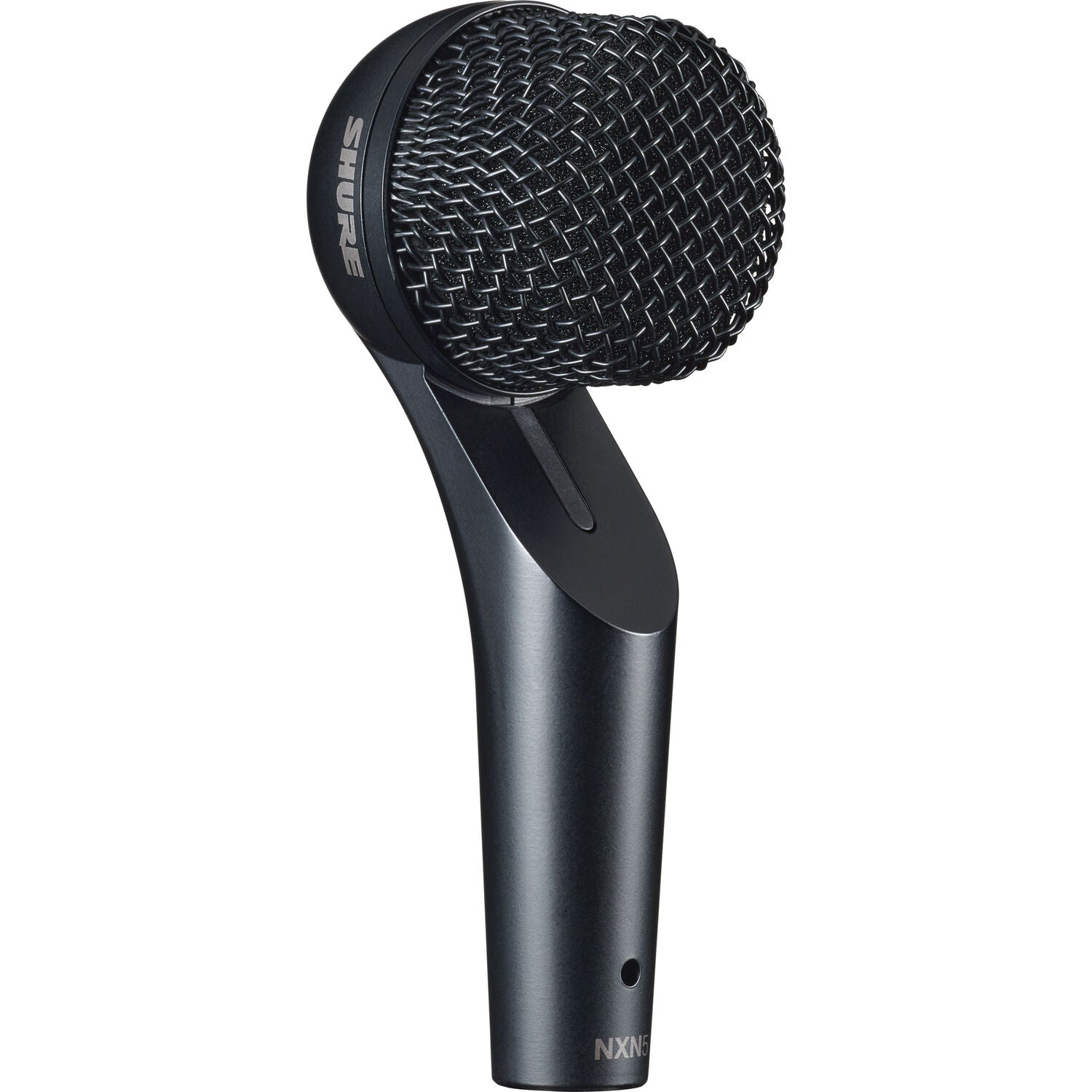

Shure Nexadyne 5 (NXN5)

Product Type

• Professional Supercardioid Dynamic Microphone
• Profile: Optimized for Guitar Amplifiers & Instrument Cabinets

Acoustic Performance

Transducer Details

• Technology: Revonic™ Dual-Engine Transducer
• Polar Pattern: Supercardioid
• Frequency Response: 50 Hz to 16 kHz
• Sensitivity: -61 dBV/Pa (0.9 mV/Pa)

Power & Connectivity

Interface Features

• Analog Output: 1x XLR 3-Pin Male (Locking)
• Power Sources: Passive (No Power Required)
• Impedance: 335 Ohms
• Signal Processing: Built-in Acoustic Processing (Reduces EQ needs)

Physical Build & Dimensions

Structural Details

• Housing: Die-cast Aluminum (Black Finish)
• Grille: Dent-resistant Hardened Steel Mesh
• Dimensions: ø 2.25 x L 6.15" / ø 57 x L 156 mm
• Net Weight: 10.4 oz / 295 g

Physical Specifications

Mounting & Handling

• Mount: 5/8"-27 Female (3/8"-16 Adapter Included)
• Handling: Vibration Cancellation (No traditional shockmount needed)
• Package Weight: 1.15 lb
