Key Specifications

AI chip

AI chip

Integrated AI chip, Trillions of calculations per second

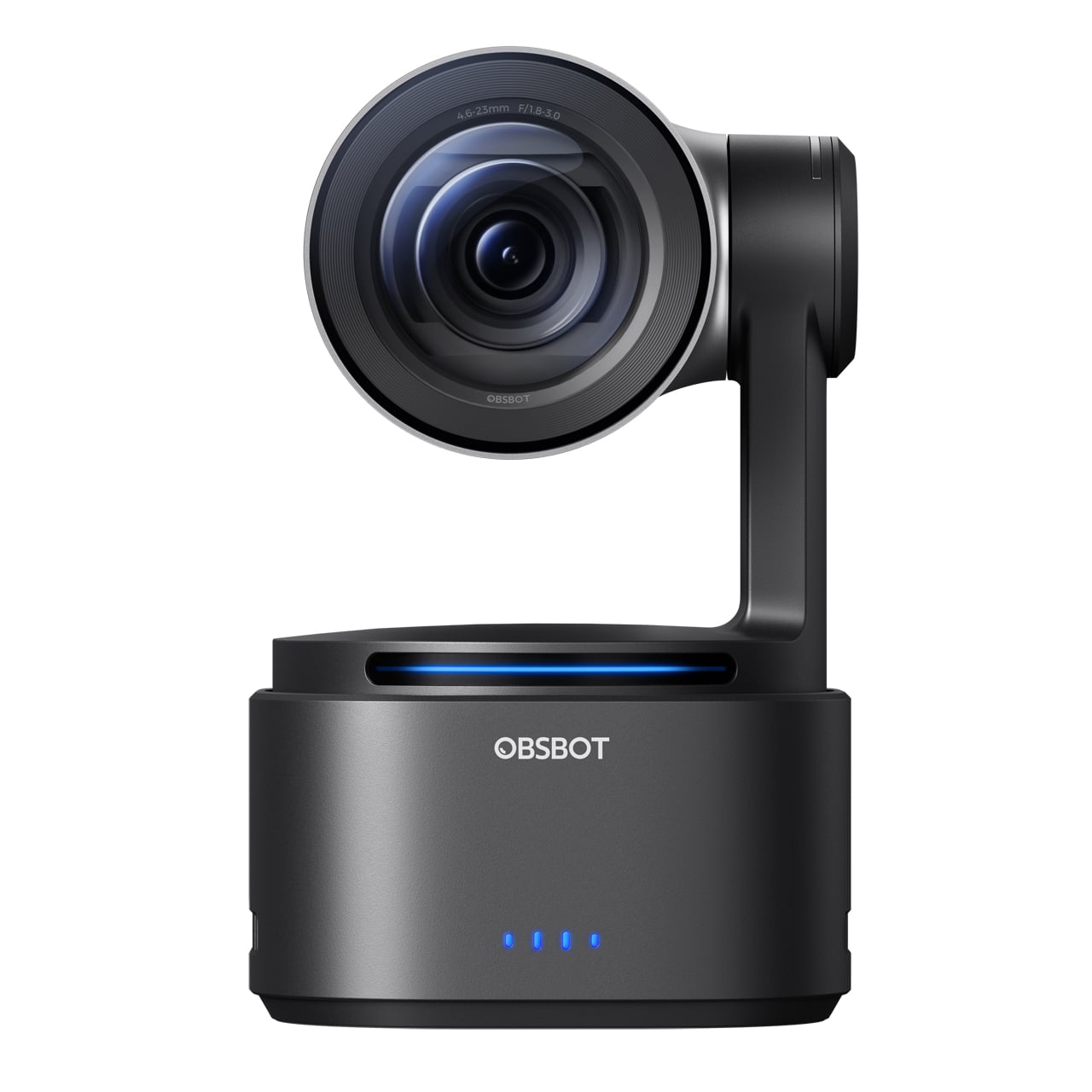

Camera

Image Sensor

1/1.5'' CMOS

Pixel Size

2.0μm*2.0μm

Effective Pixels

50 million

Effective Pixel Resolution

8192x6144

Lens System

12x Optical Lenses

Zoom Range

5x Optical Zoom
12x Hybrid Zoom

Aperture

ƒ/1.8-ƒ/3.0

Focus

Auto Focus
Manual Focus

Effective Focal Length

4.6mm-23mm

Equivalent Focal Length

22mm-110mm

Field of View

W (1x) : FOV (D): 89°; FOV (H): 81°
T (5x) : FOV (D): 21°; FOV (H): 18°

ISO Range

100-6400

Exposure Value

±3EV

Electronic Shutter Speed

1/8000 s to the limit of frames per second

White Balance

2000K-10000K

Gyroscope

6-axis Gyroscope

Photo Resolution

4K, 1080P, 720P

Resolution and Frame Rate

Recording

4K: 3840*2160@60/59.94/50/48/30/29.97/25/23.98 fps
1080p: 1920*1080@120/60/59.94/50/48/30/29.97/25/23.98 fps
720p: 1280*720@120/60/59.94/50/48/30/29.97/25/23.98 fps

HDMI

4K: 3840*2160@60/59.94/50/30/29.97/25/24 fps
1080p: 1920*1080@60/59.94/50/30/29.97/25/24 fps
1080p: 1920*1080i@60/59.94/50 fps
720p: 1280*720@60/50 fps

SDI

1080p: 1920*1080@60/59.94/50/30/29.97/25/24 fps

NDI/RTSP/SRT

4K: 3840*2160@60/59.94/50/48/30/29.97/25/23.98 fps
1080p: 1920*1080@120/100/60/59.94/50/48/30/29.97/25/23.98 fps
720p: 1280*720@120/100/60/59.94/50/48/30/29.97/25/23.98 fps

Max Video Storage Bitrate

H264: 160Mbps, H265: 160Mbps

Supported File System

FAT32、exFAT
**Only exFAT supports segmented video storage.

Video Format

MJPEG, H264, H265

3-axis gimbal

Gimbal installation

Non-removable

Controllable Range

Pan: ±160°
Tilt: -60°~32°
Roll: -120°~120°

Mechanical Range

Pan: ±175°
Tilt: ±90°
Roll:-135°~135°

Max Controllable Speed

120°/s

Angle Jitter

±0.003°

Wi-Fi

Standard

Wi-Fi 6

Wi-Fi Operating Frequency

2.4 G/5.8 GHz

Wi-Fi Signal Transmission Range

2.4G 140m , 5.8G 80m

Wi-Fi Protocol

802.11 a/b/g/n/ac/ax

Bluetooth

Bluetooth Protocol

BLE 5.4

Bluetooth Operation Frequency Range

2.400 GHz to 2.4835 GHz

Bluetooth Transmitter Power (EIRP)

< 14 dBm

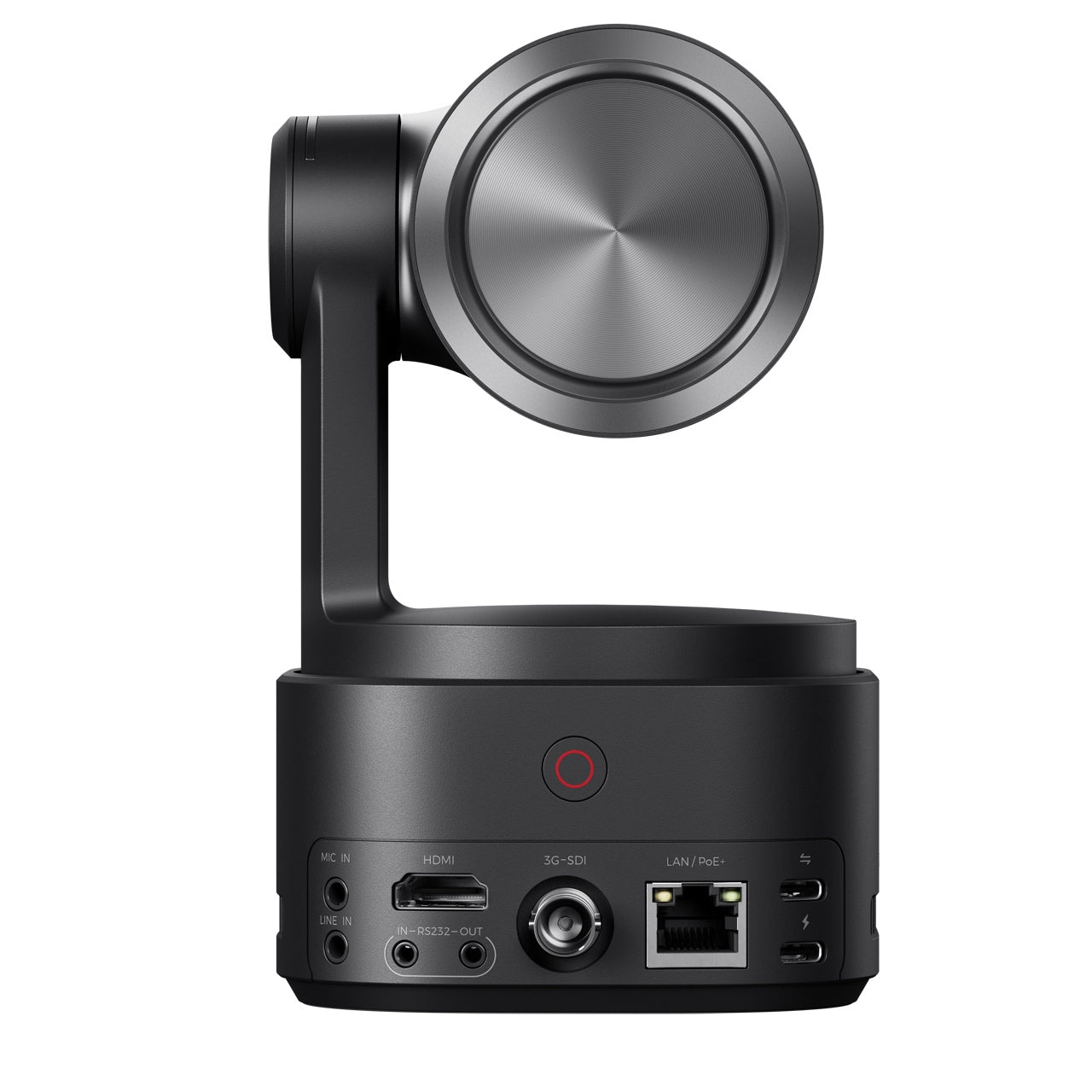

I/O Interface

Power Input

USB-C: Default 5V/2A, supports USB PD3.0 fast charging protocol standard
Maximum input voltage 20V, maximum input current 2A
(Recommended to use a charger that supports USB PD3.0 standard to ensure proper charging)
PoE+: IEEE 802.3 af/at, maximum supported input power 30W

Video Interface

1* HDMI 2.0、1* 3G-SDI、1* USB-C 3.0

Network Interface

1* RJ45 10/100/1000Mbps Ethernet port (with PoE+)

Audio Interface

1* MIC IN 【3.5mm TRS Connector (AUX)】, 1* LINE IN 【3.5mm TRS Connector (AUX)】

Control Interface

1* 2.5mm RS232 input, Protocol: VISCA / Pelco-D / Pelco-P
1* 2.5mm RS232 output, Protocol: VISCA / Pelco-D / Pelco-P
1* USB-C 3.0, Protocol: UVC

Battery

Battery Type

Lithium Polymer(Li-po)

Battery Capacity

5000mAh

Battery Energy

38Wh

Battery Voltage

7.6V

Operating Time

343 minutes
Measured during continuous 1080p/30fps video recording under laboratory conditions, values are for reference only

Charging Time

211 minutes (When powered off)

*Tested under ideal conditions; the value is for reference only. Actual charging time may vary depending on factors such as ambient temperature, battery temperature when powered off, etc.

Auxiliary

Functions

Gesture Control

Auxiliary Software

Obsbot Start
OBSBOT Center
Obsbot Live

Memory card type

MicroSD (Maximum Support: 1TB)

Operating environment

Operating environment

Camera working environment temperature: -10°C-40°C

Battery charging ambient temperature: -10°C-40°C

Battery operating ambient temperature: -10°C-40°C

⚠ Charging will stop when the battery temperature exceeds 45°C.

For example, when connected to an external power supply, if the battery temperature exceeds 45°C, the camera will stop charging and will be powered directly from the external power supply.

Size & Weight

Working State

97.5*103.5*155mm

Off State

97.5*103.5*172mm

Weight

1.066kg
