Key Specification

Number of Analog Input Channels

14 (8 Mono / 5 Stereo)

Number of Mic Preamps

8

Analog Output Channels

2 × Stereo Master Output
2 × Stereo Control Room/Monitor Output
2 × Mono Aux Send Output
1 × Mono FX Send Output
1 × Stereo Headphone Output

Mix Routing

1 × Stereo Main Mix per Mono Input Channel, Stereo Input Channel, Aux Bus/Subgroup

Faders & Level Adjustment

9 × 2.4" / 60 mm Channel Fader
1 × 2.4" / 60 mm FX Fader
2 × 2.4" / 60 mm Bus/Subgroup Fader
1 × 2.4" / 60 mm Master Fader

Meters

Main Meter: 2 × 12-Segment LED

Input Pad

No

Input Polarity

No

Dynamic Processing

No

EQ

3-Band Semi-Parametric (Mono Channels)
3-Band Shelving/Notch/Peak (Stereo Channels)

EQ Parameters

Mono Channels:
High: ±15 dB at 12 kHz
Mid: ±15 dB at 100 Hz to 8 kHz
Low: ±15 dB at 80 Hz

Stereo Channels:
High: ±15 dB at 12 kHz
Mid: ±15 dB at 2.5 kHz
Low: ±15 dB at 80 Hz

Graphic EQ

No

Filters

1 × High-Pass Filter (100 Hz) per Input Channel

Solo / Mute

Solo per Input Channel
Mute per Input, Bus, FX Bus, Master

Built-In Effects

Yes

Sample Rates

96 kHz

Bit Depth

24-Bit

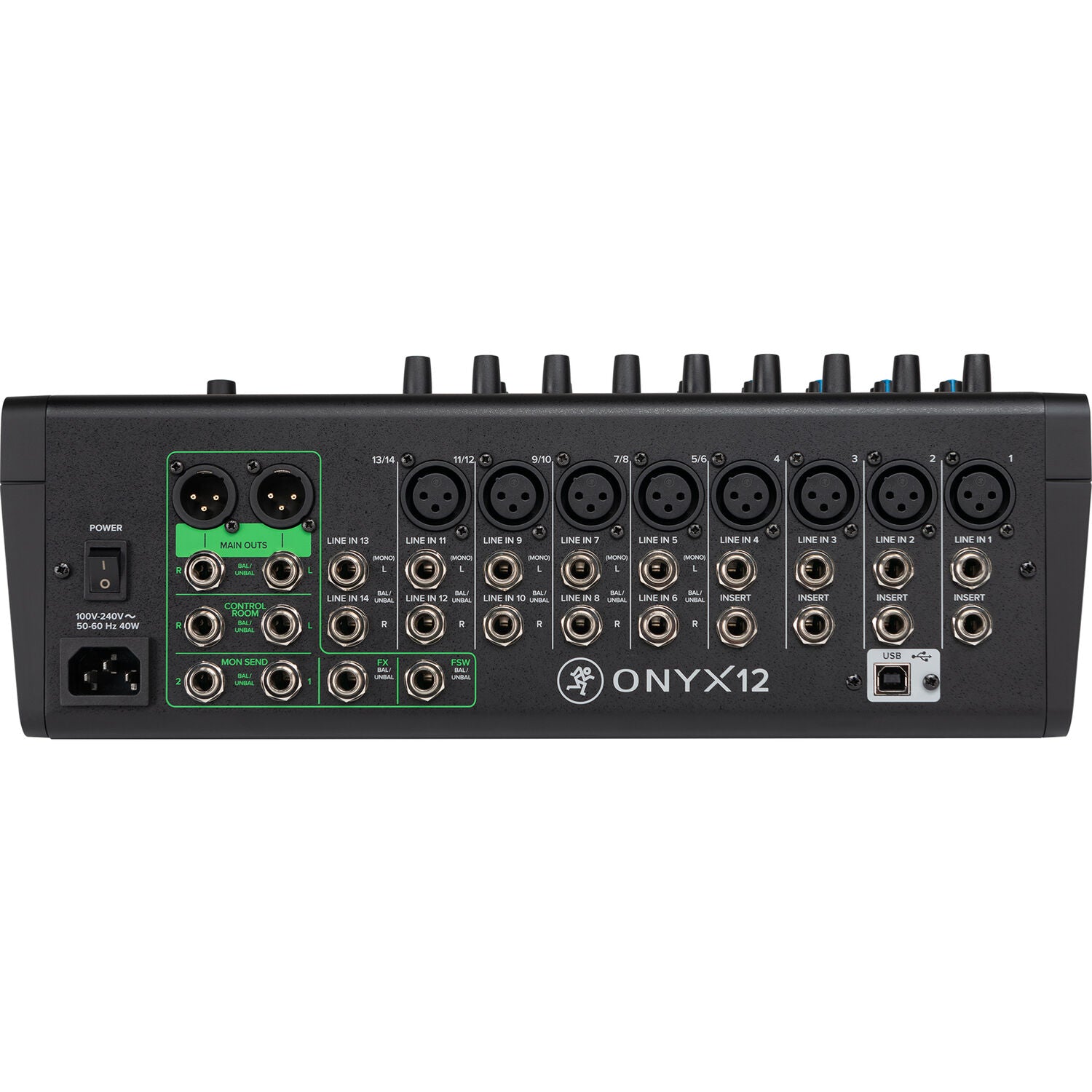

Analog Inputs

8 × XLR Mic Input (Balanced)
4 × 1/4" TRS Line Input (Balanced/Unbalanced)
4 × 1/4" TRS Line Insert (Unbalanced)
2 × 1/4" TRS Hi-Z Input (Balanced/Unbalanced)
10 × 1/4" TRS Stereo Line Input (4 Stereo Pairs)
1 × 1/4" TRS Footswitch Input

Analog Outputs

2 × XLR Stereo Main Output (1 Pair)
2 × 1/4" TRS Stereo Main Output (1 Pair)
2 × 1/4" TRS Stereo Monitor Output (1 Pair)
2 × 1/4" TRS Mono Aux/Monitor Output
1 × 1/4" TRS FX Send

Phantom Power

+48 V (Applied to All Inputs)

Digital I/O

No

MIDI I/O

No

USB I/O

1 × USB-B (Audio Playback, Host Connection, Recording)

Wireless

Bluetooth

Max Multitrack Recording

14 Tracks

Media Support

SD

AC Input Power

100 to 240 VAC, 50 / 60 Hz

Rack Mountable

No

Dimensions

14 × 14.8 × 4.5" / 355.6 × 375.9 × 114.3 mm

Weight

12.7 lb / 5.8 kg

Package Weight

17.26 lb

Box Dimensions (L × W × H)

20 × 19 × 9.5"
