Key Specification

Number of Analog Input Channels

18 (8 Mono / 5 Stereo)

Number of Mic Preamps

12

Analog Output Channels

2 × Stereo Master Output
2 × Stereo Control Room/Monitor Output
2 × Mono Aux Send Output
1 × Mono FX Send Output
1 × Stereo Headphone Output

Mix Routing

1 × Stereo Main Mix per Mono Input Channel, Stereo Input Channel, Aux Bus/Subgroup

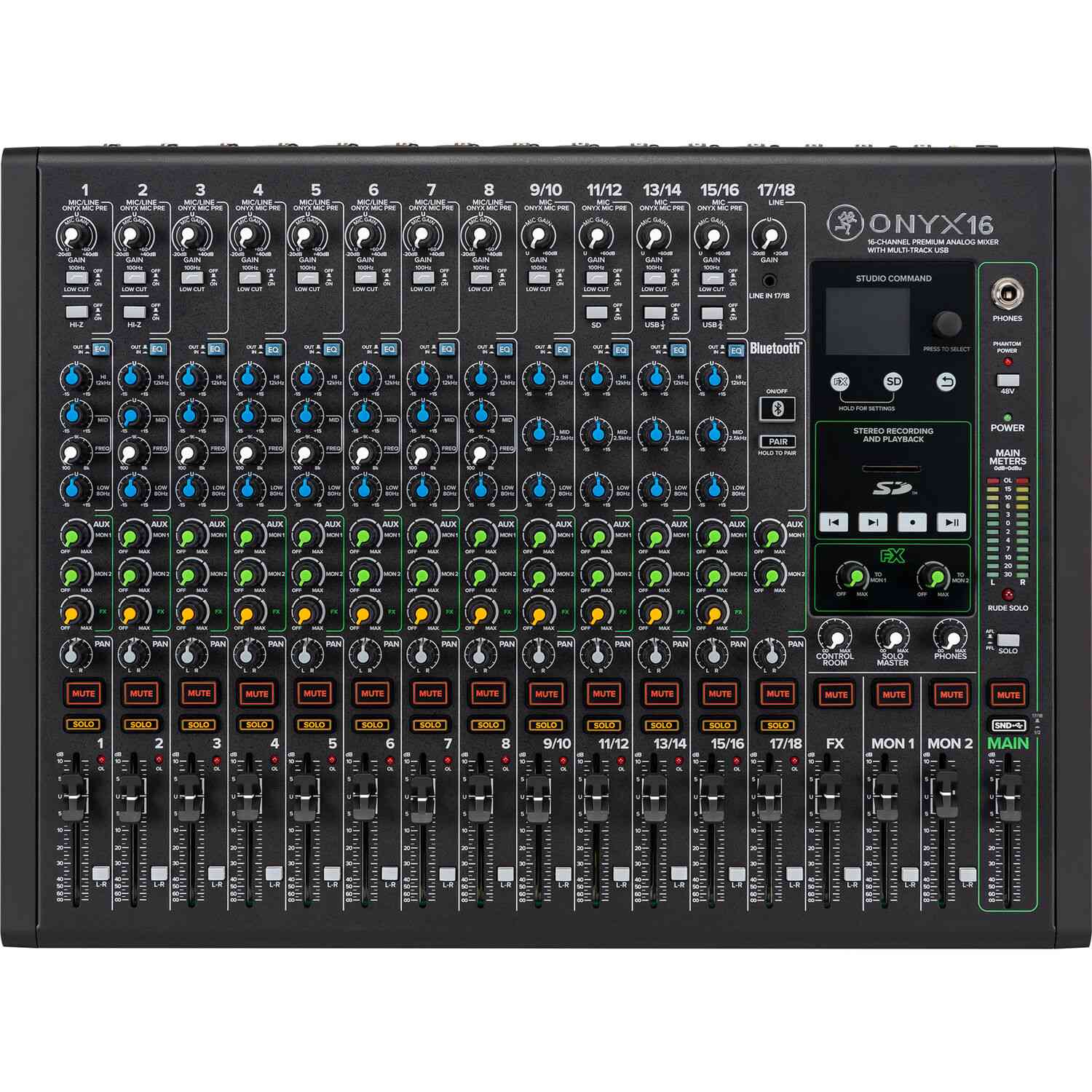

Faders & Level Adjustment

13 × 2.4" / 60 mm Channel Fader
1 × 2.4" / 60 mm FX Fader
2 × 2.4" / 60 mm Bus/Subgroup Fader
1 × 2.4" / 60 mm Master Fader

Meters

Main Meter: 2 × 12-Segment LED

Gain/Trim Range

+60 dB

Dynamic Processing

No

EQ

3-Band Semi-Parametric (Mono Channels)
3-Band Shelving/Notch/Peak (Stereo Channels)

EQ Parameters

Mono Channels:
High: ±15 dB at 12 kHz
Mid: ±15 dB at 100 Hz to 8 kHz
Low: ±15 dB at 80 Hz

Stereo Channels:
High: ±15 dB at 12 kHz
Mid: ±15 dB at 2.5 kHz
Low: ±15 dB at 80 Hz

Filters

1 × High-Pass Filter (100 Hz) per Input Channel

Solo / Mute

Solo per Input Channel
Mute per Input, Bus, FX Bus, Master

Built-In Effects

Yes

Sample Rates

96 kHz

Bit Depth

24-Bit

Analog Inputs

12 × XLR Mic Input (Balanced)
8 × 1/4" TRS Line Input (Balanced/Unbalanced)
4 × 1/4" TRS Line Insert (Unbalanced)
2 × 1/4" TRS Hi-Z Input (Balanced/Unbalanced)
10 × 1/4" TRS Stereo Line Input (4 Stereo Pairs)
1 × 1/4" TRS Footswitch Input

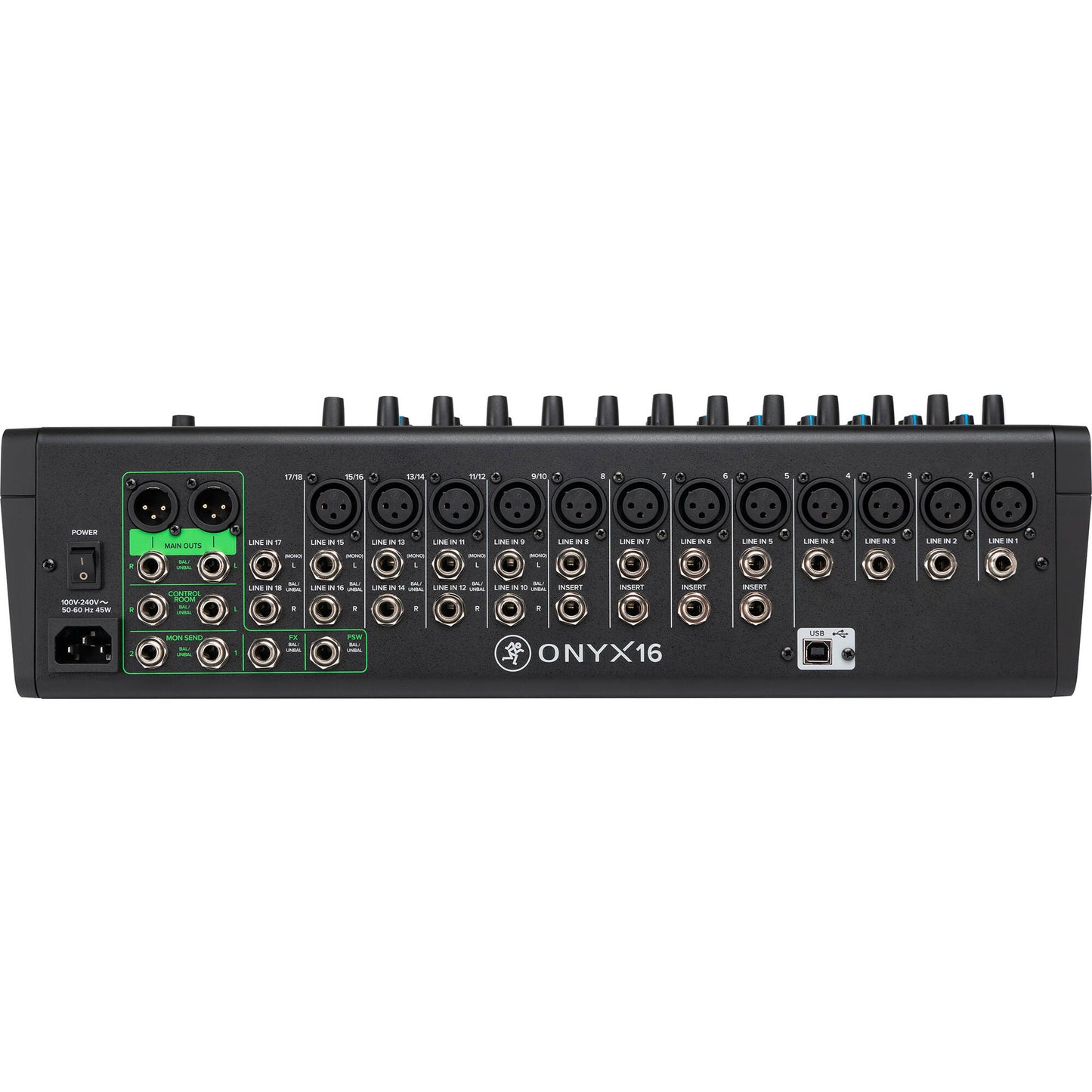

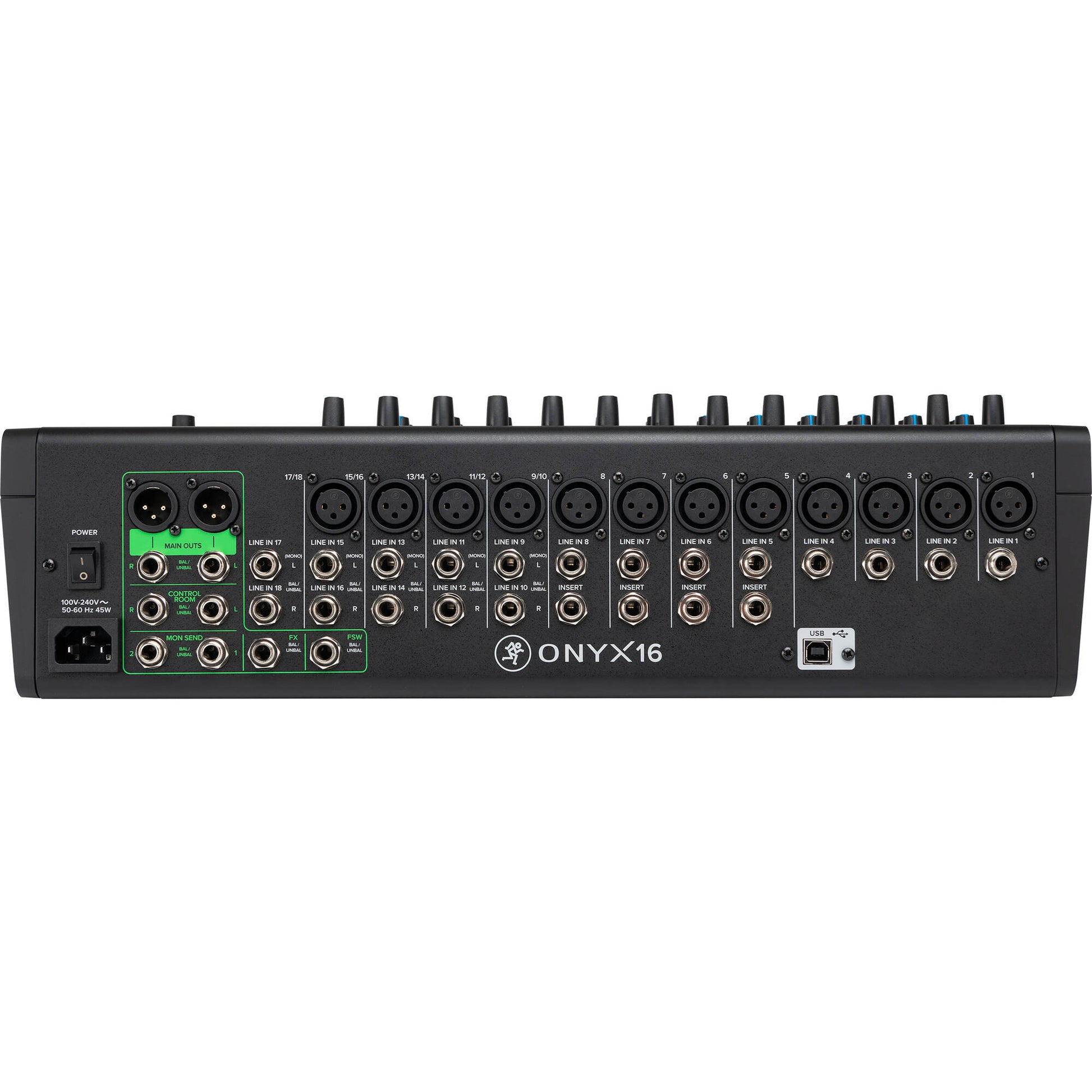

Analog Outputs

2 × XLR Stereo Main Output (1 Pair)
2 × 1/4" TRS Stereo Main Output (1 Pair)
2 × 1/4" TRS Stereo Monitor Output (1 Pair)
2 × 1/4" TRS Mono Aux/Monitor Output
1 × 1/4" TRS FX Send

Phantom Power

+48 V (Applied to All Inputs)

Digital I/O

No

Wireless

Bluetooth

Max Multitrack Recording

18 Tracks

Media Support

SD

AC Input Power

100 to 240 VAC, 50 / 60 Hz

Rack Mountable

Yes (8U)

Dimensions

18.7 × 14 × 4.5" / 475 × 355.6 × 114.3 mm

Weight

15.2 lb / 6.9 kg

Package Weight

20.28 lb

Box Dimensions (L × W × H)

22.8 × 17.3 × 7.6"
