Key Specification

Number of Analog Input Channels

24 (14 Mono / 5 Stereo)

Number of Mic Preamps

18

Analog Output Channels

2 × Stereo Master Output
2 × Stereo Control Room/Monitor Output
2 × Mono Aux Send Output
1 × Mono FX Send Output
1 × Stereo Headphone Output

Mix Routing

1 × Stereo Main Mix per Mono Input Channel, Stereo Input Channel, Aux Bus/Subgroup

Faders & Level Adjustment

19 × 2.4" / 60 mm Channel Fader
1 × 2.4" / 60 mm FX Fader
2 × 2.4" / 60 mm Bus/Subgroup Fader
1 × 2.4" / 60 mm Master Fader

Meters

Main Meter: 2 × 12-Segment LED

Meter Range

-30 dB to +20 dB Peak/Clip

Gain/Trim Range

+60 dB

Input Pad

No

Input Polarity

No

Dynamic Processing

No

Sidechain Filters

No

EQ

3-Band Semi-Parametric (Mono Channels)
3-Band Shelving/Notch/Peak (Stereo Channels)

EQ Parameters

Mono Channels:
High: ±15 dB at 12 kHz
Mid: ±15 dB at 100 Hz to 8 kHz
Low: ±15 dB at 80 Hz

Stereo Channels:
High: ±15 dB at 12 kHz
Mid: ±15 dB at 2.5 kHz
Low: ±15 dB at 80 Hz

Graphic EQ

Yes

Filters

1 × High-Pass Filter (100 Hz) per Input Channel

Solo / Mute

Solo per Input Channel
Mute per Input, Bus, FX Bus, Master

Built-In Effects

No

Sample Rates

96 kHz

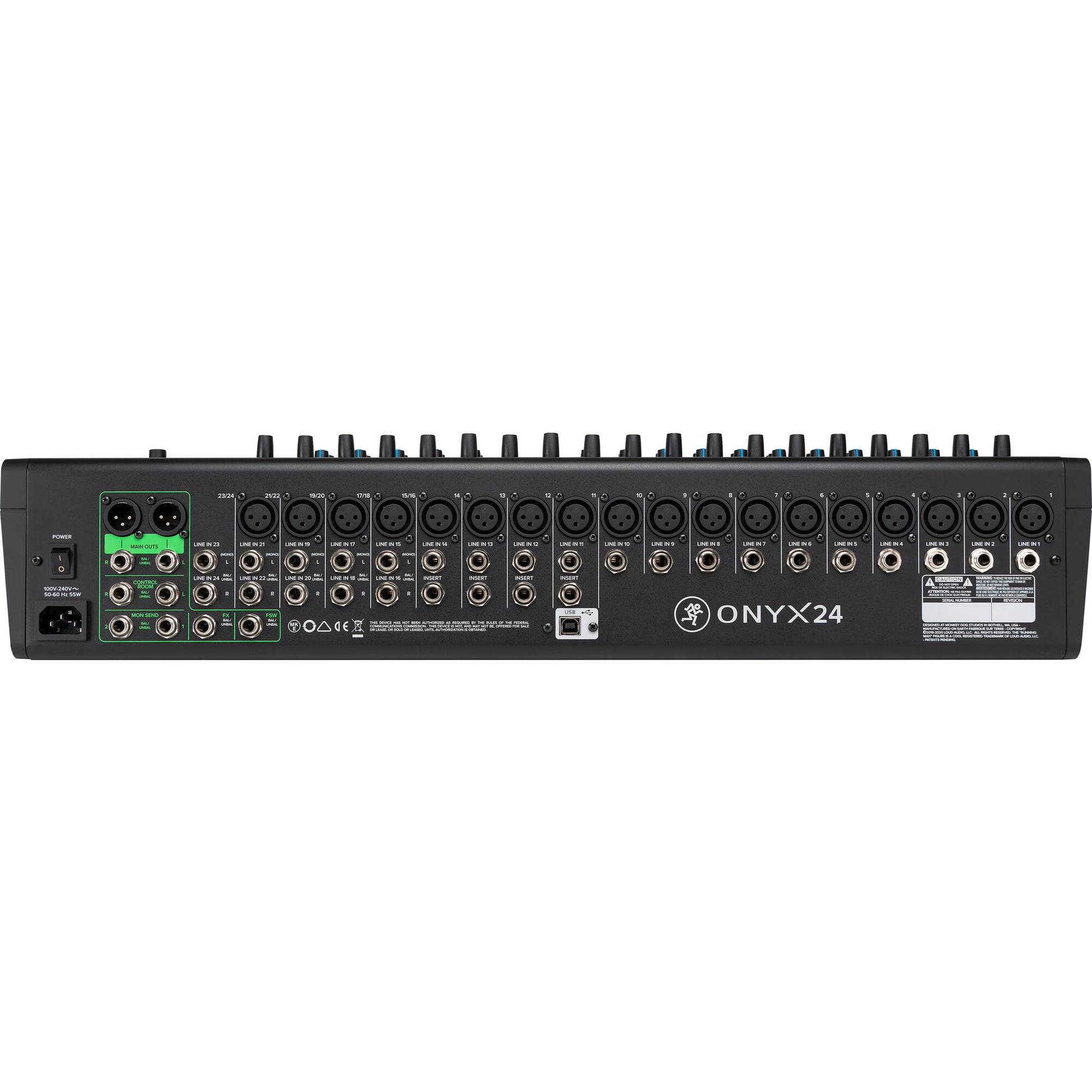

Analog Inputs

18 × XLR Mic Input (Balanced)
14 × 1/4" TRS Line Input (Balanced/Unbalanced)
4 × 1/4" TRS Line Insert (Unbalanced)
2 × 1/4" TRS Hi-Z Input (Balanced/Unbalanced)
10 × 1/4" TRS Stereo Line Input (4 Stereo Pairs)
1 × 1/4" TRS Footswitch Input

Analog Outputs

2 × XLR Stereo Main Output (1 Pair)
2 × 1/4" TRS Stereo Main Output (1 Pair)
2 × 1/4" TRS Stereo Monitor Output (1 Pair)
2 × 1/4" TRS Mono Aux/Monitor Output
1 × 1/4" TRS FX Send

Phantom Power

+48 V (Applied to All Inputs)

Digital I/O

No

MIDI I/O

No

USB I/O

1 × USB-B (Audio Playback, Host Connection, Recording)

Wireless

No

Max Multitrack Recording

24 Tracks

Media Support

SD

AC Power I/O

1 × IEC Input

Power Consumption

55 W

Rack Mountable

No

Dimensions

25.2 × 5.4 × 14" / 64 × 13.7 × 35.6 cm

Weight

20.3 lb / 9.2 kg

Package Weight

24.96 lb

Box Dimensions (L × W × H)

28.1 × 16.9 × 10"
