Key Specification

Number of Analog Input Channels

8 (4 Mono / 3 Stereo)

Number of Mic Preamps

4

Analog Output Channels

2 × Stereo Master Output
2 × Stereo Control Room/Monitor Output
1 × Mono Aux Send Output
1 × Mono FX Send Output
1 × Stereo Headphone Output

Mix Routing

1 × Stereo Main Mix per Mono Channel, Stereo Channel, Aux Bus/Subgroup

EQ

3-Band Semi-Parametric (Mono Channels)
3-Band Shelving/Notch/Peak (Stereo Channels)

Built-In Effects

Yes

USB I/O

1 × USB-B (Playback, Host Connection, Recording)

Wireless

Bluetooth

Max Multitrack Recording

8 Tracks

Rack Mountable

No

Max I/O Capacity

8 Input / 4 Output

Faders & Level Adjustment

No

Meters

Main Meter: 2 × 12-Segment LED

Gain/Trim Range

60 dB

Dynamic Processing

No

EQ Parameters

Mono Channels:
High: ±15 dB at 12 kHz
Mid: ±15 dB at 100 Hz to 5 kHz
Low: ±15 dB at 80 Hz

Stereo Channels:
High: ±15 dB at 12 kHz
Mid: ±15 dB at 2.5 kHz
Low: ±15 dB at 80 Hz

Filters

1 × High-Pass Filter (100 Hz) per Input Channel

Solo / Mute

Solo per Input Channel
Mute per Input, Bus, FX Bus, Master

Sample Rates

96 kHz

Bit Depth

24-Bit

Analog Inputs

2 × Combo XLR-1/4" TRS Mic/Line
2 × XLR Mic Input
6 × 1/4" TRS Line Input
2 × 1/4" TRS Line Insert
2 × 1/4" TRS Hi-Z Input
6 × 1/4" TRS Stereo Line Input (3 Pairs)
1 × 1/4" TRS Footswitch Input

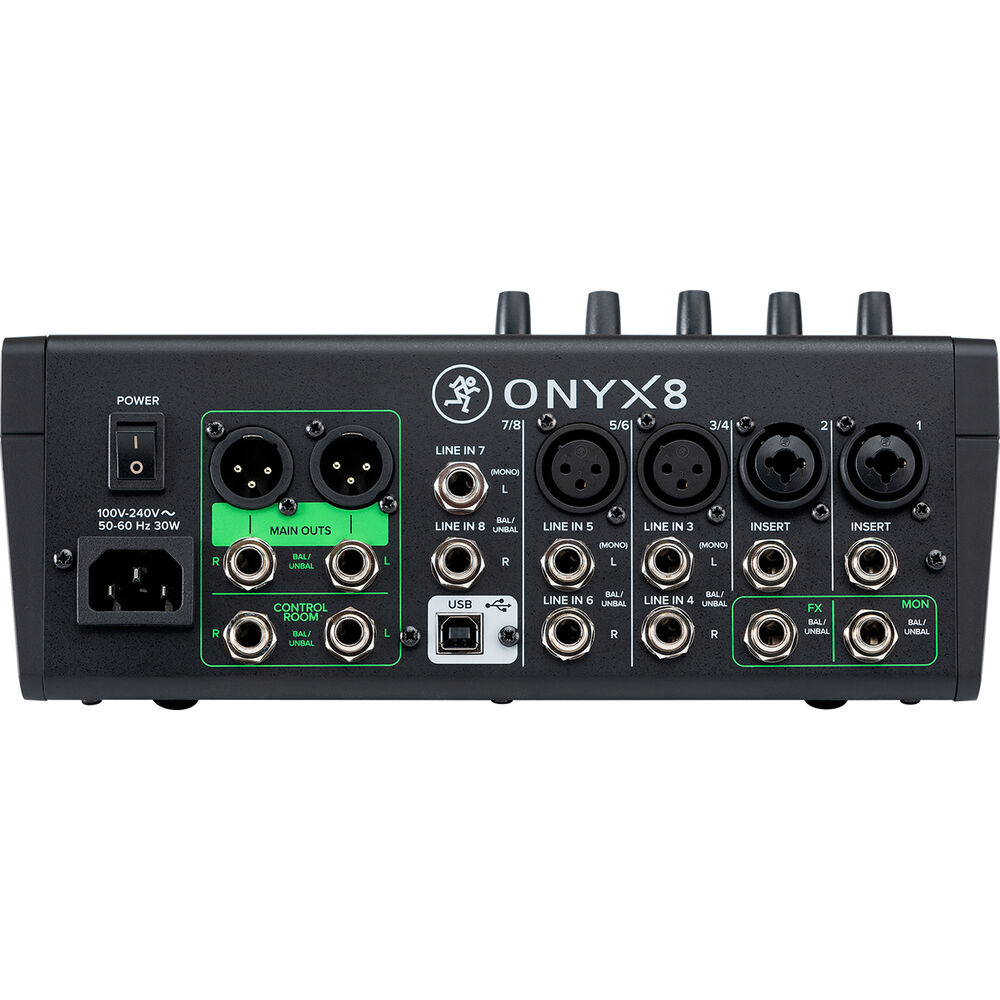

Analog Outputs

2 × XLR Stereo Main Output (1 Pair)
2 × 1/4" TRS Stereo Main Output (1 Pair)
2 × 1/4" TRS Stereo Control Room Output (1 Pair)
1 × 1/4" TRS Mono Aux/Monitor Output
1 × 1/4" TRS FX Send

Phantom Power

+48 V (on 4 Channels)

Digital I/O

No

MIDI I/O

No

Recording Media Support

SD

OS Compatibility

Windows / macOS

AC Input Power

100 to 240 VAC, 50 / 60 Hz

Dimensions

10.5 × 11 × 4.5" / 26.7 × 27.9 × 11.4 cm

Weight

7 lb / 3.2 kg

Package Weight

9.745 lb

Box Dimensions (L × W × H)

15.1 × 14.9 × 7.5"
