Key Specifications

Frequency Response

80 Hz to 20 kHz

Maximum SPL

121 dB @ 1 m

Coverage Angle

90° (Horizontal) x 60° (Vertical)

Directivity

Index Q: 11

Sensitivity

95 dB

Impedance

16 Ω

Power Handling

100 W

Peak Power Output

400 W

Recommended Amplifier Power

200 W

Protection

Dynamic protection on compression driver

Crossover Frequency

2200 Hz

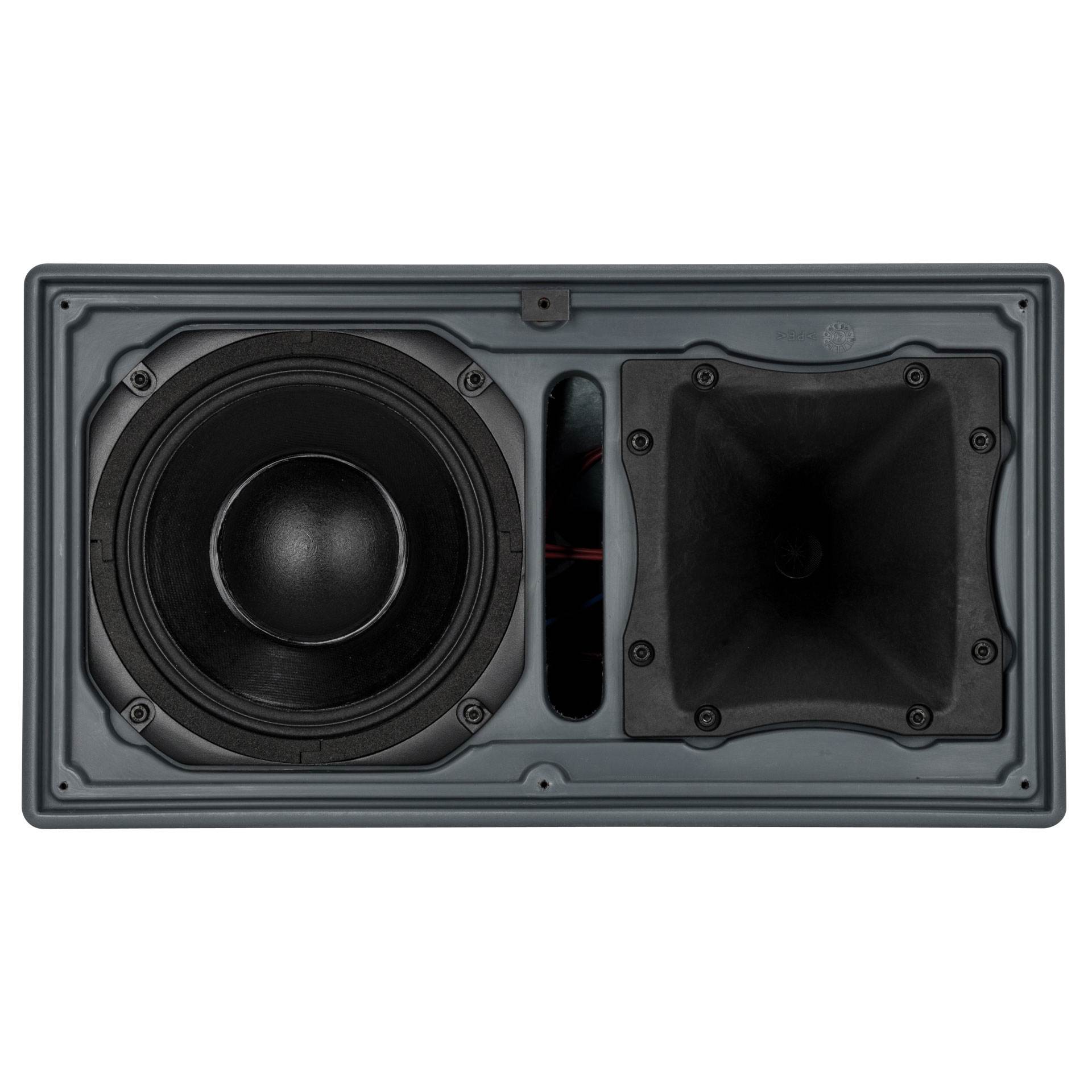

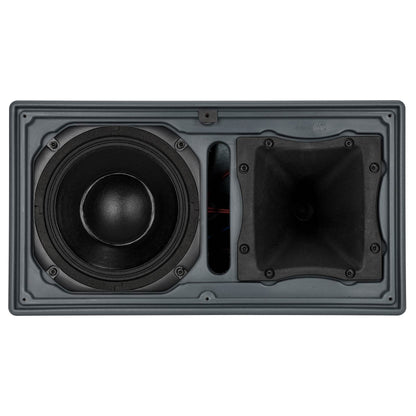

Transducers

High-Frequency Driver

1.0" (25.4 mm) throat, 1.5" (38.1 mm) coil diaphragm assembly

Woofer

8.0" (203.2 mm) woofer, 1.5" (38.1 mm) voice coil

Impedance

Compression Driver: 8 Ω
Woofer: 16 Ω

Input Power (AES)

Compression Driver: 20 W
Woofer: 100 W

Sensitivity

Compression Driver: 107 dB
Woofer: 94 dB

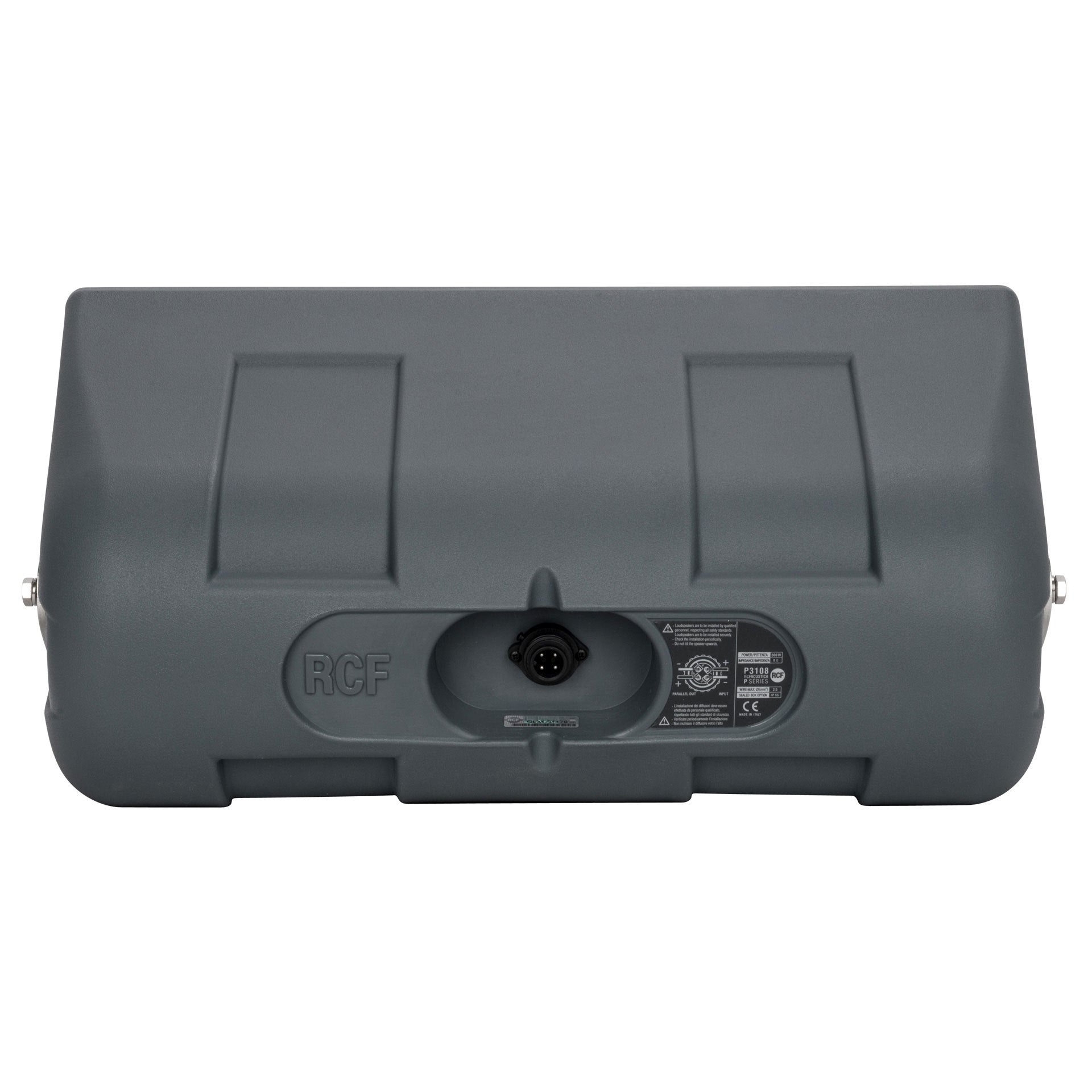

Input

Input Connector

4 x 0.05" (1.5 mm) square, 6.56' (2 m) Neoprene cable

Voltage

Constant Voltage Transformer: 70 / 100 V

Power Selection

70 V: 30 W, 15 W
100 V: 60 W, 30 W

Cabinet / Accessories

Material

0.31" (8 mm) Polyethylene roto-molded

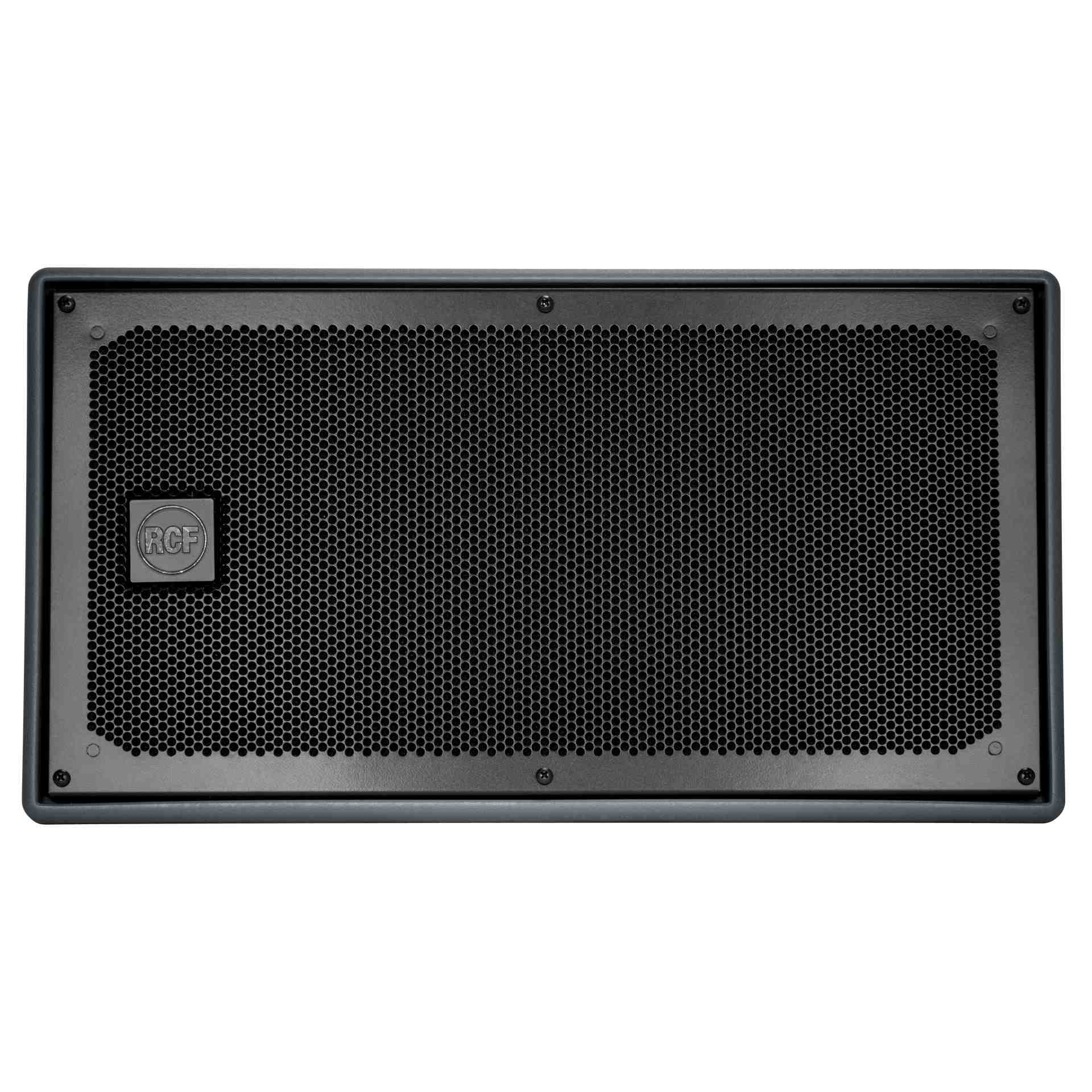

Grille

Custom perforated aluminum grille with open-cell fiber and water-repellent woven fabric backing

Dimensions (W × H × D)

10.47 x 19.4 x 9.84" / 266 x 493 x 250 mm

Weight

27.55 lb / 12.5 kg
