Key Specifications

Model

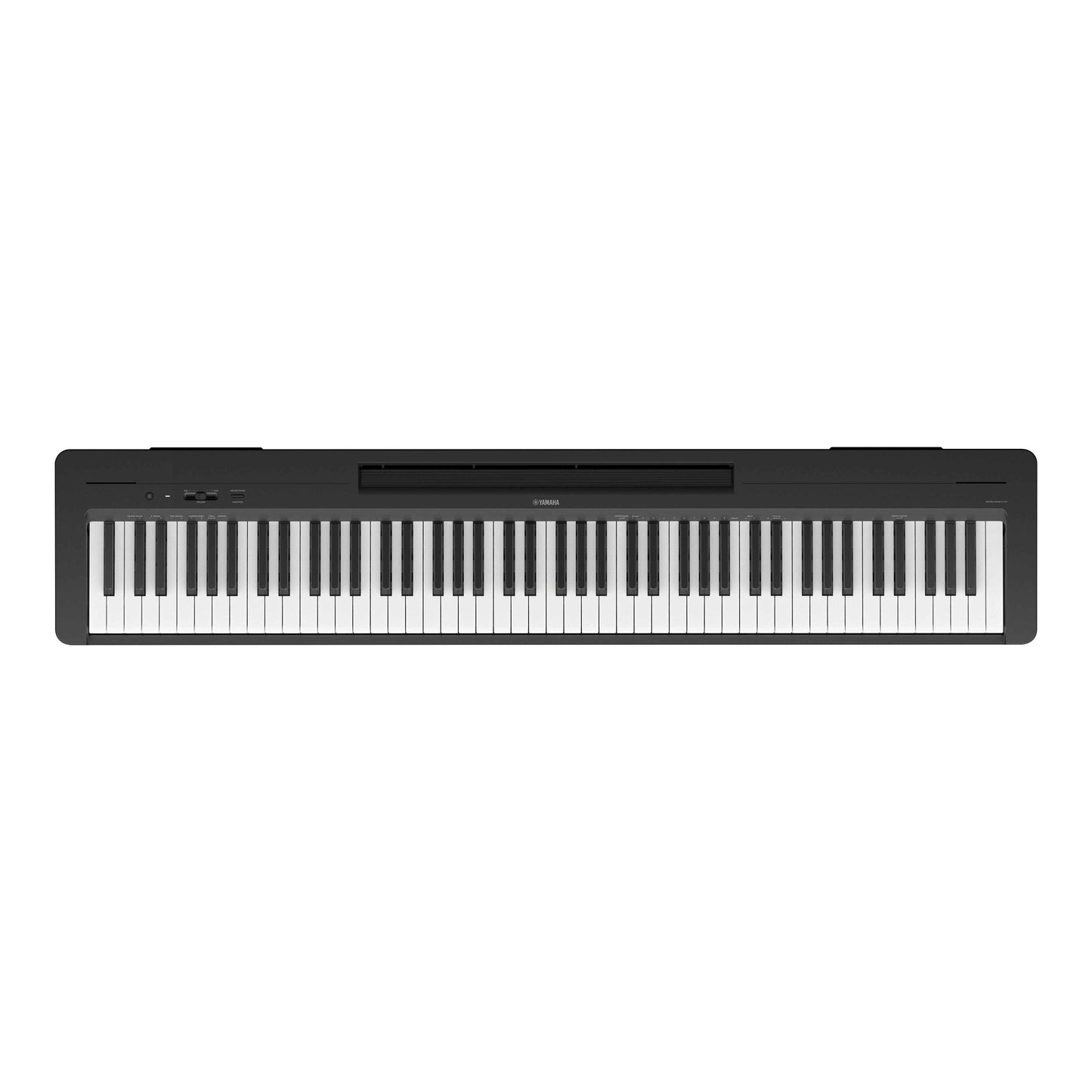

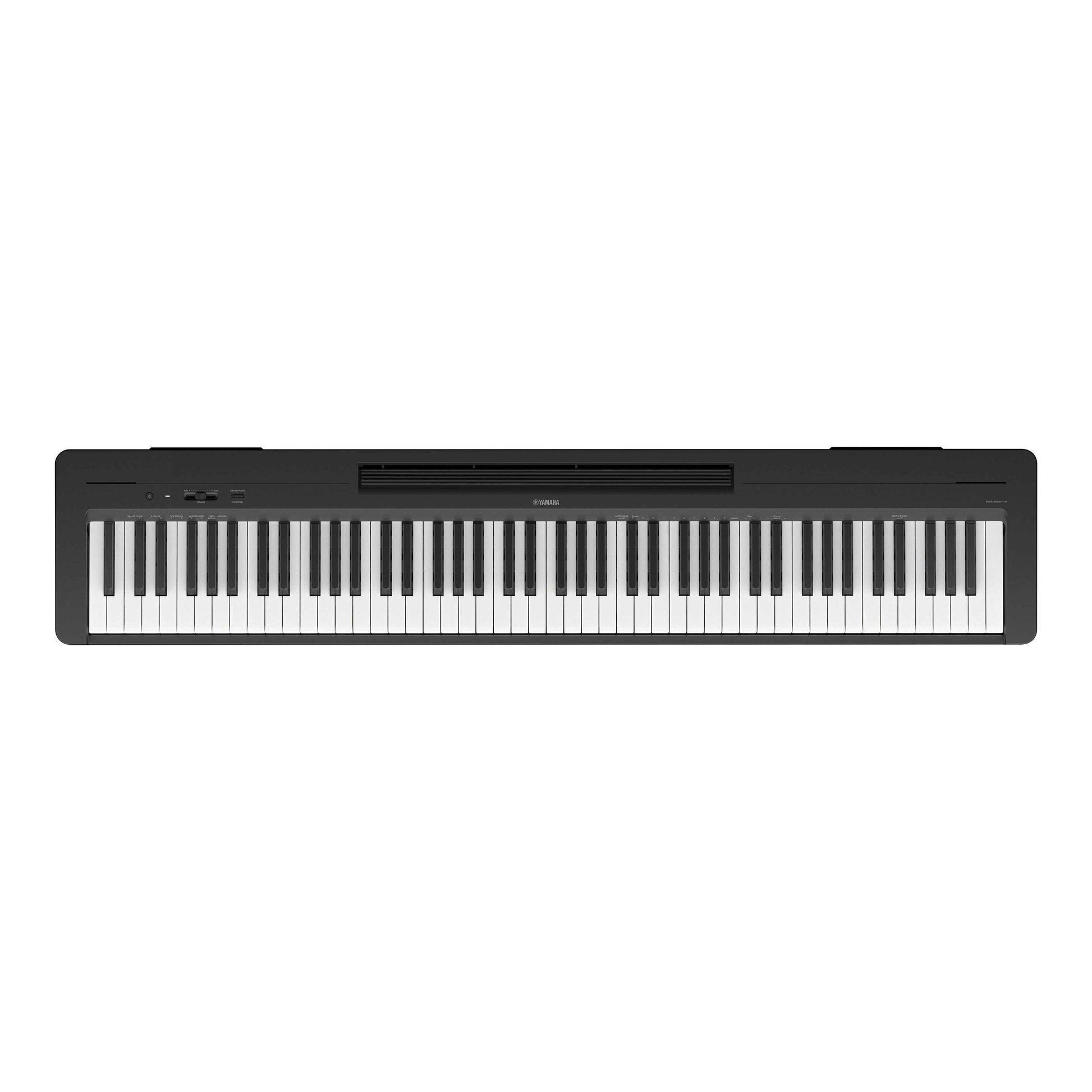

P-143

Size & Weight

Dimensions

Width: 1,326 mm (52-3/16")
Height: 129 mm (5-1/16")
Depth: 268 mm (10-9/16")

Dimensions with Music Rest

Height: 307 mm (12-1/16")
Depth: 320 mm (12-5/8")

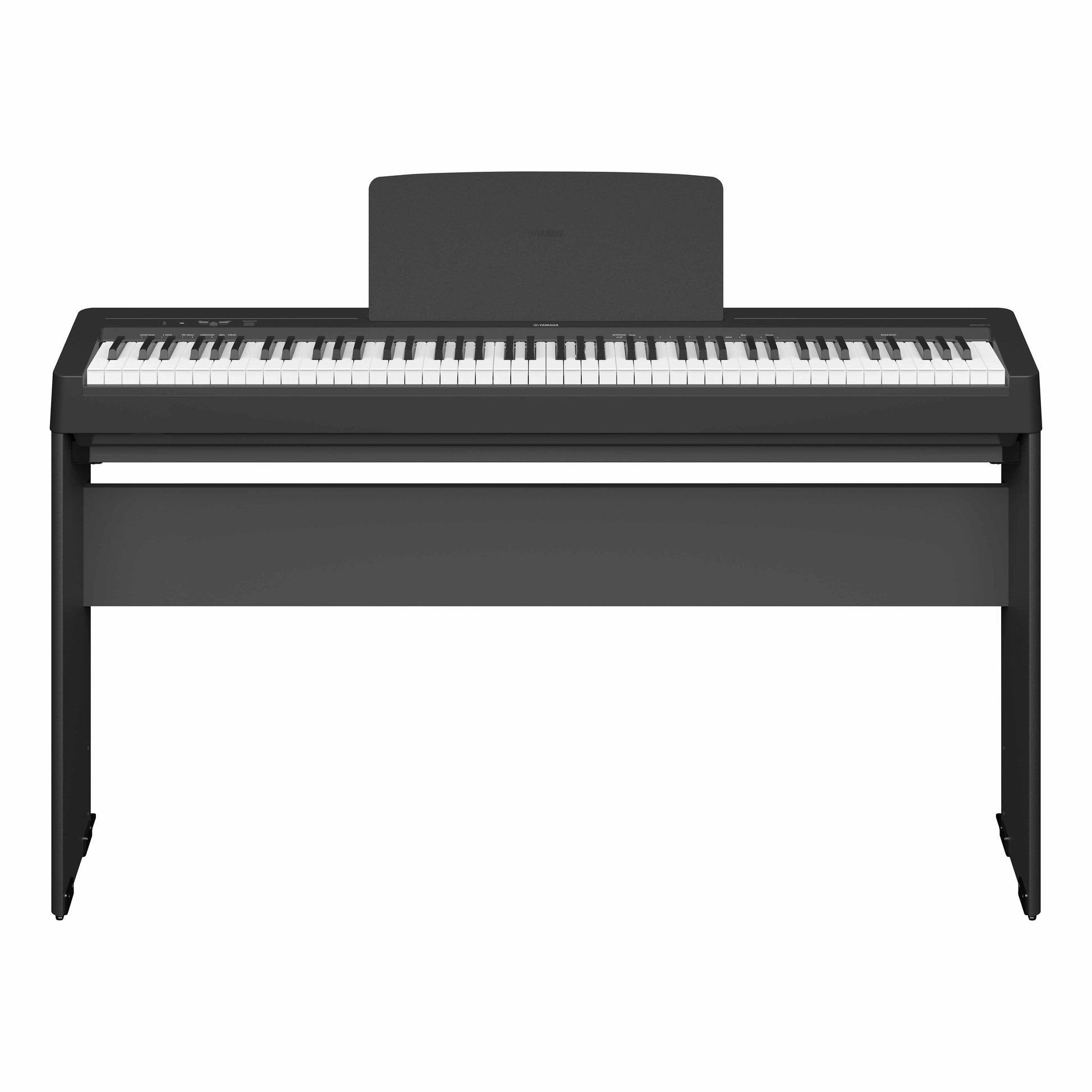

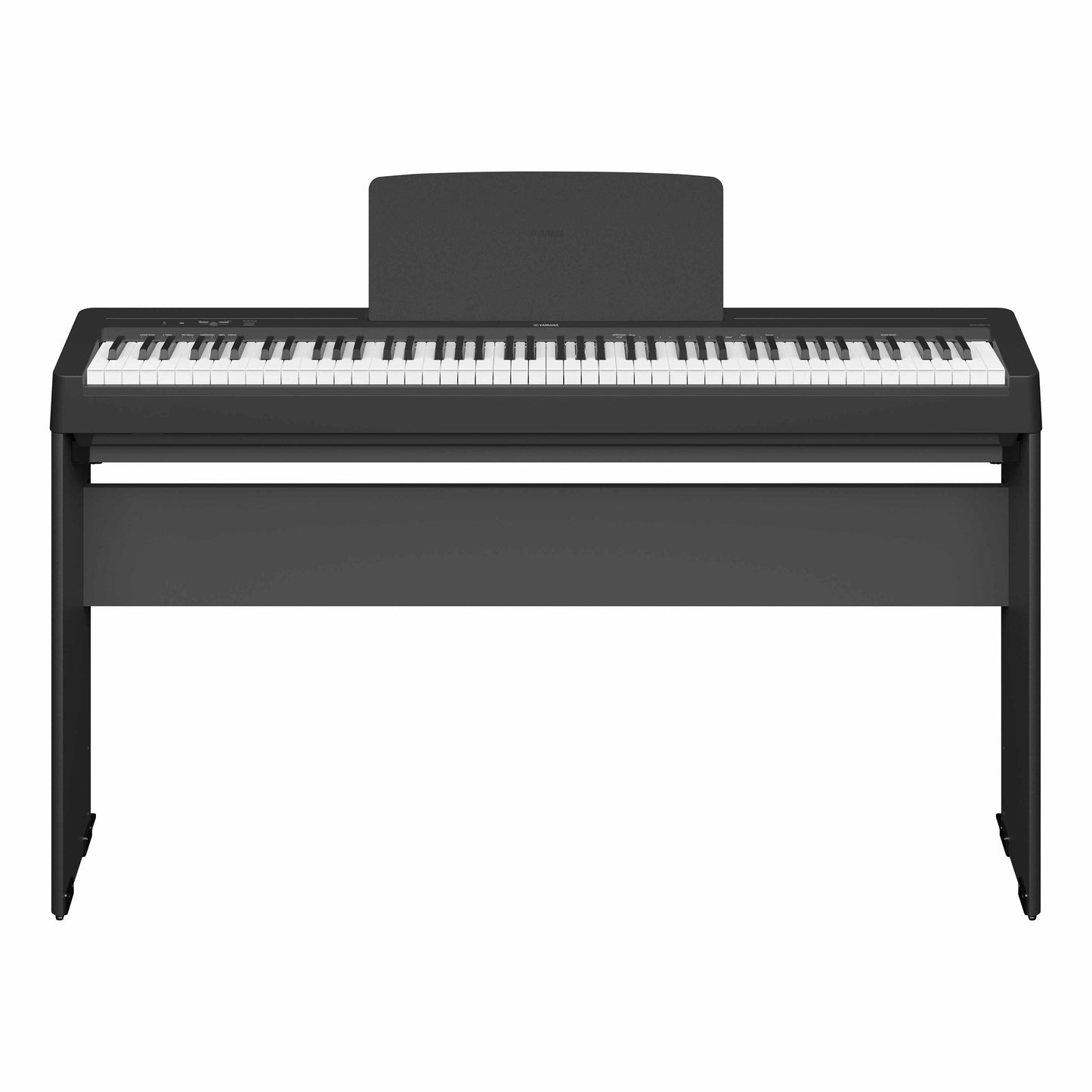

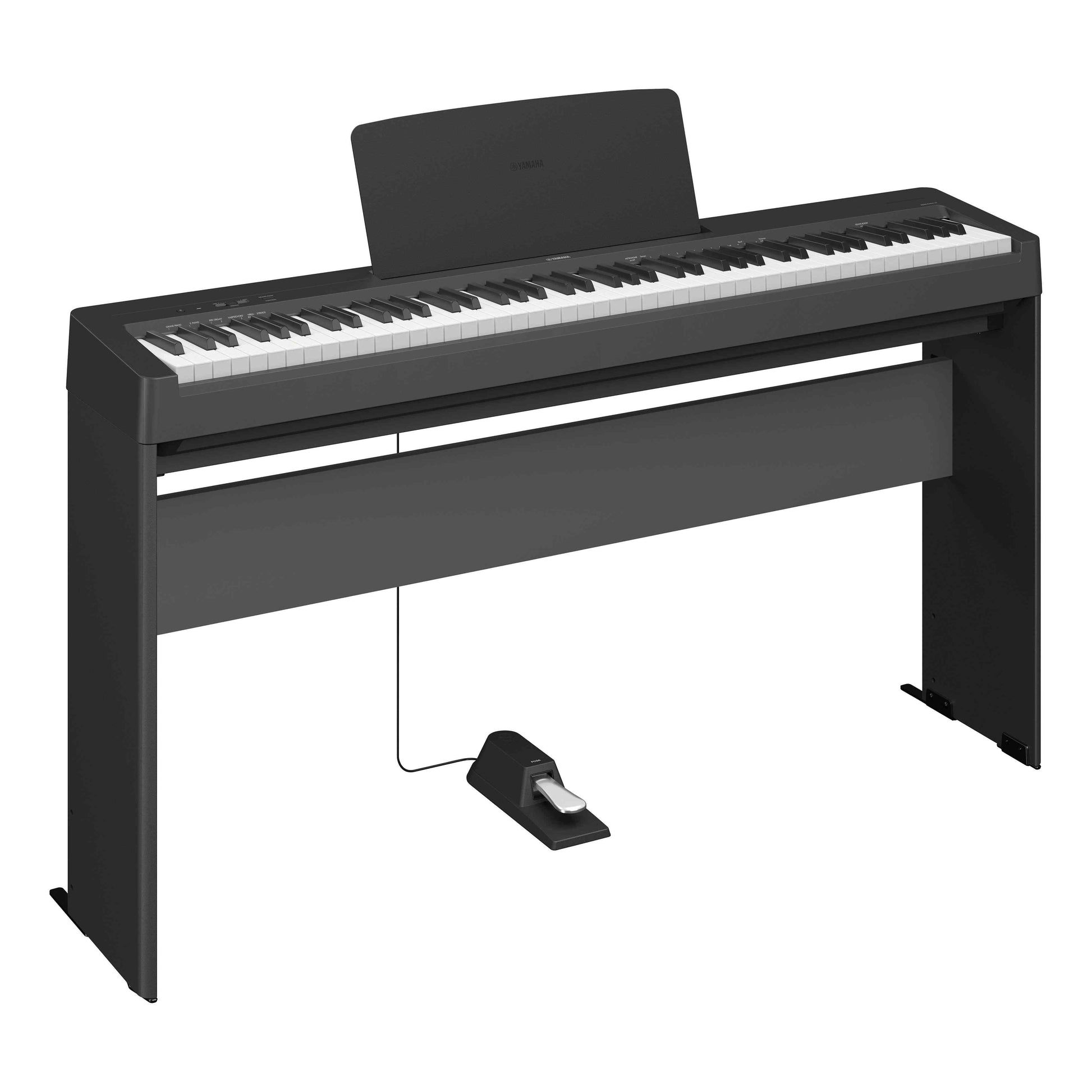

Dimensions with Optional Stand

Width: 1,326 mm (52-3/16")
Height: 744 mm (29-5/16")
Height with Music Rest: 922 mm (36-5/16")
Depth: 318 mm (12-1/2")

Weight

11.1 kg (24 lb, 8 oz)

Packing Box Dimensions

1,424 × 223 × 362 mm (56-1/16" × 8-3/4" × 14-1/4")

Control Interface

Keyboard

88-key GHC keyboard with matte black keytops

Touch Sensitivity

Hard / Medium / Soft / Fixed

Panel Language

English

Voices

Piano Sound

Yamaha CFIIIS

Damper Resonance

Yes

Polyphony

64-note max

Number of Voices

10

Effects & Functions

Reverb

4 types

Sound Boost

1 type

Dual / Layers

Yes

Duo Mode

Yes

Metronome

Yes

Tempo Range

32 – 280

Transpose

-6 – 0 – +6

Tuning

414.8 – 440.0 – 466.8 Hz

USB Audio Interface

44.1 kHz, 16-bit, Stereo

Songs

Preset Songs

10 Voice Demo Songs + 10 Piano Preset Songs

Connectivity

Headphones

1 x Standard Stereo Phone Jack

USB TO HOST

Yes

DC IN

12 V

Sustain Pedal

Yes

Pedal Unit

-

Amplifiers & Speakers

Amplifiers

7 W × 2

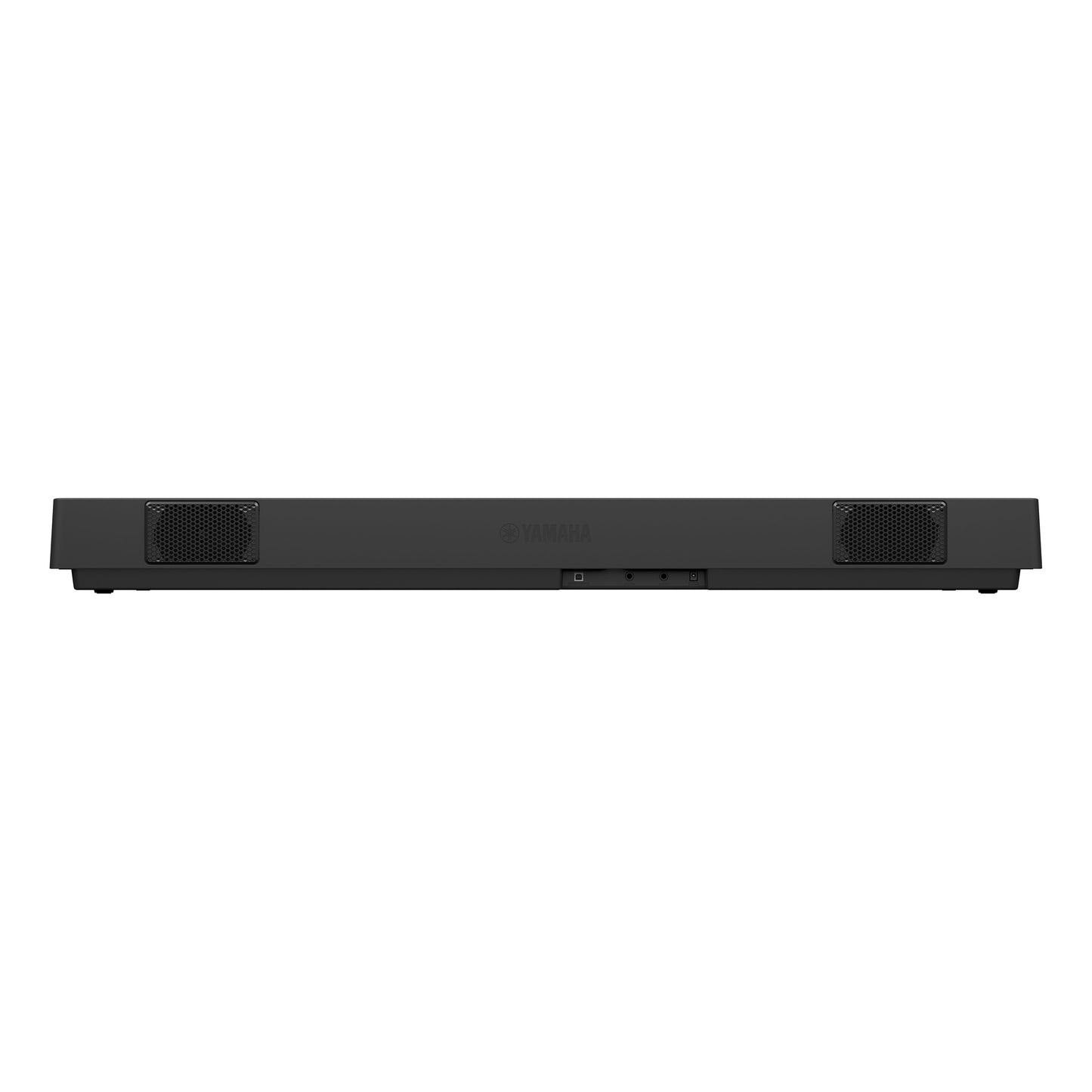

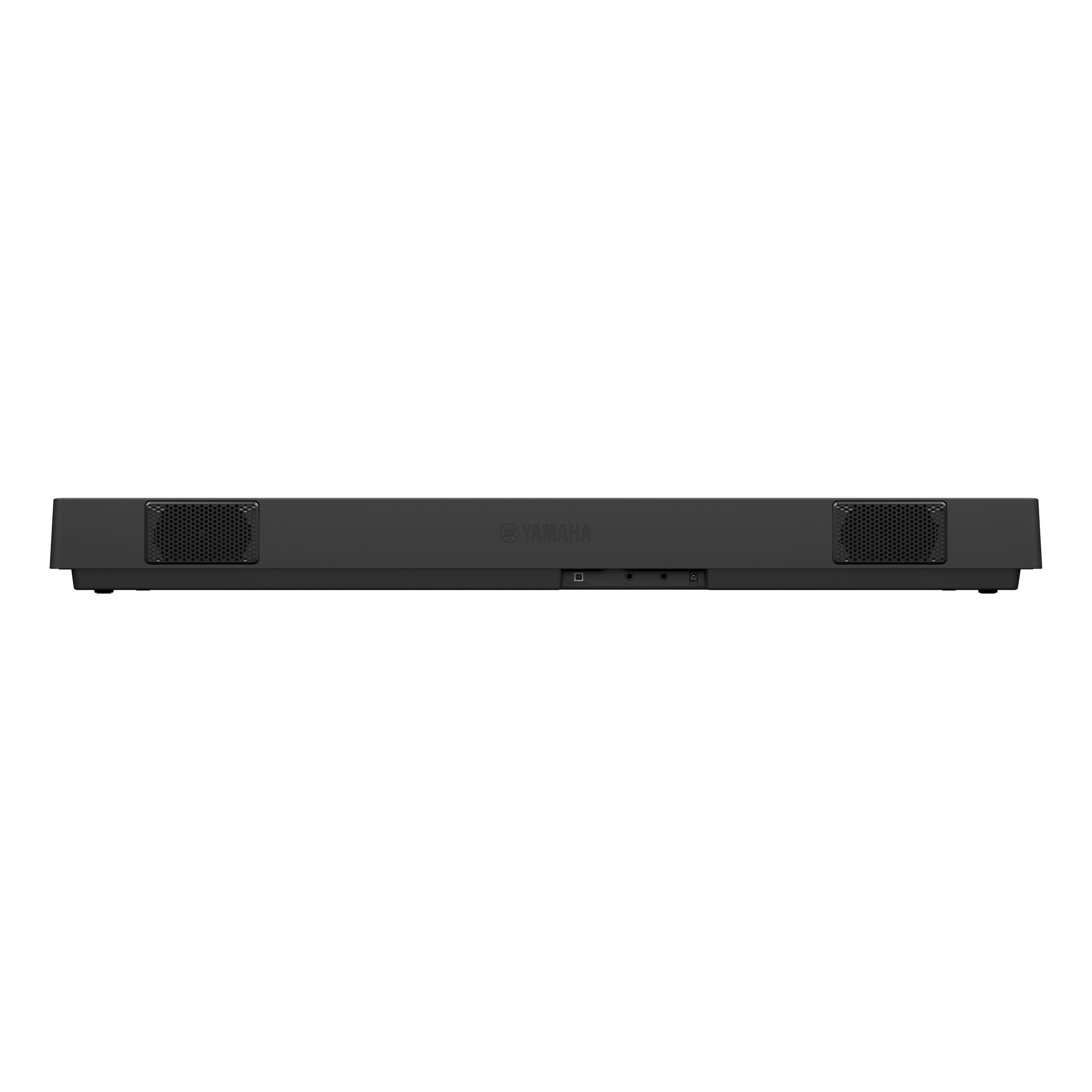

Speakers

Oval (12 cm × 8 cm) × 2

Power Supply

AC Adaptor

PA-150B or equivalent recommended by Yamaha

Power Consumption

6 W

Included Accessories

Accessories

Owner’s Manual
Online Member Product Registration
Music Rest
Footswitch
AC Adaptor (PA-150B or equivalent)

Optional Accessories

Separately Sold Accessories

Headphones (HPH-150, HPH-100, HPH-50)
Keyboard Stand (L-100)
Foot Pedal (FC3A)
Footswitches (FC4A, FC5)
Keyboard Bag (SC-KB851)
Wireless MIDI Adaptor (UD-BT01)
