Key Specifications

Maximum Current

30 Amps

Voltage

120 VAC (±4%)

In Regulation Range

Low: 88–133 VAC @ 50 / 60 Hz
High: 170–265 VAC @ 50 / 60 Hz

Circuit Protection

Spike Protection Modes: Line to Neutral, Zero Ground Leakage
Spike Clamping Voltage: 191 V peak @ 3,000 A
Response Time: 1 nanosecond
Maximum Surge Current: 6,500 A

Noise Attenuation

10 dB @ 10 kHz, 40 dB @ 100 kHz, 55 dB @ 500 kHz

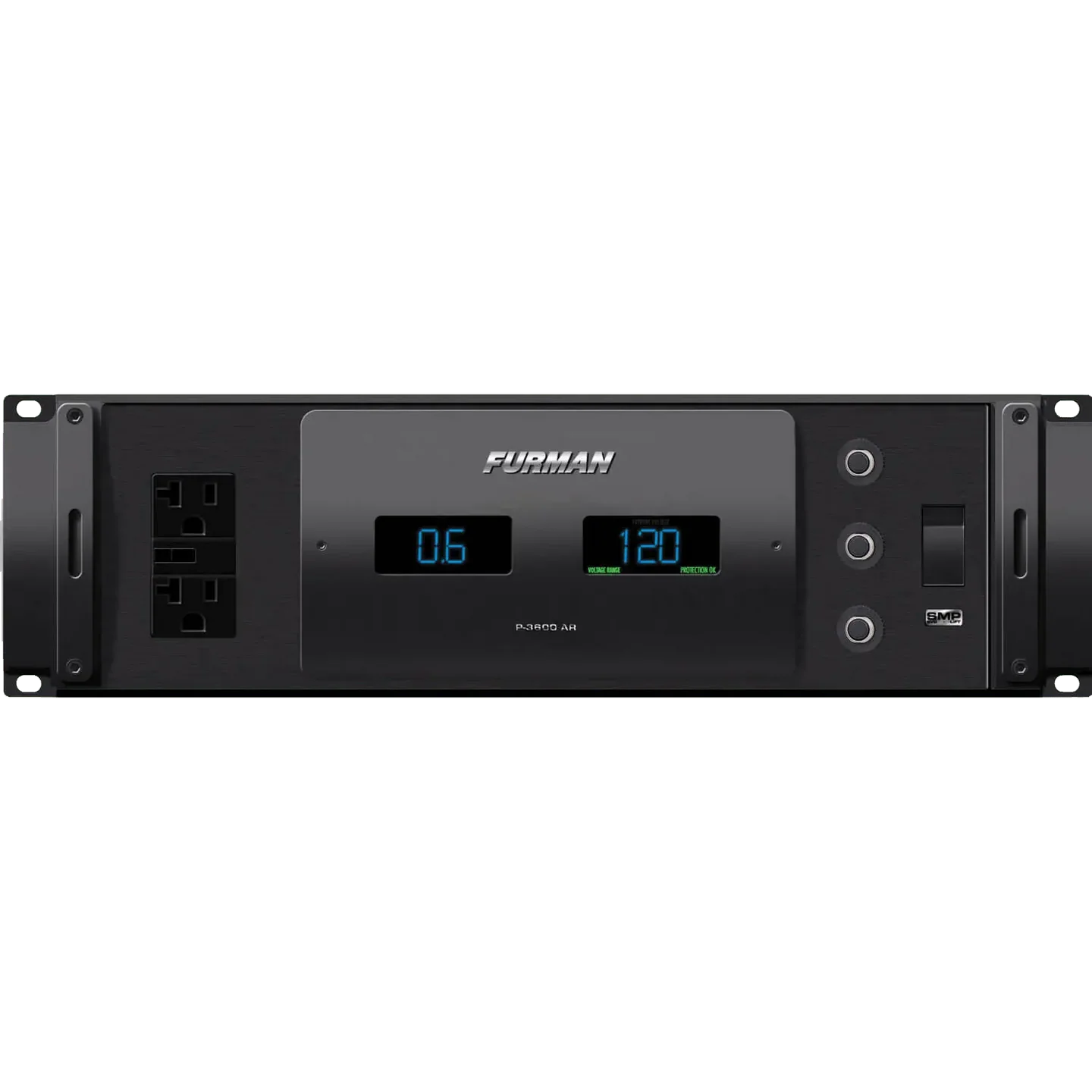

Front Panel Connections

2 × 120 V 20 A Edison Spec Grade NEMA-20 outlets

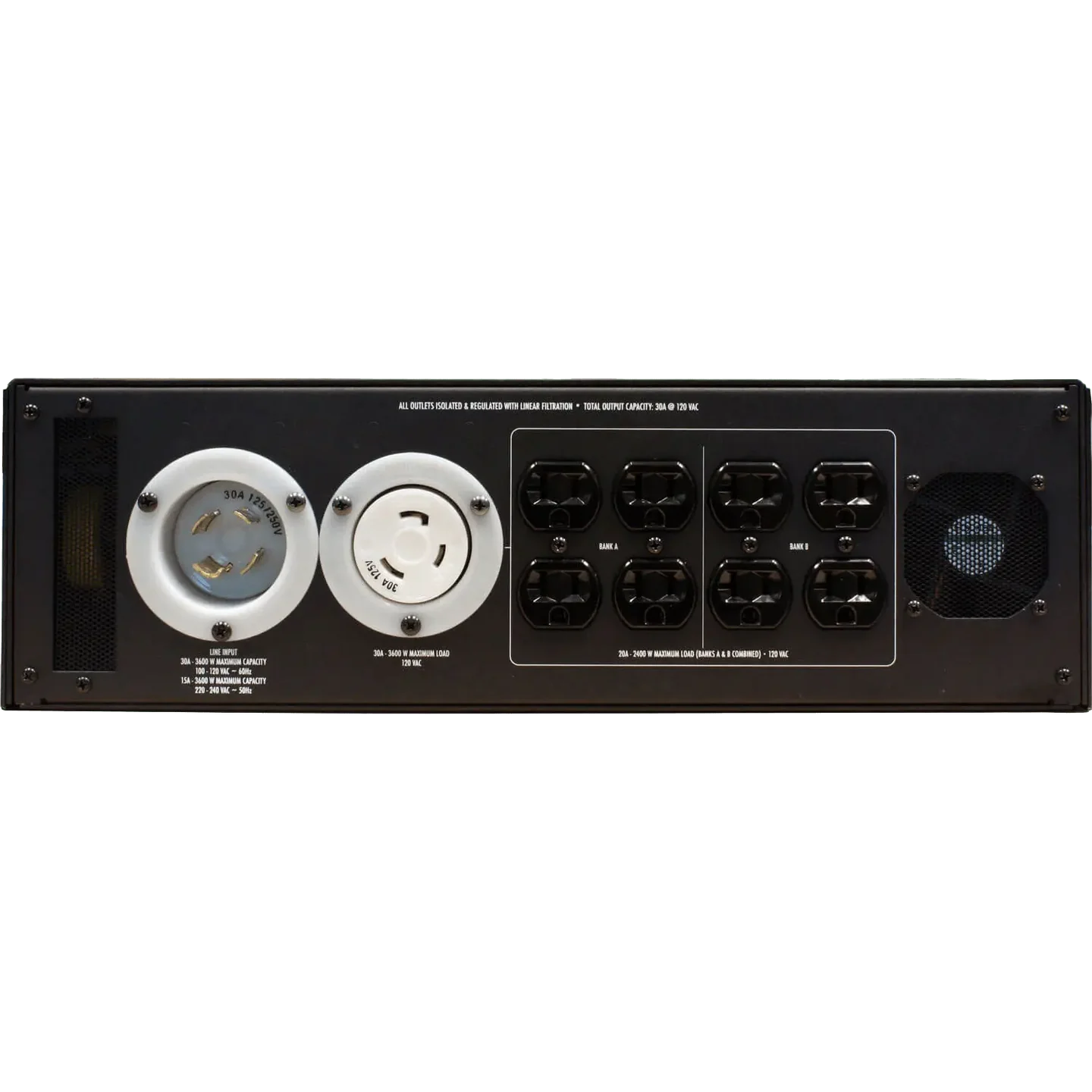

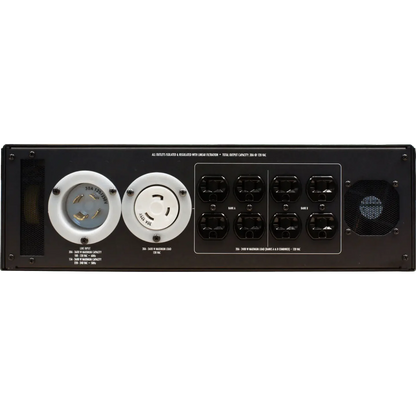

Rear Panel Connections

1 × 120 V L5-30 female
8 × 120 V 20 A Edison Spec Grade NEMA-20 outlets

Line Cord / Power Input

L14 male twist-lock inlet (twist-lock cable-mount connector included)

Dimensions (H × W × D)

5.25 × 19 × 14.25" (133 × 483 × 305 mm)

Weight

98 lb (44.5 kg)

Package Weight

109.2 lb

Box Dimensions (L × W × H)

24 × 23 × 13.6"
