Key Specifications

Frequency Response (-10 dB)

80 Hz - 20 kHz

Maximum SPL @ 1 m

131 dB

Coverage Angle

Horizontal: 90°
Vertical: 20°

Directivity Index (Q)

11

System Sensitivity

98 dB

Power Section

Amplification

Full Range

Nominal Impedance

8 Ω

Power Handling

500 W

Peak Power Handling

2000 W PEAK

Protections

Dynamic active MOSFET

Crossover Frequency

1300 Hz

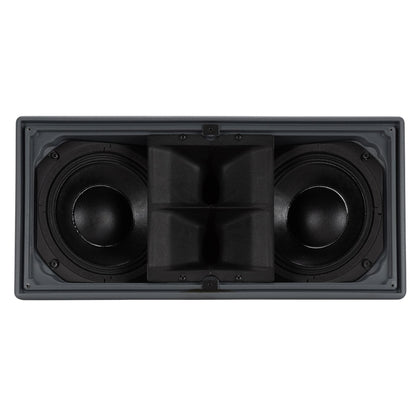

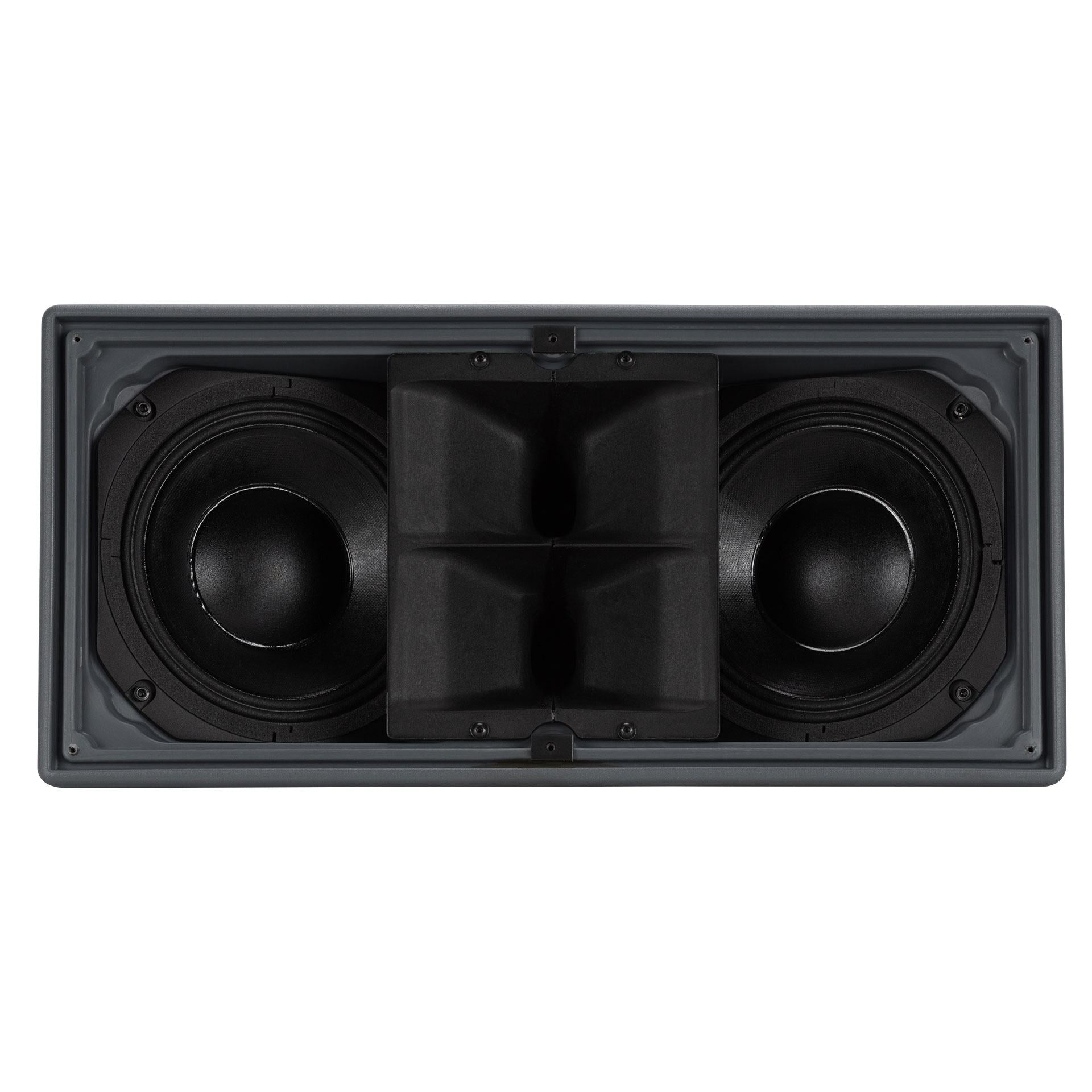

Transducers

Compression Driver

2 x 1.0" neo, 1.75" voice coil

Woofer

2 x 8" neo, 2.5" voice coil

Input / Output Section

Input Connector

Amphenol eco/mat IP 67

Standard Compliance

IP Protection Grade

IP 55

Safety Agency

CE compliant

Physical Specifications

Cabinet / Case Material

PE Low Density

Hardware

4 x M8 inserts

Grille

Aluminum with water-repellent protection

Color

Grey - RAL 7011

Dimensions (H × W × D)

268 x 566 x 250 mm / 10.55 x 22.28 x 9.84 inches

Weight

14 kg / 30.86 lbs

Shipping Information

Package Height

604 mm / 23.78 inches

Package Width

289 mm / 11.38 inches

Package Depth

289 mm / 11.38 inches

Package Weight

17 kg / 37.48 lbs
