Key Specifications

Size & Weight

Dimensions

Width: 1,336 mm [52-5/8"]
Height: 145 mm [5-11/16"] (with music rest: 328 mm [12-15/16"])
Depth: 376 mm [14-13/16"] (with music rest: 403 mm [15-7/8"])

Weight

22.0 kg [48 lb, 8 oz]

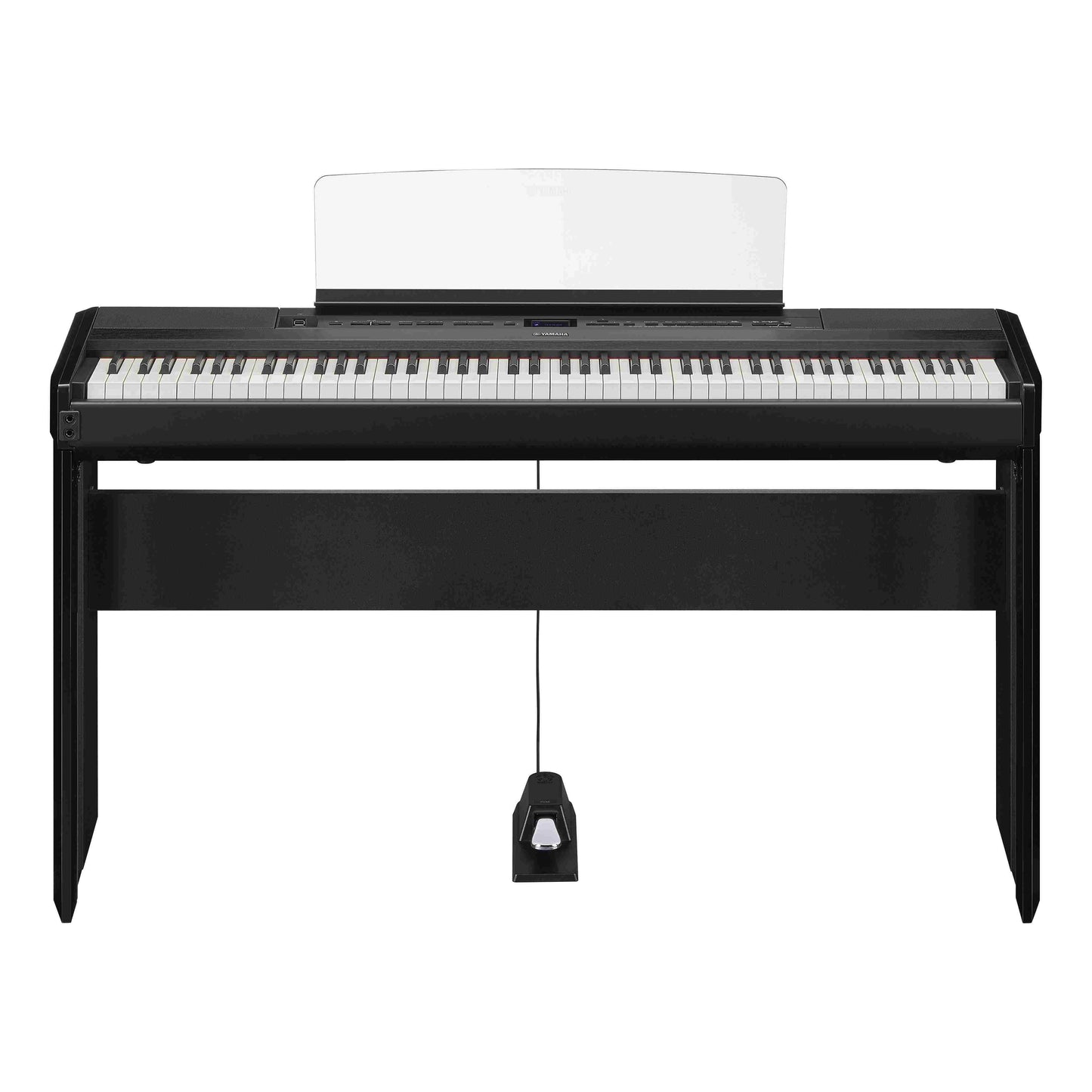

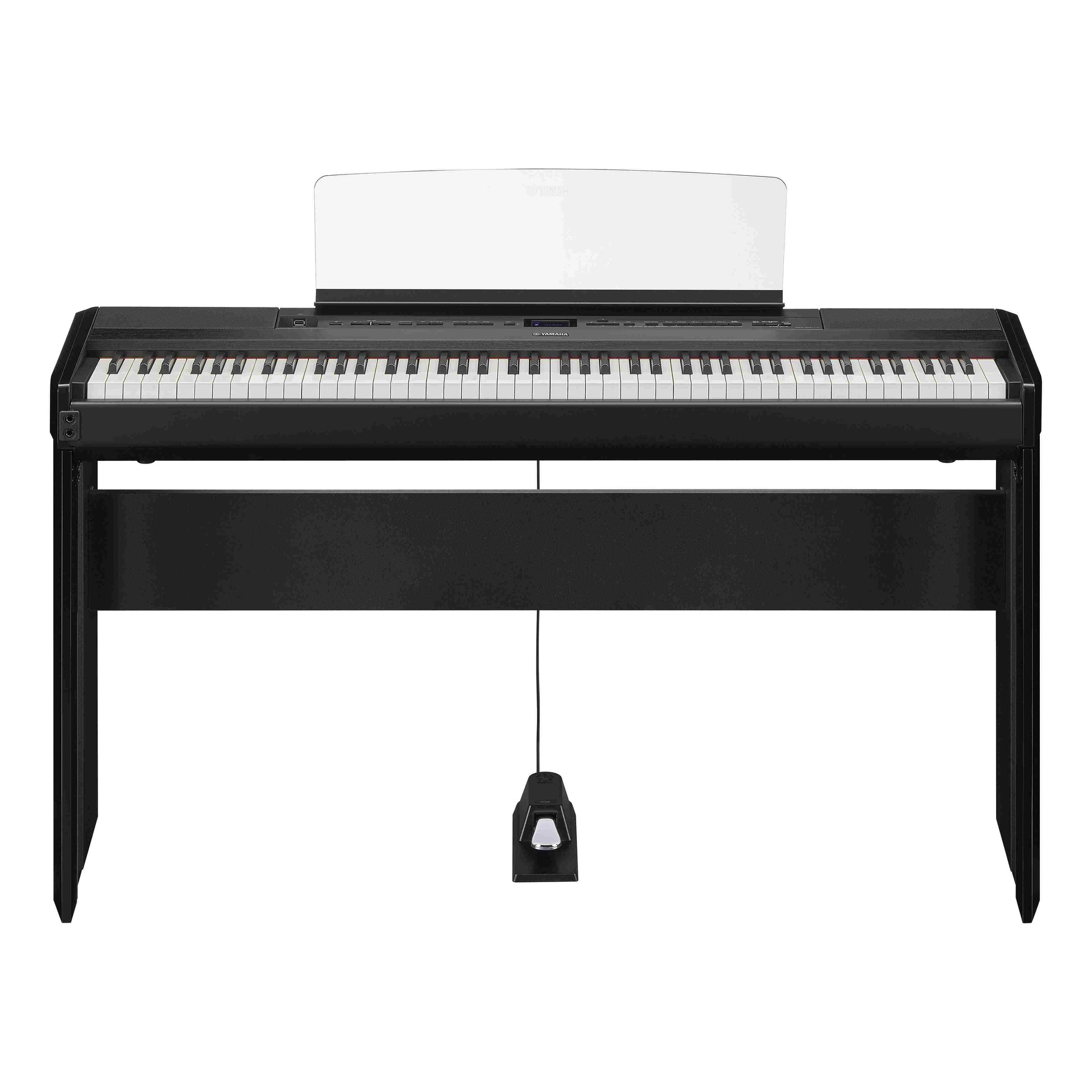

Dimensions (with optional stand)

Width: 1,336 mm [52-5/8"]
Height: 757 mm [29-13/16"] (with music rest: 939 mm [37-0"])
Depth: 377 mm [14-13/16"] (with music rest: 402 mm [15-13/16"])

Packing Box Dimensions

1,457 mm × 311 mm × 531 mm [57-3/8" × 12-1/4" × 20-7/8"]

Control Interface

Keyboard

88 keys
GrandTouch-S™ Keyboard with wooden white keys, synthetic ebony and ivory key tops, escapement

Touch Sensitivity

Hard2 / Hard1 / Medium / Soft1 / Soft2 / Fixed

Pedals

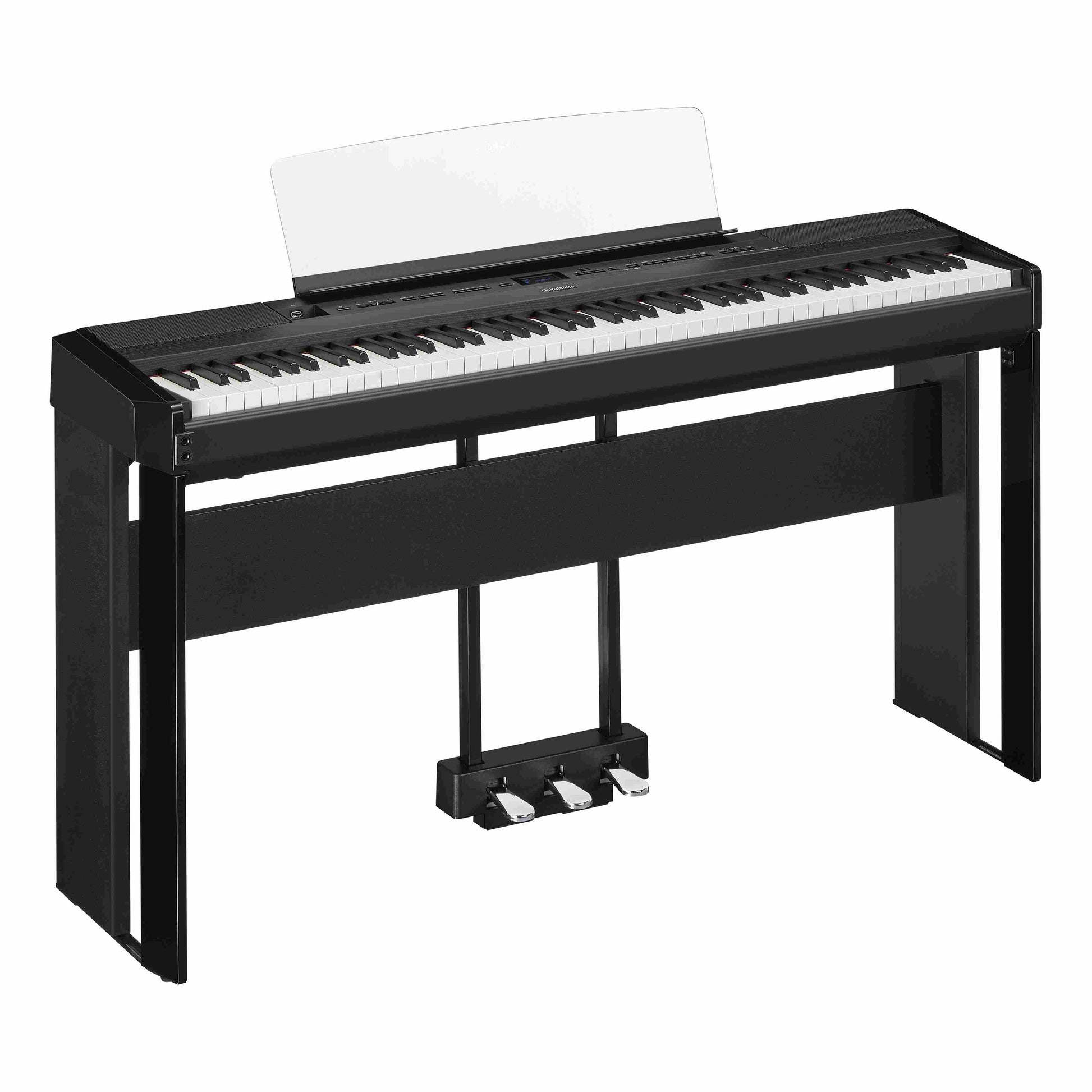

3 pedals (when using LP-1/FC35 pedal unit)
Assignable functions: Sustain, Sostenuto, Soft, Pitch Bend Up/Down, Rotary Speed, Vibe Rotor, Song Play/Pause

Display

Full Dots LCD
198 × 100 dots

Panel Language

English

Voices & Tone Generation

Piano Sounds

Yamaha CFX, Bösendorfer Imperial

Binaural Sampling

Yes ("CFX Grand" Voice only)

Virtual Resonance Modeling (VRM)

Yes

Grand Expression Modeling

Yes

Maximum Polyphony

256

Voices

44 Voices + 18 Drum/SFX Kits + 480 XG Voices

Compatibility

XG (GM), GS (Song playback), GM2 (Song playback)

Effects

Reverb

7 types

Chorus

3 types

Master EQ

3 Preset + 1 User

Insertion Effect

12 types

Intelligent Acoustic Control (IAC)

Yes

Stereophonic Optimizer

Yes

Sound Boost

3 types

Performance Functions

Dual/Layers

Yes

Split

Yes

Duo

Yes

Piano Room

Yes

Rhythms

40

Registration Memory

6 buttons × 4 banks

Metronome

Yes

Tempo Range

5 – 500

Transpose

−12 – 0 – +12

Tuning

414.8 – 440.0 – 466.8 Hz (approx. 0.2 Hz increments)

Scale Types

7 types

Songs & Recording

Preset Songs

21 Voice Demo Songs + 50 Classics

MIDI Recording

250 songs
16 tracks
Approx. 500 KB/song (approx. 22,000 notes)

Audio Recording (USB)

Up to 80 minutes/song

Playback Formats

SMF (Format 0, 1), WAV (44.1 kHz, 16-bit, stereo)

Recording Formats

SMF (Format 0), WAV (44.1 kHz, 16-bit, stereo)

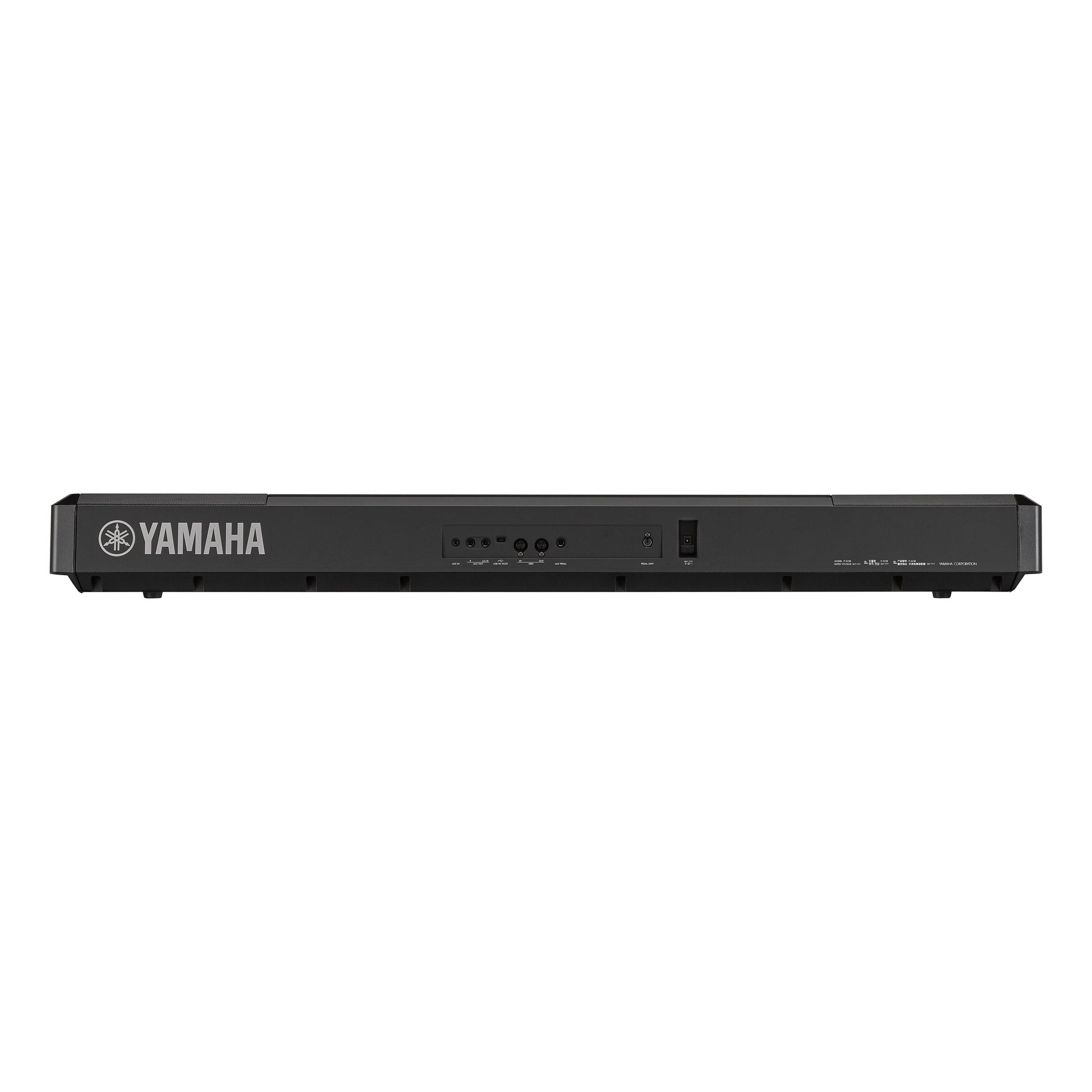

Storage & Connectivity

Internal Memory

Approx. 1.4 MB maximum

External Storage

USB flash drive

Headphone Outputs

Standard stereo phone jack ×2

MIDI

IN, OUT

AUX IN

Stereo mini jack

AUX OUT

Standard phone jack (L/L+R, R)

USB TO DEVICE

Type A

USB TO HOST

Type C

Bluetooth

Audio/MIDI (varies by area)

USB Audio Interface

44.1 kHz, 16-bit, stereo

DC IN

16 V

Amplifiers & Speakers

Amplifiers

(20 W + 6 W) × 2

Speakers

(Oval 12 cm × 6 cm + 2.5 cm dome) × 2

Power

AC Adaptor

PA-300C (DC 16 V, 2.4 A)

Power Consumption

18 W

Accessories

Included Accessories

Owner’s Manual, Online Member Product Registration, Music rest, FC3A foot pedal, Power cord / PA-300C AC adaptor

Optional Accessories

HPH-150 / HPH-100 / HPH-50 headphones, L-515 keyboard stand, LP-1 / FC35 pedal unit, FC4A / FC5 footswitches, PA-300C AC adaptor, UD-WL01 USB wireless LAN adaptor
