Key Specifications

Frequency Response (-10 dB)

50 Hz - 200 Hz

Max SPL @ 1m

132 dB

System Sensitivity

97 dB

Power Section

Power Handling

800 W RMS / 3200 W PEAK

Nominal Impedance

8 Ω

Transducers

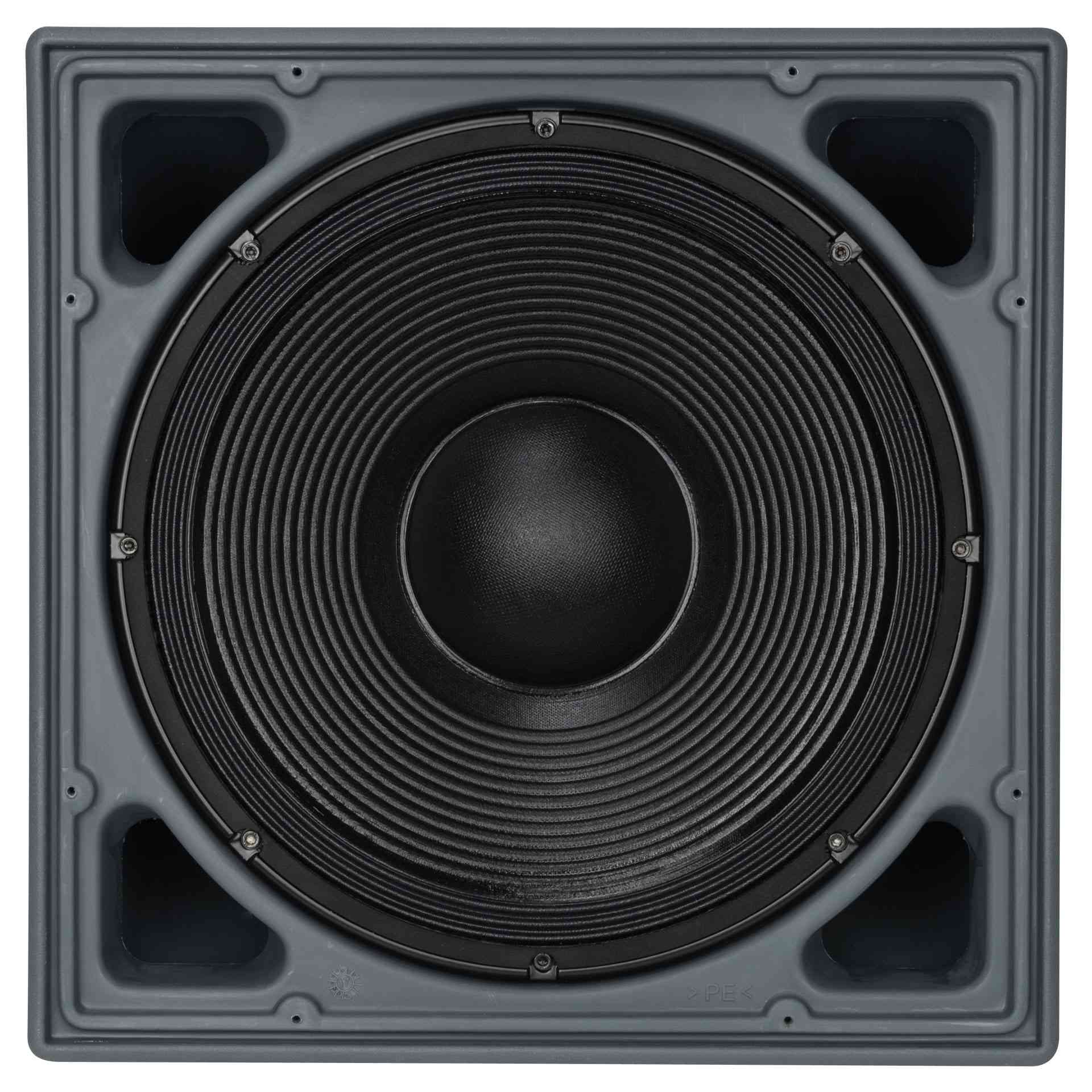

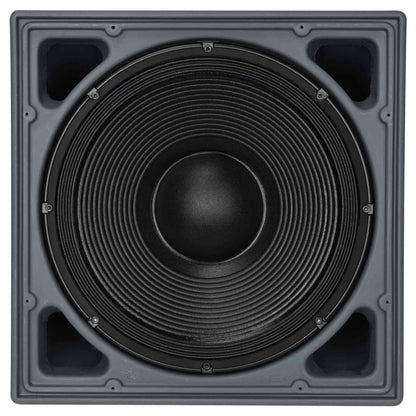

Woofer

15'' Neodymium, 4.0'' v.c.

Input / Output Section

Input Connectors

Neoprene Cable (2-pole)

Standard Compliance

IP Protection Grade

IP 55

Safety Agency

CE compliant

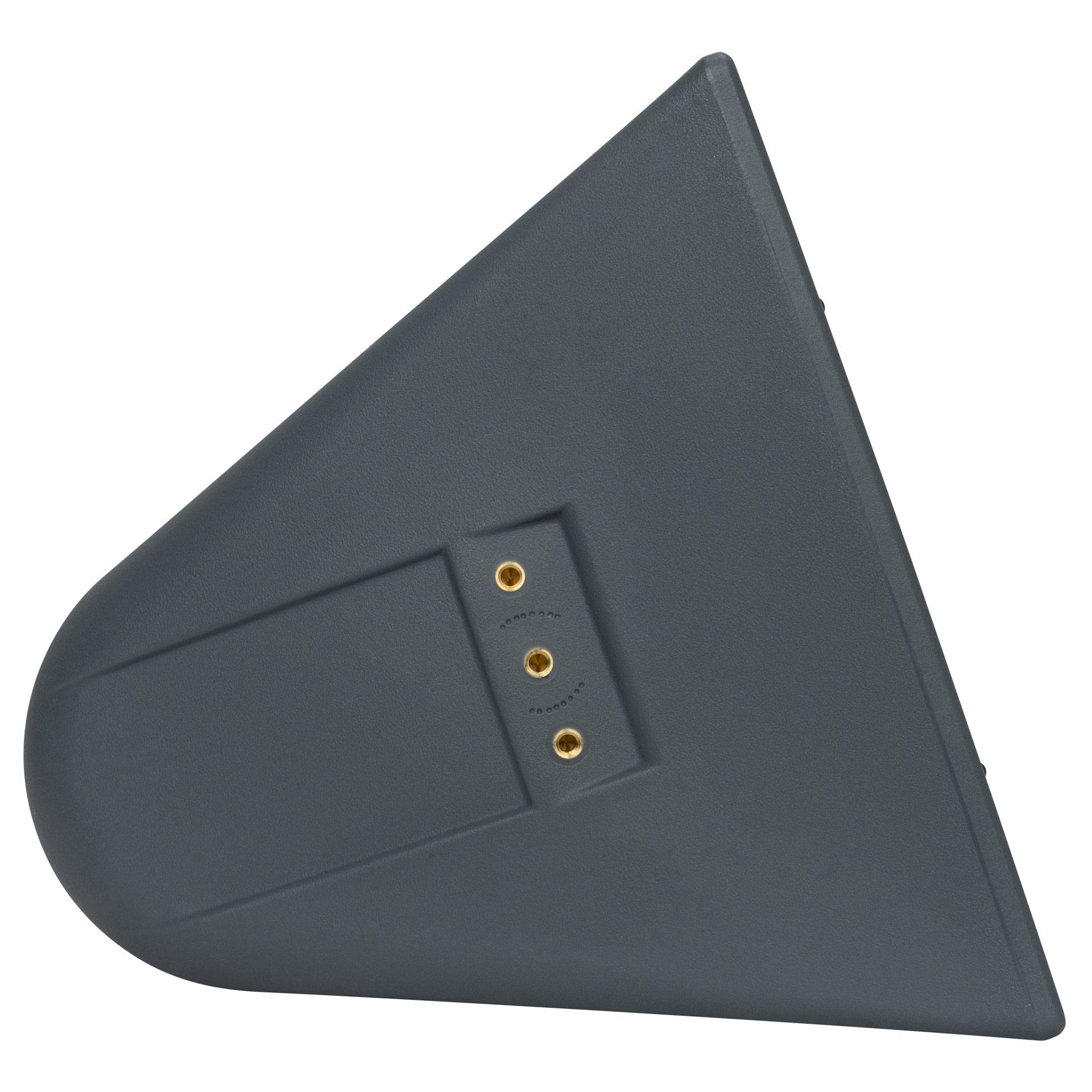

Physical Specifications

Cabinet Material

PE Low Density (Polyethylene)

Hardware

12 x M10, U-bracket, and pair of spacers

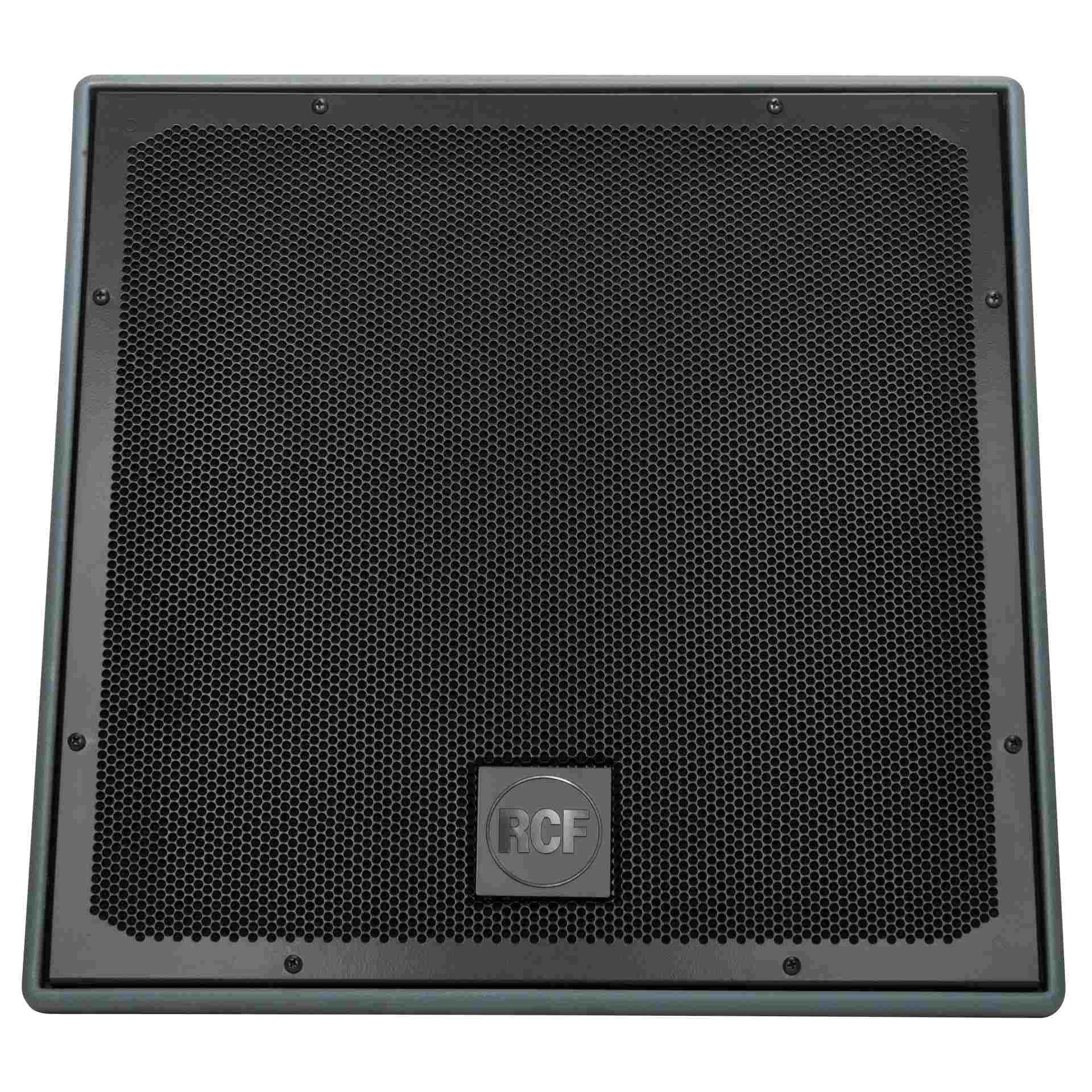

Grille

Aluminum with water-repellent protection

Color

Grey - RAL 7011

Dimensions (H x W x D)

463 x 463 x 433 mm / 18.23 x 18.23 x 17.05 inches

Weight

16.5 kg / 36.38 lbs

Shipping Information

Package Height / Weight

519 mm (20.43") / 21.5 kg (47.4 lbs)
