Key Specifications

Form Factor / Type

Rackmount (Rack-Mountable with Included Hardware)

Amplifier Channels

2

Load Impedance / Voltage

4 / 8 Ohms | 70 / 100 V

Power Rating

2×30 W @ 4/8Ω | 1×60 W @ 70/100 V

Amplifier Class

Class D

Protections

Overload, Power Supply, Thermal

Frequency Response

50 Hz – 20 kHz

THD / Distortion

≤ 0.1%

Input Level

Line Input (Unbalanced): -10 dBV (Sensitivity & Nominal), +10 dBV (Max Before Clip)
Line Input (Balanced): +4 dBu (Sensitivity & Nominal), +24 dBu (Max Before Clip)

DSP / Audio Delay / EQ & Filters / Dynamics

No

Analog I/O

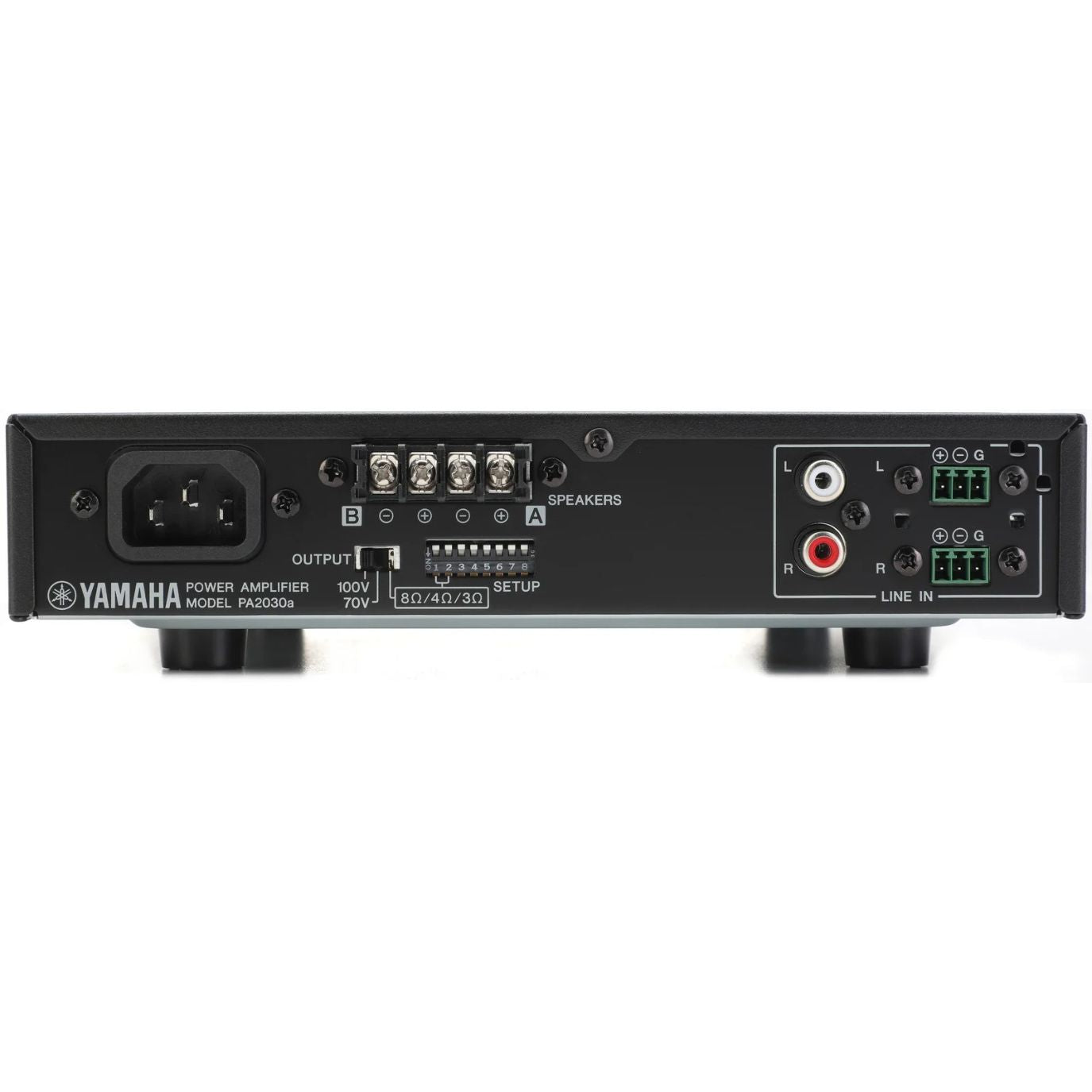

2× Stereo RCA Line Input | 1× Block 3-Pin Balanced Line Input | 2× Barrier Strip Speaker Output

Digital / Network / USB / Phantom / Wireless

No

Input Power

100–240 VAC, 50/60 Hz

AC Connector

1× IEC

Power Consumption

30 W

Display

No

Rackmount Size

1U (with Included Hardware)

Cooling

Convection

Operating Temperature

0–40°C / 32–104°F

Dimensions

W 11.3 × H 2.1 × D 8.5" / 288 × 215 × 54 mm

Weight

4 lb / 1.8 kg
