Key Specifications

Form Factor / Type

Rackmount (Rack-Mountable with Included Hardware)

Number of Amplifier Channels

2

Load Impedance / Voltage Support

4 / 8 Ohms, 70 / 100 V

Power Rating per Channel

2×120 W at 4Ω | 2×100 W at 8Ω | 2×120 W at 70/100V | 1×200 W at 70/100V

Amplifier Class

Class D

Frequency Response

50 Hz – 20 kHz (Speaker Out) | 20 Hz – 20 kHz (Line Out)

Total Harmonic Distortion (THD)

≤ 0.1%

Input Level

Line Input (Unbalanced): -10 dBV (Sensitivity/Nominal), +10 dBV (Max Before Clip)
Line Input (Balanced): +4 dBu (Sensitivity/Nominal), +24 dBu (Max Before Clip)

Signal Processing

DSP: No | Audio Delay: No | EQ & Filters: No | Dynamics: No

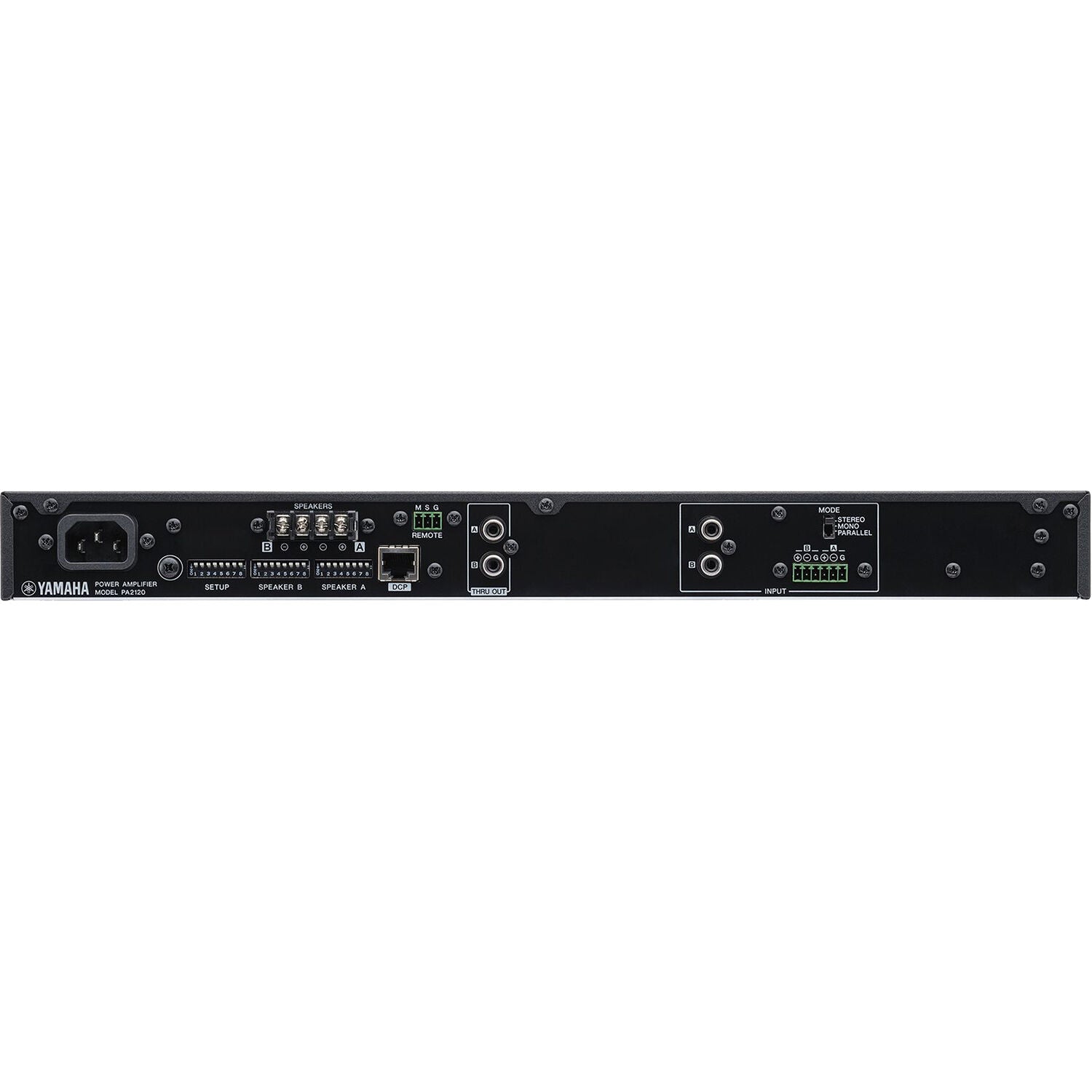

Analog Audio I/O

2× Stereo 2RCA Line Input
1× 6-Pin Balanced Line Input
2× Barrier Strip Speaker Output

Digital / Network / USB I/O

No

Phantom / Wireless

No

Power Requirements

100–240 VAC, 50/60 Hz | AC Connector: IEC | Power Consumption: 60 W (1/8 Power at 4Ω)

Display

No

Rackmount Size

1 U (with Included Hardware)

Cooling

Convection

Operating Conditions

0–40°C / 32–104°F

Dimensions (W×H×D)

480 × 45 × 379 mm / 18.9 × 1.8 × 14.9"

Weight

4.8 kg / 10.6 lb
