Key Specifications

Transducers

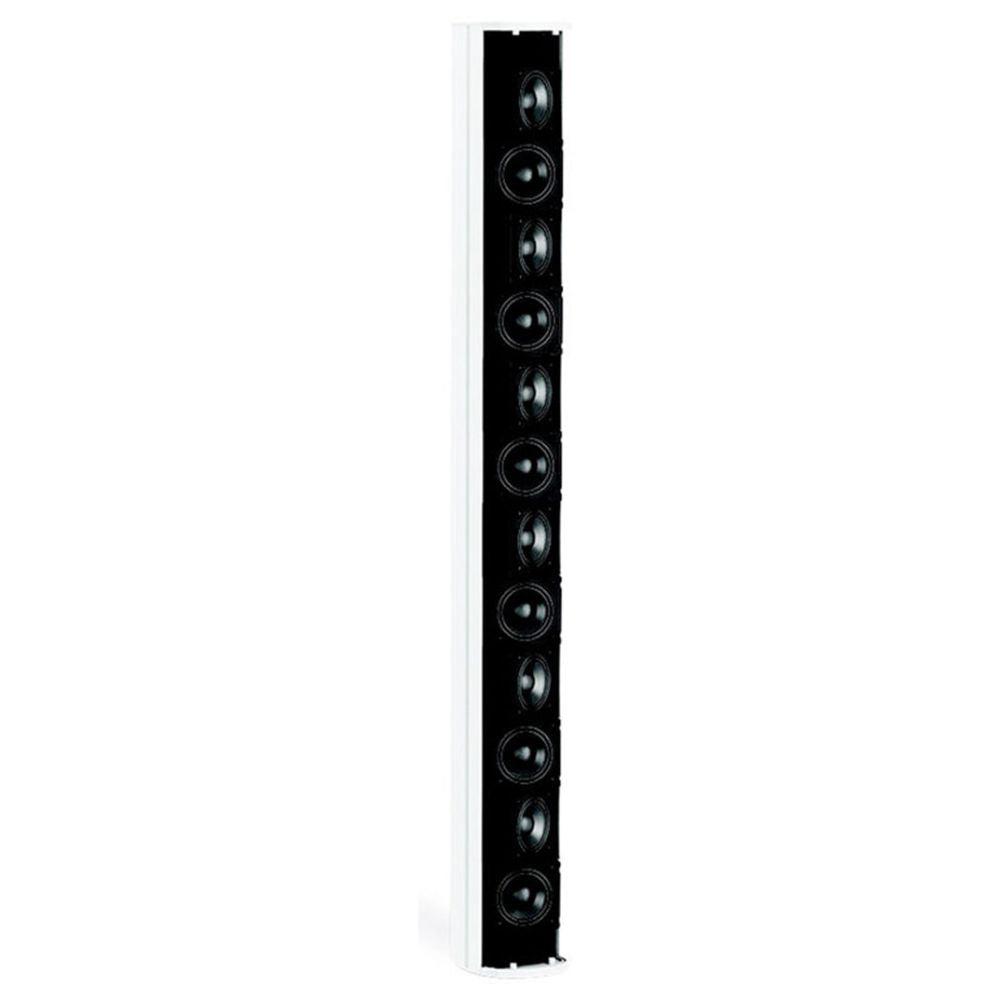

12 x 2.25" (5.7 cm) mid/high-frequency drivers

Frequency Response ±3 dB

155 Hz - 12 kHz

Frequency Response (-10 dB)

100 Hz - 16 kHz

Nominal Dispersion

145° x 20°

High-Pass Filter

125 Hz

Overload Protection

PTC / Lamp

Power Handling

300 W (1200 W peak)

Sensitivity

88 dB SPL

Maximum SPL

113 dB (119 dB peak)

Nominal Impedance

8 Ohms

Enclosure

Extruded-aluminum sidewalls with steel top and bottom end caps, all powder coated

Grille

Powder-coated steel grille

Environmental

Indoor use only

Connectors

2 x NL4 Neutrik speakON (parallel-wired), input
1 x 2-pin barrier strip, input

Mounting

4 x M6 threaded inserts (back)

Dimensions

38.8 x 4.2 x 5.0" (98.4 x 10.5 x 12.8 cm)

Weight

19 lb (8.5 kg)

Packaging Info

Package Weight

24 lb

Box Dimensions (LxWxH)

42 x 9 x 7.5"
