Key Specification

Amplification

Number of Channels

12

Rated Power, Symmetrical

600 W

Audio Inputs, Analog

Input Channels

1

Connectors

(1) 3-pin Euroblock, 3.81 mm

Sensitivity Options

0 dBu, +10 dBu, +24 dBu, pad engaged

Phantom Power

No

Compliance

EN 54-24 Certified

No

Electrical

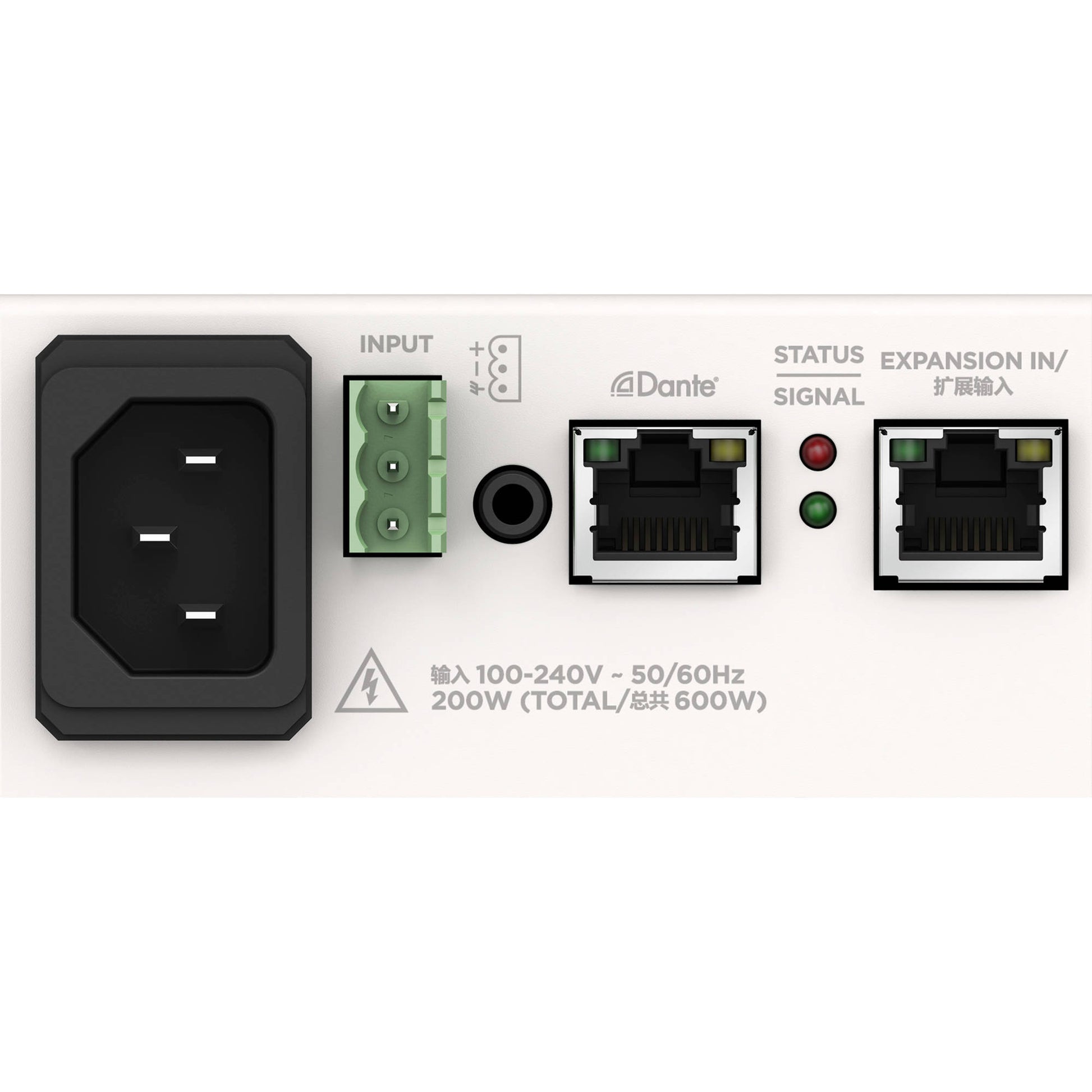

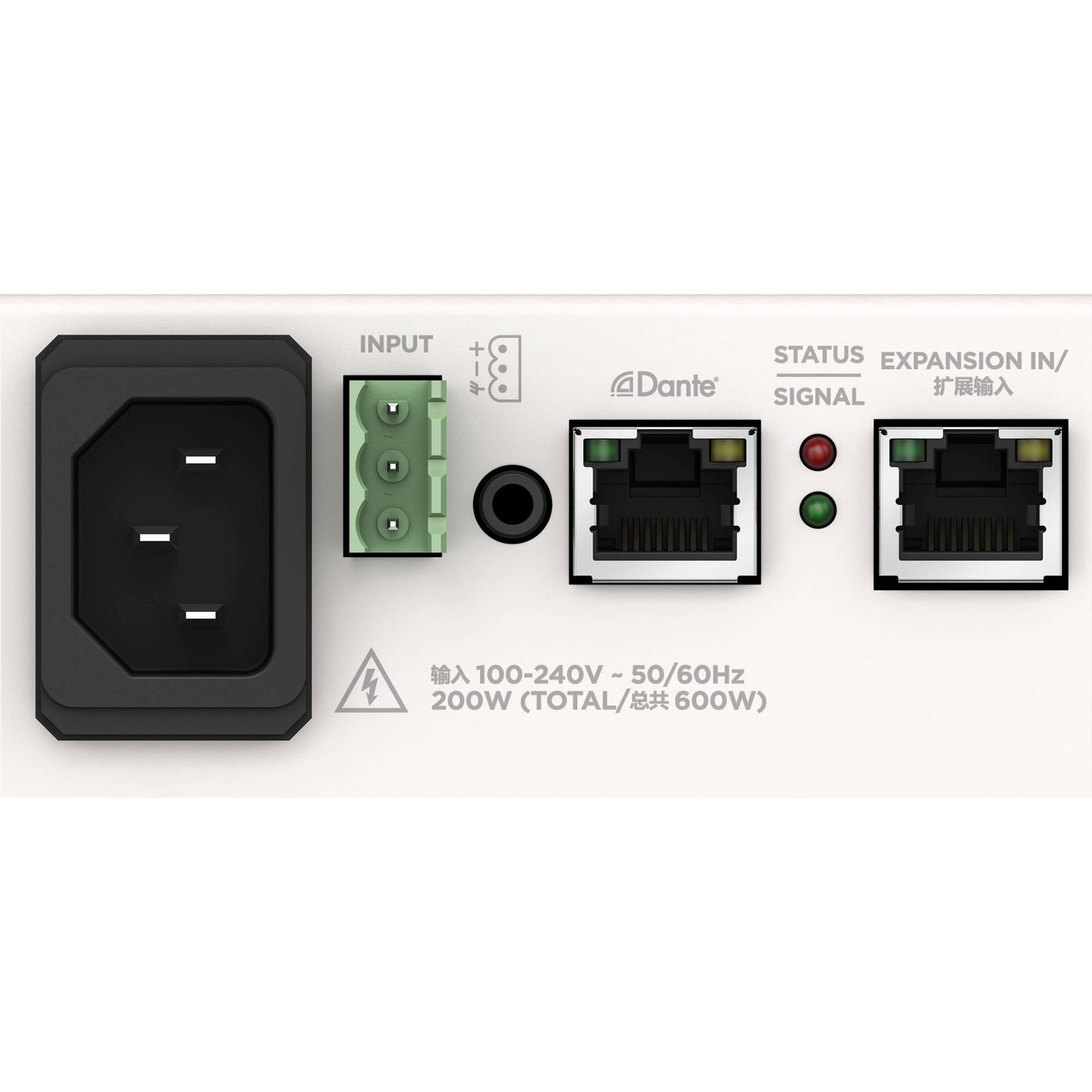

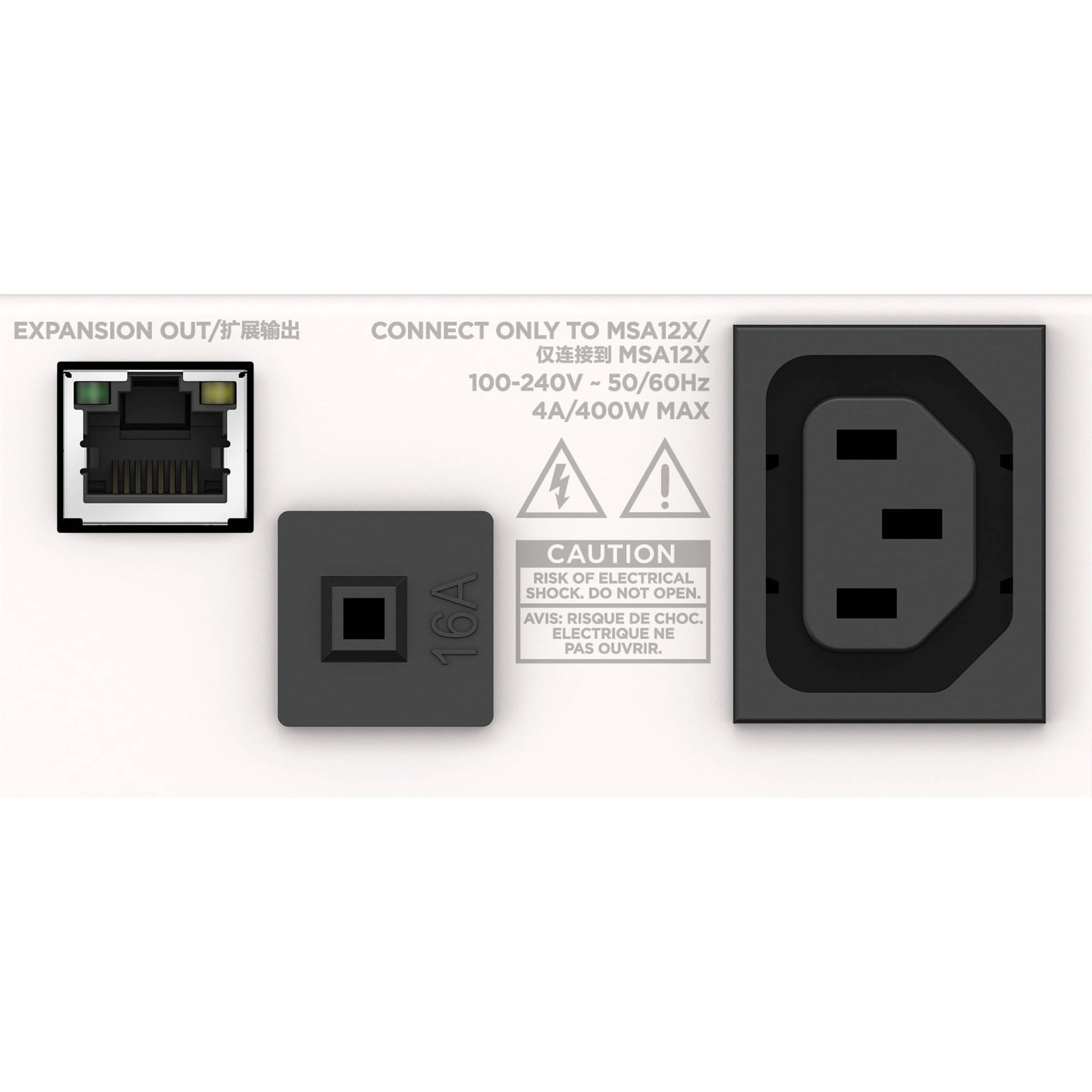

AC Power Connector

IEC 60320-C14

AC Power Input

85–264 VAC, 50/60 Hz

AC Power Consumption

25 W idle, 275 W maximum

General

Software Applications

ControlSpace Designer (Windows)

Computer Interface Connection

RJ-45 (Dante), through network router or switch

Indicators and Controls

LED Status Indicators

Status, signal

Integrated DSP

Sample Rate / Bit Depth

48 kHz / 24-bit

Physical

Colors

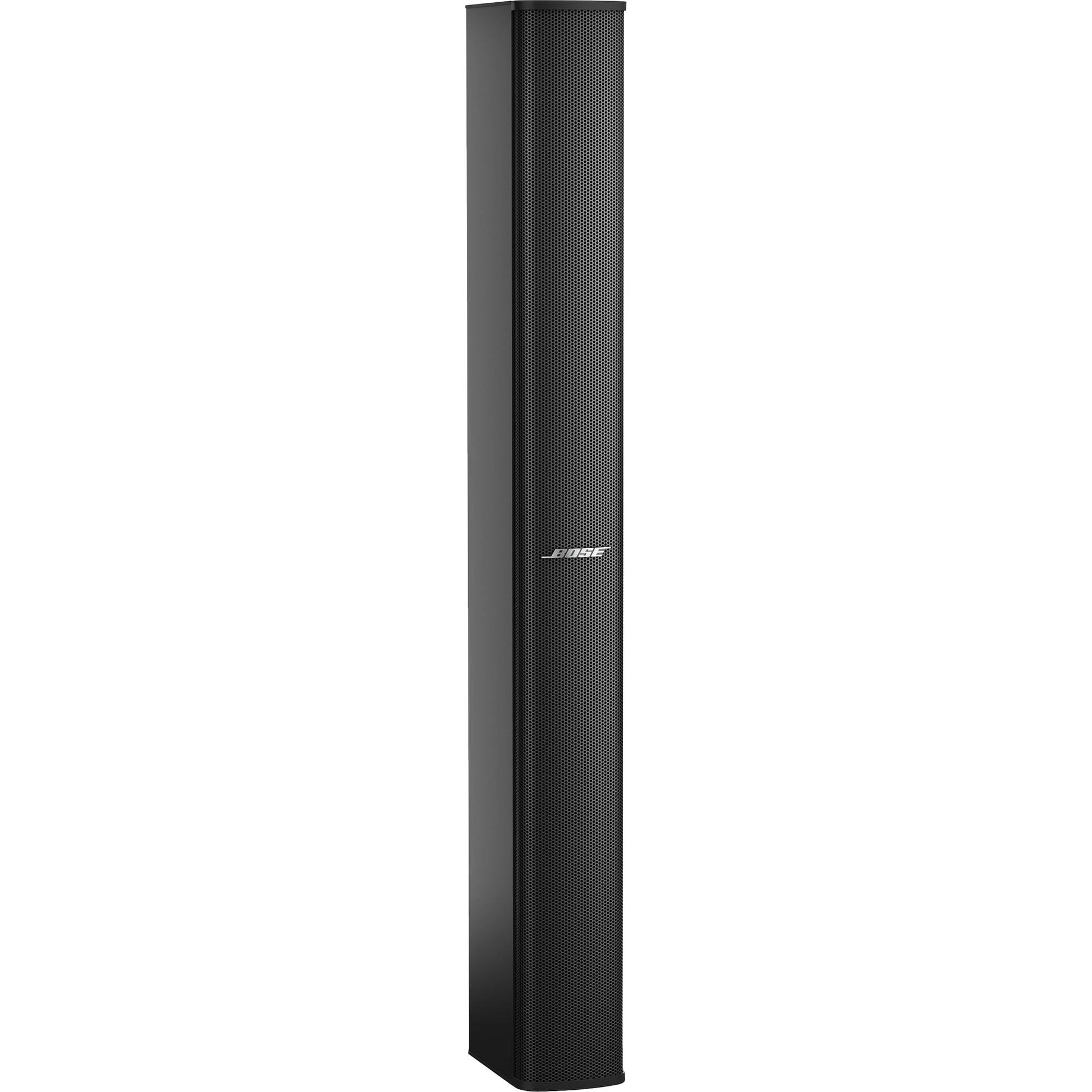

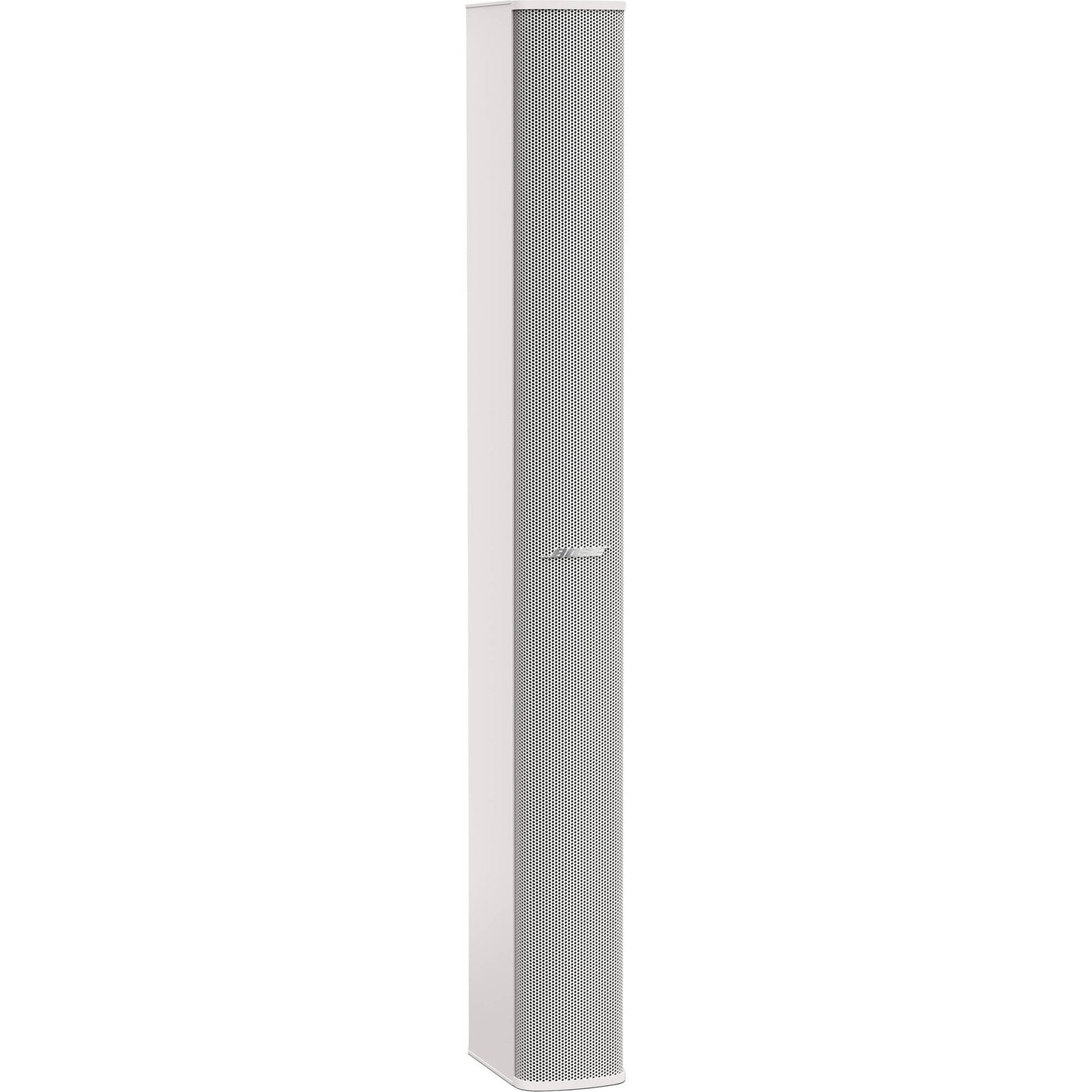

Black (RAL 9005), white (RAL 9010), paintable

Enclosure Material

Extruded aluminum sidewalls, steel end caps, all powder-coated

Grille

Aluminum, powder-coated finish

Cooling System

Passive cooling only, airflow bottom to top

Logo

One logo preattached to grille, one additional logo included

Suspension/Mounting

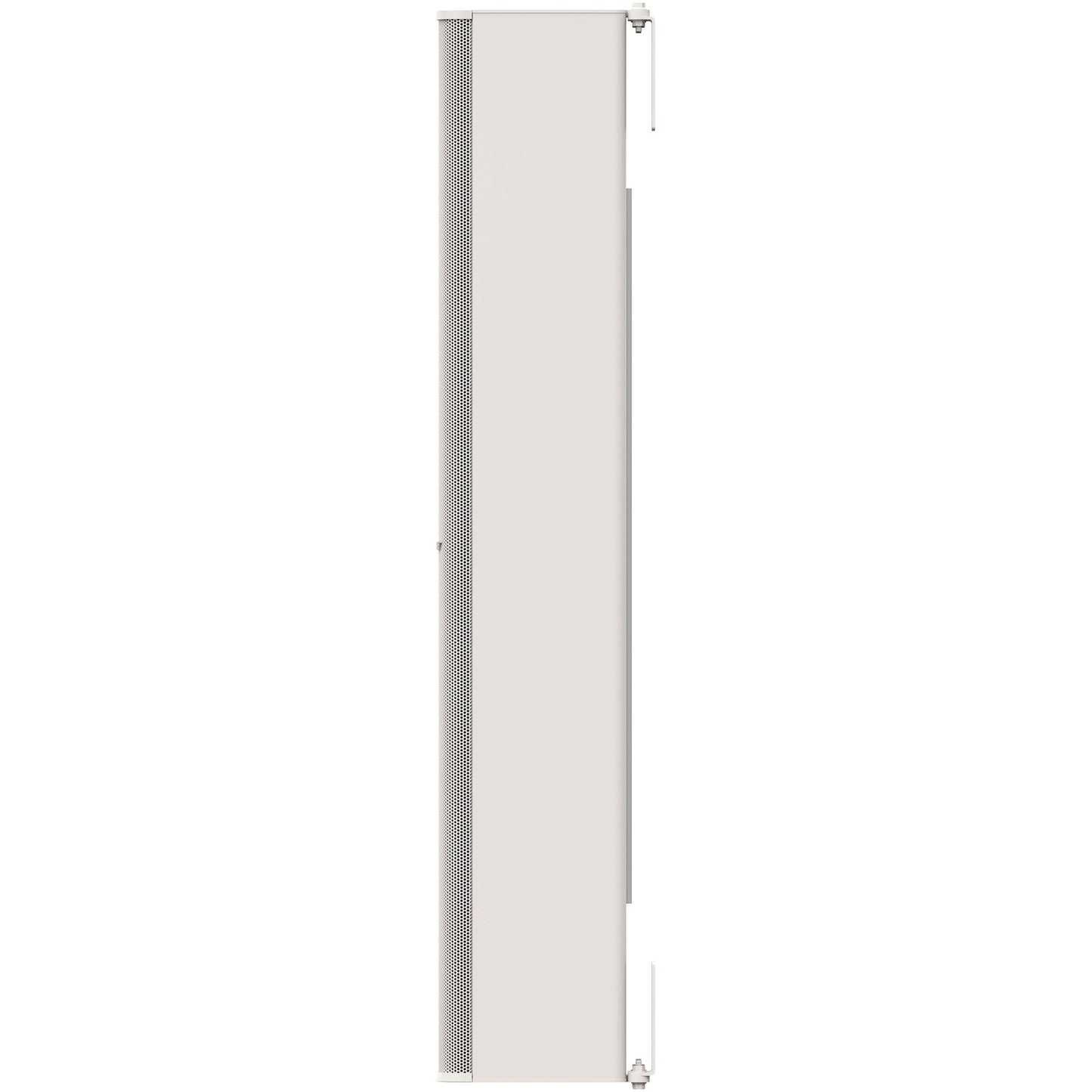

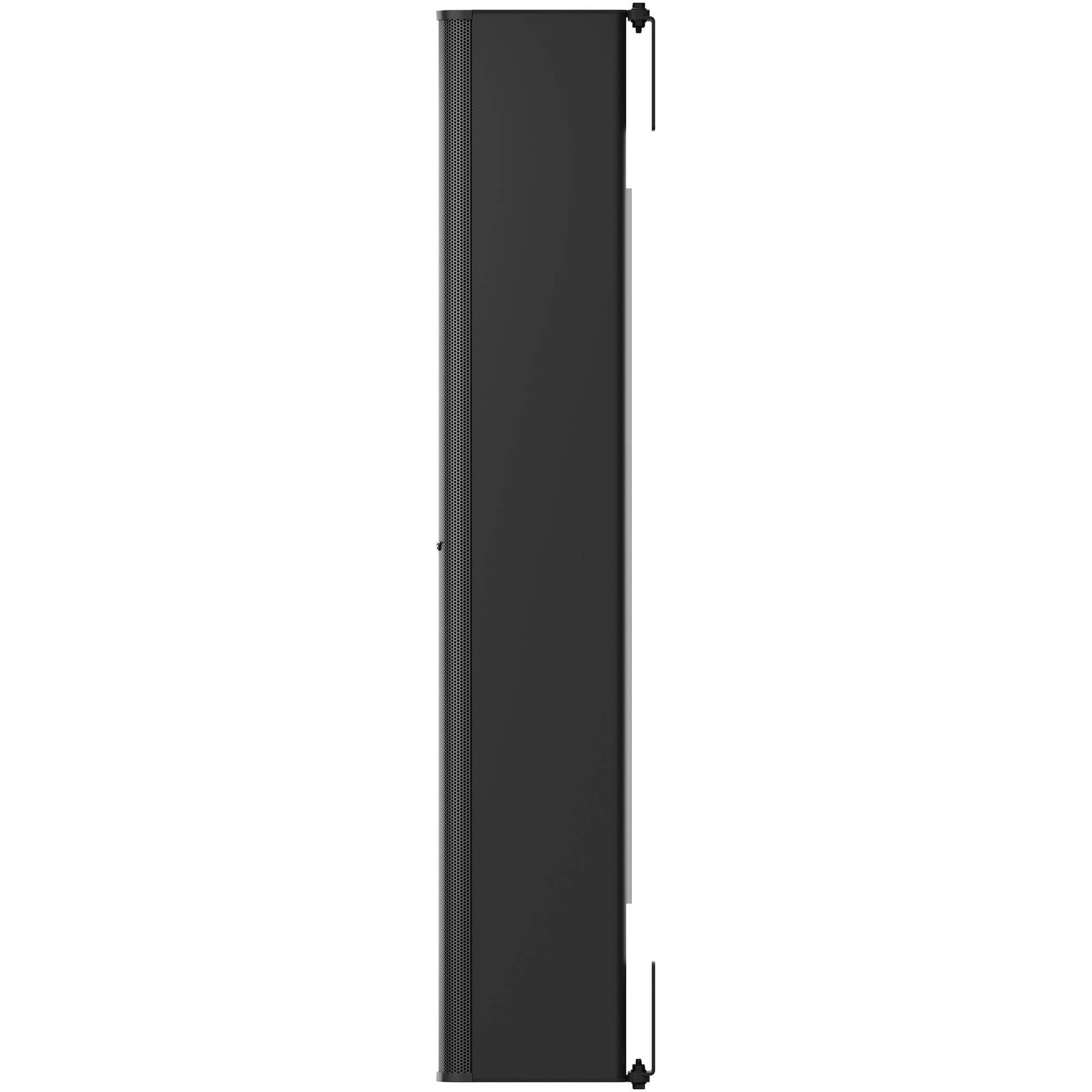

Integrated wall brackets

Operating Temperature Range

0 °C to 40 °C (32 °F to 104 °F)

Product Dimensions (H×W×D)

38.7 × 4.2 × 8.1 in (984 × 106 × 206 mm)

Net Weight

32.0 lb (14.5 kg)

Shipping Weight

42.3 lb (19.2 kg)

Performance

Frequency Range (-10 dB)

58 Hz – 18 kHz

Operation Mode

Single Loudspeaker

Coverage, Horizontal

160°

Calculated Maximum SPL @ 1 m

103 dB peak (1 module), 102 dB peak (2 modules), 101 dB peak (3 modules)

Coverage, Vertical

±30° (1 module), ±40° (2 or 3 modules)

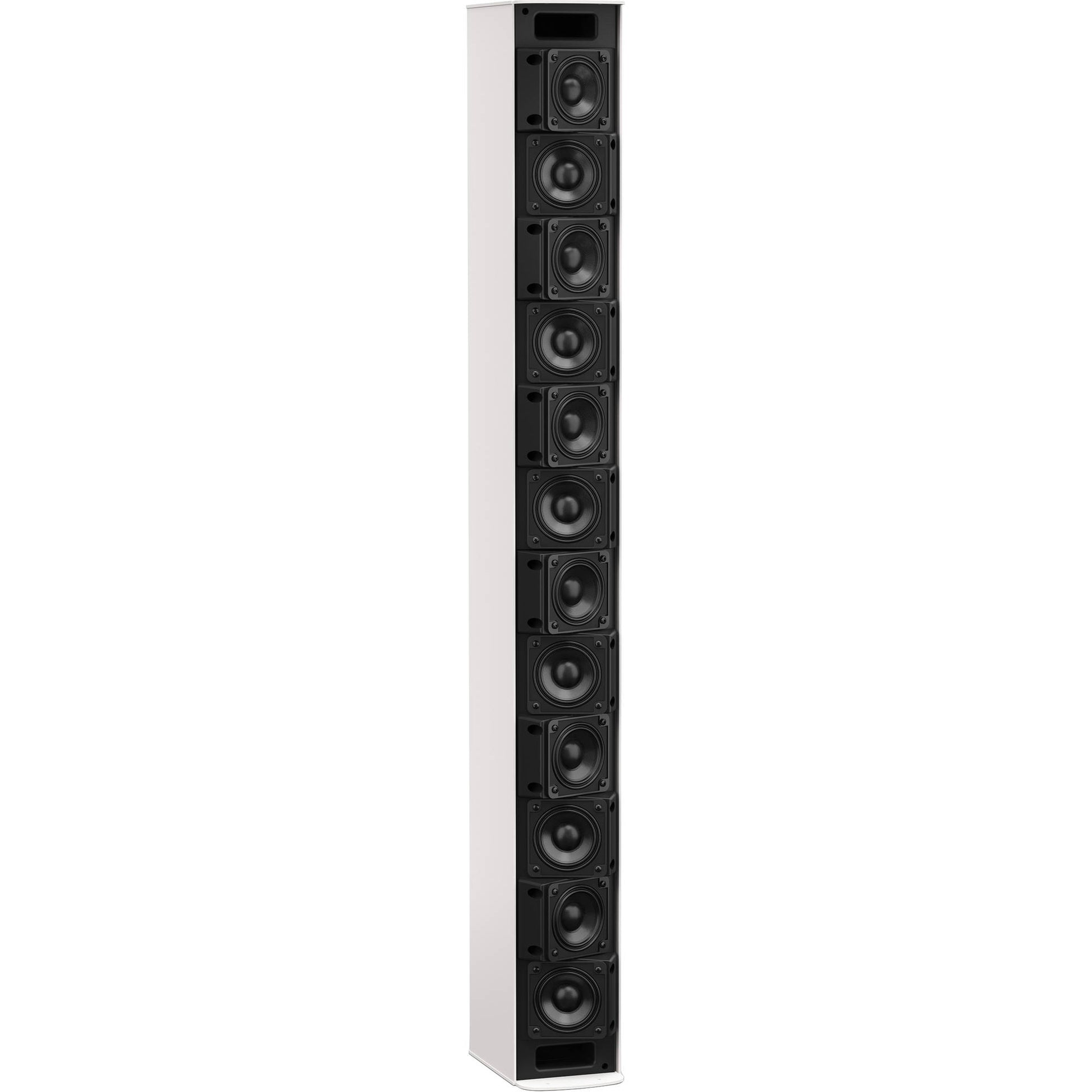

Transducers

High-Frequency

12 × 2.25 in (57 mm)
