SHOW PAX-60
SHOW PAX-60
|
Key Specifications |
|
|
Product Model |
PAX-60 Mixer Amplifier |
|
Power Supply Input |
AC 100-240V (50/60Hz) / DC 24V |
|
Power Output (RMS) |
60 W RMS (1 kHz / 70V / 100V / 4 Ω) |
|
Speaker Output Connections |
COM, 4 Ω, 70V, 100V |
|
Audio & Performance Specifications |
|
|
Frequency Response |
80 Hz to 16 kHz (±3 dB) |
|
Total Harmonic Distortion (THD) |
≤ 1% |
|
Signal-to-Noise Ratio (S/N) |
Mic: ≥ 65 dB | Phantom: ≥ 65 dB | Line: ≥ 75 dB | AUX: ≥ 75 dB |
|
Input Sensitivity & Impedance |
Mic: -52 dBV (Balanced) |
|
Equalizer Controls |
Bass: ±10 dB @ 100 Hz | Treble: ±10 dB @ 10 kHz |
|
Features, Controls & Indicators |
|
|
Media Player & Audio Processing |
MP3 Player with SD / USB Interface, ECHO Processing Function |
|

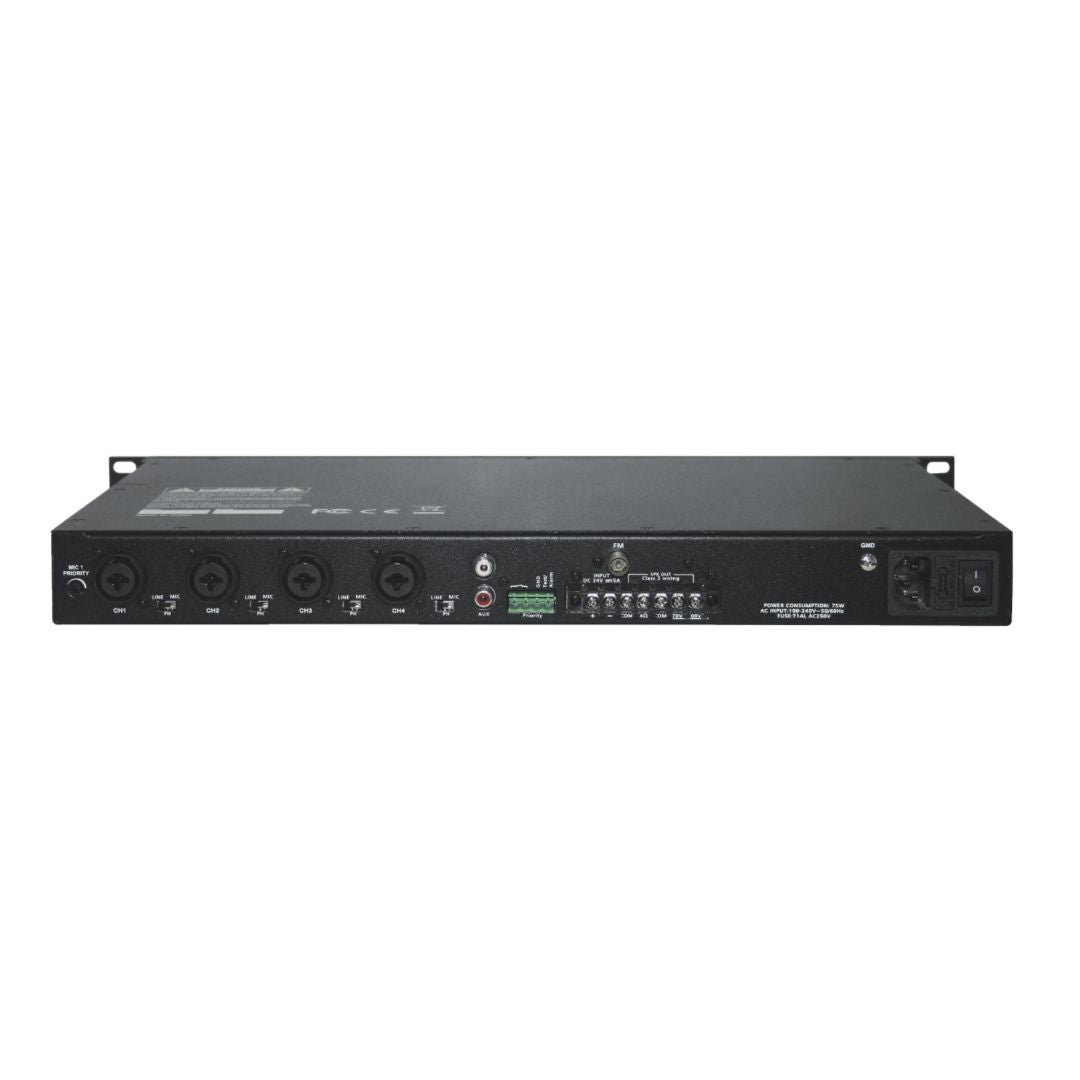

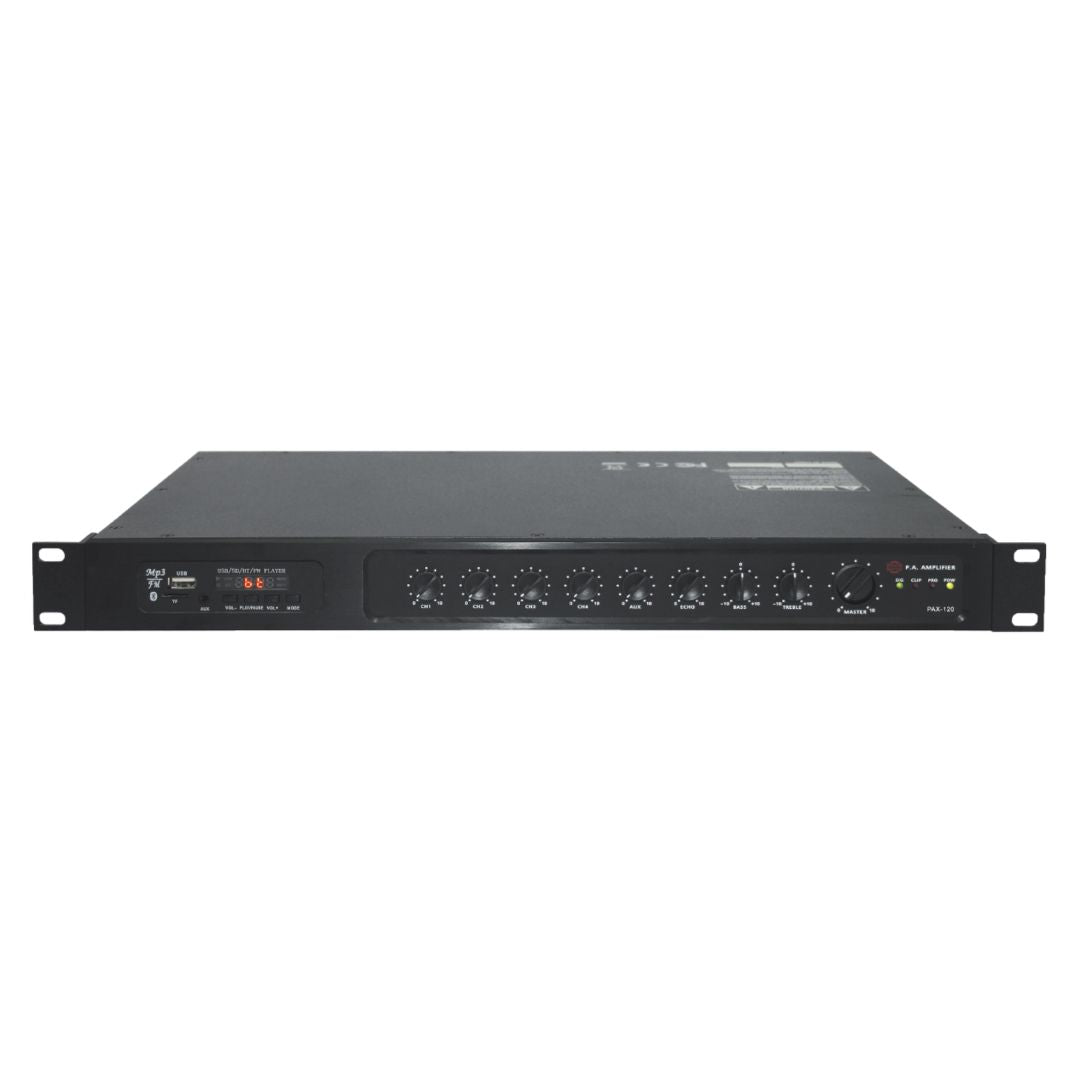

Front & Rear Panel Controls |
4x Input Volume Controls, 1x AUX Volume Control, 2x Treble/Bass Controls, 1x Master Volume Control, 4x Mic/Phantom/Line Selector Switches, Mic 1 Priority Control |
|
Status LED Indicators |
Power (Green LED), Signal (Green LED), Protect (Red LED), Clip (Red LED) |
|
Dimensions & Weight Specifications |
|
|
Item Dimensions (W×D×H) |
483mm x 281mm x 44mm (19.0" x 11.06" x 1.73") |
|
Net Weight |
4.1 kg (9.04 lbs) |
SHOW PAX-60 Accessories
- No accessories available.
