Key Specifications

Output Power (1 kHz, Non-Clip, 20 msec Burst, All Channels Driven)

16Ω: 300 W × 4
8Ω: 600 W × 4 (1800 W × 2 Bridge Mode)
4Ω: 900 W × 4 (2600 W × 2 Bridge Mode)
2Ω: 1300 W × 4

Amplifier Class

Class D, Single-Ended Output

THD

0.01%

Frequency Response

+0.5 / -1.5 dB (8Ω, 1 W, 35 Hz–20 kHz)

Crosstalk

≤ -60 dB (8Ω, 1 kHz, Half Power, Input 150Ω Shunt, A-Weighted)

Signal-to-Noise Ratio

109 dB (8Ω, Gain = 32 dB, A-Weighted)

Max Input Voltage

+25 dBu

Input Impedance

20 kΩ (Balanced)

Sampling Frequency

96 kHz

A/D Converters

32-bit Linear, 64× Oversampling

D/A Converters

32-bit Linear, 128× Oversampling

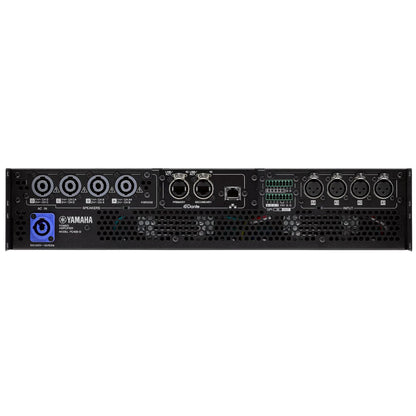

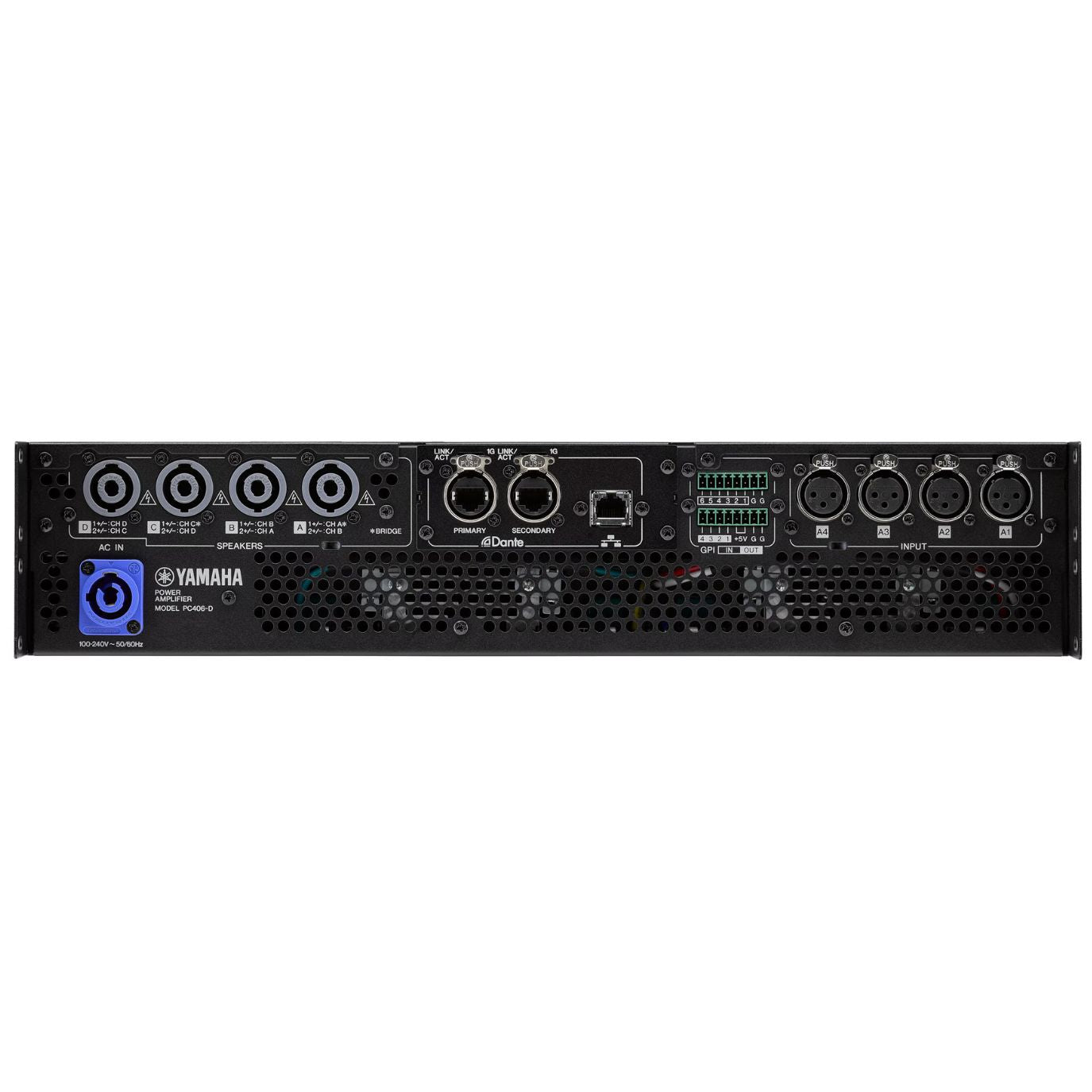

Connectivity

Analog Input

XLR-3-31 × 4

Digital I/O

Dante (etherCON) × 2 (Redundant/Daisy Chain)

Speaker Output

Neutrik speakON NL4 × 4

Control Ports

RJ45 × 1

AC Connection

powerCON 20A × 1

Other I/O

Remote / Fault Output: Euroblock 8-pin (mini) × 2
(GPI × 4, GPO × 6, +5V × 2)

Power

Power Requirements

100–240 V, 50/60 Hz
