Key Specifications

Output Power

16Ω: 600W×4 | 8Ω: 1200W×4 | 4Ω: 1900W×4 | 2Ω: 2500W×4
Bridge: 8Ω: 3800W×2 | 4Ω: 5000W×2 | Hi-Z 70V: 1200W×4 | Hi-Z 100V: 1200W×4

Amplifier Class

Class D, Single-ended

THD+N

0.01% @8Ω, 10W | 0.1% @4Ω, Half Power | 0.01% @100V/70V, 10W | 0.1% @100V/70V, Half Power

Frequency Response

35Hz–20kHz, +0.5/-1.5 dB

S/N Ratio

112 dB (8Ω, Gain 32 dB, A-weighted)

Voltage Gain / Sensitivity

8Ω Max Volume: 32dB/+10dBu | Hi-Z 100V: 32dB/+10.2dBu | Hi-Z 70V: 32dB/+7.2dBu

Protection

Load, Thermal, Over-current, Over-voltage, Integrated Power Limit

Cooling

3x variable speed fans, front-to-rear airflow

Max Input Voltage

+28dBu

Input Impedance

20kΩ (balanced)

Sampling Frequency

96kHz

A/D & D/A Converters

AD: 32-bit, 64x oversampling | DA: 32-bit, 128x oversampling

Dante Interface

16 IN / 16 OUT, Redundant, 96/88.2/48/44.1 kHz, 32/24-bit

Processors

20×8 input matrix, 16-band EQ, Room Delay 0–1000ms, Speaker Processing: X-Over, PEQ, Delay, Peak & RMS Limiter

Latency

Analog→Speakers: 0.9ms | Dante→Speakers: 1.5–2.1ms

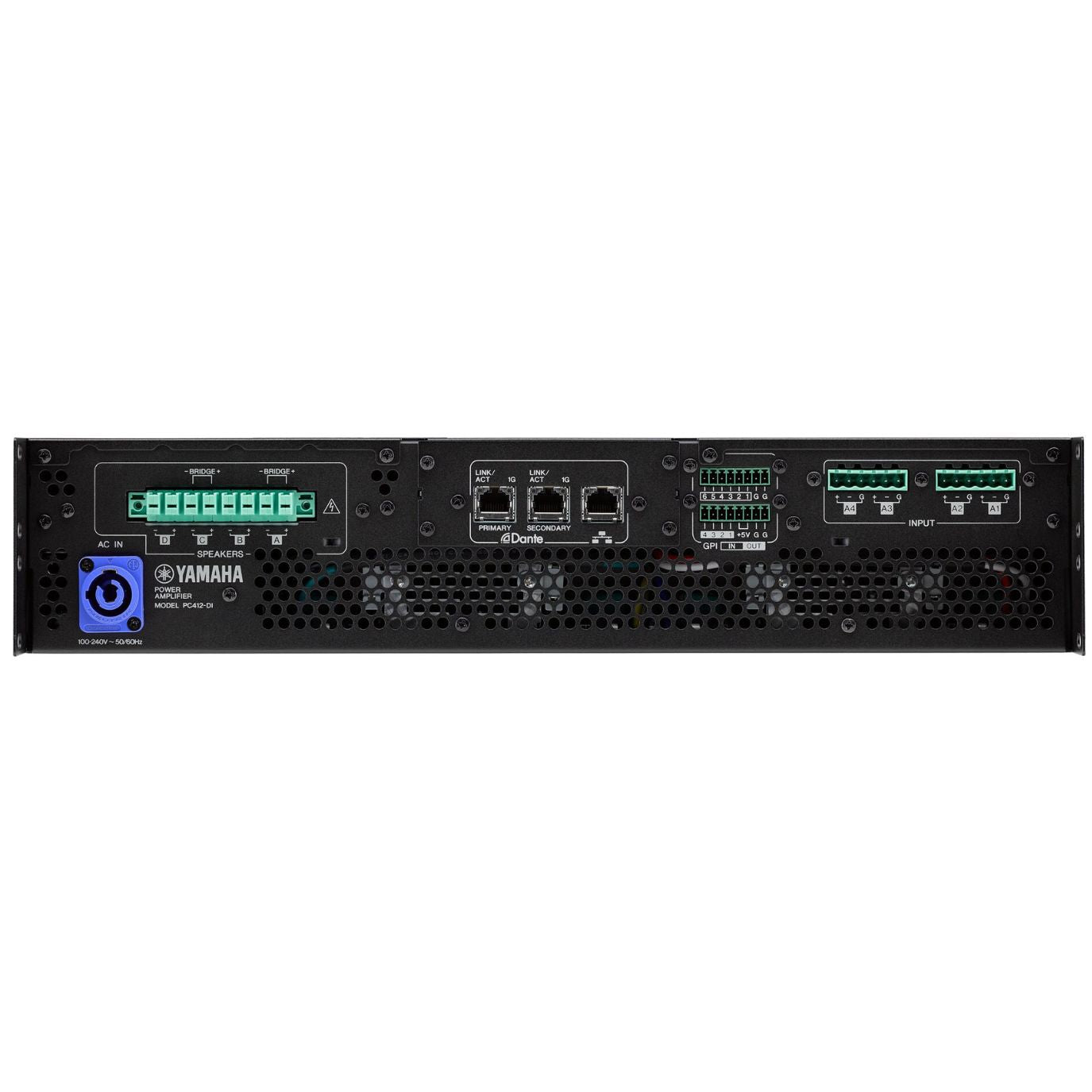

I/O Connectors

Analog Input: Euroblock 6-pin ×2 (4ch)
Digital: Dante RJ45 ×2
Speaker Output: 8-pin Euroblock ×1
Control: RJ45 ×1
AC: powerCON 20A ×1
Others: Remote, Fault Output Euroblock ×2

Indicators

Power (Green) ×1, Channel Status ×4 (Signal, Limit, Protect/Mute)

Power Requirements

100–240V, 50/60Hz | 1850W max, 190W idle, 9–12W standby

Operating Temp

0°C–40°C

Storage Temp

-20°C–60°C

Dimensions

W480 × H88 × D528 mm (18.9 × 3.46 × 20.79 in)

Weight

16 kg (35.3 lbs)
