Key Specifications

Power Adapter

Input Voltage Range

90–264 VAC

Input Plug

2-pin Euro plug

3-pin British plug

2-pin North American plug

Efficiency

80.15% (V)

82.96% (DOE VI)

Output Voltage

12 VDC (+7%, –3%)

Output Current

1 A

Max Output Power

12 W

No Load Power Consumption

< 0.3 W

Protection / Environmental

Protection

Surge protection

Over temperature protection

Over current protection

Voltage load protection

ESD: IEC61000-4-2 ±6 kV contact; ±8 kV air

Surge: EN61000-4-5

Common mode ±4 kV (12 ohms)

Differential mode ±2 kV (2 ohms)

Working Temperature

–10 °C to +55 °C (–14 °F to +131 °F)

Working Humidity

< 90% RH

Physical Properties

Weight

0.084 kg (0.19 lb)

0.09 kg (0.20 lb)

0.091 kg (0.20 lb)

Dimensions

76.5 × 73.6 × 28.5 mm

71.9 × 73.6 × 49.1 mm

83.4 × 63.2 × 29.3 mm

Installation

Wall-mount

Color

Black

DC Plug

Φ5.5 mm × Φ2.1 mm × 10 mm

Cable Length

DC wire: 1,500 mm (59.06")

Certifications

Certifications

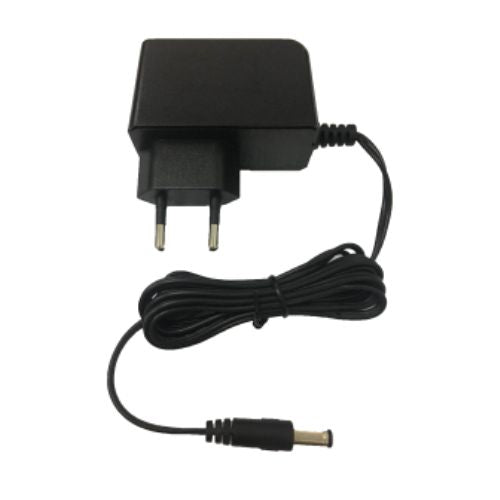

CE, UL, FCC, DOE (varies by model PFM321 series)
