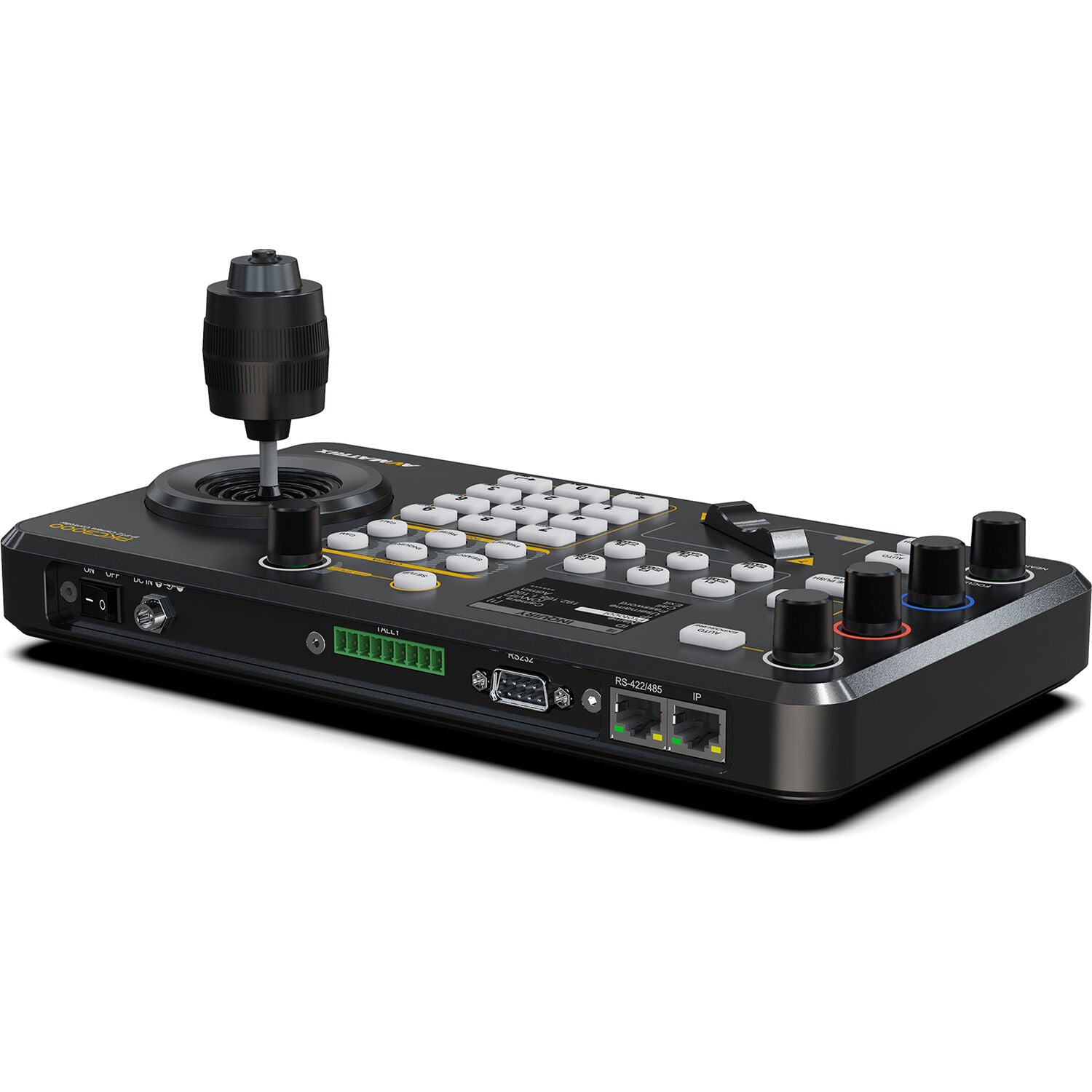

PKC3000 –IP & Serial PTZ Camera Joystick Controller

PRICE FOR INQUIRY

Control protocol by VISCA, VISCA-Over-IP, Onvif and Pelco P&D
Control up to total of 255 IP cameras on a single network
6 camera quick call up keys, and 6 user-assignable keys to quickly invoke shortcut functions
Quick control of exposure, shutter speed, iris, compensation, white balance, focus, pan/tilt speed, zoom speed
Tactile feel with professional rocker/seesaw switch for zoom control
Automatically search available IP cameras in a network and assign IP addresses easily
Multi-color key illumination indicator directs operation to specific functions
Tally GPIO output for indicating the camera be currently controlled

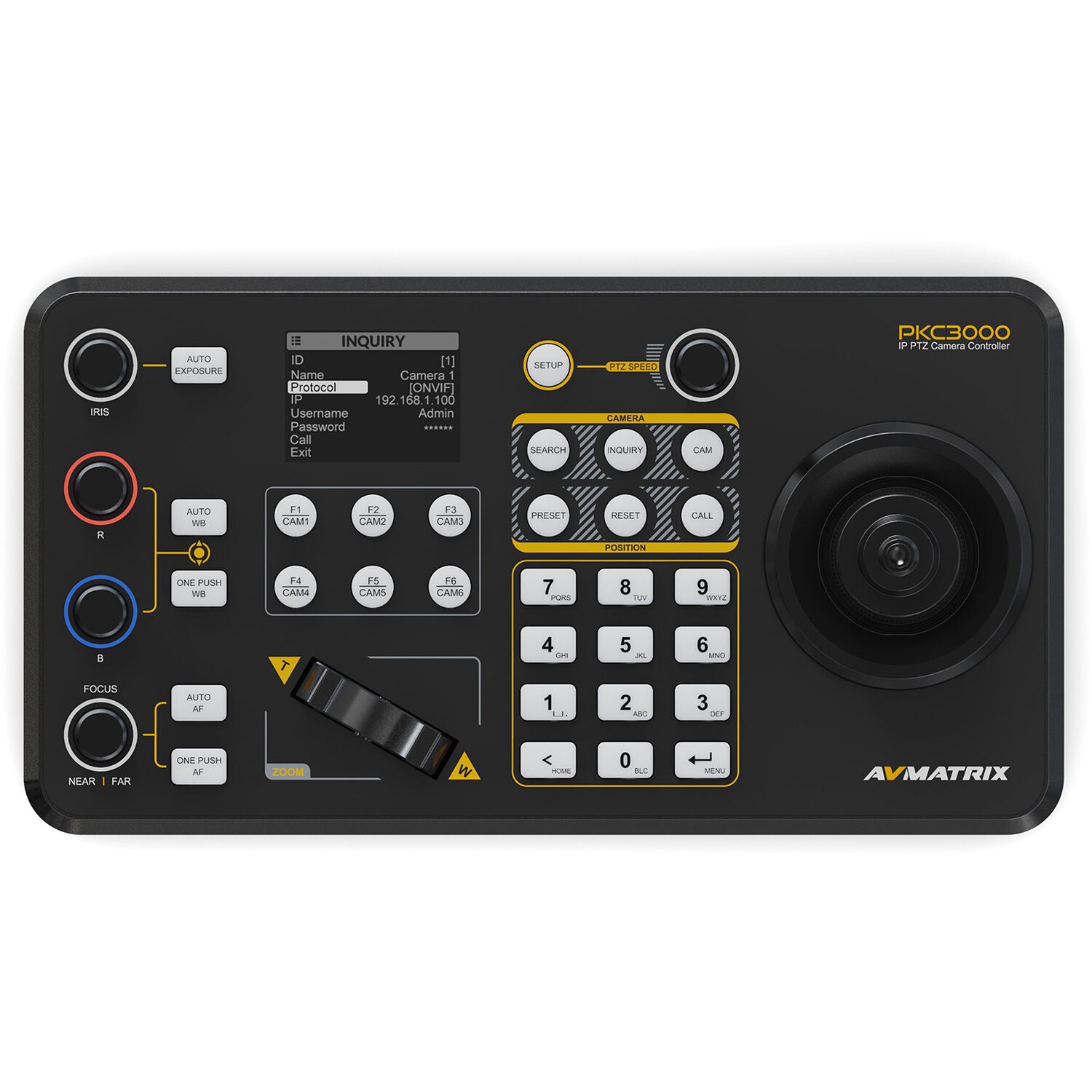

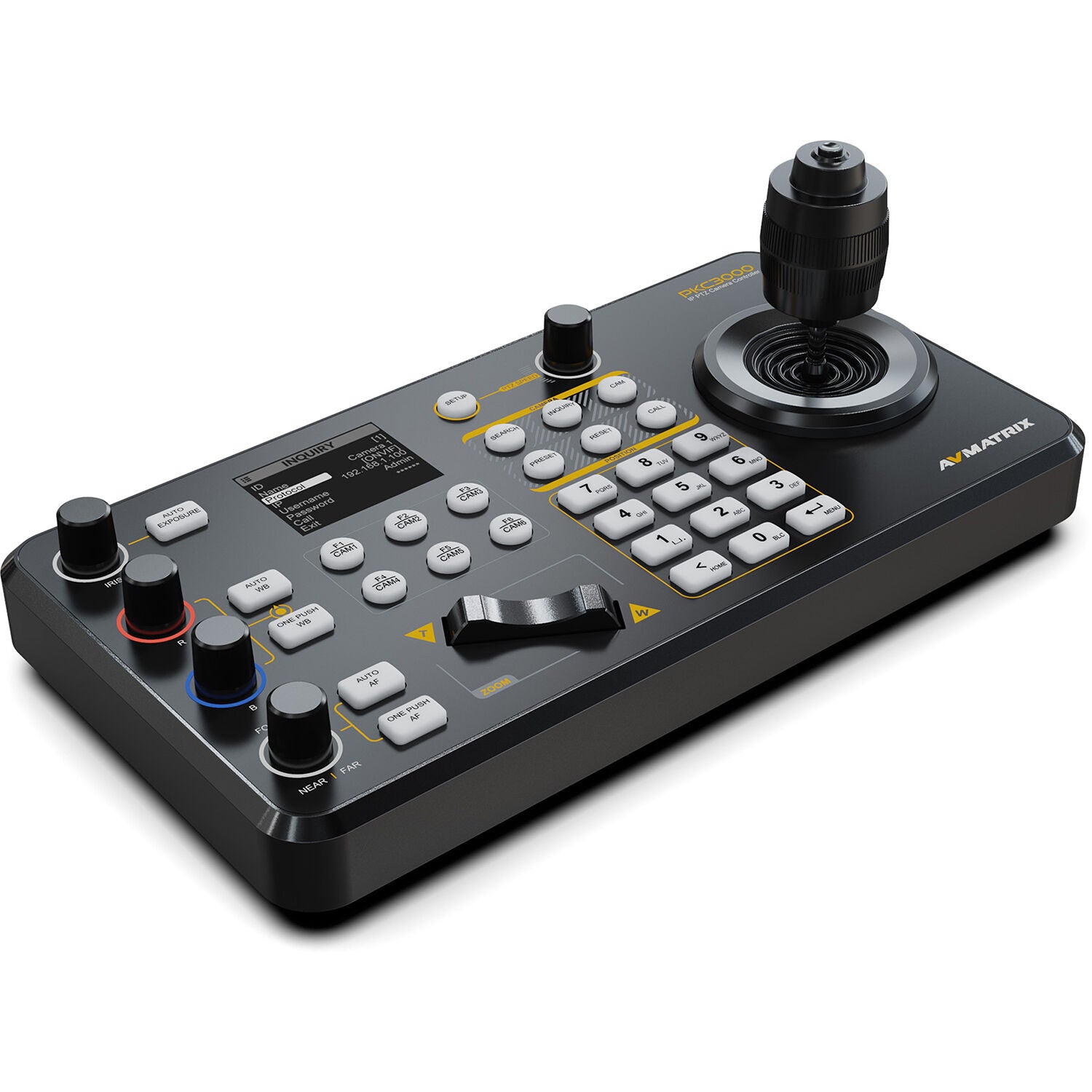

Metal housing with 2.2 inch LCD display, 4D joystick, 5 rotation button
Supports both POE and 12V DC power supplies

AV MATRIX

Price for Inquiry

UNIT: PIECE/S

Product Code: SKU:AVMA-PKC3000-CHN-2047

Control protocol by VISCA, VISCA-Over-IP, Onvif and Pelco P&D
Control up to total of 255 IP cameras on a single network
6 camera quick call up keys, and 6 user-assignable keys to quickly invoke shortcut functions
Quick control of exposure, shutter speed, iris, compensation, white balance, focus, pan/tilt speed, zoom speed
Tactile feel with professional rocker/seesaw switch for zoom control
Automatically search available IP cameras in a network and assign IP addresses easily
Multi-color key illumination indicator directs operation to specific functions
Tally GPIO output for indicating the camera be currently controlled
Metal housing with 2.2 inch LCD display, 4D joystick, 5 rotation button
Supports both POE and 12V DC power supplies

Authorized Dealer

Certified Quality Products

After-Sales Support

Secure Payments

Quantity

AV MATRIX PKC3000 –IP & Serial PTZ Camera Joystick Controller

Key Specifications
Number of Supported Cameras	255 Channels

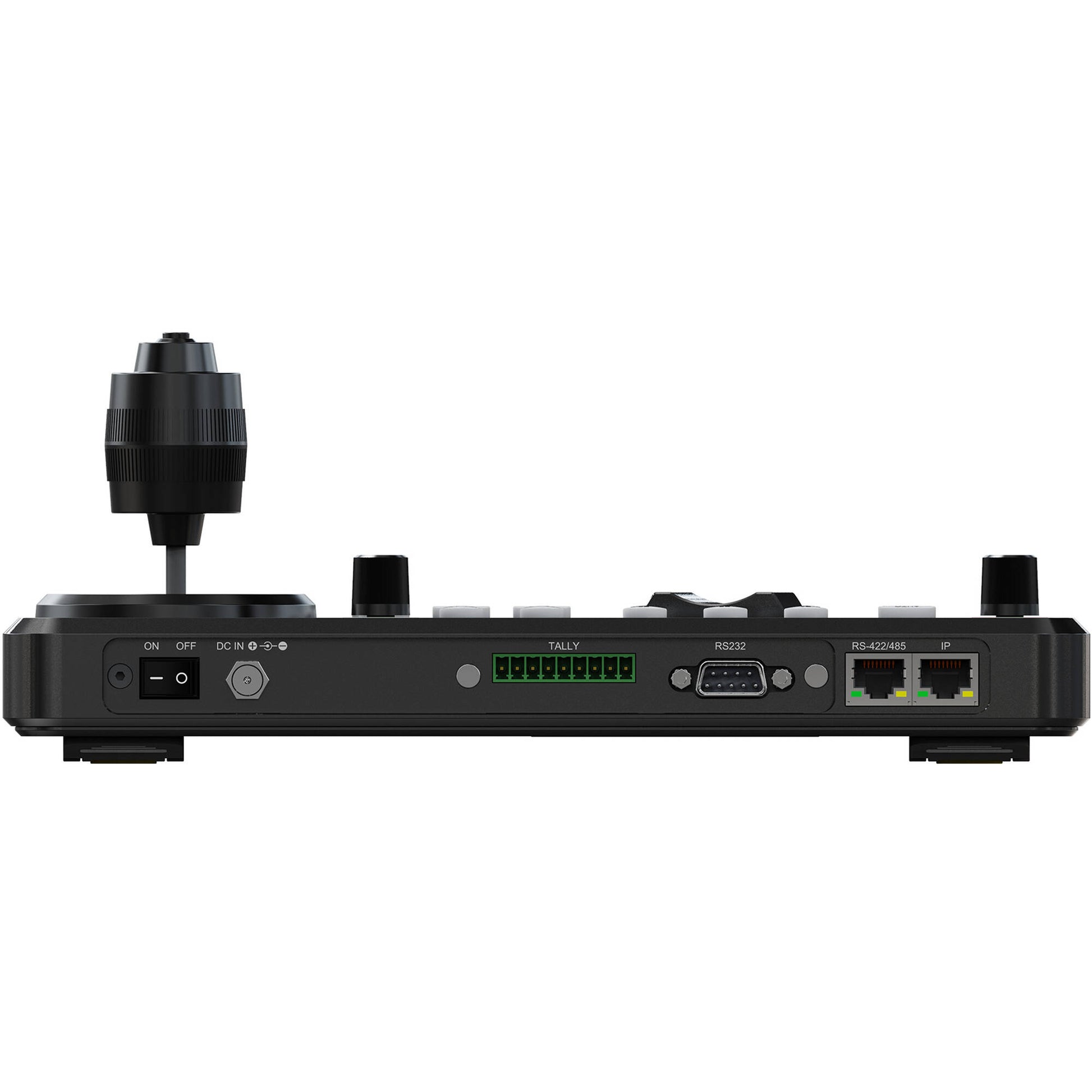

Control I/O	1x Block 9-Pin Input 1x RJ45 (IP Control) Output 1x RJ45 (RS-422, RS-485) Output 1x D-Sub 9-Pin (RS-232) Output
Controls	6x Programmable Buttons 1x Pan/Tilt, Zoom Joystick 6x Camera Selection Buttons 5x Knobs 1x Zoom Rocker
Touchscreen	No
PoE Support	Yes
Power Consumption	5 W
Security Lock Support	No
General
Number of Supported Cameras	255 Channels
Supported Control Protocols	IP Pelco-D Pelco-P RS-232 RS-422 RS-485 VISCA
Control I/O	1x Block 9-Pin Input 1x RJ45 (IP Control) Output 1x RJ45 (RS-422, RS-485) Output 1x D-Sub 9-Pin (RS-232) Output
Controls	6x Programmable Buttons 1x Pan/Tilt, Zoom Joystick 6x Camera Selection Buttons 5x Knobs 1x Zoom Rocker
Presets	255 via IP, RS-232, VISCA, Pelco-P, Pelco-D
Display
Size	2.2"
Touchscreen	No
Power
PoE Support	Yes
Power Connectors	1x Barrel / Coaxial
Power Consumption	5 W
Input Power	12 VDC
Physical
Operating Conditions	-4 to 140°F / -20 to 60°C
Storage Conditions	-40 to 176°F / -40 to 80°C
Security Lock Support	No
Dimensions	106.3 x 57.1 x 11.6" / 270 x 145 x 29.5 cm 106.3 x 57.1 x 42" / 270 x 145 x 106.6 cm
Weight	2.6 lb / 1.2 kg
Packaging Info
Package Weight	3.575 lb
Box Dimensions (L x W x H)	12.4 x 7.6 x 5.7"
