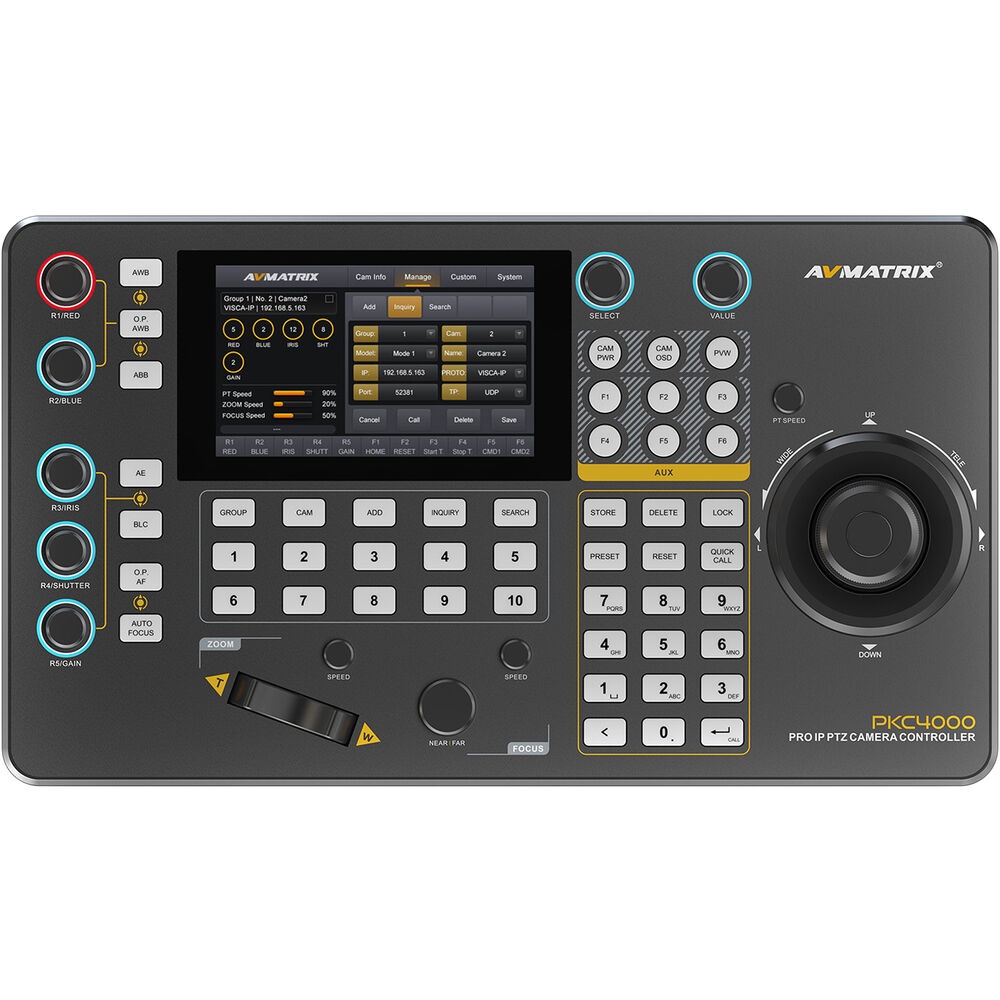

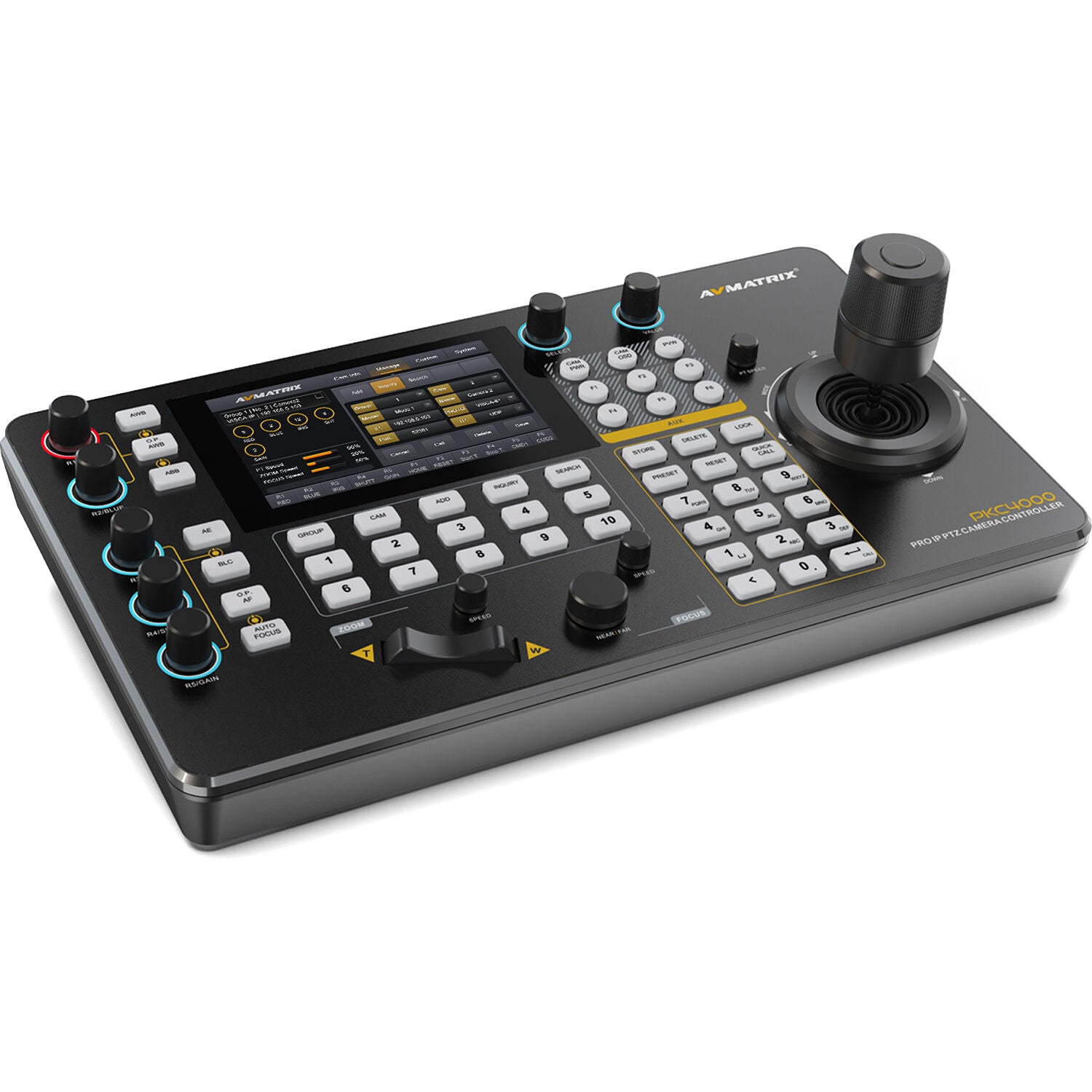

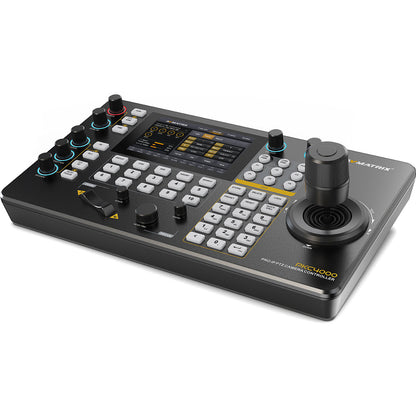

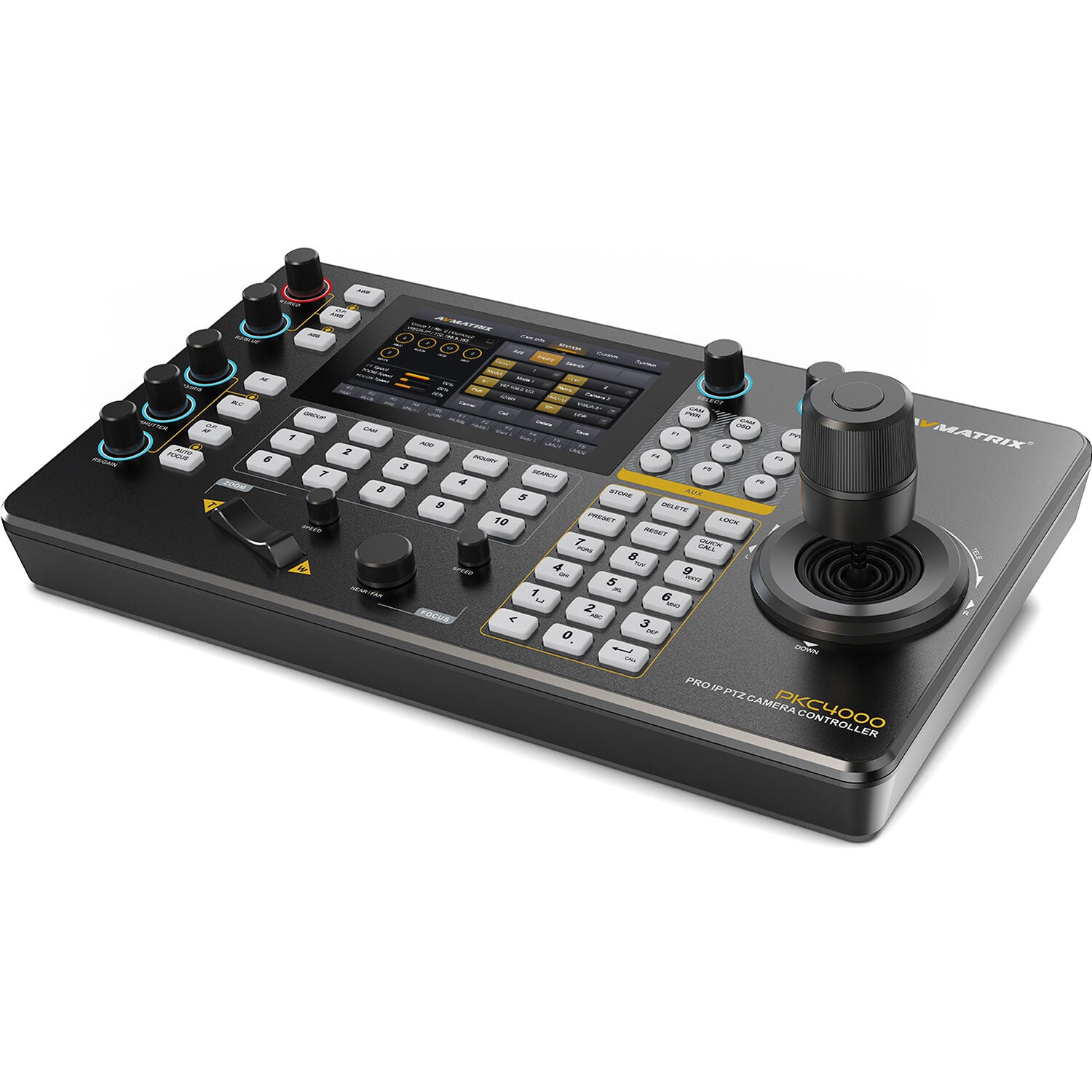

AV MATRIX PKC4000-IP & Serial PTZ Camera Controller
AV MATRIX PKC4000-IP & Serial PTZ Camera Controller
|
Key Specifications |
|
|

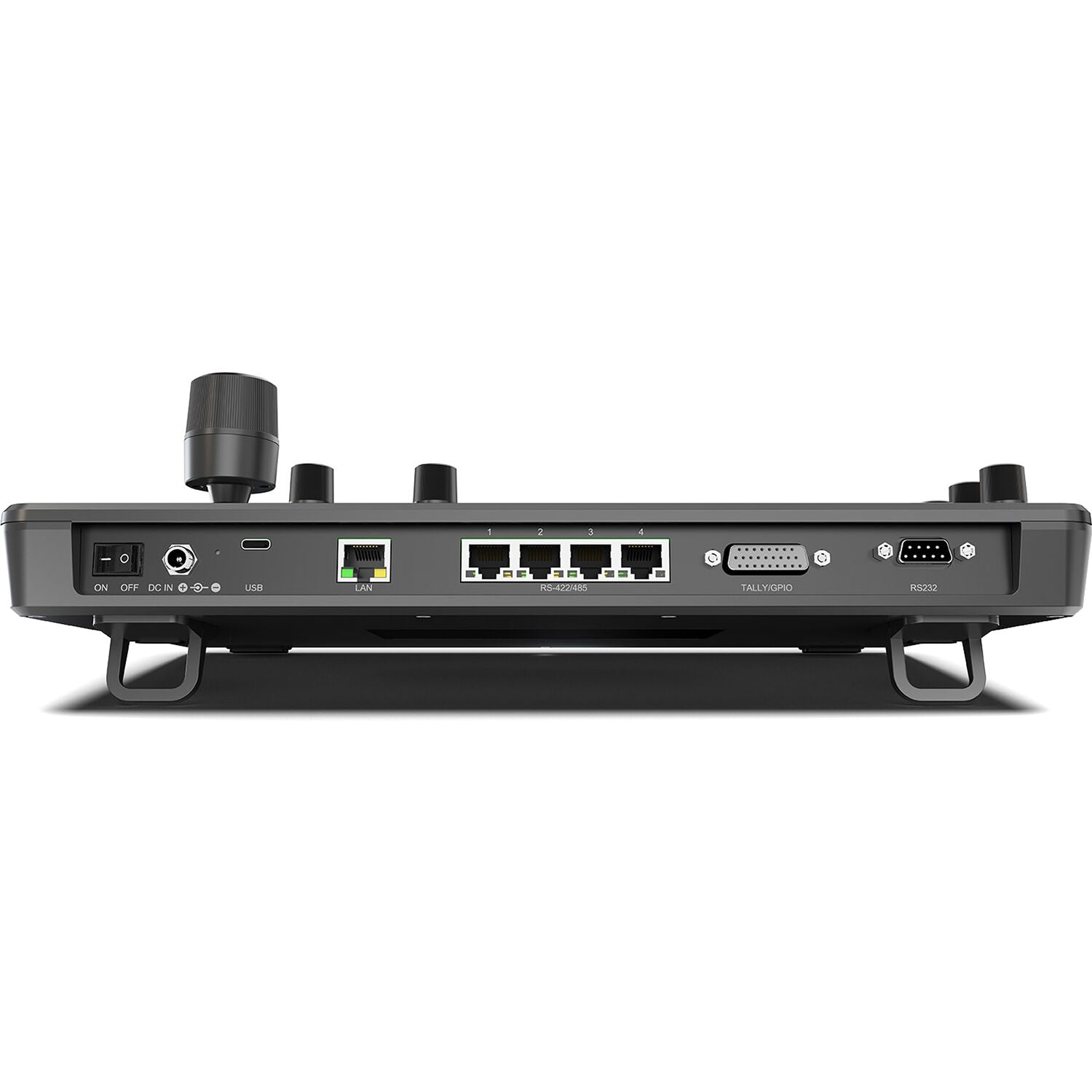

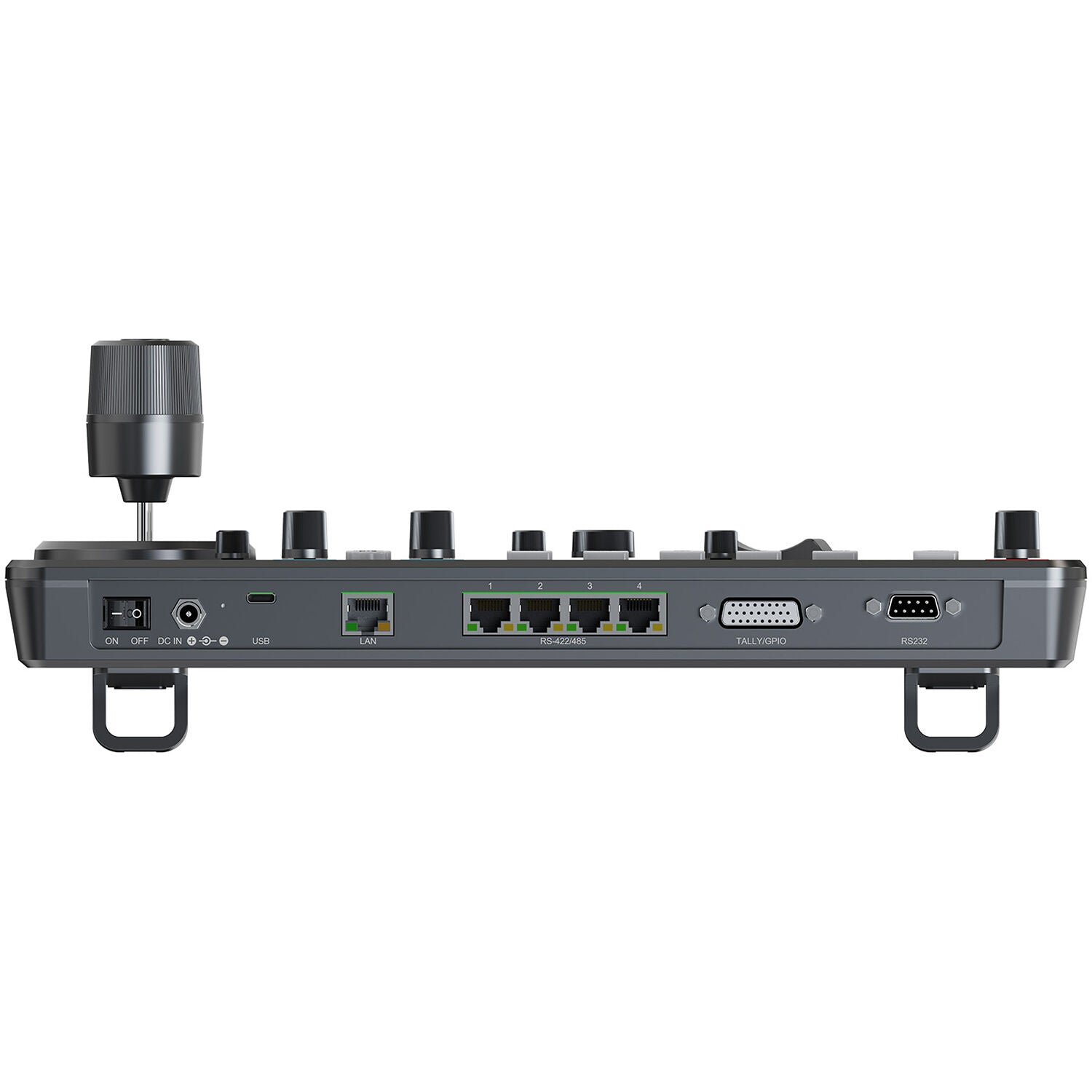

Connections |
|
|
Interfaces |
IP (RJ45) ×1 |
|
IP Protocol |
ONVIF, VISCA-IP |
|
Serial Protocol |
PELCO-D, PELCO-P, VISCA |
|
Serial Baud Rate |
2400, 4800, 9600, 19200, 38400, 115200 bps |
|
LAN Port |
1000M ×1 (PoE/PoE+: IEEE802.3af/at) |
|
User Interfaces |
|
|
Display |
5" Touch Screen |
|
Knob |
Quickly control iris, shutter speed, gain, auto exposure, white balance, etc. |
|
Joystick |
Pan/Tilt/Zoom |
|
Camera Group |
10 (Each group connect up to 10 cameras) |
|
Camera Address |
Up to 100 |
|
Camera Preset |
Up to 255 |
|
Power |
|
|
Power Input |
PoE / DC 7-24V |
|
Power Consumption |
PoE: <8W, DC: <8W |
|
Environment |
|
|
Working Temperature |
-20°C to 60°C |
|
Storage Temperature |
-20°C to 70°C |
|
Dimensions |
|
|
Dimensions (L × W × D) |
340 x 195 x 49.5 mm |
|
Weight |
Net: 1730 g |
