Key Specifications

Frequency Response (-10 dB)

230 Hz - 20000 Hz

Max SPL @ 1m / 4m

102 dB / 90 dB

Coverage Angle

126°

System Sensitivity

94 dB (1W @ 4m: 82 dB)

Power Section

Power Handling

6 W (RMS), 24 W (Peak)

Constant Voltage Transformer

100 V

Power Selection (Taps)

6 W (1667 Ω), 3 W (3333 Ω), 1.5 W (6667 Ω)

Transducers

1 x 6.0" Full Range

Standard Compliance

Safety Certifications

CE compliant, EN54-24 certified

CPR Number

1488-CPR-0486/W

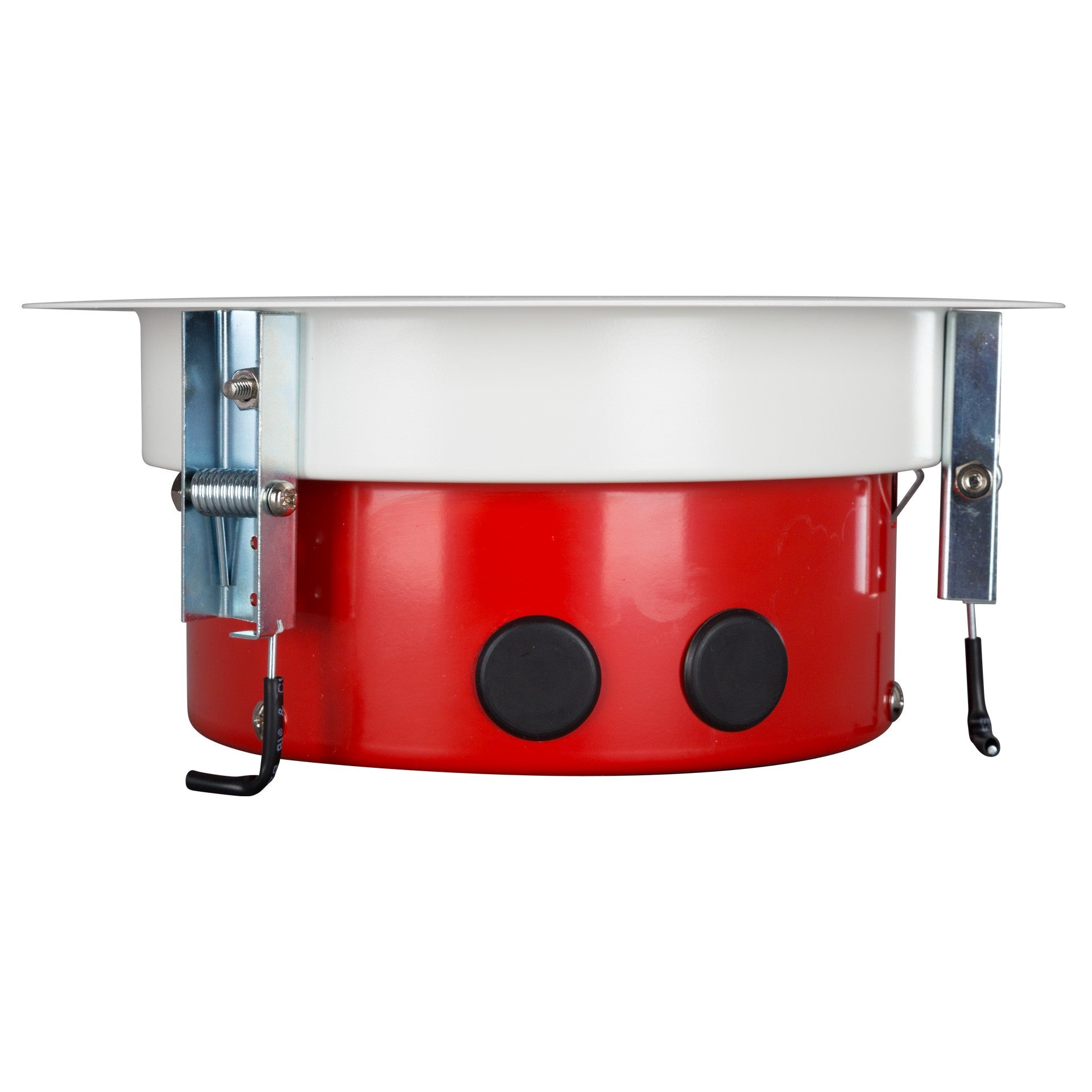

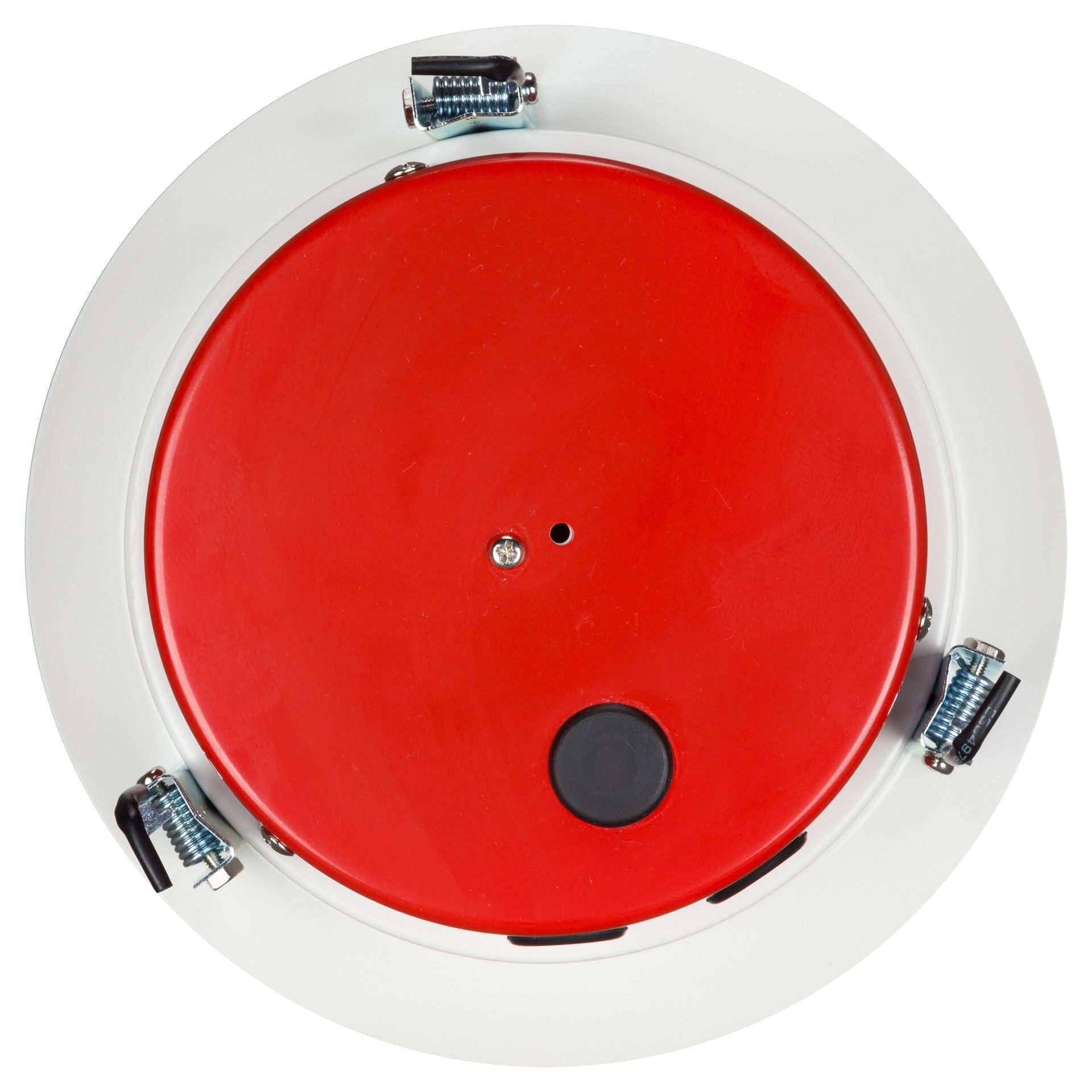

Physical Specifications

Material

Metal cabinet, Steel grille and back cover

Color

White - RAL 9003

Dimensions (Dia x H)

220 x 91 mm / 8.66 x 3.58 inches

Cut Out Diameter

200 mm / 7.87 inches

Weight

1.12 kg / 2.47 lbs

Shipping Information

Package Dimensions

120 x 230 x 230 mm / 4.72 x 9.06 x 9.06 inches

Package Weight

1.6 kg / 3.53 lbs
