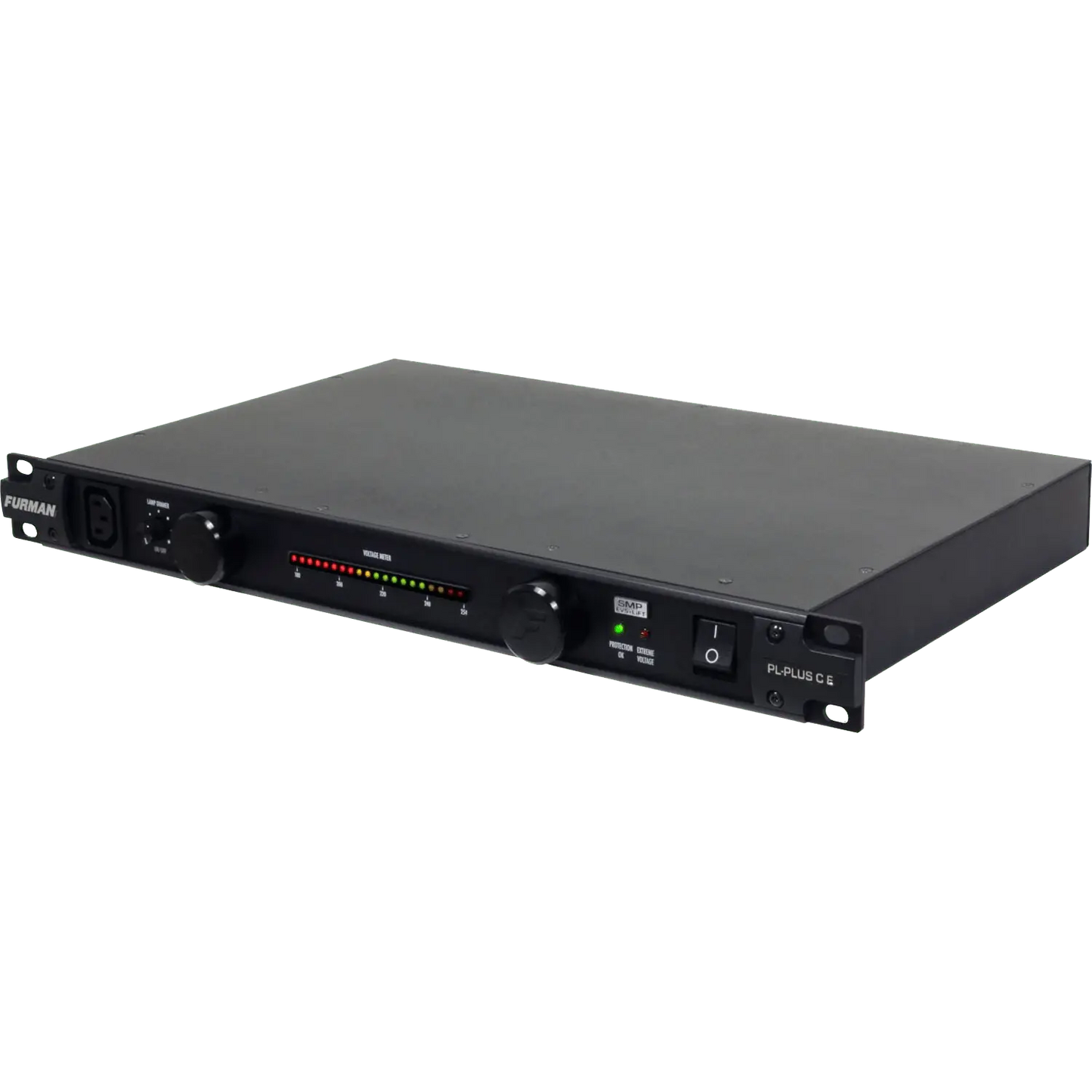

FURMAN PL-PLUS C E
FURMAN PL-PLUS C E
|
Key Specifications |
|
|
Family |
Classic Series 240V |
|
Line Voltage |
240 Volts |
|
AC Protection Technology |
Extreme Voltage Shutdown (EVS), |
|
Current Rating |
10 A |
|
Operating Voltage |
180 to 274 VAC |
|
Over Voltage Shutdown |
275 VAC (typical) |
|
Spike Protection Modes |
Line to neutral, zero ground leakage |
|
Spike Clamping Voltage |
376 VAC peak @ 3,000 A |
|
Response Time |
1 nanosecond |
|
Maximum Surge Current |
6,500 A |
|
Noise Attenuation |
10 dB @ 10 kHz |
|
Dimensions (H × W × D) |
44.45 × 482.6 × 266.7 mm |
|
Weight |
5 kg |
|
Construction |
Steel chassis, 3 mm brushed and black anodized aluminum front panel; |
|
Power Consumption |
25 VA |
|
Safety Agency Listing |
CE |
|
UPC |
654061028109 |
