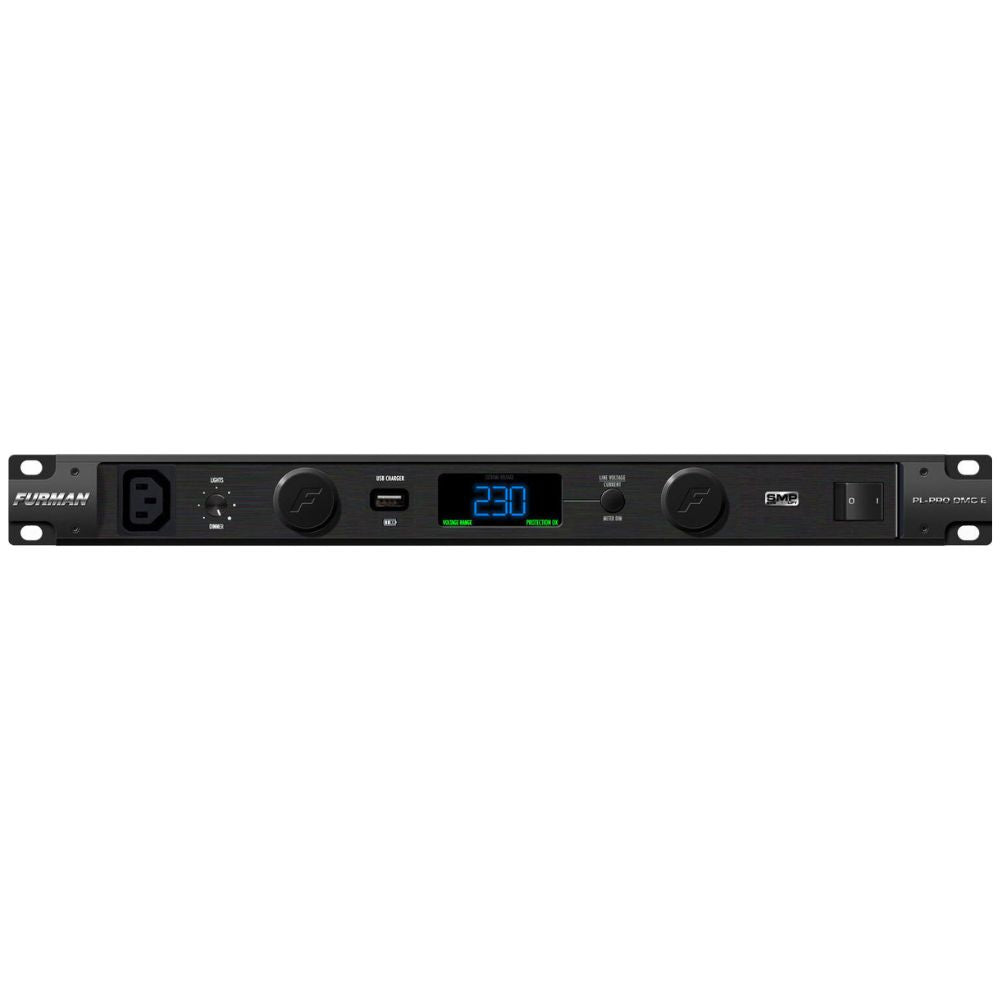

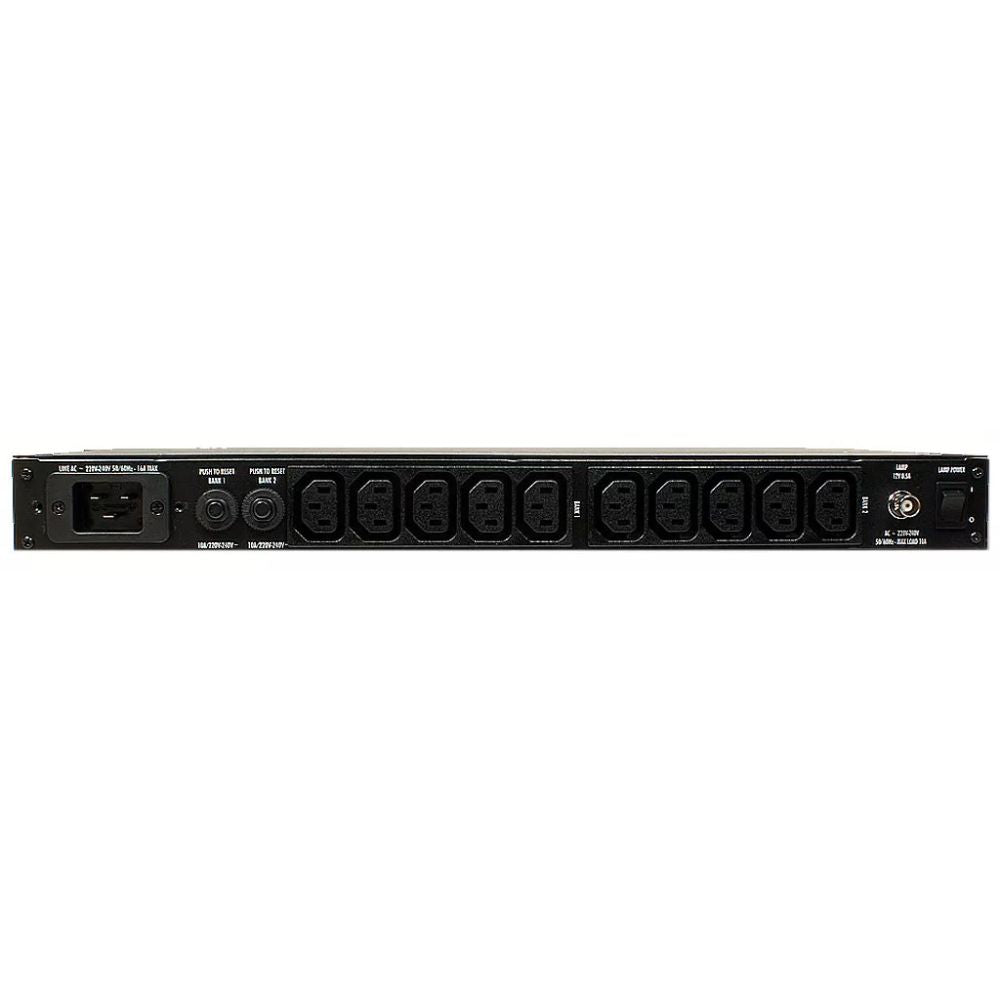

PL-PRO DM C E

Surge Protection: Features Furman's exclusive Series Multi-Stage Protection (SMP), which provides non-sacrificial surge suppression and spike clamping at 376 VAC peak @ 3,000 Amps, protecting connected equipment from damaging transient voltage spikes without compromising the unit itself.
Noise Filtration: Utilizes Linear Filtering Technology (LiFT) to reduce AC line noise, which helps in lowering the noise floor in audio/video systems (attenuation of 10 dB @ 10 kHz, 40 dB @ 100 kHz, 50 dB @ 500 kHz).
Voltage Protection: Advanced Extreme Voltage Shutdown (EVS) circuitry detects dangerous voltage irregularities (typically shutting down power if voltage exceeds 275 VAC) and safely powers down the unit and connected equipment to prevent damage.

FURMAN

₱59,900.00 VAT INC.

₱59,900.00

UNIT: PIECE/S

Product Code: SKU:FMAN-PLPRODM-CHN-989

Surge Protection: Features Furman's exclusive Series Multi-Stage Protection (SMP), which provides non-sacrificial surge suppression and spike clamping at 376 VAC peak @ 3,000 Amps, protecting connected equipment from damaging transient voltage spikes without compromising the unit itself.
Noise Filtration: Utilizes Linear Filtering Technology (LiFT) to reduce AC line noise, which helps in lowering the noise floor in audio/video systems (attenuation of 10 dB @ 10 kHz, 40 dB @ 100 kHz, 50 dB @ 500 kHz).
Voltage Protection: Advanced Extreme Voltage Shutdown (EVS) circuitry detects dangerous voltage irregularities (typically shutting down power if voltage exceeds 275 VAC) and safely powers down the unit and connected equipment to prevent damage.

Authorized Dealer

Certified Quality Products

After-Sales Support

Secure Payments

Quantity

FURMAN PL-PRO DM C E

Key Specifications
Response Time	1 nanosecond
Maximum Surge Current	6,500 A
Construction	Steel chassis, 3 mm brushed and black anodized aluminum front panel; glass epoxy printed circuit boards
Family	Classic Series 240V
Line Voltage	240 Volts
AC Protection Technology	Extreme Voltage Shutdown (EVS), Series Multi-Stage Protection (SMP), Non-sacrificial protection with zero ground contamination
Current Rating	16 A
Operating Voltage	180 to 274 VAC
Over Voltage Shutdown	275 VAC (typical)
Spike Protection Modes	Line to neutral, zero ground leakage
Spike Clamping Voltage	376 VAC peak @ 3,000 A 266 VAC RMS
Noise Attenuation	10 dB @ 10 kHz 40 dB @ 100 kHz 50 dB @ 500 kHz (Linear attenuation curve from 0.05 – 100 Ω line impedance)
Dimensions (H × W × D)	44.45 × 482.6 × 266.7 mm
Weight	5.5 kg
Power Consumption	25 VA
Safety Agency Listing	CE
UPC	654061028116
