Key Specifications

Frequency Response (-10 dB)

90 Hz - 20000 Hz

Max SPL @ 1m

100 dB

Coverage Angle

120° (Conical)

System Sensitivity

88 dB

Power Section

Power Handling

8 W RMS / 32 W PEAK

Recommended Amplifiers

DMA 504, DMA 162, DMA 82, AM 2160, UP 2321 (and similar 100V amps)

Transducers

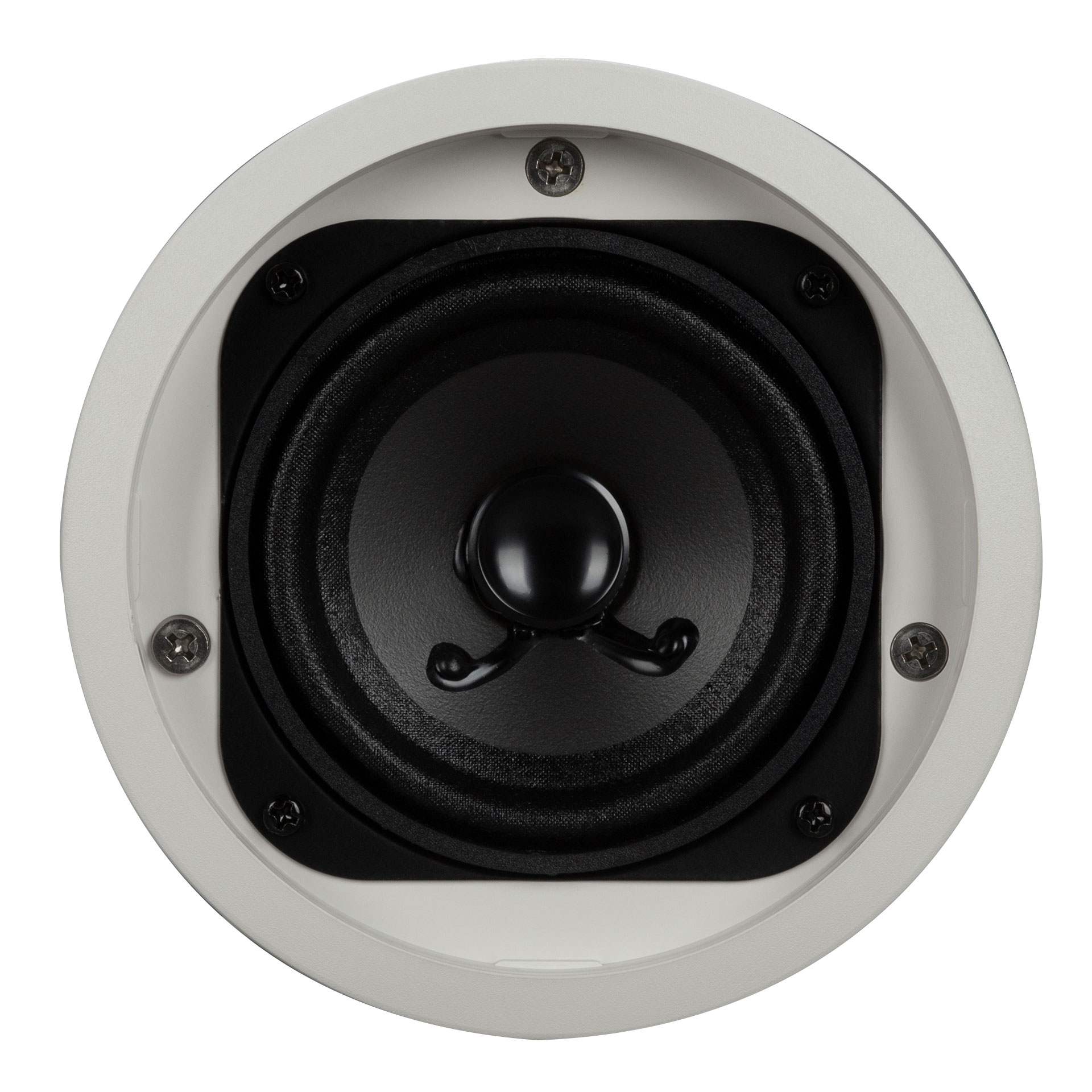

1 x 3.5'' Fullrange

Input / Output Section

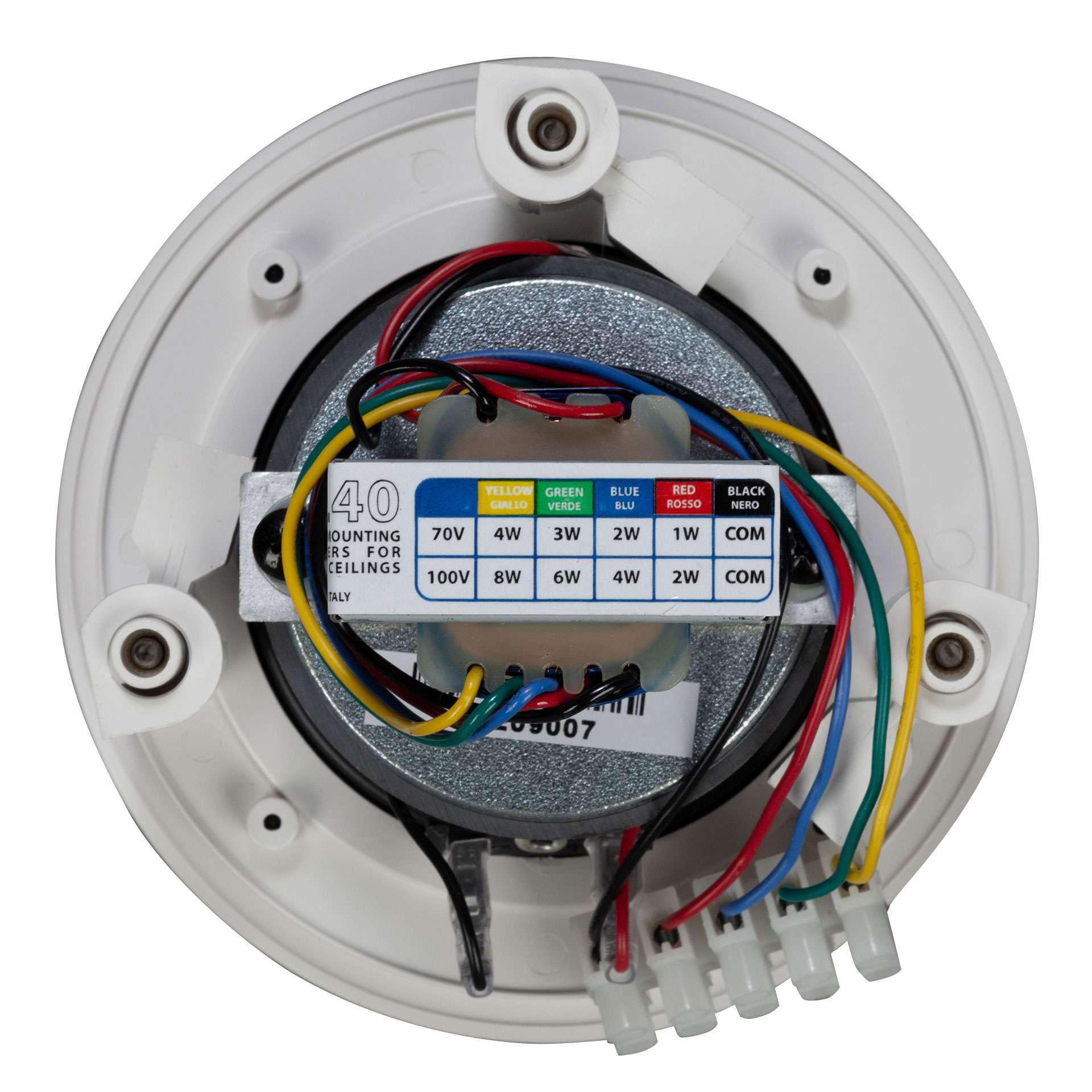

Constant Voltage Transformer

100 V (also supports 70 V)

Power Selection (100V Taps)

8 W, 6 W, 4 W, 2 W

Connectors

Screw Terminals

Standard Compliance

IP Protection Grade

IP 44

Safety Agency

CE compliant

Physical Specifications

Cabinet Material

Self-extinguishing Plastic (UL 94 V-0)

Grille Material

Aluminium

Color

White - RAL 9003

Dimensions (Dia x D)

130 x 110 mm / 5.12 x 4.33 inches

Recessed Depth / Cut-out

103 mm (4.06") / 122 mm (4.8")

Weight

0.38 kg / 0.84 lbs
