Key Specifications

Frequency Response (-10 dB)

90 Hz - 20000 Hz

Max SPL @ 1m

107 dB

Coverage Angle

90° (Conical)

System Sensitivity

91 dB

Power Section

Power Handling

6 W RMS / 24 W PEAK

Nominal Impedance

8 Ω

Recommended Amplifiers

DMA 504, DMA 162, AM 2160, UP 2321 (and similar 100V amps)

Transducers

1 x 6.0'' Fullrange

Input / Output Section

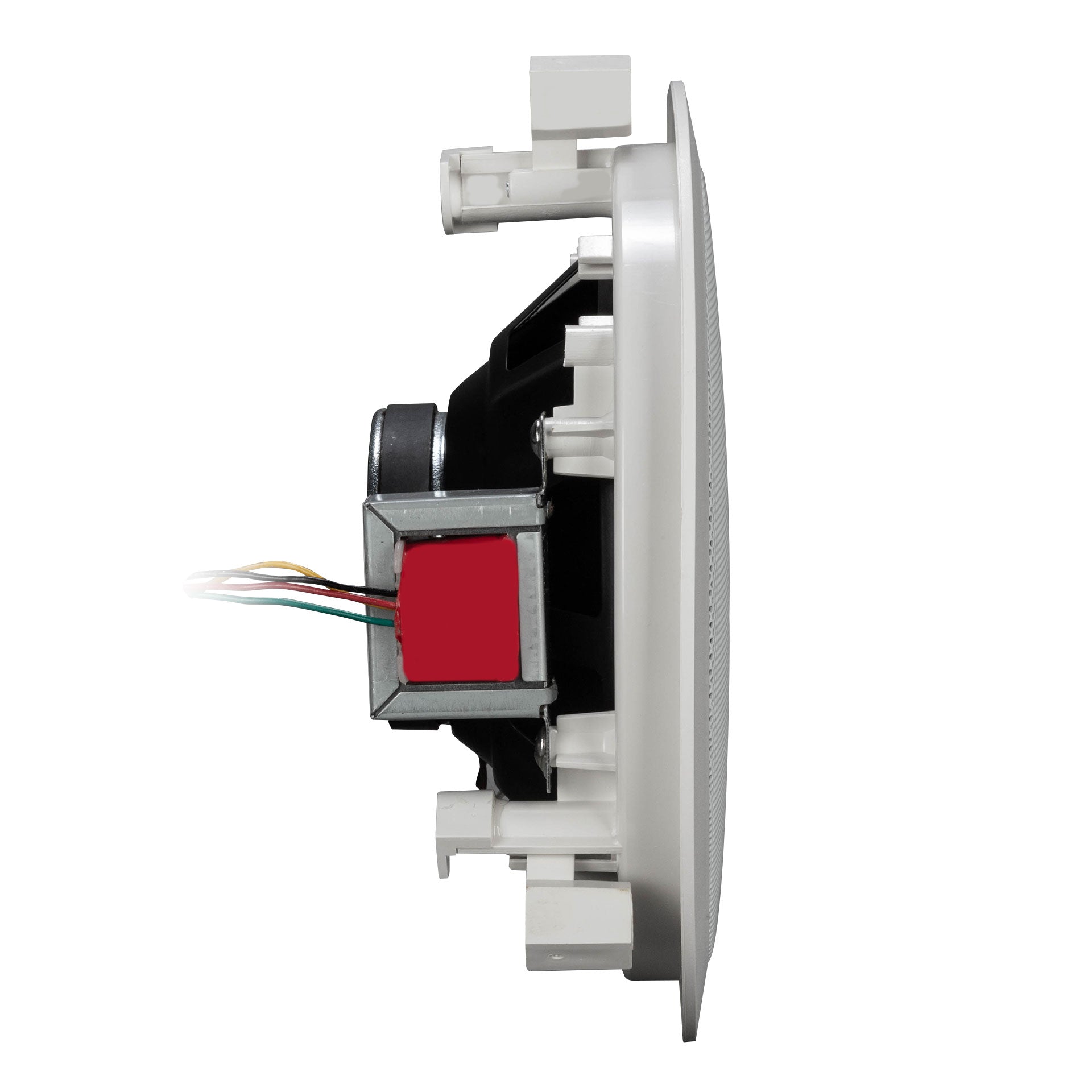

Constant Voltage Transformer

70/100 V

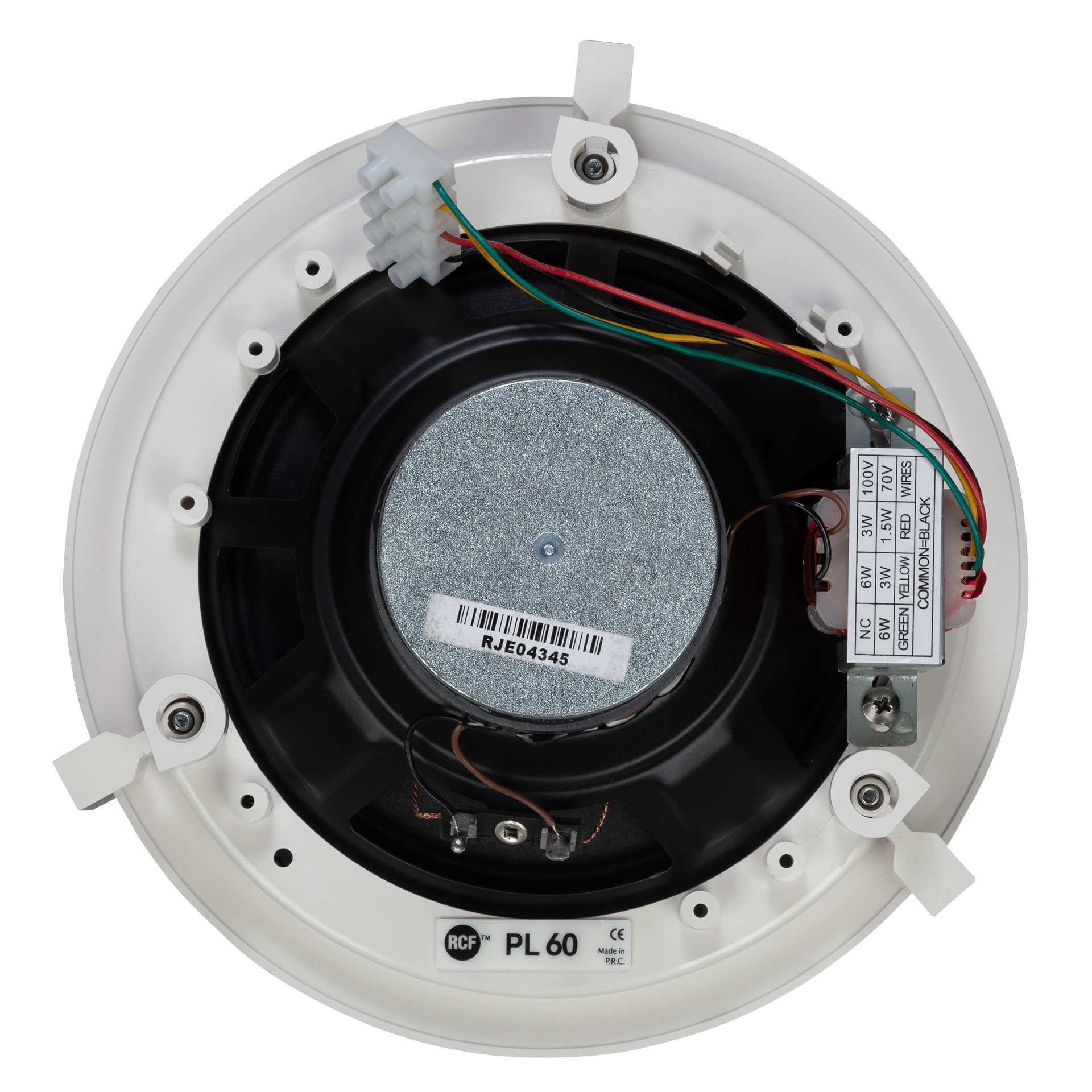

Power Selection (100V Taps)

6 W (1667 Ω), 3 W (3333 Ω), 1.5 W (6667 Ω)

Connectors

Screw Terminals

Physical Specifications

Cabinet Material

Self-extinguishing Plastic (UL 94 V-0)

Grille Material

Steel

Color

White - RAL 9003

Dimensions (Dia x D)

204 x 75 mm / 8.03 x 2.95 inches

Recessed Depth

69 mm / 2.72 inches

Weight

0.34 kg / 0.75 lbs

Shipping Information

Package Height / Weight

105 mm (4.13") / 1.07 kg (2.36 lbs)
