Key Specifications

Product / Device Type

Laser DLP Multimedia Projector

Projection System / Technology

DLP™

Native Resolution

Full HD 1080p (1920 x 1080)

Maximum Resolution

4K UHD (3840 x 2160)

Native Aspect Ratio

16:9

Supported Aspect Ratio

4:3

Brightness

Standard Mode: 6,000 ANSI Lumens
ECO Mode: 4,800 ANSI Lumens

Contrast Ratio

50,000:1

Projection Modes

Front, Rear, Front Ceiling, Rear Ceiling

Projection Lens & Optics

Projection Image Size

22" to 300" (55.9 cm to 762 cm)

Throw Ratio

1.2 to 2.04 (80" @ 2.1 m)

Zoom & Focus

1.7x Optical Zoom (Manual Focus, Manual Zoom)

Lens Specifications

F = f/2.3 ~ f/3, f = 17.63 mm ~ 27.90 mm

Projection Offset

154% (Half-Height)

Sync Rates

Horizontal: 15 to 100 kHz | Vertical: 24 to 120 Hz

Light Source Specifications

Light Source Type

88 W Laser Engine

Light Source Life

Standard Mode: 20,000 Hours
ECO Mode: 30,000 Hours

Audio, Connectivity, Control & Security

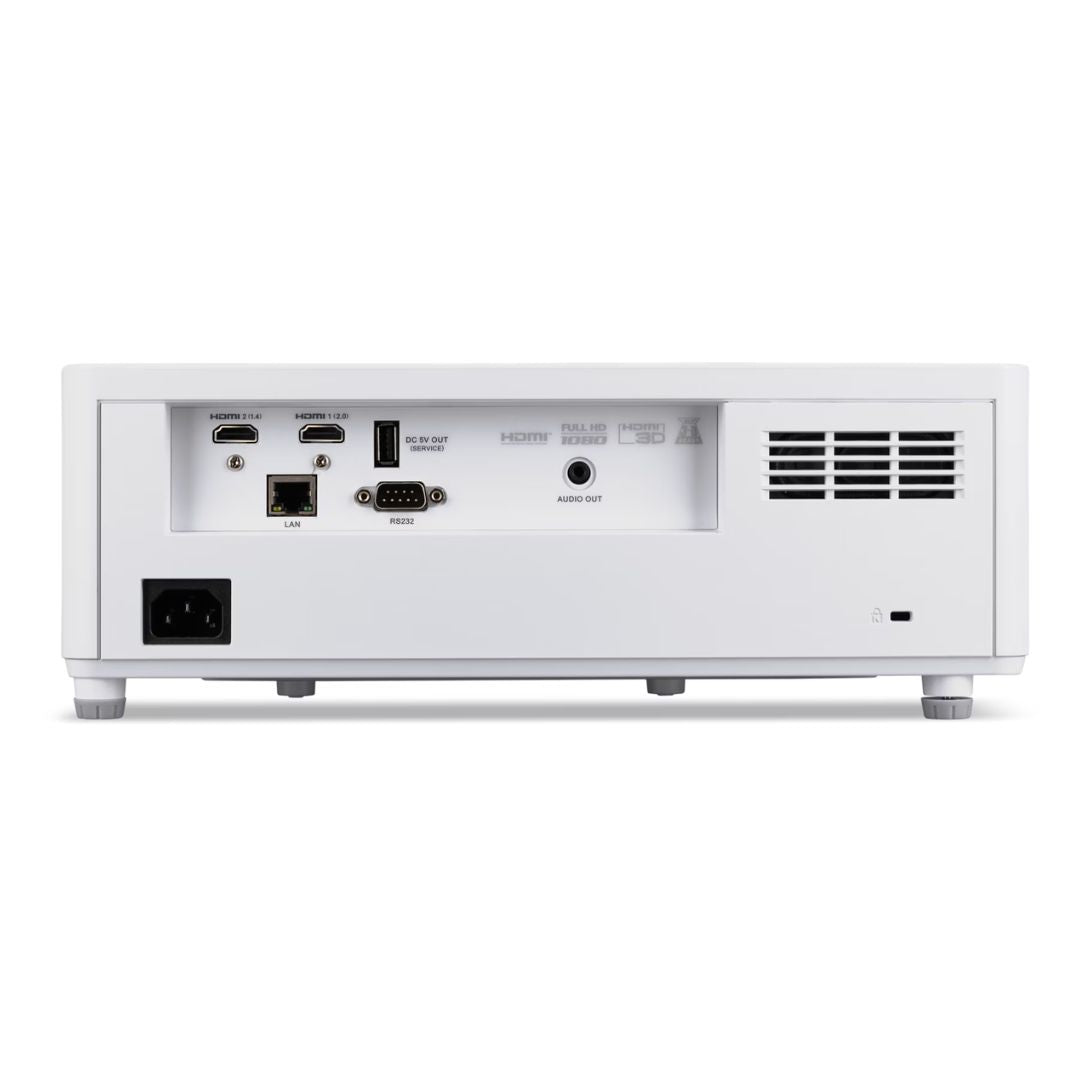

Video & Network Interfaces

1x HDMI 2.0 (HDCP 2.2)
1x HDMI 1.4b (HDCP 1.4)
1x HDBaseT (RJ45 Port)

Audio Interfaces & Speakers

1x 3.5mm Audio Out
1x S/PDIF Output
Integrated 30 W Stereo Speakers (2x 15 W Speakers)

Network Control & Protocols

1x LAN Control Port (RJ45)
Supported Protocol: Crestron

Control, Power Out & Security

1x RS232 (D-sub)
1x USB Type-A DC Out (5V / 1.5A)
PIN Code Locking, Kensington Lock, Security Bar

Power, Dimensions & Physical Specifications

Power Supply Input

AC 100V–240V

Power Consumption

Standard Mode: 245 W
ECO Mode: 215 W
Standby Mode: 0.5 W

Installation Mode

Ceiling Mountable / Desktop

Item Dimensions (W×D×H)

374mm x 265mm x 108mm (14.72" x 10.43" x 4.25")

Item Weight

4.5 kg (9.9 lbs)
