Key Specifications

Frequency Response (-10 dB)

70 Hz - 20000 Hz

Max SPL @ 1m

106 dB

Coverage Angle

100° (Conical)

System Sensitivity

92 dB

Power Section

Power Handling

12 W RMS / 48 W PEAK

Recommended Amplifiers

DMA 504, DMA 162, AM 2320, UP 2321 (and similar 100V amps)

Transducers

1.0'' Dome Tweeter, 6.0'' Woofer (Coaxial)

Input / Output Section

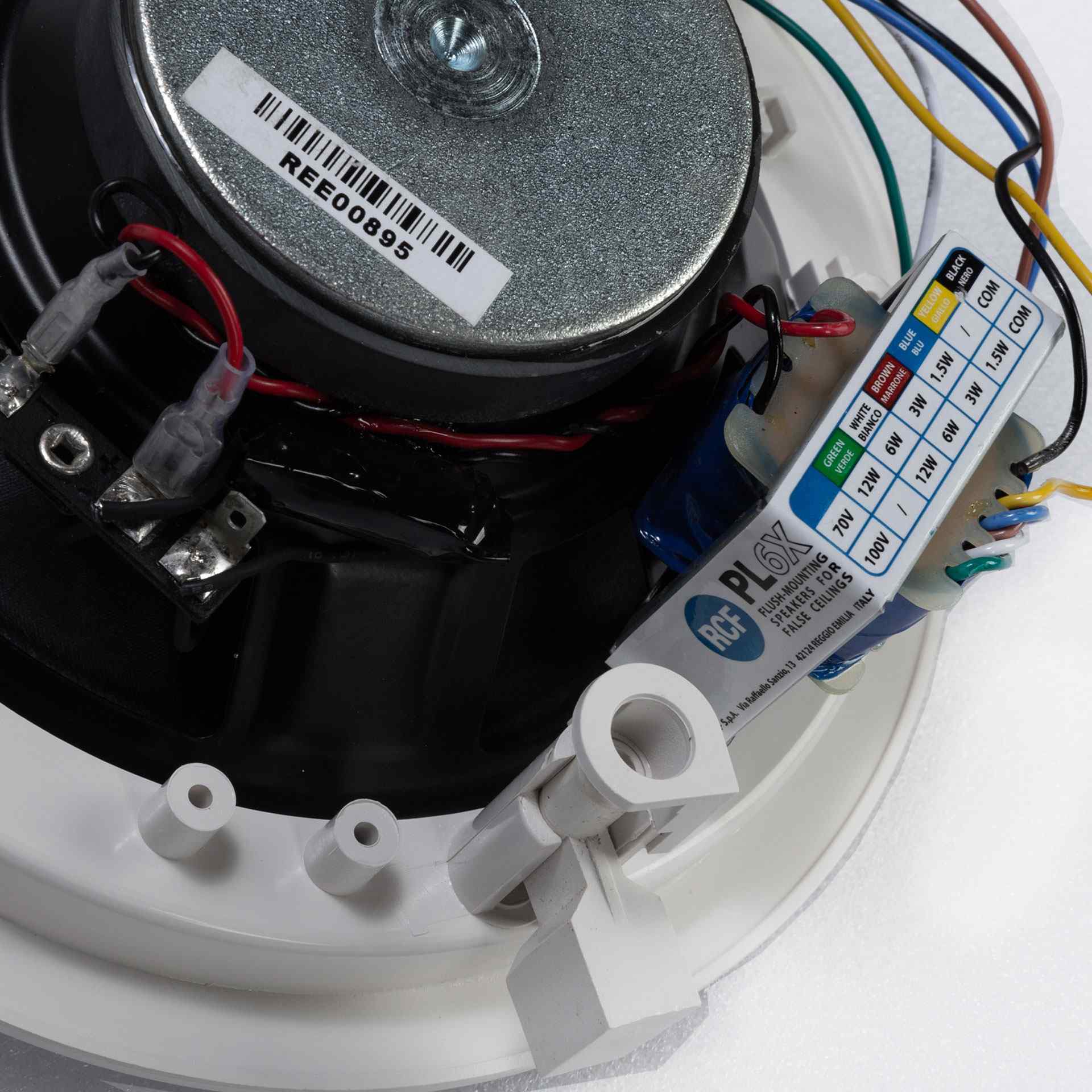

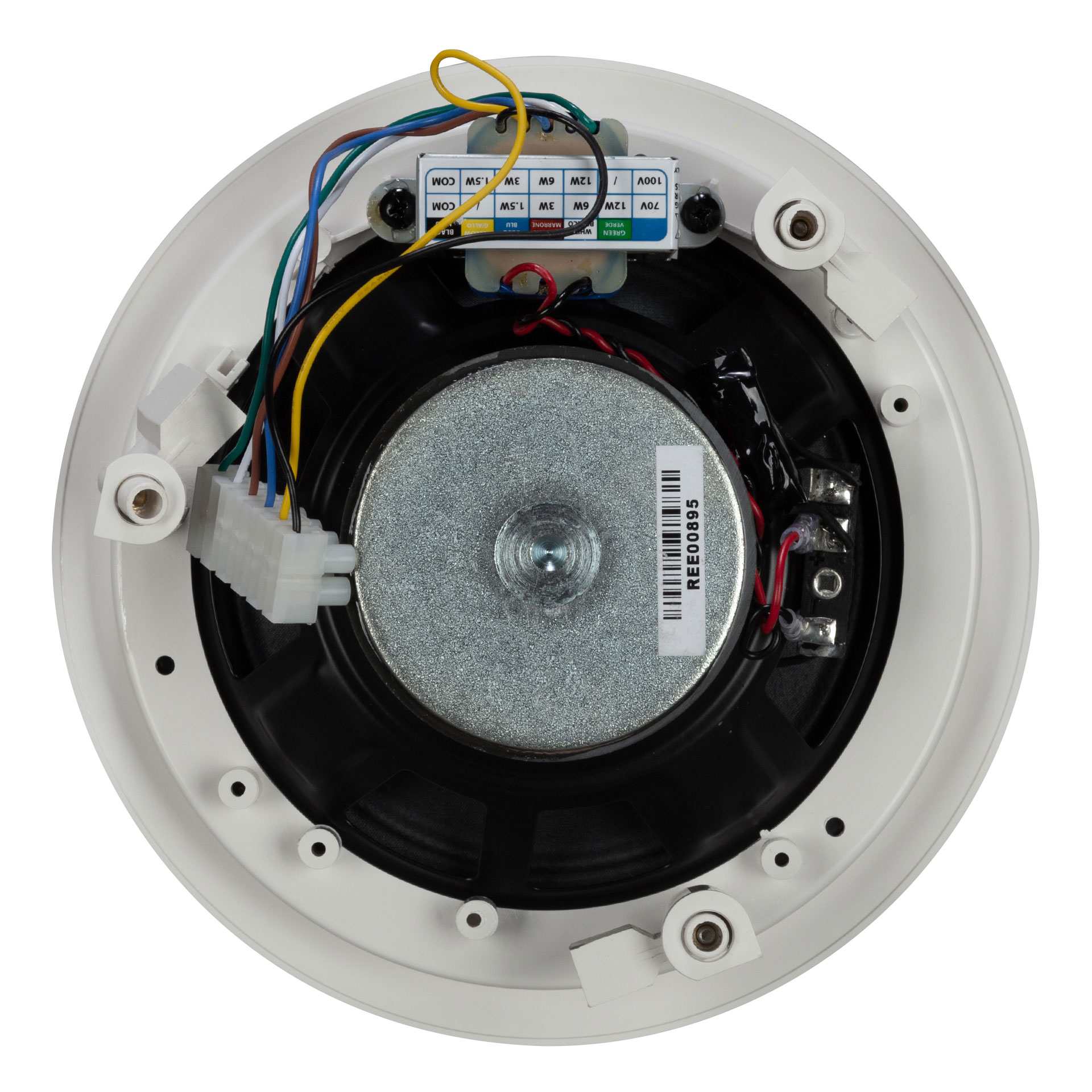

Constant Voltage Transformer

70/100 V

Power Selection (100V Taps)

12 W, 6 W, 3 W, 1.5 W

Connectors

Screw Terminals

Standard Compliance

IP Protection Grade

IP 44

Safety Agency

CE compliant

Physical Specifications

Cabinet Material

Self-extinguishing Plastic (UL 94 V-0)

Grille Material

Aluminium

Color Options

White (RAL 9003), Black (RAL 9005)

Dimensions (Dia x D)

204 x 73 mm / 8.03 x 2.87 inches

Recessed Depth / Cut-out

66 mm (2.6") / 182 mm (7.17")

Weight

0.78 kg / 1.72 lbs

Shipping Information

Package Dimensions

240 x 240 x 110 mm / 9.45 x 9.45 x 4.33 inches

Package Weight

1.56 kg / 3.44 lbs
