Key Specifications

Frequency Response (-10 dB)

60 Hz - 20000 Hz

Max SPL @ 1m

109 dB

Coverage Angle

80° (Conical)

System Sensitivity

93 dB

Power Section

Power Handling

20 W RMS / 80 W PEAK

Nominal Impedance

8 Ω

Recommended Amplifiers

DMA 504, DMA 162, AM 2320, UP 2321 (and similar 100V amps)

Transducers

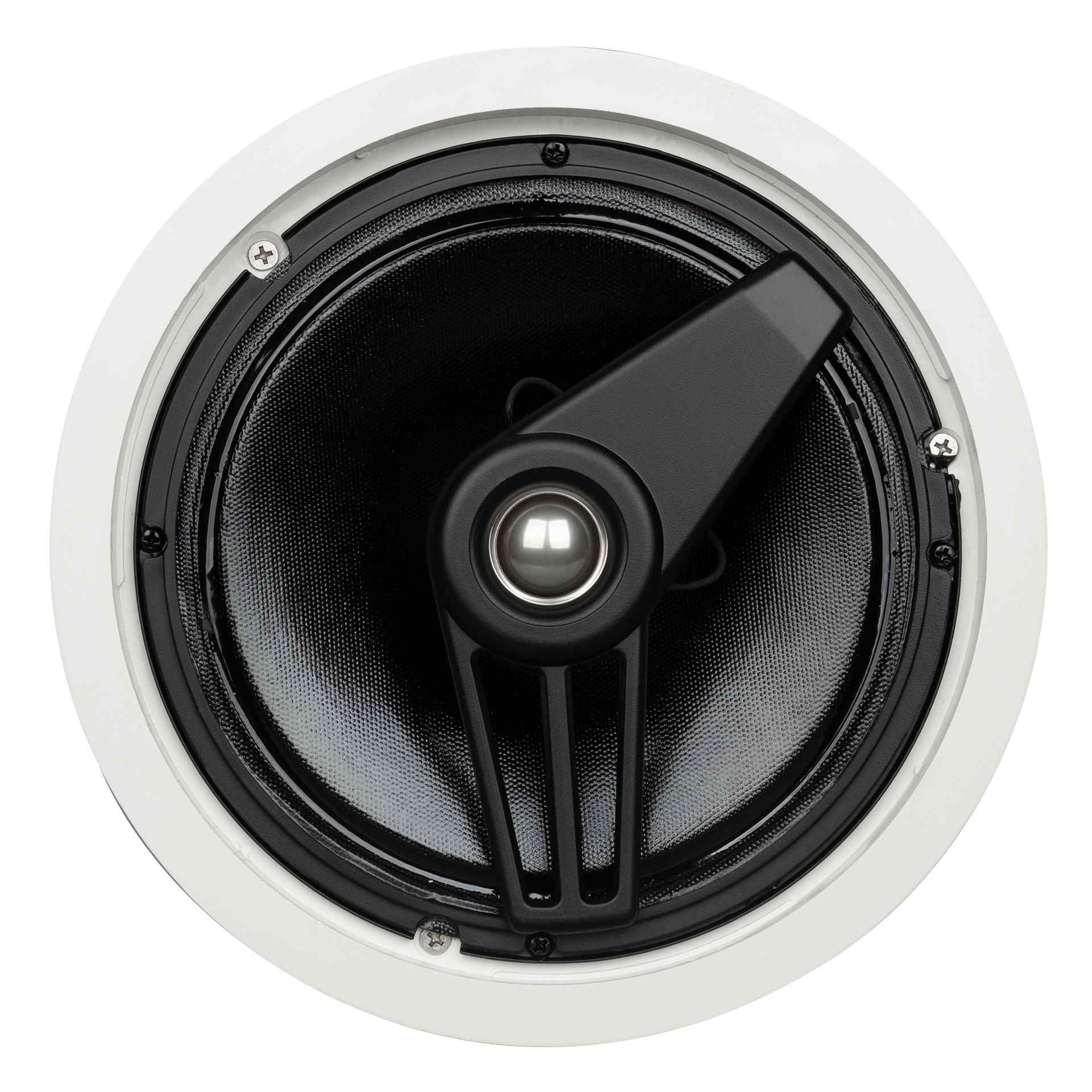

1.0'' Dome Tweeter, 8.0'' Woofer (Coaxial)

Input / Output Section

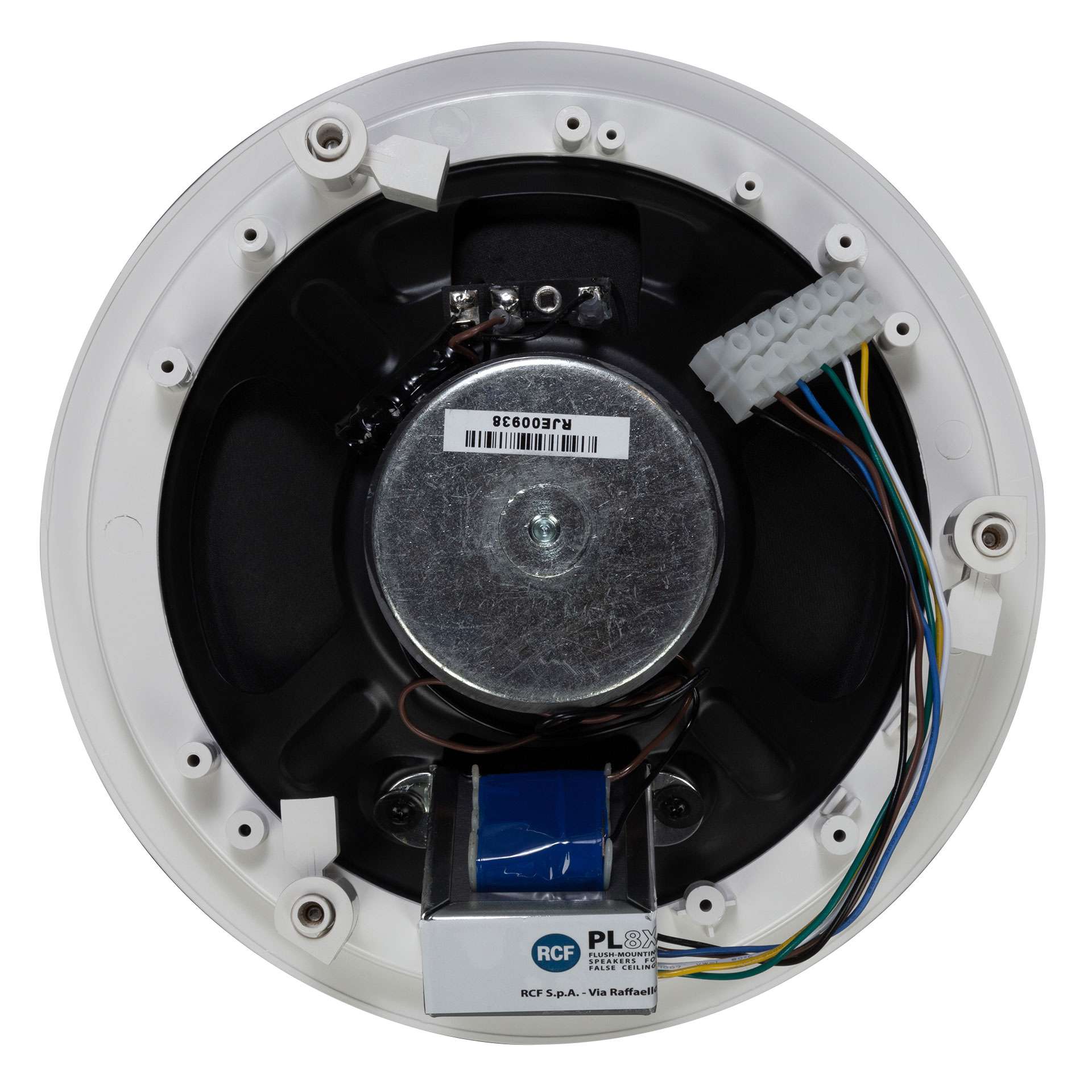

Constant Voltage Transformer

70/100 V

Power Selection (100V Taps)

20 W, 10 W, 5 W, 2.5 W

Connectors

Screw Terminals

Standard Compliance

IP Protection Grade

IP 44

Safety Agency

CE compliant

Physical Specifications

Cabinet Material

Self-extinguishing Plastic (UL 94 V-0)

Grille Material

Aluminium

Color Options

White (RAL 9003), Black (RAL 9005)

Dimensions (Dia x D)

247 x 88 mm / 9.72 x 3.46 inches

Recessed Depth / Cut-out

80 mm (3.15") / 224 mm (8.82")

Weight

1.23 kg / 2.71 lbs
