Key Specifications

Product

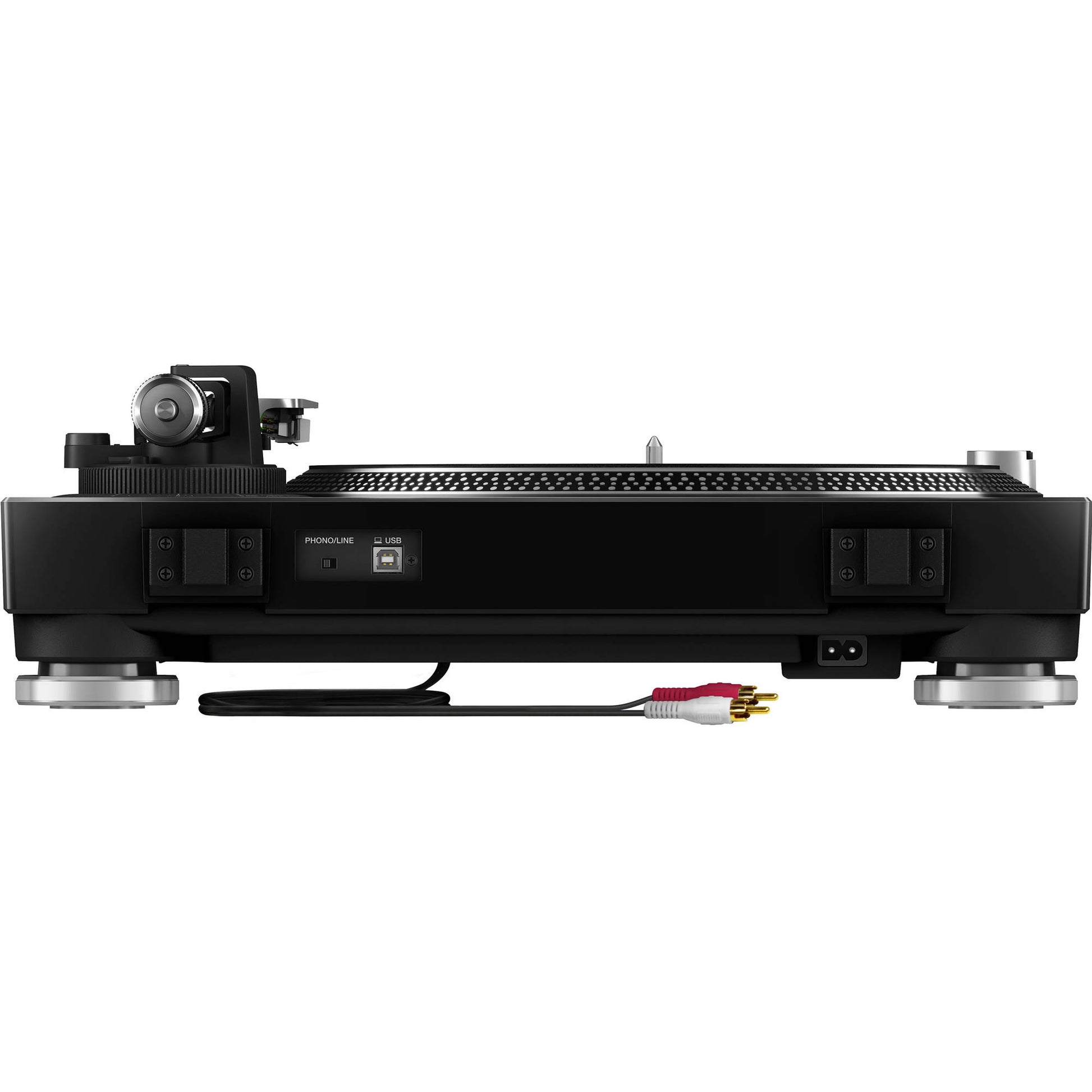

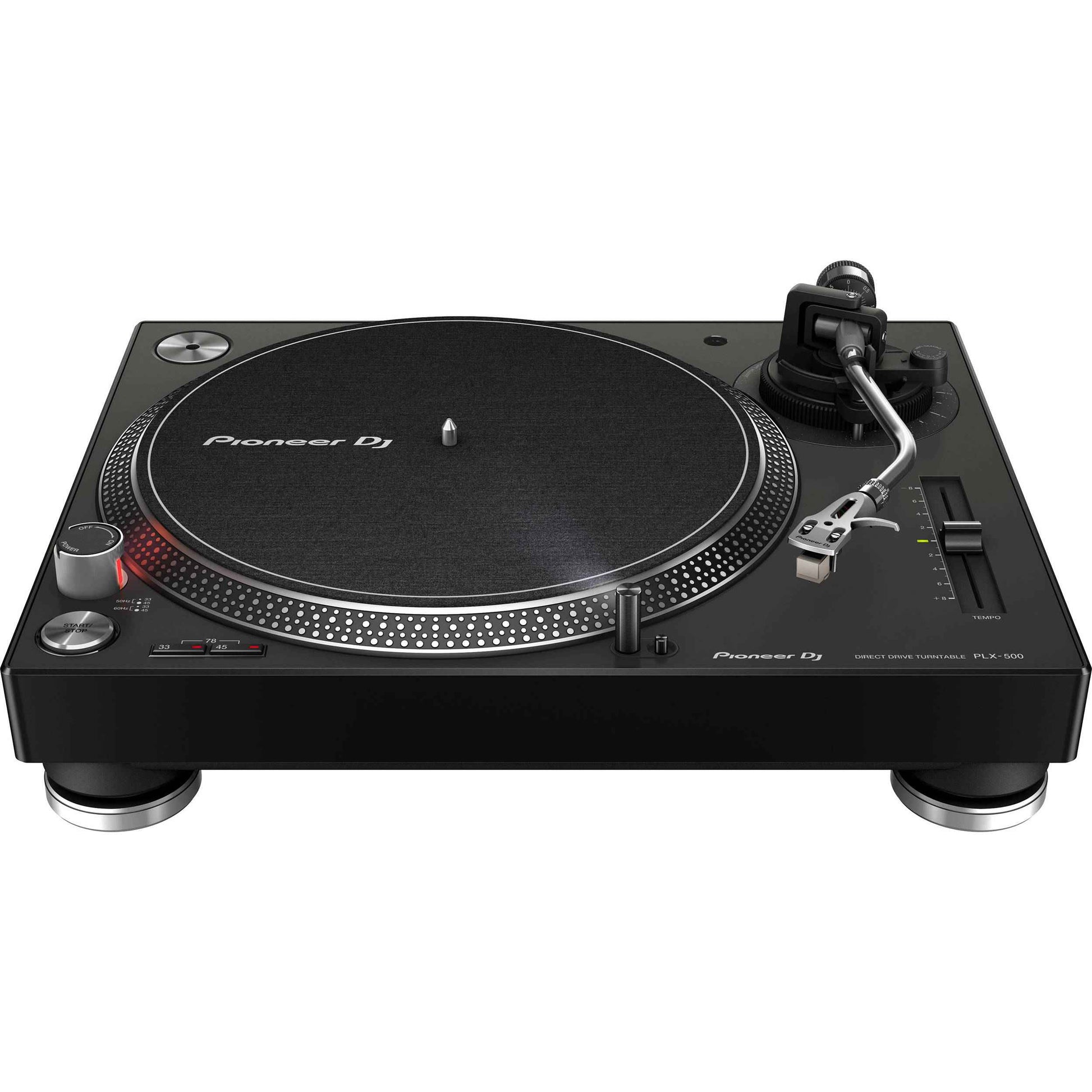

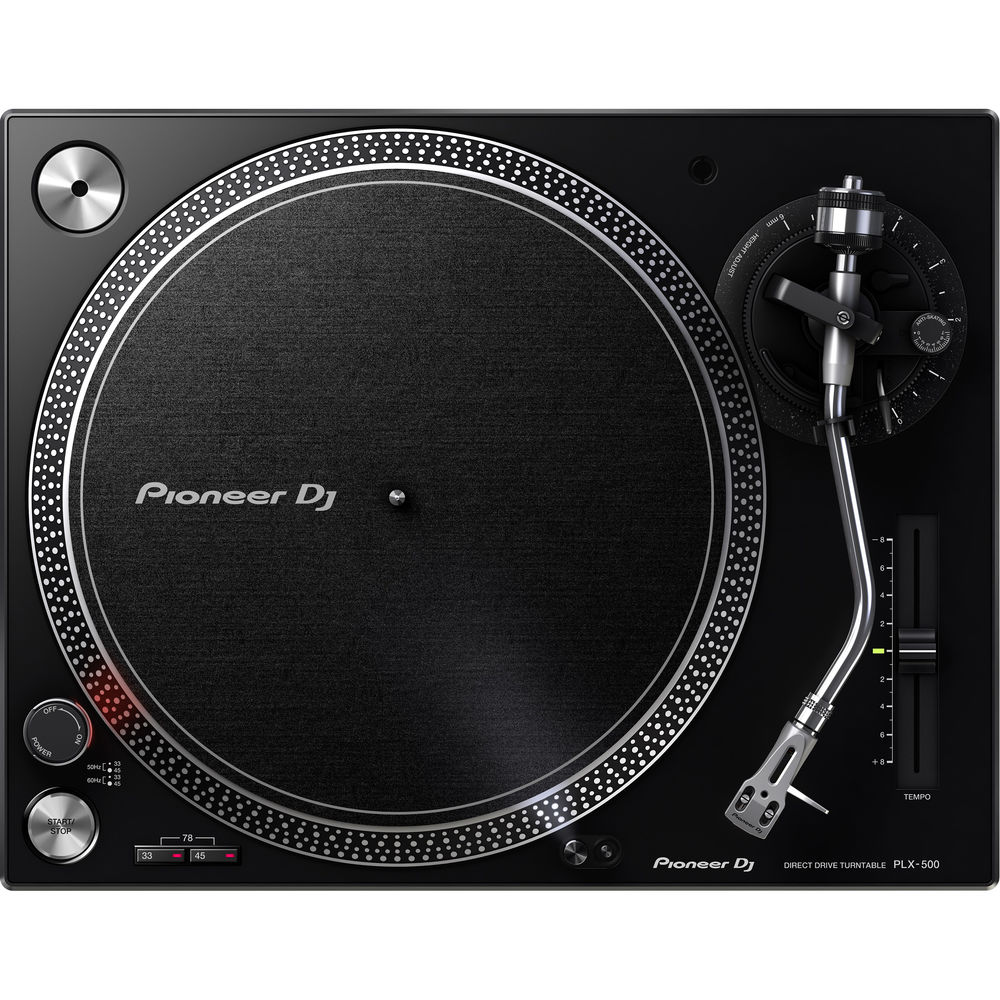

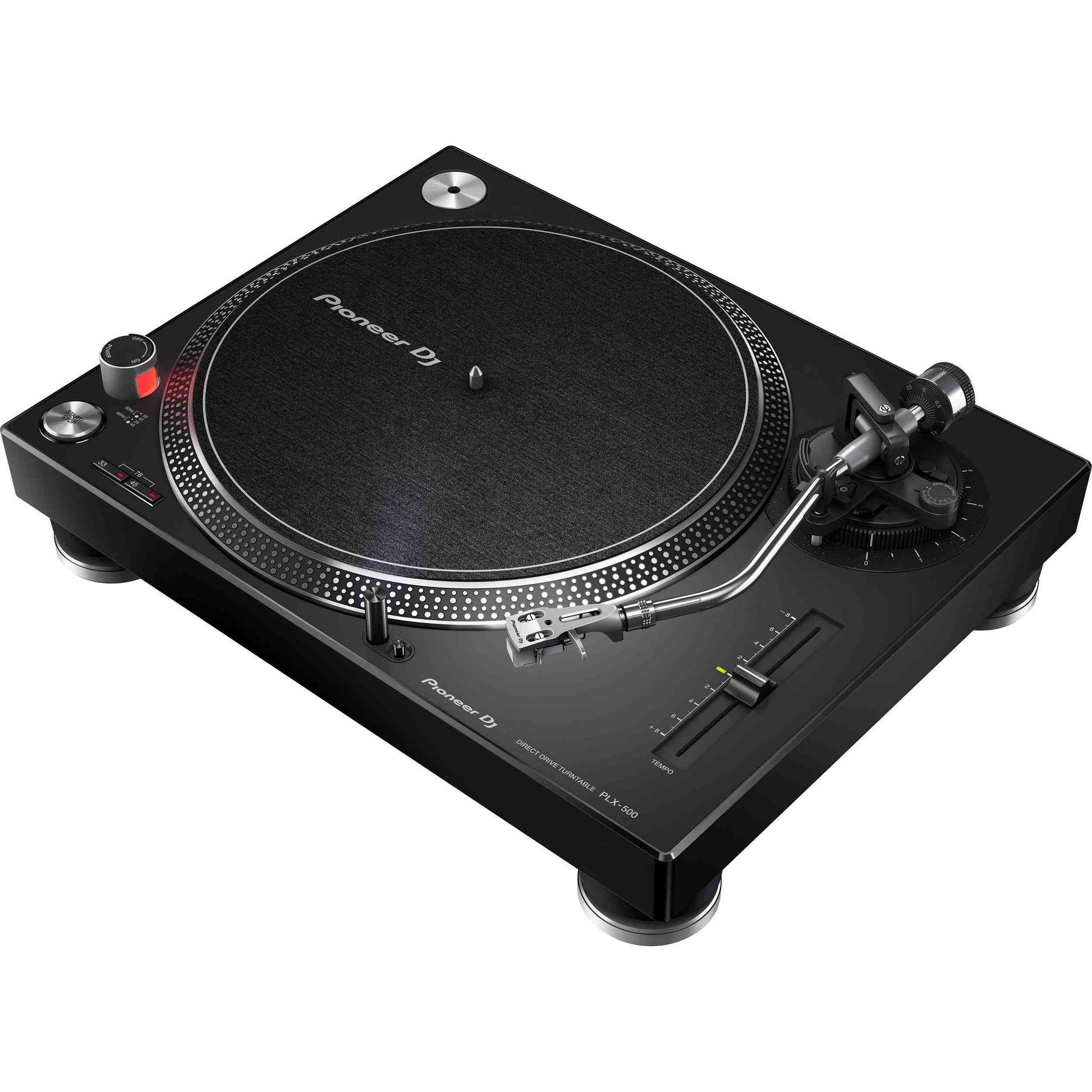

Pioneer DJ PLX-500

Drive Method

Servo type direct drive

Motor

3-phase brushless DC motor

Brake

Electronic brake

Maximum Rotation Speed

33⅓, 45, 78 rpm

Adjustment Range

±8%

Wow and Flutter

0.15% or less WRMS

S/N Ratio

50 dB or higher

Turntable

Aluminum die-casting, 13.1" / 332.0 mm diameter

Torque

Starting torque: 3.5 lb / 1.6 kgf·cm or more

Start Time

Within 1 sec (at 33⅓ rpm)

Tone Arm Type

Universal S-shape, gimbal-supported, static balance type

Effective Arm Length

9.1" / 230.5 mm

Overhang

0.6" / 16.0 mm

Tracking Error Angle

Within 3°

Height Adjustment

0.2" / 6.0 mm

Stylus Pressure Range

0 to 0.1 oz / 0 to 4.0 g (1 scale = 0.1 g)

Cartridge Weight

Single cartridge: 0.34 oz / 9.50 g or less

Output Voltage

Phono: 1.5 mV / 1 kHz
Line: 150 mV / 1 kHz

Audio Connector

2x RCA (left/right stereo pair)

USB

1x USB Type-B

Power Requirements

110–120 VAC or 220–240 VAC, 50/60 Hz

Power Consumption

11 W

Dimensions

17.7 x 6.3 x 14.5" / 450.1 x 159.0 x 368.0 mm

Weight

23.6 lb / 10.7 kg

Package Weight

30.5 lb

Box Dimensions (L × W × H)

22 x 18.5 x 10.5"
