Key Specifications

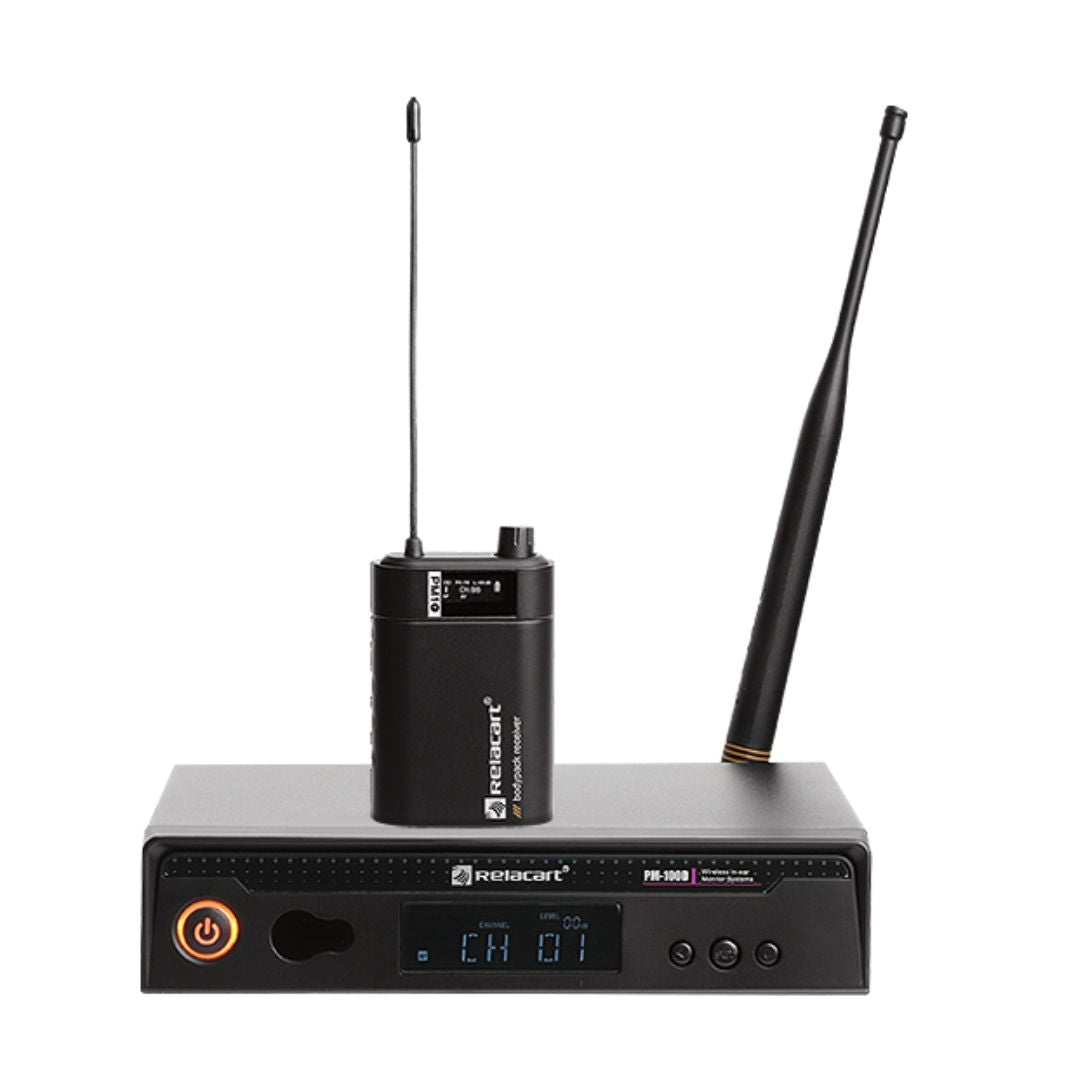

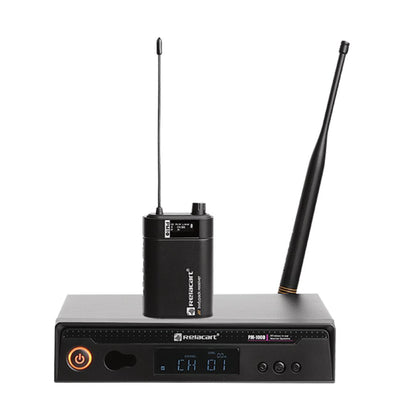

PM-100DR Stereo Mini Receiver

Receiving Method

Antenna reception

Carrier Frequency Range

521.25MHz-936.85MHz

Modulation Method

Integrated mode

Effective Working Distance

80 meters (open place)

Audio Performance

Comprehensive Frequency Response

20Hz-20KHz ±3dB

Stereo Separation

≥65dB at 1KHz

Comprehensive T.H.D.

<0.9%@1KHz

Output Power

2×40mW at 1KHz (T.H.D: 0.03%)

Outputs & Connectivity

Output Socket

Φ3.5mm stereo headphone socket

Power & Battery Life

Batteries

AA x 2

Current Consumption

140mA (Typical)

Battery Life

≤8 hours

Dimensions & Weight

Dimensions (mm)

198 (H) × 52.5 (W) × 25 (D)

Weight

Approximately 55g (without battery)

PM-100DT Stereo Transmitter

Chassis Specification

1U Half-Rack

Carrier Frequency Range

521.25MHz-936.85MHz

Frequency Bandwidth

32MHz (depending on the region)

Modulation Method

Integrated mode

Output Power

50mW

Audio Performance

Comprehensive Frequency Response

20Hz-20KHz ±3dB

Comprehensive T.H.D.

<0.9%@1KHz

Inputs & Outputs

Audio Input

XLR and Φ6.3mm composite socket

Audio Output

Φ6.3mm balanced socket × 2

Power Supply

Power Supply Mode

DC 12V

Current Consumption

160mA

Dimensions & Weight

Dimensions (mm)

205 (W) × 43 (H) × 206 (D)

Weight

Approximately 1kg
