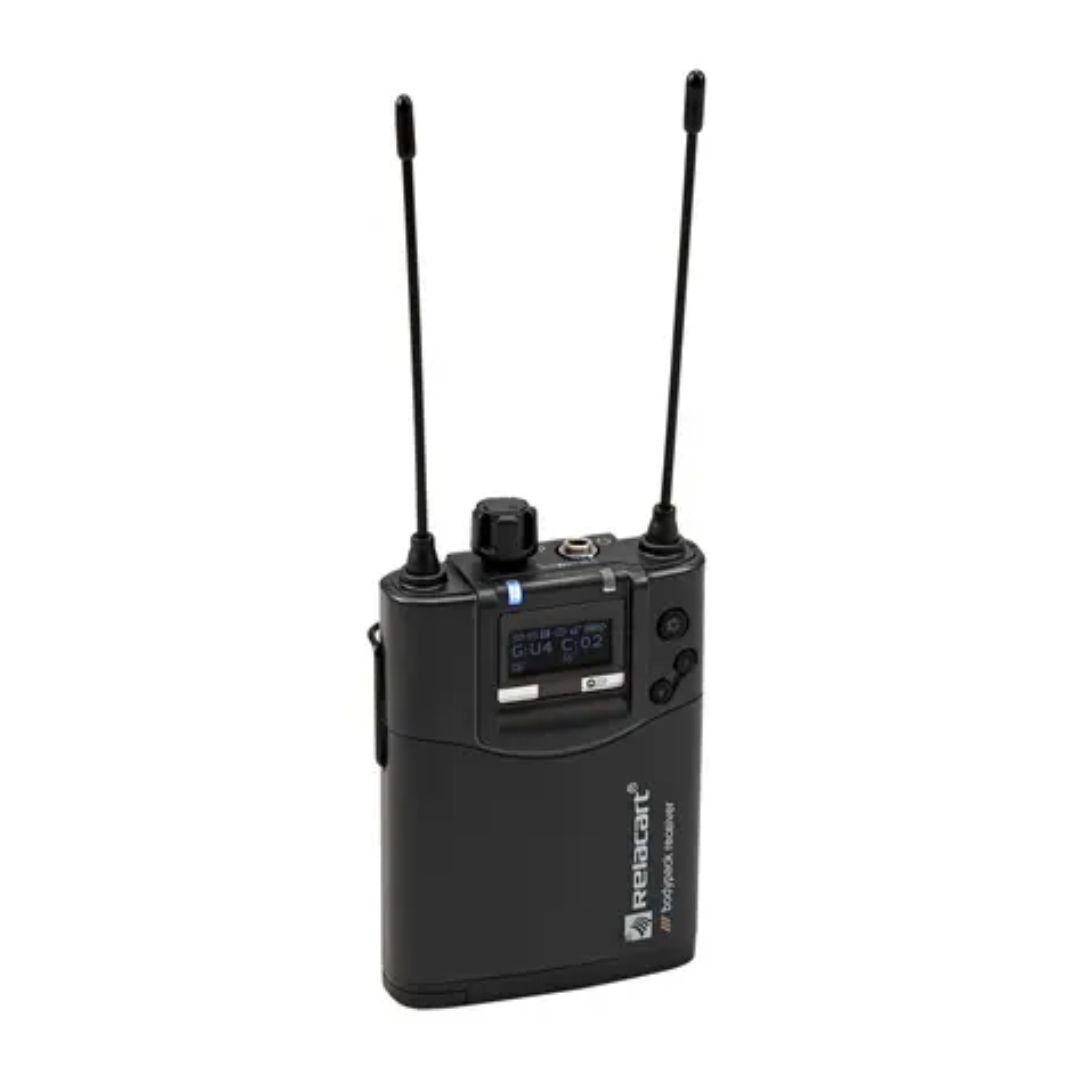

PM-320R

The housing of PM-320R receiver is made of light-weight and tough alloy materials.
Exquisite and simple OLED multifunctional display.
The receiver uses the UHF frequency band, and the CPU controls diversity reception to reduce dead spots and
ensure stable reception.
With headphone monitoring output.
With long transmission distance, it is suitable for various occasions

RELACART

₱19,100.00 VAT INC.

₱19,100.00

SOLD BY: PIECE/S

Product Code: SKU:RELAC-PM320R-CHN-5938

The housing of PM-320R receiver is made of light-weight and tough alloy materials.
Exquisite and simple OLED multifunctional display.
The receiver uses the UHF frequency band, and the CPU controls diversity reception to reduce dead spots and
ensure stable reception.
With headphone monitoring output.
With long transmission distance, it is suitable for various occasions

Authorized Dealer

Certified Quality Products

After-Sales Support

Secure Payments

Quantity

RELACART PM-320R

Key Specifications
Receiving Method	Antenna diversity reception
Channel	Single channel
Carrier Frequency Range	521.25MHz ~ 936.85 MHz
Bandwidth	32MHz (1280 frequencies, 25 KHz step in tune)
Modulation Mode	FM (wideband stereo)
Oscillation	PLL phase locked frequency synthesis
Frequency Stability	± 0.005% (0 ~ 50°C)
Sensitivity	6dBuV, S / N> 60dB at 25KHz deviation
Max. Deviation Range	± 48KHz
Working Range	100 meters (in open space)
Audio Performance
Comprehensive Frequency Response	50Hz-15KHz ± 3dB
Comprehensive S / N	> 100dB
Comprehensive T.H.D.	<0.9%@1KHz
Stereo Separation	≥45dB, at 1KHz
Output Power	2×150mW at 1KHz (T.H.D .: 3%)
Outputs & Connectivity
Output Connector	φ3.5mm stereo headphone connector
Power & Battery Life
Battery	AA×2
Current Consumption	185mA (typical)
Battery Life	About 7 hours
Dimensions & Weight
Dimension (mm)	90(H)×65(W)×23(D)
Weight	Approximately 190g
