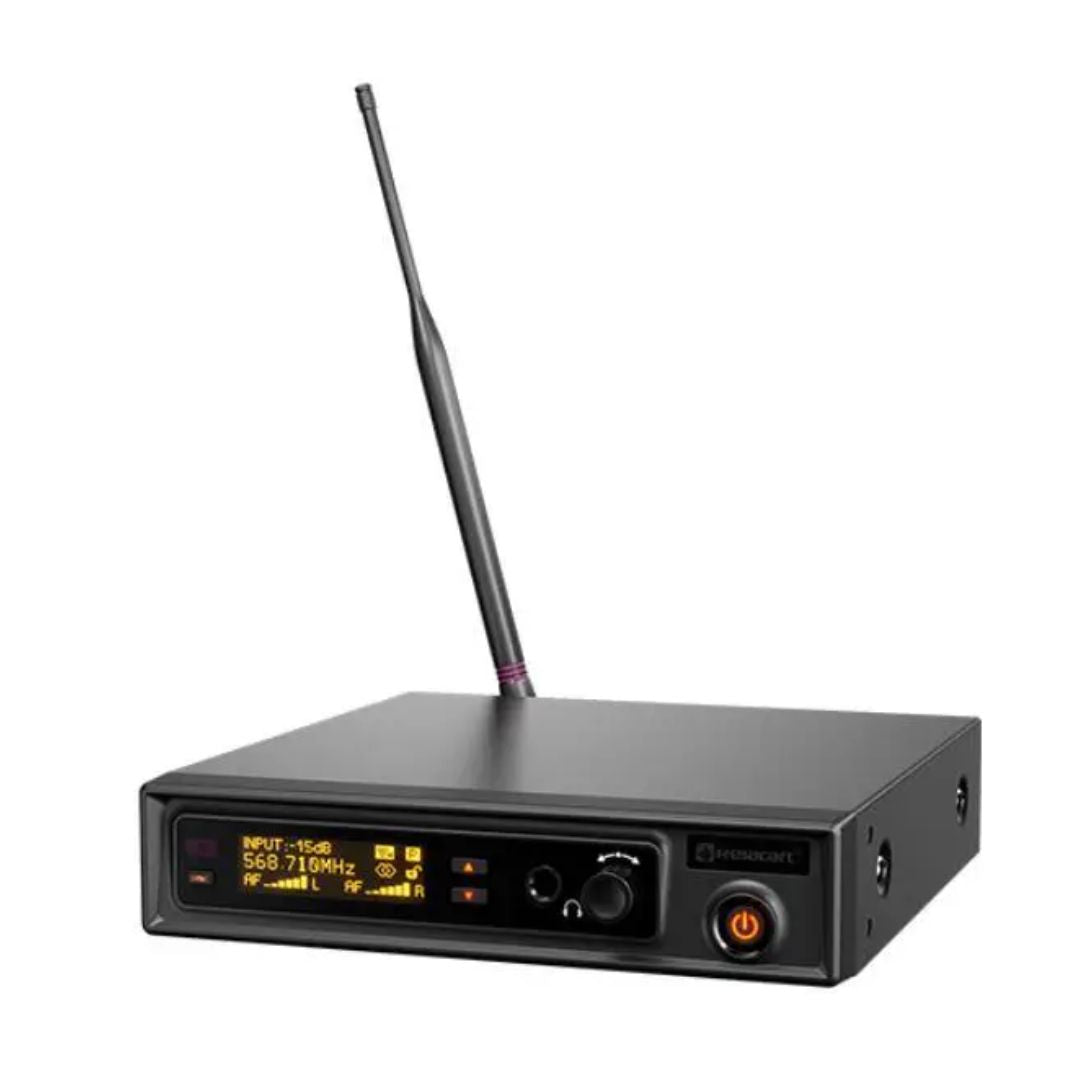

PM-320T

Metal 1 U Half-Rack case.
The bandwidth is 32MHz and there are 1280 adjustable frequencies.
1-10 Channel groups, more than 180 fixed frequencies for
choose.
Channel groups U1-U5 can set and save frequencies freely.
Stereo and mono selection
Treble boost function, limit control function
The stable PLL phase-locked oscillation circuit, combined with the "noise lock" squelch can effectively block stray RF

RELACART

₱25,900.00 VAT INC.

₱25,900.00

SOLD BY: PIECE/S

Product Code: SKU:RELAC-PM320T-CHN-9197

Metal 1 U Half-Rack case.
The bandwidth is 32MHz and there are 1280 adjustable frequencies.
1-10 Channel groups, more than 180 fixed frequencies for
choose.
Channel groups U1-U5 can set and save frequencies freely.
Stereo and mono selection
Treble boost function, limit control function
The stable PLL phase-locked oscillation circuit, combined with the "noise lock" squelch can effectively block stray RF

Authorized Dealer

Certified Quality Products

After-Sales Support

Secure Payments

Quantity

RELACART PM-320T

Key Specifications
Main Frame Size	1U Half-Rack
Carrier Frequency Range	521.25MHz ~ 936.85 MHz
Bandwidth	32MHz
Modulation Mode	FM (wideband stereo)
Oscillation	PLL phase locked frequency synthesis
Frequency Stability	± 0.005% (-10~ 50°C)
Output Power	10mW
Harmonic Radiation	60dB below the main wave
Max. Deviation Range	± 50KHz
Audio Performance
Comprehensive Frequency Response	50Hz-15KHz ± 3dB
Comprehensive S / N	>100dB
Comprehensive T.H.D.	<0.9%@1KHz

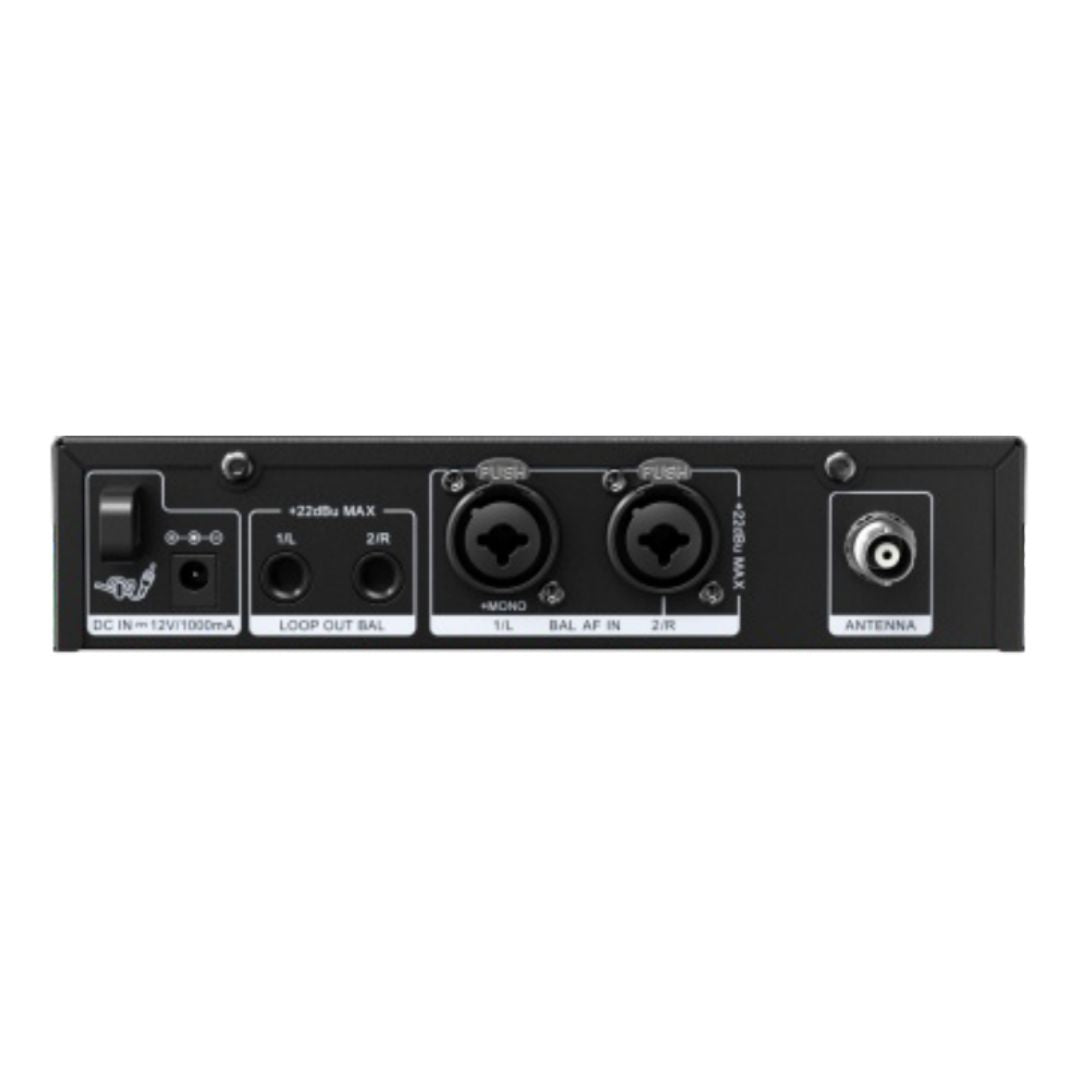

Inputs & Outputs
Audio Input	Line level × 2, 6.3mm Stereo/XLR Combo Jack
Audio Loop Output	6.3mm Stereo jack ×2
Dimensions & Weight
Dimension (mm)	206 (W) × 206 (D) × 43 (H)
Weight	1.0kg
