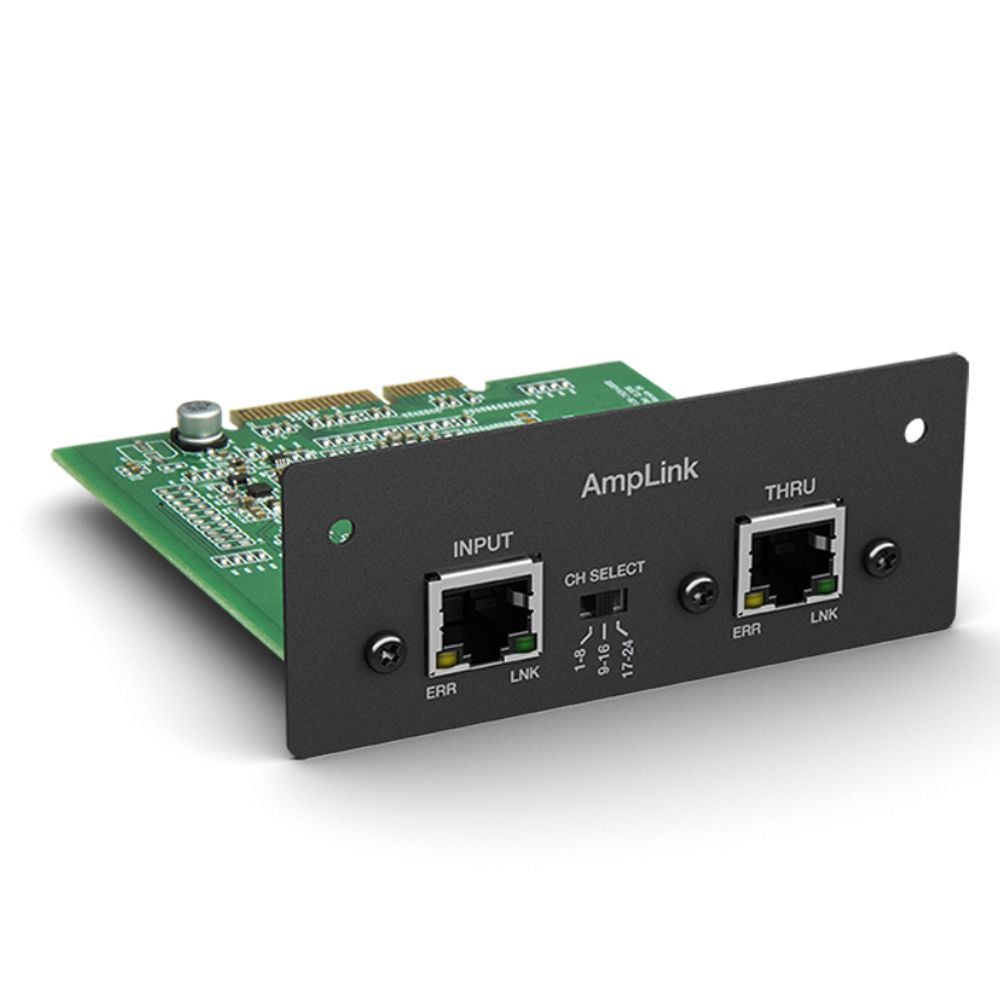

Designed to expand the functionality of Bose Professional PowerMatch amplifiers, the AmpLink 24-Channel Input Card is an add-on for PowerMatch amps that provides 24 channels of digital audio distribution via RJ45 quick connect input and thru connectors. With this card, you can daisy-chain any combination of up to eight PowerMatch amps.

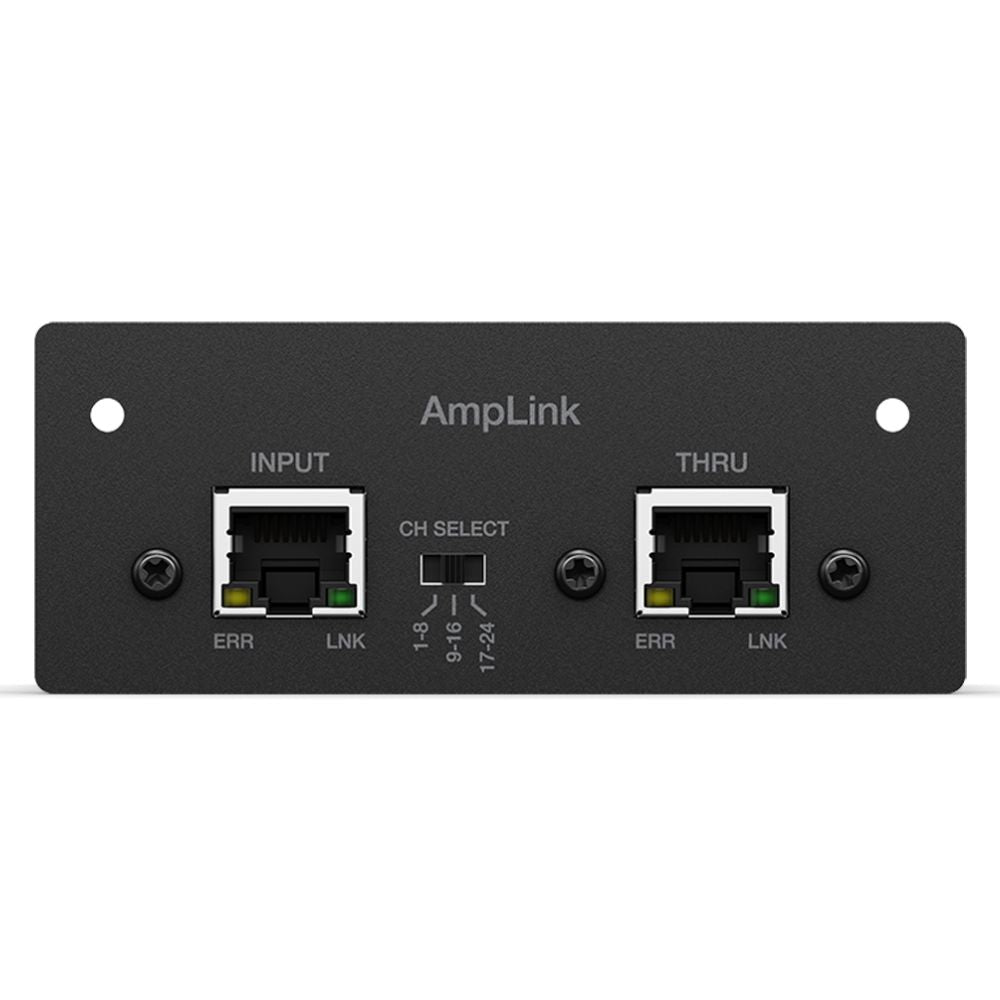

The daisy-chained amps can choose either the same or different banks of channels depending on your needs. A 3-position switch lets you select between eight difference consecutive AmpLink channels. The thru connection supports up to 32' of distance between amplifiers and audio sources/destinations (shielded Cat 5 cables required). The thru connection sports very low latency at 24 ns. The card supports a maximum sample rate and bit depth of 24-bits / 48 kHz. Installation is easy and can be performed by simply removing the dedicated backplate on compatible PowerMatch amps and screwing the card into the open slot.
