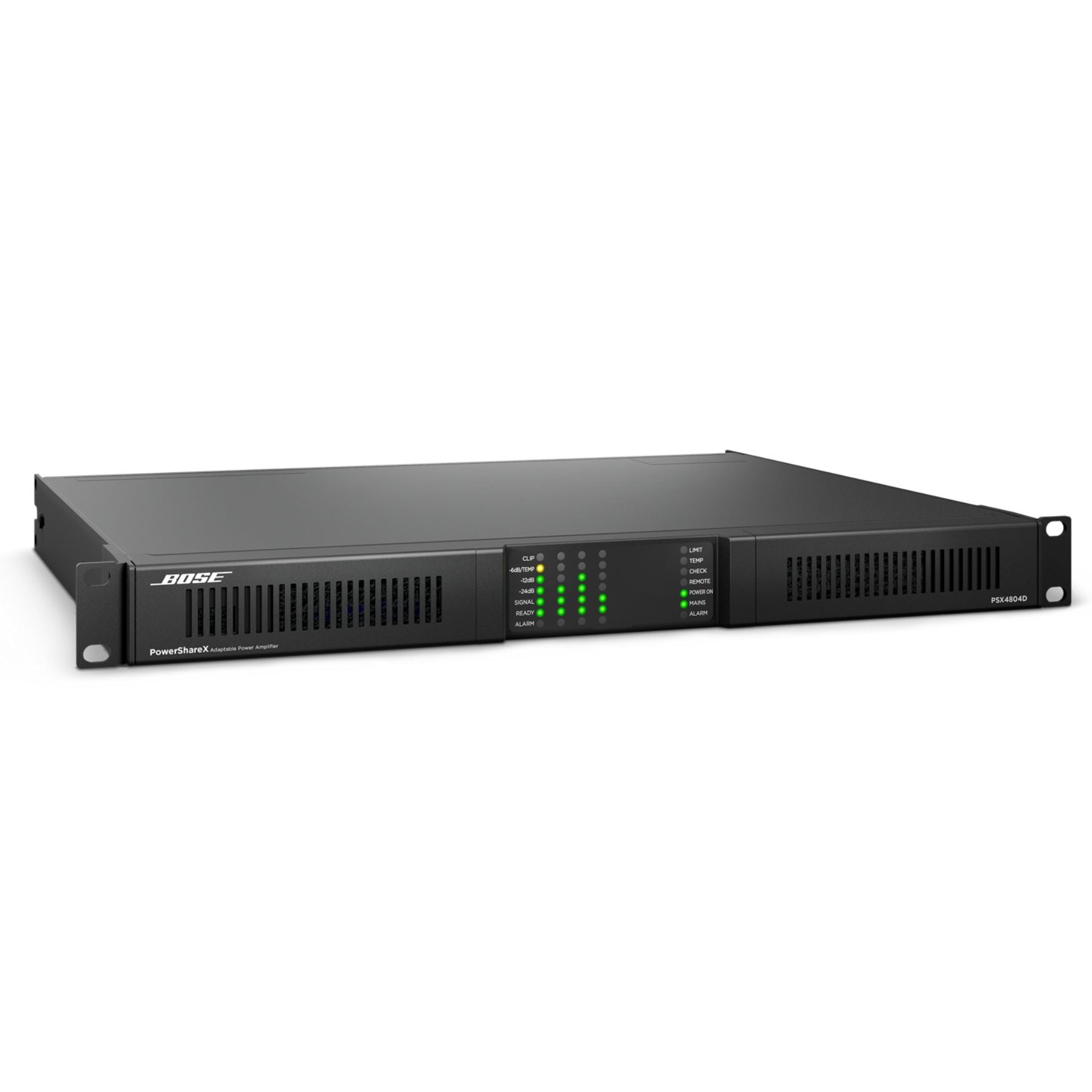

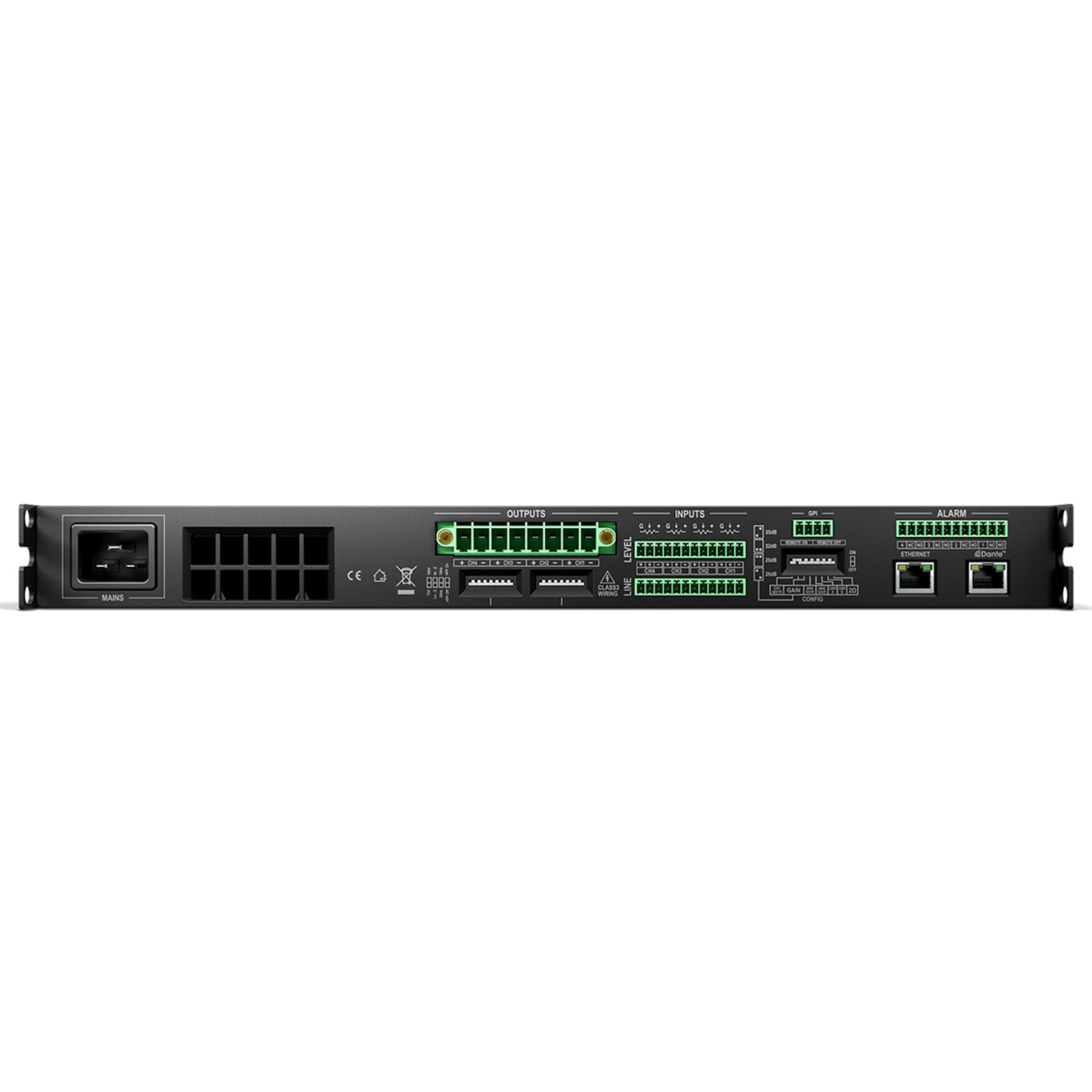

PowerShareX PSX4804D
PowerShareX PSX4804D
BOSE
UNIT: PIECE/S
Product Code: SKU:BOSE-POWERSPSX4804D-CHN-245
Key Features
BOSE PowerShareX PSX4804D
BOSE PowerShareX PSX4804D
|
Key Specifications |
|
|
Number of Channels |
4 |
|
Amplifier Class |
Class D |
|
Channel Separation (Crosstalk) |
-70 dB typical @ 1 kHz |
|
Gain (Low-Impedance) |
26 / 29 / 32 / 35 dB (selectable) |
|
Rated Power (Symmetrical) |
1500 W per channel @ 2 Ω |
|
Rated Power (Asymmetrical) |
1800 W @ 2 Ω |
|
Maximum Peak Power (Symmetrical) |
3000 W @ 2 Ω, 4 Ω |
|
Maximum Peak Power (Asymmetrical) |
3600 W @ 2 Ω |
|
Frequency Response |
20 Hz – 20 kHz (±1.0 dB, 1 W @ 8 Ω) |
|
SNR |
> 104 dB (A-weighted) |
|
THD+N |
< 0.1% (< 0.05% typical) |
|
Audio Inputs (Analog) |
|
|
Input Channels |
4 balanced, line |
|
Connectors |
1 × 6-pin Euroblock |
|
Input Impedance |
20 kΩ |
|
Maximum Input Level |
20 dBu |
|
Sensitivity |
4.91 Vrms @ 26 dB gain |
|
Audio Inputs/Outputs (Digital) |
|
|
Channels |
4 Dante in |
|
Connectors |
1 × RJ45 (Dante in) |
|
Audio Outputs (Analog) |
|
|
Channels |
4 |
|
Connectors |
1 × 8-pin Euroblock (7.62 mm) |
|
Integrated DSP |
|
|
Internal Precision |
32-bit floating point |
|
Conversion |
48 kHz / 24-bit A/D & D/A |
|
Audio Latency |
2.5 ms (fixed-latency architecture) |
|
Delay |
2 s (input) + 100 ms (output) |
|
Equalization |
Input: 8-band parametric EQ, notch, shelving, HP/LP, array EQ (ArenaMatch), band-pass |
|
Crossover Types |
Butterworth, Bessel, Linkwitz-Riley (up to 48 dB/oct) |
|
Limiters |
Peak voltage, RMS voltage, clip |
|
Presets |
Bose Professional loudspeaker presets |
|
Processing Functions |
Input EQ, array EQ, loudspeaker EQ, delay, band-pass, matrix mixer |
|
Electrical |
|
|
Mains Voltage |
100–240 VAC (±10%), 50/60 Hz |
|
Mains Connector |
IEC C20 inlet |
|
Current Draw (Idle) |
0.45 A @ 115 VAC / 0.25 A @ 230 VAC |
|
AC Power Consumption |
31.1 W idle / 840 W max @ 1/8 power (4 Ω) |
|
Protections |
Thermal, DC, short circuit, HF, low/high AC voltage, inrush, clip, peak, RMS |
|
Physical |
|
|
Cooling System |
Variable-speed fan (front-to-back airflow) |
|
Rack Spaces |
1U |
|
Dimensions (H × W × D) |
1.8 × 19.0 × 14.1 in / 45 × 483 × 358 mm |
|
Weight |
15.4 lb / 7.0 kg |
|
Color |
Black |
