Key Specifications

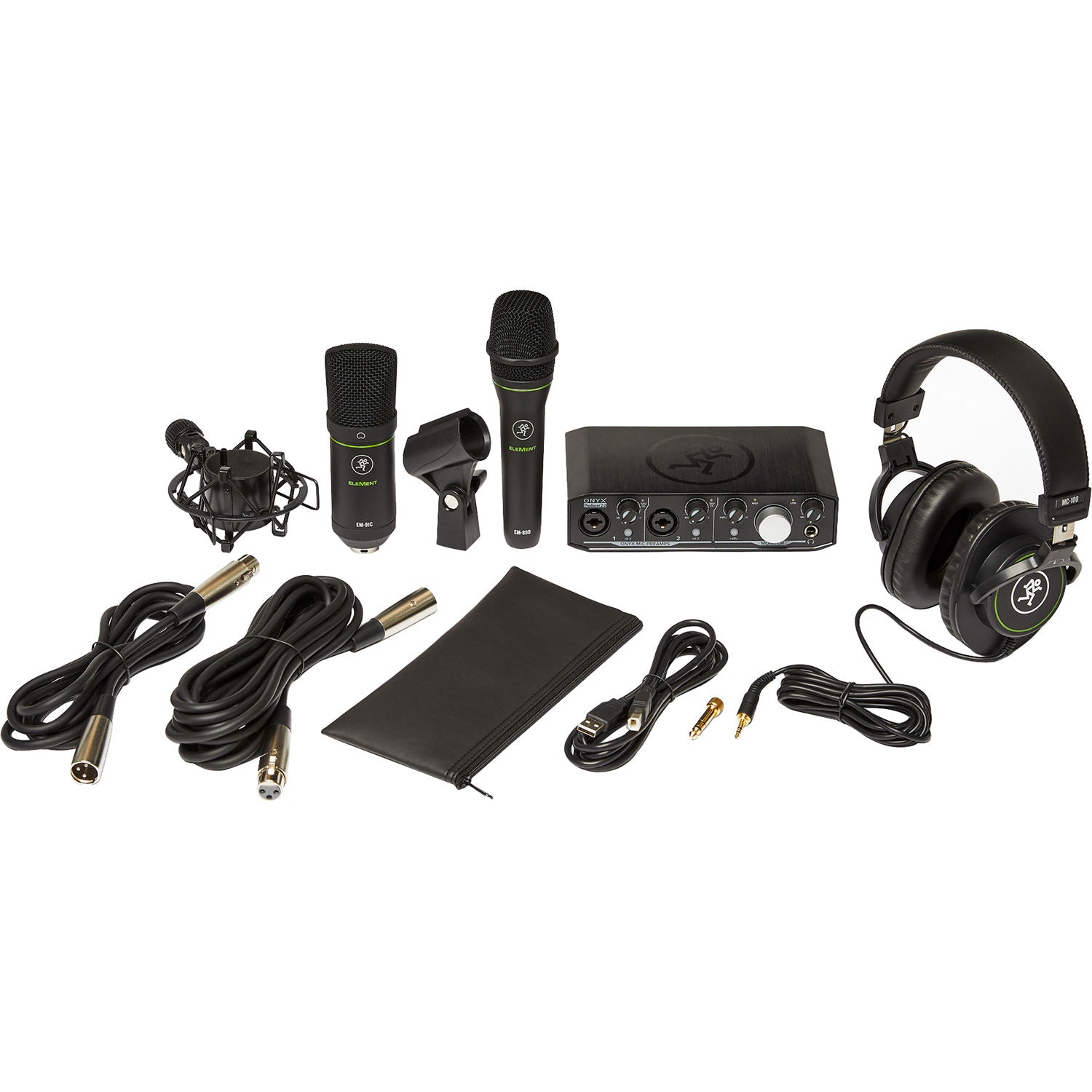

Mackie Onyx Producer 2·2 USB Audio/MIDI Interface

Channels of I/O

2 Input / 2 Output (Up to 192 kHz)

Maximum Sample Rate

192 kHz / 24-Bit

Microphone Preamps

2 × Onyx Mic Preamps

Analog Inputs

2 × Combo XLR / 1/4" TRS Balanced Mic/Line Inputs

Analog Outputs

2 × 1/4" TRS Balanced Monitor Outputs
1 × 1/4" TRS Headphone Output

USB Connection

USB 2.0 Type-B

MIDI I/O

1 × MIDI Input, 1 × MIDI Output (DIN 5-Pin)

Phantom Power

48 V

Frequency Response

20 Hz – 20 kHz ±0.5 dB

Maximum Input Level

Mic: +11 dBu
Line/Hi-Z: +24 dBu

Maximum Output Level

Headphones: +10 dBu
Monitor: +10 dBu

Power Supply

USB Bus Powered

Compatible OS

Windows / macOS

Dimensions

188 × 114 × 51 mm (7.4 × 4.49 × 2.01")

Weight

0.6 kg (1.4 lb)

Mackie EM-89D Dynamic Vocal Microphone

Microphone Type

Handheld Dynamic

Polar Pattern

Cardioid

Frequency Response

50 Hz – 16 kHz

Sensitivity

-52 dBV/Pa @ 1 kHz

Output Connector

XLR 3-Pin Male

Power Requirement

No External Power Required

Dimensions

Ø50.8 × 185.4 mm (Ø2 × 7.3")

Weight

0.3 kg (0.66 lb)

Mackie EM-91C Large-Diaphragm Condenser Microphone

Microphone Type

Large-Diaphragm Condenser

Polar Pattern

Cardioid

Frequency Response

20 Hz – 18 kHz

Maximum SPL

134 dB SPL

Sensitivity

-30 dBV/Pa @ 1 kHz

Equivalent Noise Level

16 dB(A)

Output Connector

XLR 3-Pin Male

Power Requirement

48 V Phantom Power

Dimensions

Ø48.3 × 154.9 mm (Ø1.9 × 6.1")

Weight

0.21 kg (0.46 lb)
