Key Specifications

Maximum I/O Capacity

12 Inputs / 4 Outputs

Number of Analog Input Channels

12 (4 Mono / 8 Stereo)

Number of Mic Preamps

7

Analog Output Channels

2× Stereo Master Output
1× Stereo Control Room/Monitor Output
1× Stereo Bus/Subgroup Output
1× Mono Aux Send Output
1× Mono FX Send Output
1× Stereo Headphone Output

Mix Routing

Stereo Main Mix
Stereo Aux Bus/Subgroup

Faders & Level Adjustment

No

Meters

Main Meter: 2× 12-Segment LED

Signal Processing

Gain / Trim Range

-20 dB to +60 dB

EQ

3-Band EQ

EQ Parameters

Low: ±15 dB at 80 Hz
Mid: ±15 dB at 2.5 kHz
High: ±15 dB at 12 kHz

Filters

High-Pass: 100 Hz, 18 dB/Octave

Built-In Effects

24 Effects (Type Unspecified)

Digital Audio

Bit Depth

24-Bit

Performance

Frequency Response

Mic Input to Output: 20 Hz to 30 kHz (+0/-1 dB, Unity Gain)

Maximum Input Level

+22 dB

I/O Impedance

Mic Input: 3.3 Kilohms
Insert Return: 10 Kilohms
Line Input: ≥20 Kilohms
Headphone Output: 25 Ohms
Main Output: 120 Ohms (Unbalanced), 240 Ohms (Balanced)

Noise Floor

All Outputs: -95 dBu (Master Level at -∞, Channel Levels at -∞)
-80 dBu (Master Level at Unity, One Channel Level at Unity)

THD+N

Mic Input to Main Output: <0.03% (+4 dBu)

Connectivity

Analog Inputs

2× Combo XLR-1/4" Balanced/Unbalanced Mic/Line/Hi-Z Inputs
5× XLR Balanced Mic Inputs
8× 1/4" TRS Balanced/Unbalanced Line Inputs (3 Stereo Pairs)
1× 1/8" (3.5 mm) TRS Unbalanced Stereo Line Input (1 Stereo Pair)

Analog Outputs

2× XLR 3-Pin Balanced Stereo Main Outputs
2× 1/4" TRS Balanced Stereo Main Outputs
2× 1/4" TRS Balanced Stereo Control Room/Monitor Outputs (1 Stereo Pair)
2× 1/4" TRS Balanced Stereo Subgroup Outputs (1 Stereo Pair)
2× 1/4" TRS Balanced/Unbalanced Aux/Monitor Sends
1× 1/4" TRS Unbalanced Stereo Headphone Output

Phantom Power

+48 V, Selectable On/Off (Applied to All Inputs)

Digital I/O

No

MIDI I/O

No

USB I/O

1× USB-C 2.0 (2-Track Record, Audio Streaming, Host Connection)

USB I/O Capacity

2× Input / 4× Output

Other I/O

1× 1/4" Footswitch Input

Wireless

Bluetooth

Compatibility

OS Compatibility

macOS / Windows

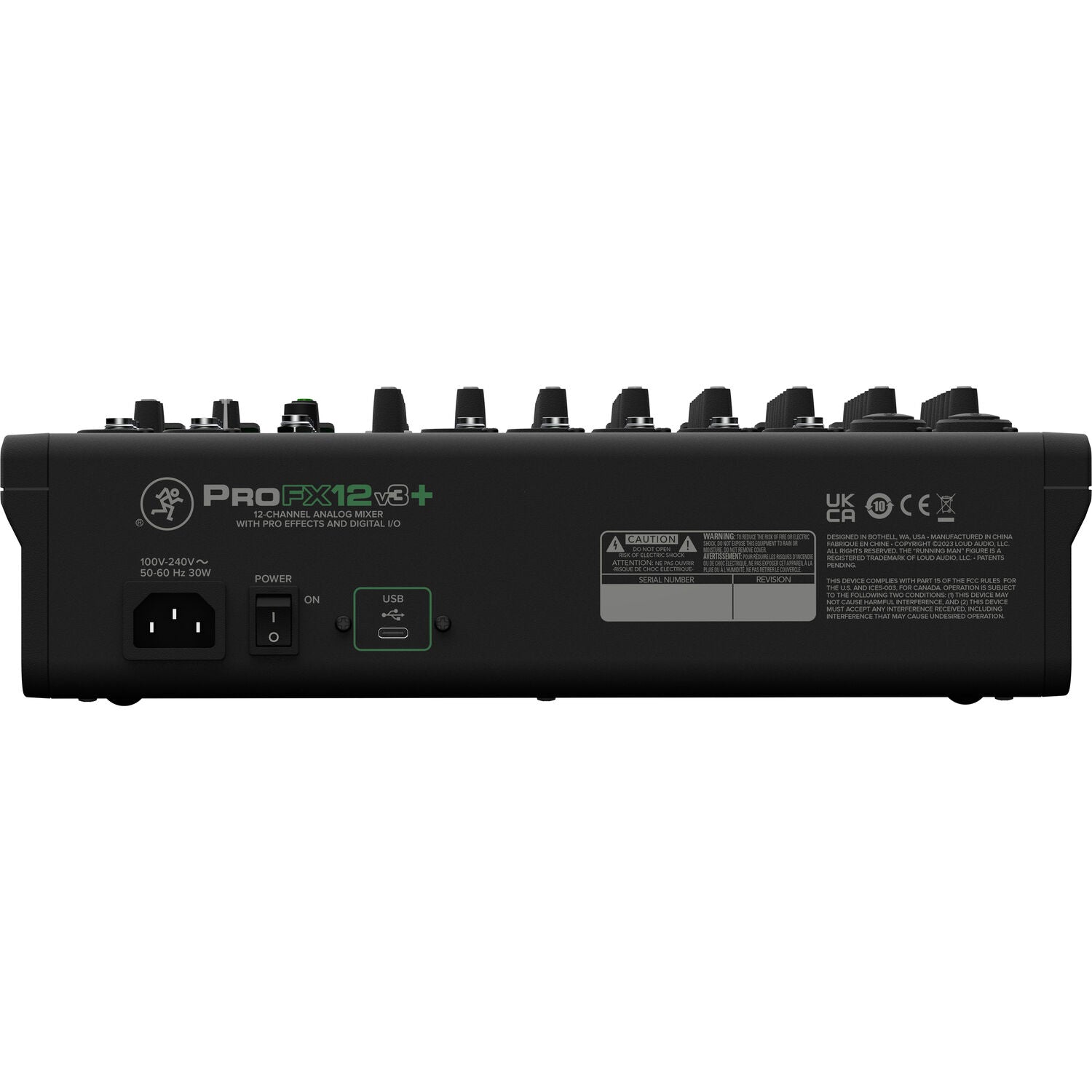

Power

AC Input Power

100 to 240 VAC, 50 / 60 Hz (Universal)

Physical

Rack Mountable

No

Rackmount Size

8 RU (with Optional Rack Hardware)

Dimensions

3.9 × 13 × 14.8" / 8.1 × 33 × 37.5 cm

Weight

7.9 lb / 3.6 kg
