Key Specification

Model

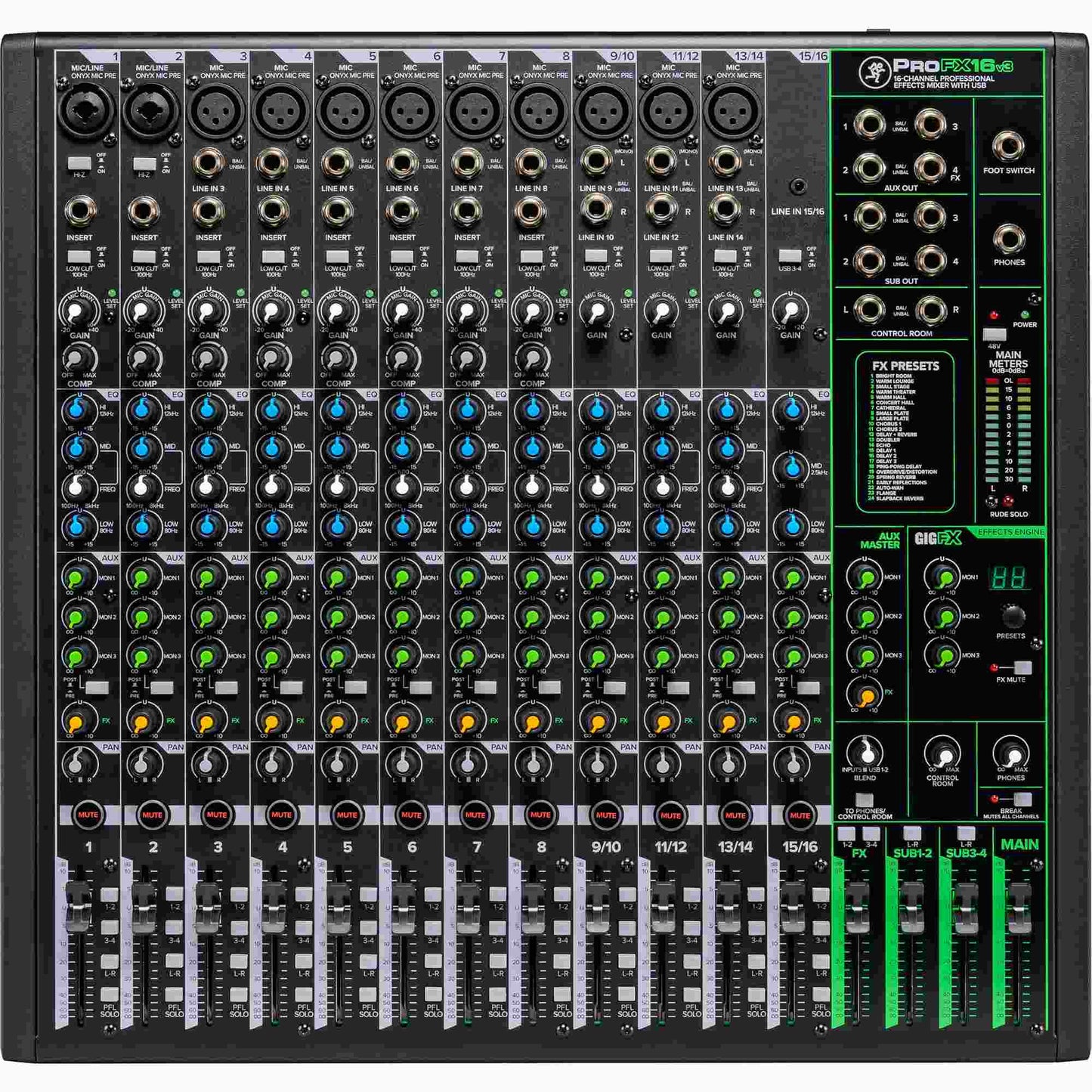

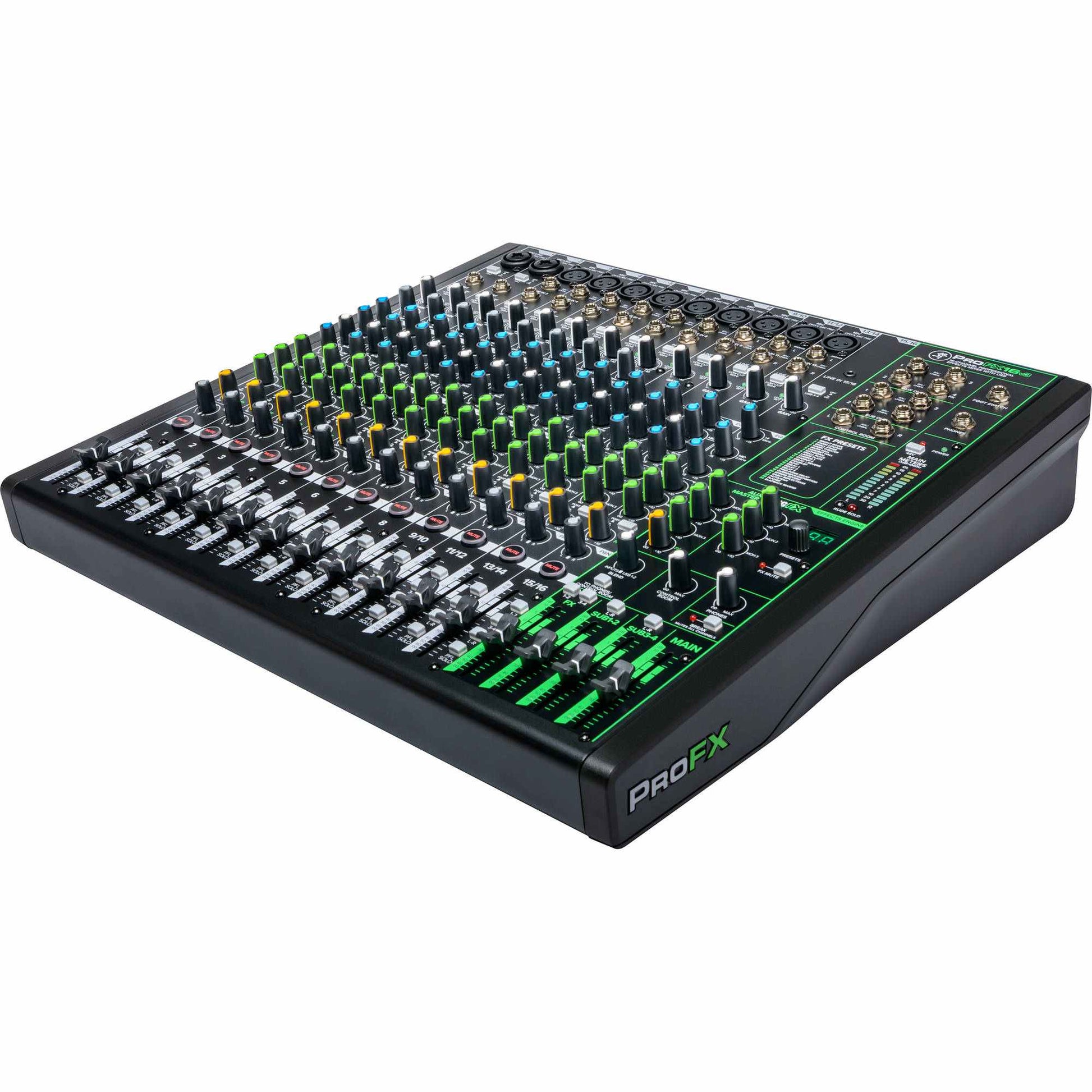

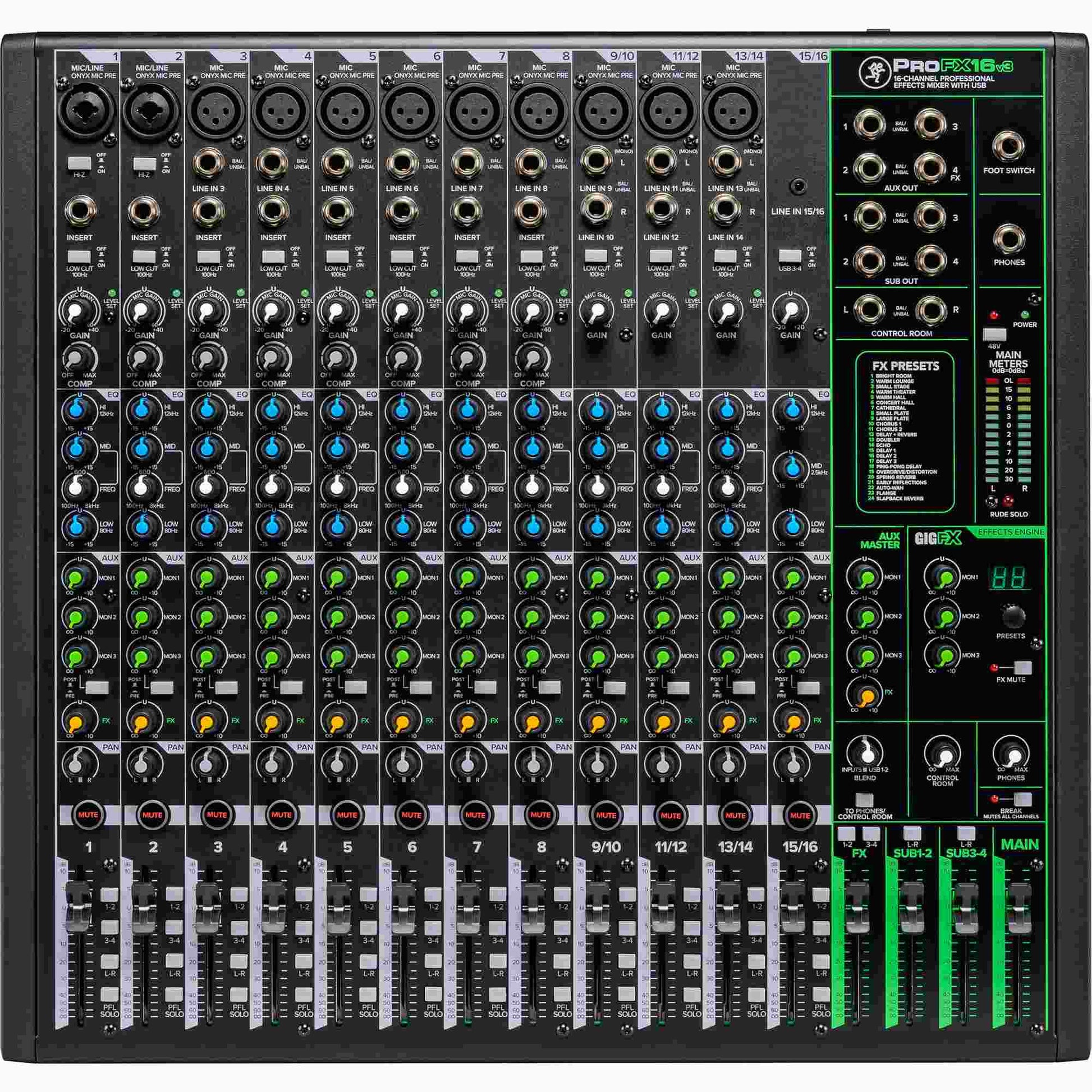

ProFX16v3

Number of Analog Input Channels

16 (8 Mono / 8 Stereo)

Number of Mic Preamps

11

Analog Output Channels

1× Stereo Master Output
1× Stereo Control Room/Monitor Output
1× Mono FX Send Output
1× Stereo Headphone Output

Mix Routing

1× Stereo Main Mix
2× Bus/Subgroup

EQ

4-Band EQ
Low: ±15 dB at 80 Hz
Mid: ±15 dB at 100 Hz to 8 kHz
High: ±15 dB at 12 kHz

Filters

High-Pass: 100 Hz, 18 dB/Octave

Solo/Mute

Solo, Mute per Input Channel

Built-In Effects

24x Preset (Factory)

Digital Audio

Sample Rates: Up to 192 kHz
Bit Depth: 24-Bit

Frequency Response

Mic Input to Output: 20 Hz – 30 kHz +0/-1 dB (Unity Gain)

Max Input Level

+22 dB

I/O Impedance

Mic Input: 3.3 kΩ
Insert Return: 10 kΩ
Line Input: ≥ 20 kΩ
Headphone Output: 25 Ω
Main Output: 120 Ω (Unbalanced), 240 Ω (Balanced)

Noise Floor

-95 dBu (Master Level at -∞, Channel Levels at -∞)
-85 dBu (Master Level at Unity, One Channel Level at Unity)

THD+N

< 0.01% (+4 dBu)

Analog Inputs

2× Combo XLR-1/4" Mic/Line Input
6× XLR 3-Pin Mic Input
6× 1/4" Line Input
3× XLR Stereo Mic Input
6× 1/4" Stereo Line Input (3 Stereo Pairs)
1× 1/8" / 3.5 mm Stereo Aux Input
8× 1/4" FX Insert
1× 1/4" Footswitch Input

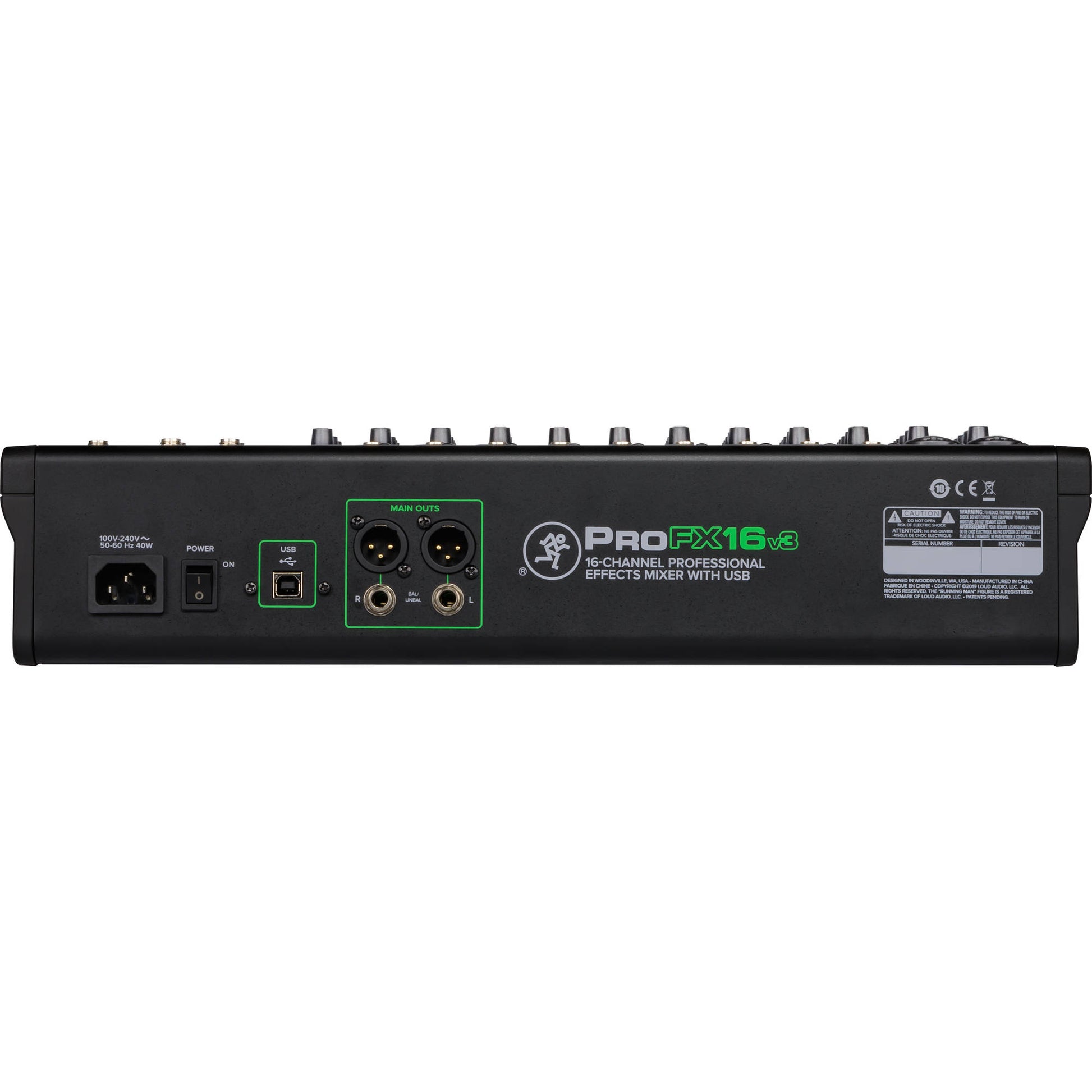

Analog Outputs

2× XLR 3-Pin Main Output
2× 1/4" Stereo Main Output (1 Stereo Pair)
2× 1/4" Stereo Control Room Output (1 Stereo Pair)
1× 1/4" Stereo Headphone Output
4× 1/4" Stereo Subgroup Output (2 Stereo Pairs)
4× 1/4" Aux Output

Phantom Power

+48 V, Selectable On/Off (Applied to All Inputs)

USB I/O

1× USB-B 2.0
Capacity: 2× Input / 4× Output

Rack Mountable

Yes, 9U (with Non-Included Hardware)

AC Input Power

100 – 240 VAC, 50/60 Hz

Dimensions

4.3 × 17.7 × 17.1 in / 10.9 × 45 × 43.4 cm

Weight

15.2 lb / 6.9 kg

Package Weight

20 lb

Box Dimensions (L×W×H)

22 × 20.9 × 8 in
