Key Specification

Model

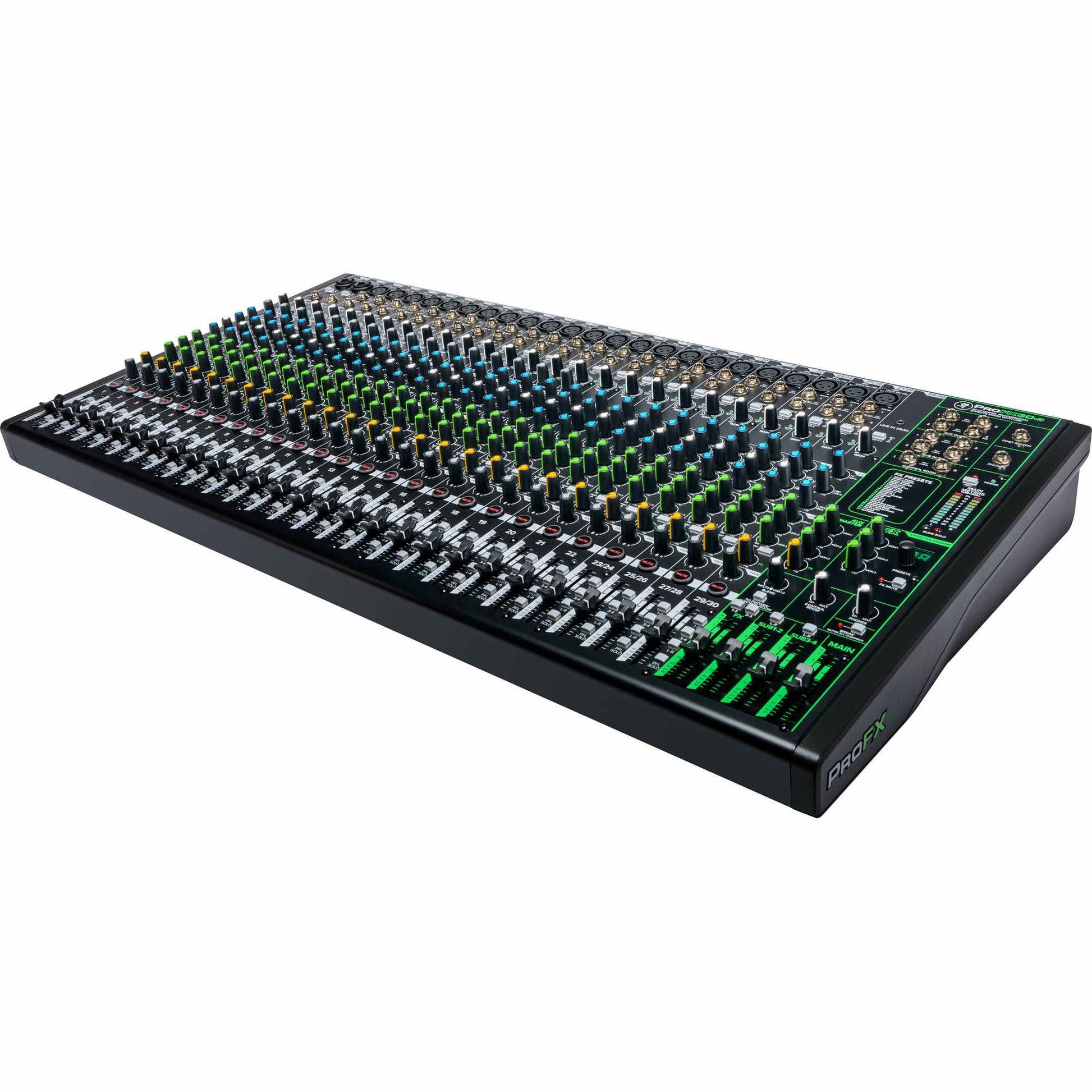

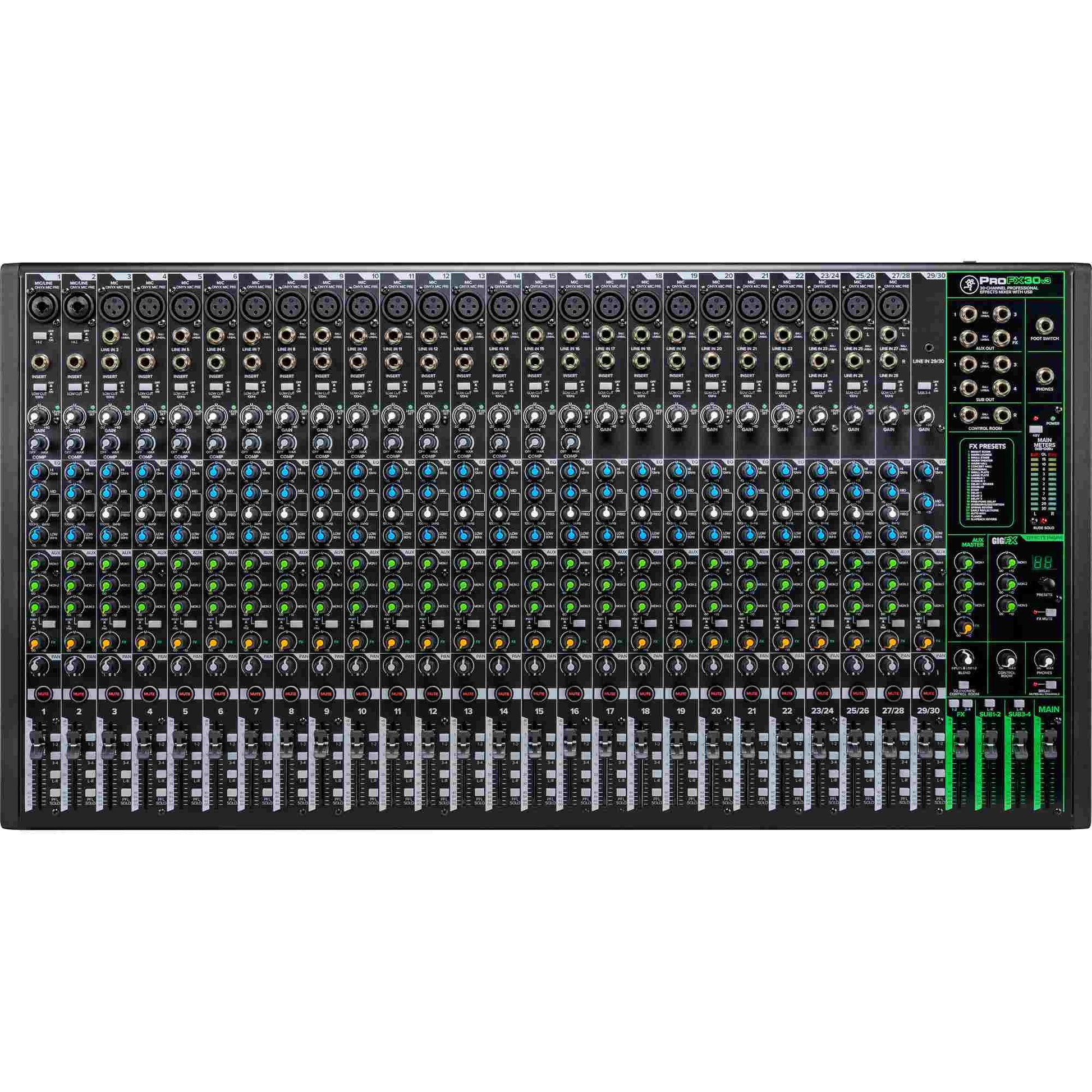

ProFX30v3

Number of Analog Input Channels

30 (22 Mono / 8 Stereo)

Number of Mic Preamps

25

Analog Output Channels

2× Stereo Master Output
1× Stereo Control Room/Monitor Output
2× Stereo Bus/Subgroup Output
3× Mono Aux Send Output
1× Mono FX Send Output
1× Stereo Headphone Output

Mix Routing

1× Main Mix
2× Bus/Subgroup

EQ

3-Band EQ
Low: ±15 dB at 80 Hz
Mid: ±15 dB at 100 Hz to 8 kHz
High: ±15 dB at 12 kHz

Dynamic Processing

Compressor

Filters

High-Pass: 100 Hz, 18 dB/Octave

Solo/Mute

Solo, Mute per Input Channel

Built-In Effects

24× Preset (Factory)

Sample Rates

Up to 192 kHz

Bit Depth

24-Bit

Frequency Response

Mic Input to Output: 20 Hz – 30 kHz +0/-1 dB (Unity Gain)

Max Input Level

+22 dB

I/O Impedance

Mic Input: 3.3 kΩ
Insert Return: 10 kΩ
Line Input: ≥ 20 kΩ
Headphone Output: 25 Ω
Main Output: 120 Ω (Unbalanced), 240 Ω (Balanced)

Noise Floor

-95 dBu (Master at -∞, Channels at -∞)
-85 dBu (Master at Unity, One Channel at Unity)

THD+N

< 0.01% (+4 dBu)

Analog Inputs

2× Combo XLR-1/4" Mic/Line Input
20× XLR Mic Input
4× XLR Stereo Input
20× 1/4" Input
22× 1/4" Insert
6× 1/4" Stereo Input (3 Stereo Pairs)
1× 1/8" / 3.5 mm Stereo Input
1× 1/4" Footswitch Input

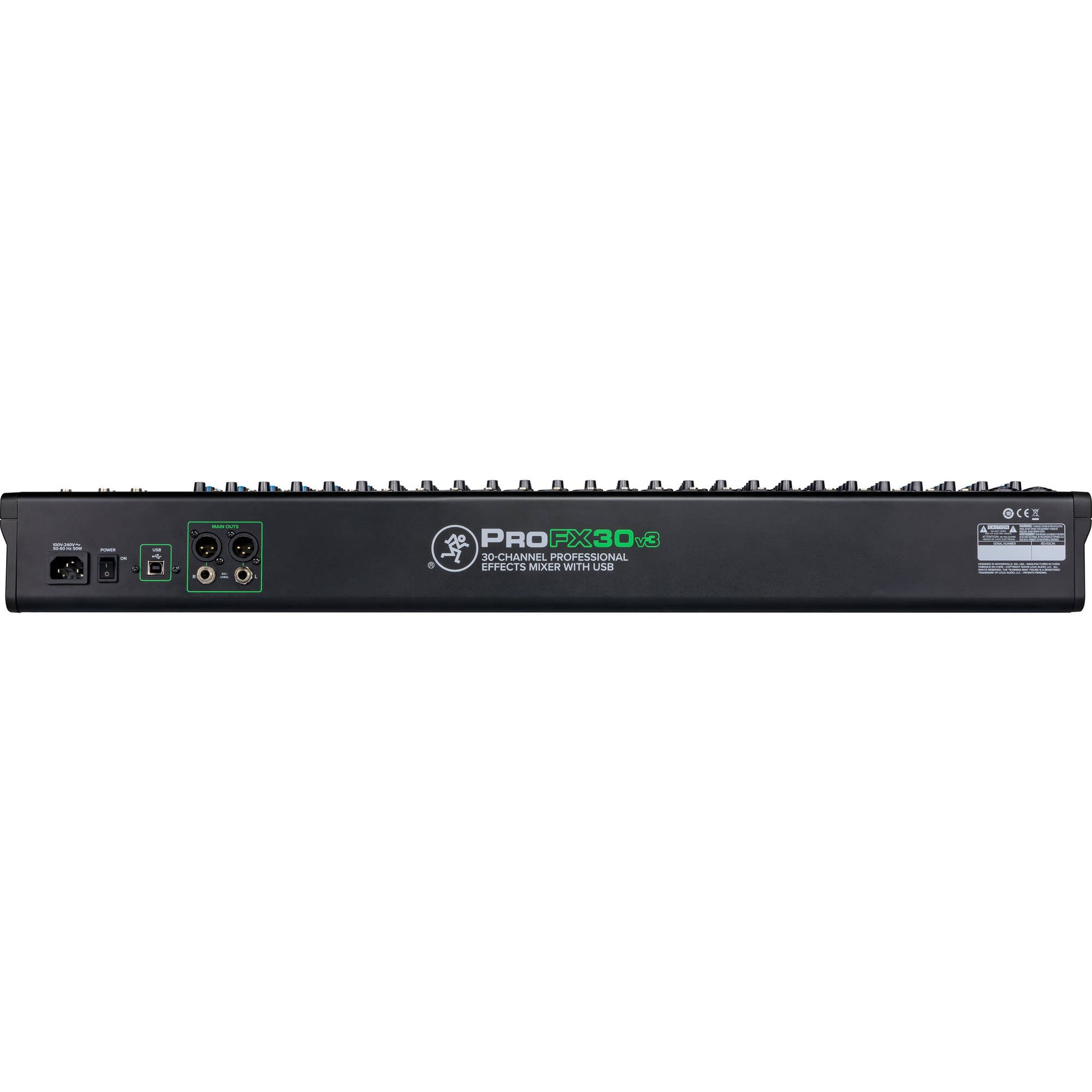

Analog Outputs

2× XLR 3-Pin Main Output
2× 1/4" Main Output
2× 1/4" Stereo Control Room
1× 1/4" Stereo Headphone Output
4× 1/4" Subgroup Output
4× 1/4" Aux Output

Phantom Power

+48 V, Selectable On/Off (Applied to All Inputs)

USB I/O

1× USB-B 2.0
Capacity: 2× Input / 4× Output

Rack Mountable

No

AC Input Power

100 – 240 VAC, 50 / 60 Hz

Dimensions

4.3 × 32.3 × 17.1 in / 10.9 × 82 × 43.4 cm

Weight

26.5 lb / 12 kg

Package Weight

32.55 lb

Box Dimensions (L×W×H)

38 × 21.11 × 8.4 in
