Key Specifications

Active or Passive

Passive

System Type

Full-Range

Continuous Power (AES)

80 W

Programme / Peak Power

160 W / 320 W

Max SPL @ 1m

116 dB

Frequency Response (±3 dB)

75 Hz – 20 kHz

System Rated Impedance

8 Ω

Sensitivity (2.83v / 1m)

91 dB

Transducer Specifications

LF Driver Size / Voice Coil

5" / 1"

HF Driver Type / Diaphragm

Soft Dome Tweeter / Titanium

HF Nominal Coverage (H x V)

60° x 60°

Crossover Frequency

2.3 kHz

Construction & Installation

Enclosure Material

MDF

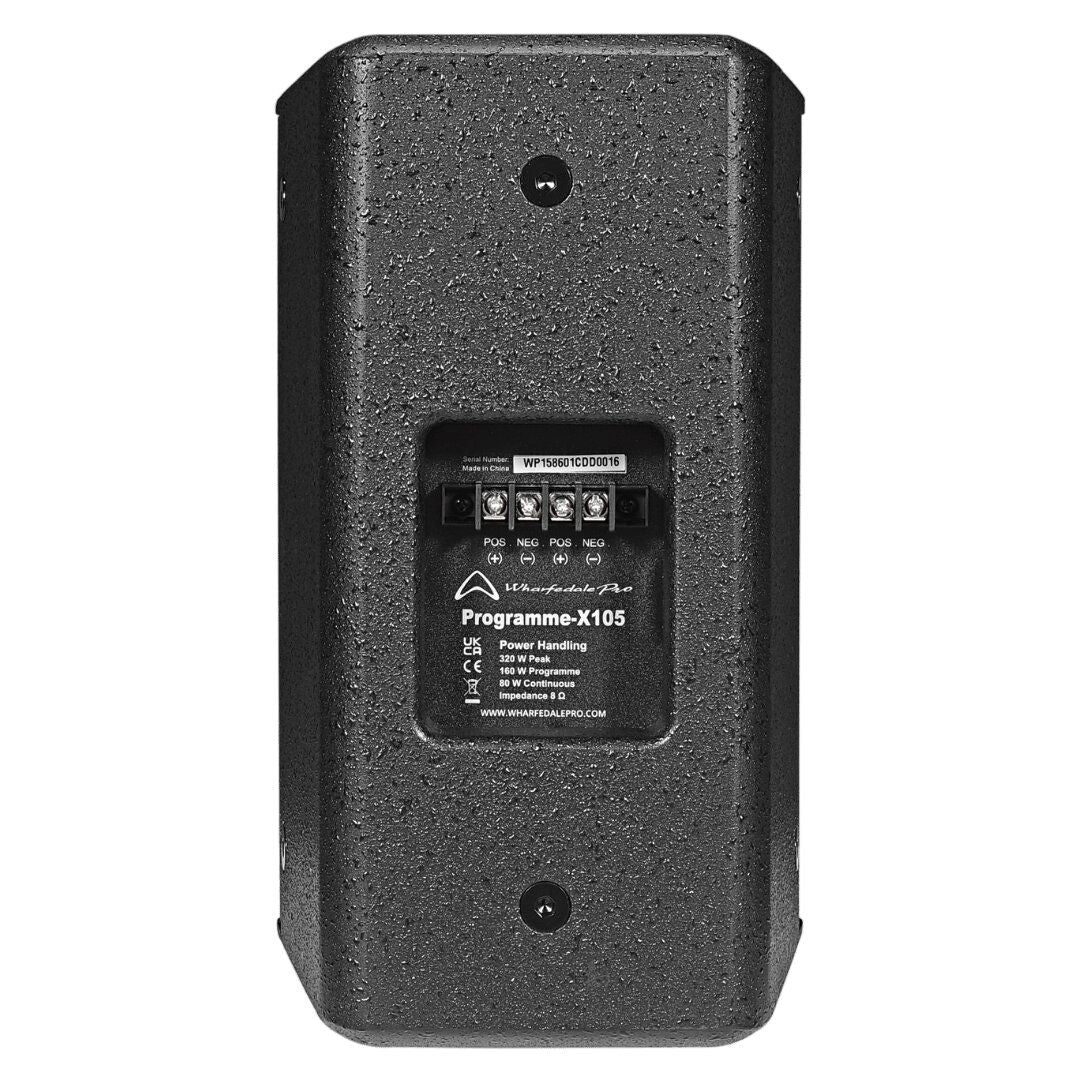

Input Connector

Barrier Strip

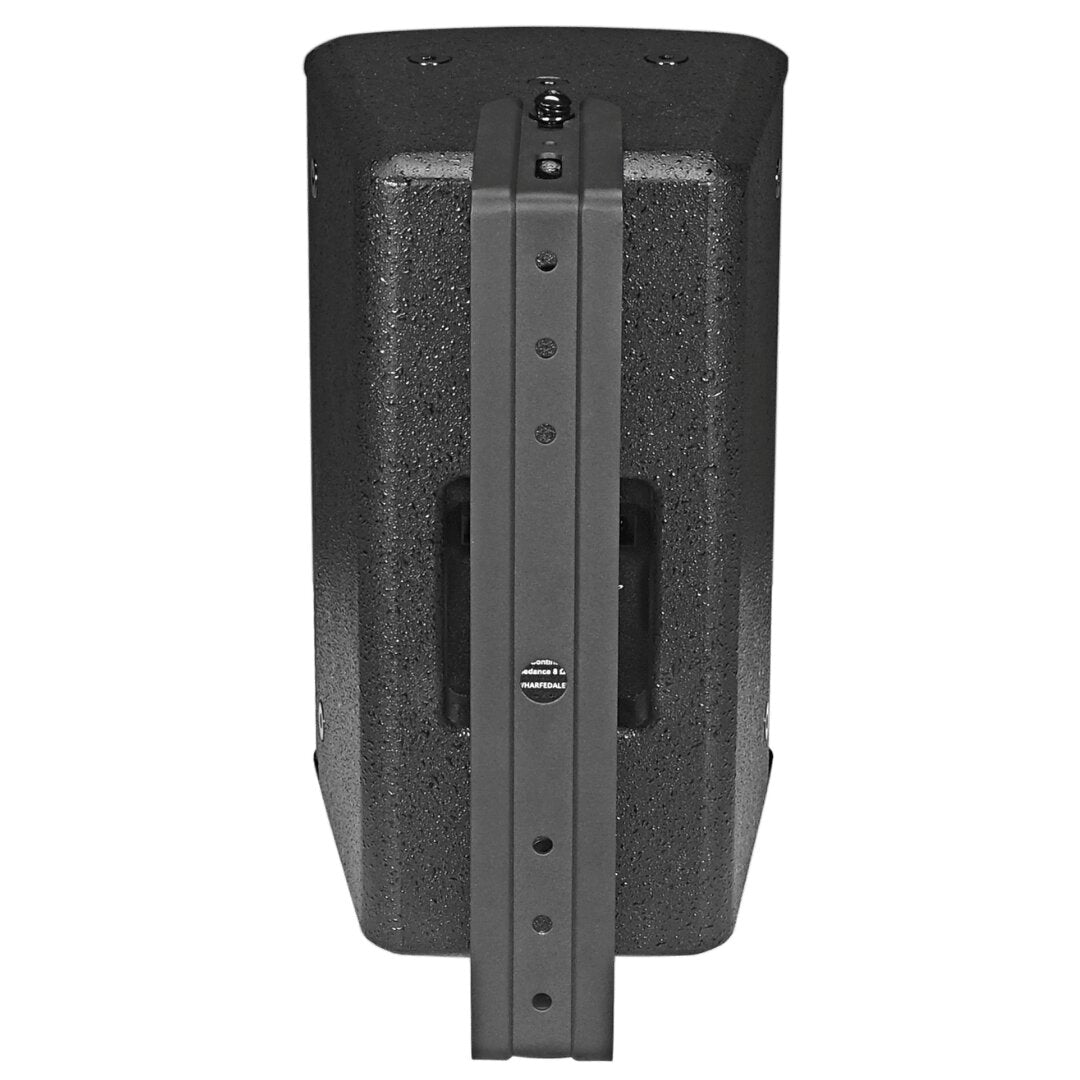

Rigging / Mounting

14 x M8 Points / U-Bracket Included

Net Weight

5.22 kg

Dimensions (H x W x D mm)

304 x 184 x 205
