Key Specifications

System Type

Passive / Full-Range / 2-Way

Continuous Power (AES)

80 W

Peak Power

320 W

Max SPL @ 1m

116 dB

Frequency Response (±3 dB)

75 Hz – 20 kHz

Sensitivity (2.83v / 1m)

91 dB

Transformer & Voltage Taps

Internal Transformer

Yes (70 V / 100 V Compatible)

70 V Taps

7.5 W / 15 W / 30 W / 60 W

100 V Taps

15 W / 30 W / 60 W

Transducer Specifications

LF Driver Size / Voice Coil

5" / 1"

HF Driver / Diaphragm

Soft Dome Tweeter / Titanium

Nominal Coverage

60° x 60° (Rounded Waveguide)

Physical & Installation

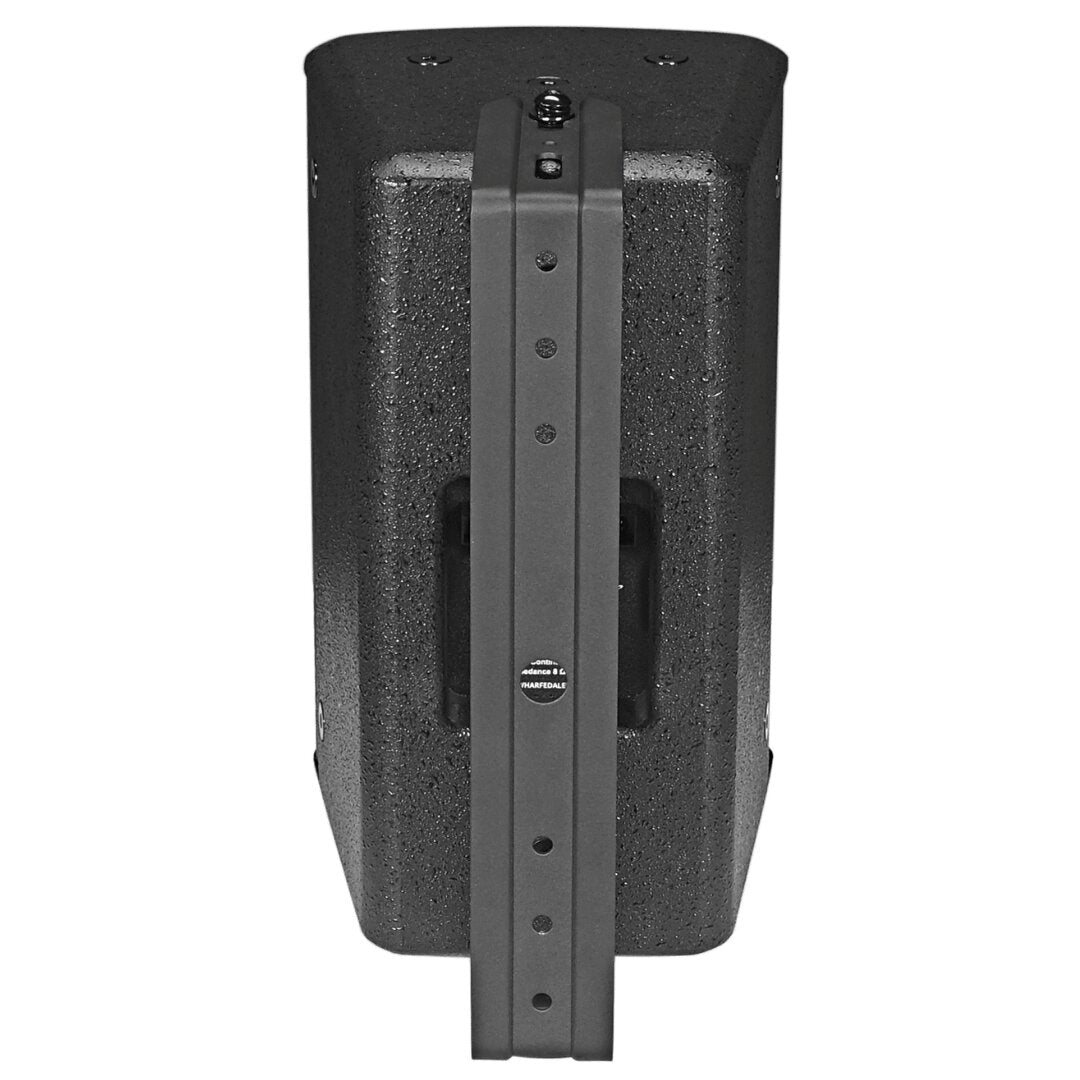

Rigging

14 x M8 Points / U-Bracket Included

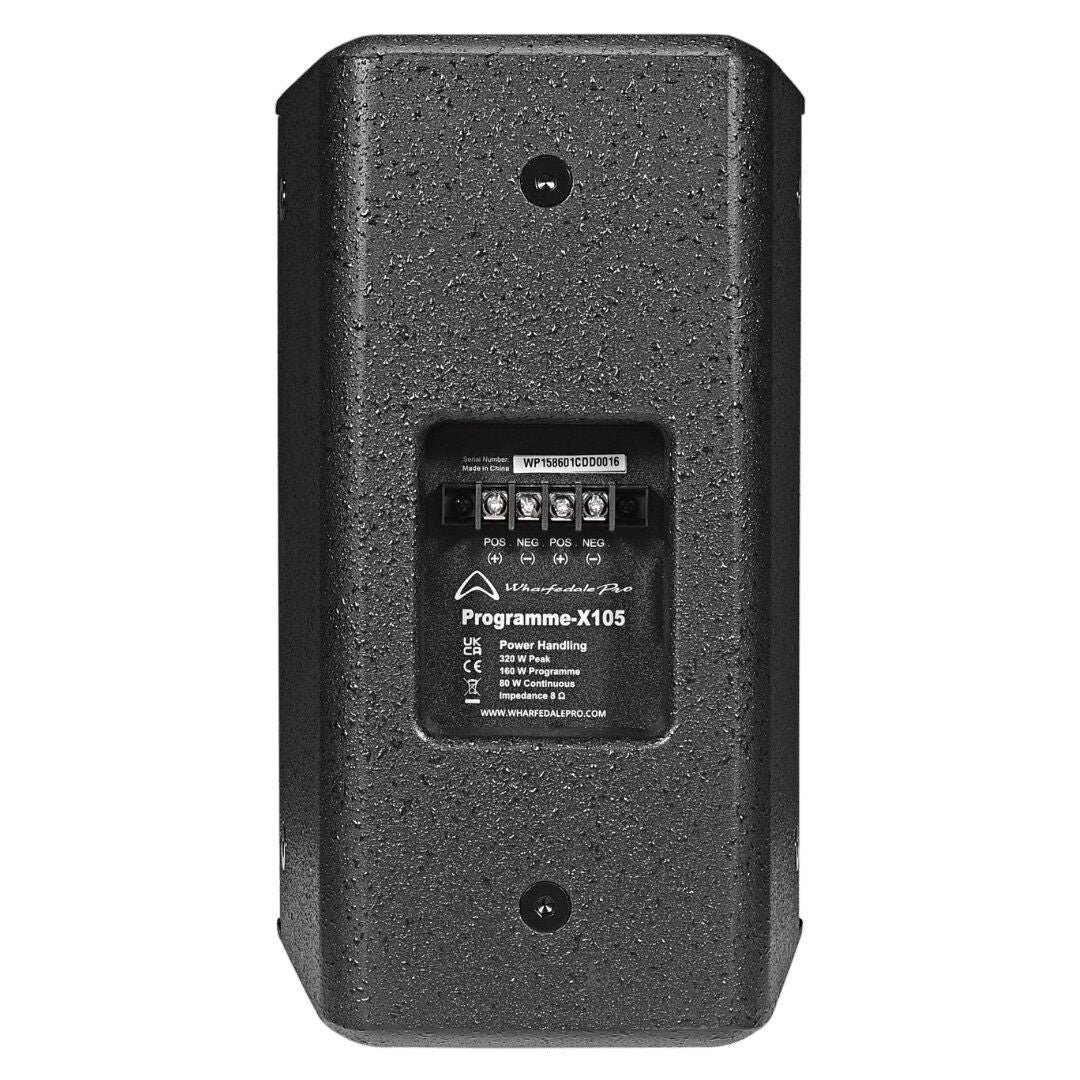

Input Connector

Barrier Strip

Dimensions (H x W x D mm)

304 x 184 x 205

Net Weight

6.42 kg
