Key Specifications

System Type

• Design: Passive 12” bass reflex
• LF: 12” woofer (2.5” voice coil)
• HF: 1” exit driver (1.77” voice coil)

Audio Performance

Acoustics

• Frequency Response: 43Hz to 20KHz
• Sensitivity: 97 dB SPL @ 1m
• Coverage Angle: 90° x 60°
• Crossover Frequency: 2.5KHz

Power Handling & Connectivity

• Power Rating: 800W
• Nominal Impedance: 8Ω

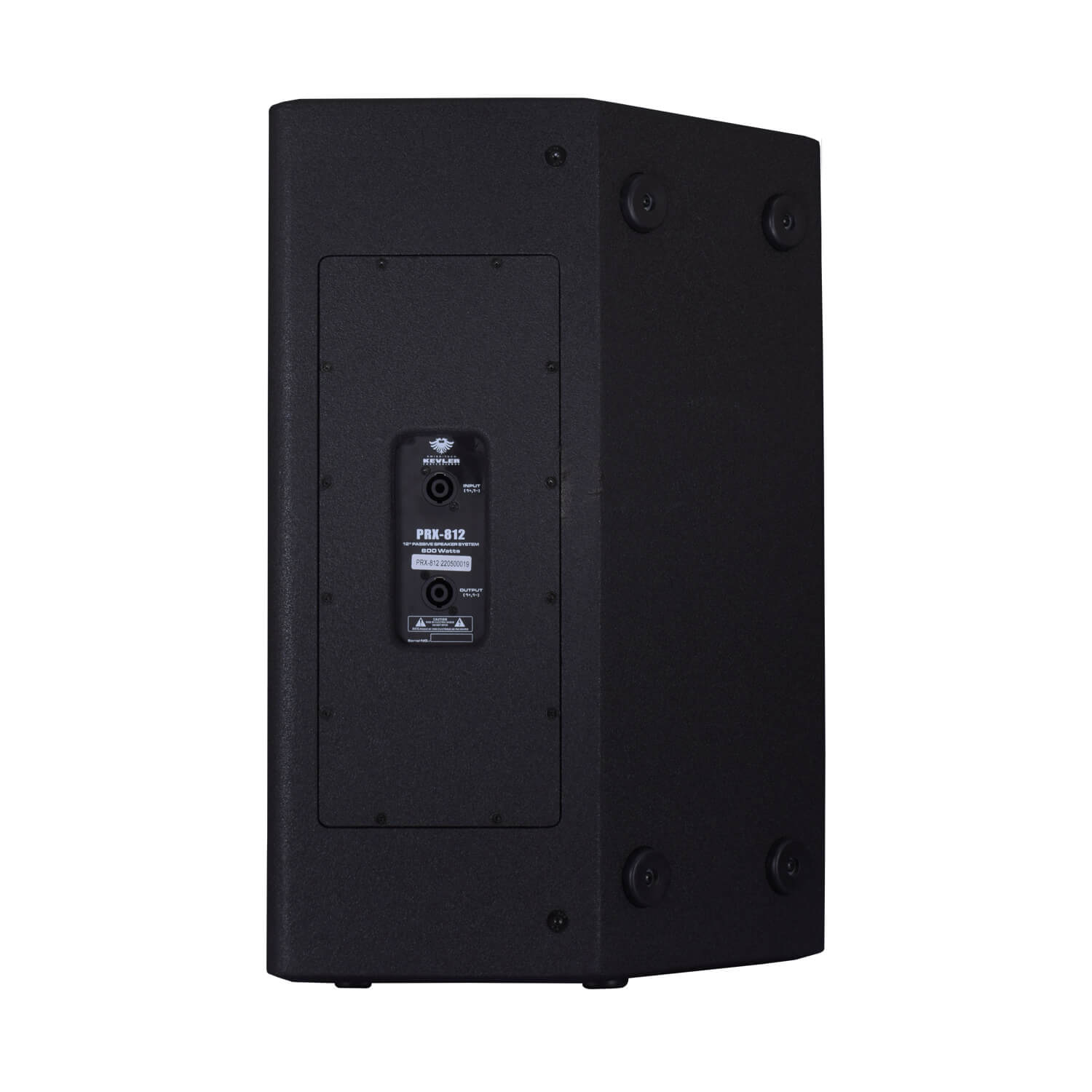

• Inputs: NL4 Speakon
• Outputs: NL4 Speakon (Link)

Physical Specifications

Dimensions & Weight

• Dimension (HxWxD): 385 x 340 x 600 mm
• Net Weight: 17.25 kg
• Gross Weight: 18.9 kg

Shipping Information

• Packaging Size: 440 x 390 x 660 mm
