Key Specifications

System Type

• Design: Active 12” bass reflex
• DSP: 5 Preset management control
• LF: 15” woofer (2.5” voice coil)
• HF: 1” exit driver (1.77” voice coil)

Audio Performance

Acoustics

• Frequency Response: 45Hz to 20KHz
• Sensitivity: 97 dB SPL @ 1m
• Coverage Angle: 90° x 60°
• Crossover Frequency: 2.5KHz

Amplification & I/O

• Amp Power: 500W Class-D Amplifier

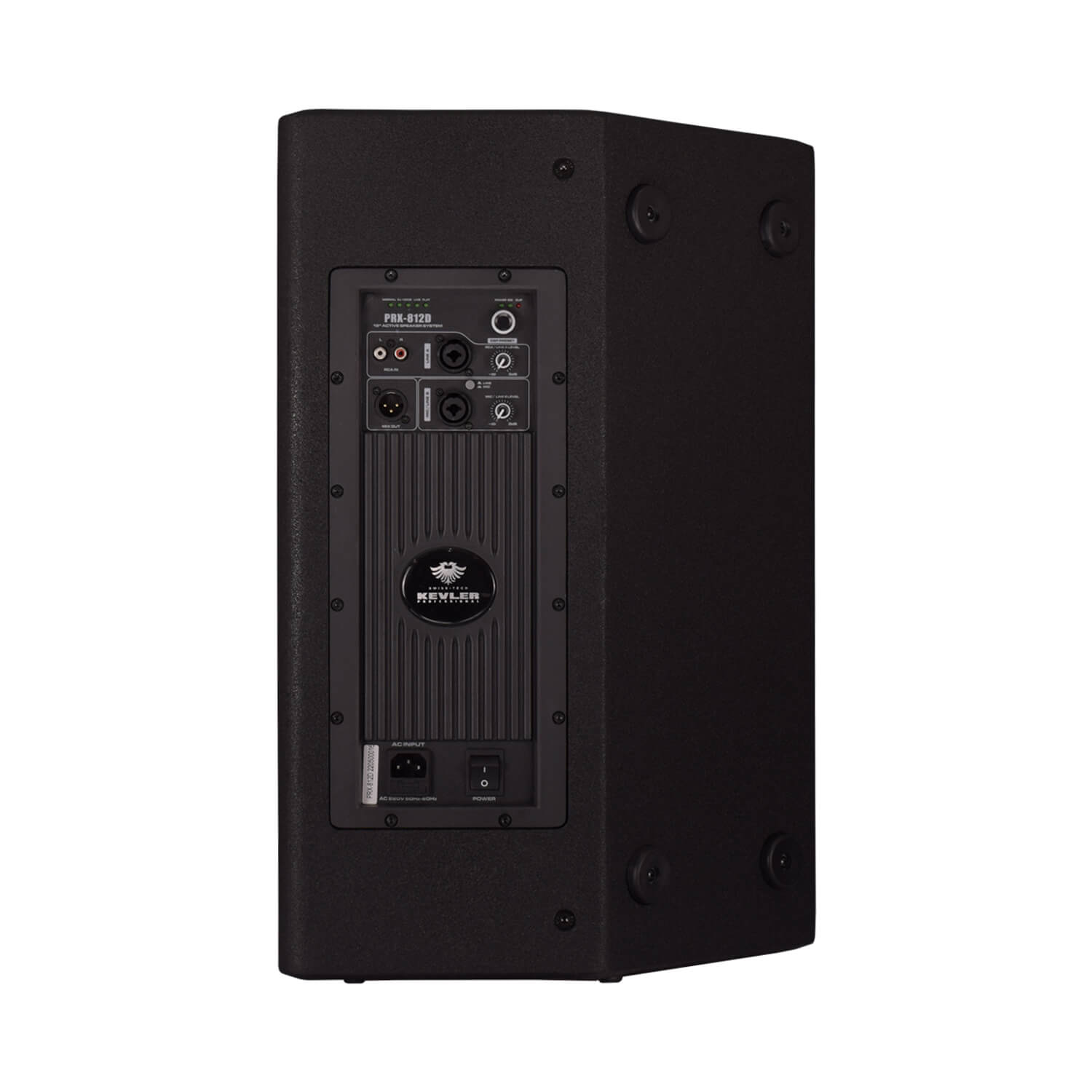

• Inputs: 2 Balanced XLR & ¼” Combo connectors
• Outputs: 1 Balanced XLR Mix Output
• AC Power: 190V-240V 50/60Hz

Physical Specifications

Dimensions & Weight

• Dimension (HxWxD): 385 x 340 x 600 mm
• Net Weight: 18.25 kg
• Gross Weight: 20.3 kg

Shipping Information

• Packaging Size: 440 x 390 x 660 mm
