Key Specifications

System Type

Active 15” bass reflex

DSP Management

5 Preset DSP control

LF Transducer

15” woofer (2.5” voice coil)

HF Transducer

1” exit driver (1.77” voice coil)

Frequency Response

40 Hz – 20 kHz

SPL

98 dB SPL @ 1m

Amplification & Connectivity

Amplifier Power

500W Class-D Amplifier

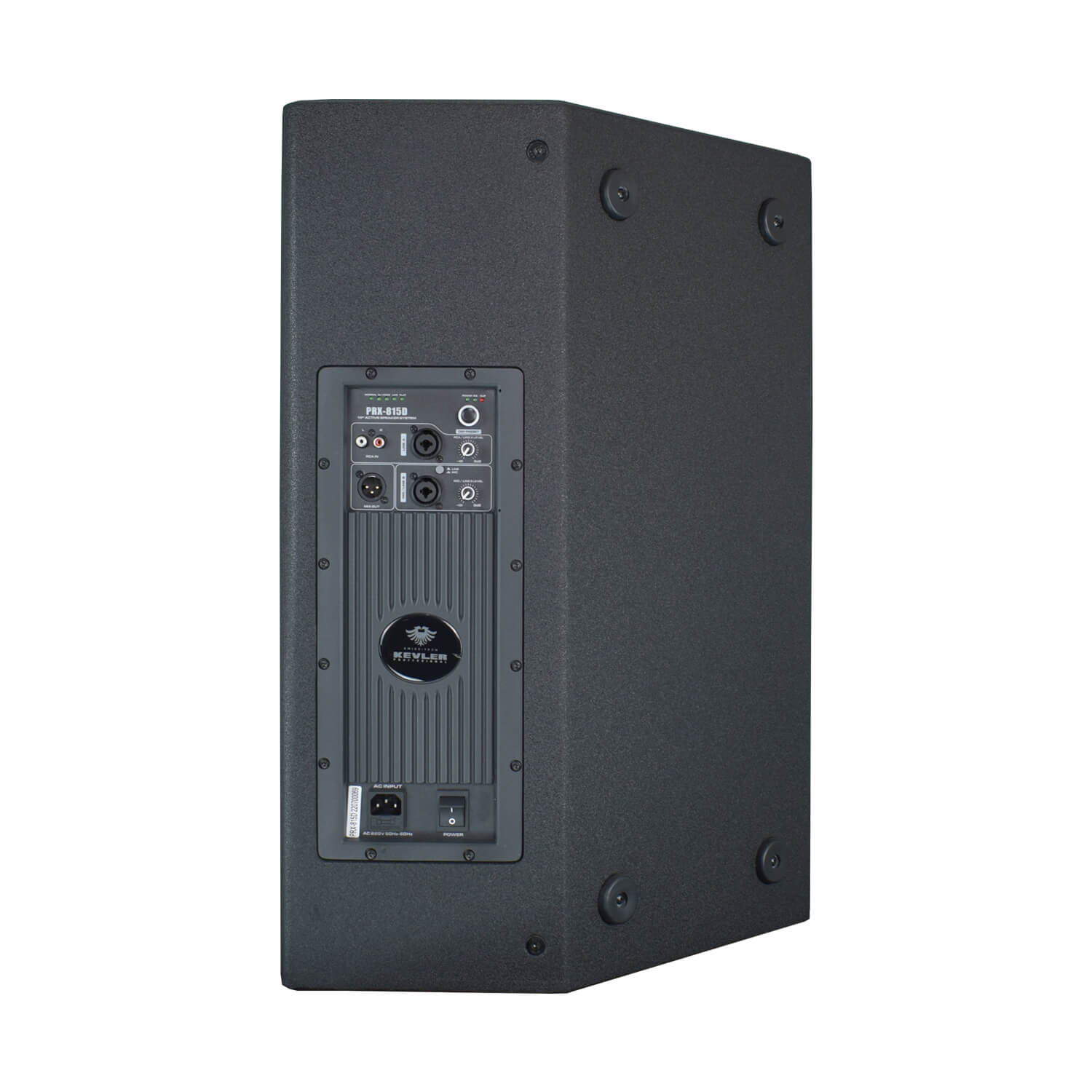

Inputs

2 × Balanced XLR & ¼” Combo connectors

Outputs

1 × Balanced XLR Mix Output

AC Power Input

190V-240V 50/60Hz

Physical & Acoustic

Coverage Angle

90° × 60°

Crossover Frequency

2.3 kHz

Dimensions (H×W×D)

703 × 446 × 395 mm

Net Weight

21.45 kg

Gross Weight

23.65 kg

Packaging Size

500 × 415 × 720 mm
