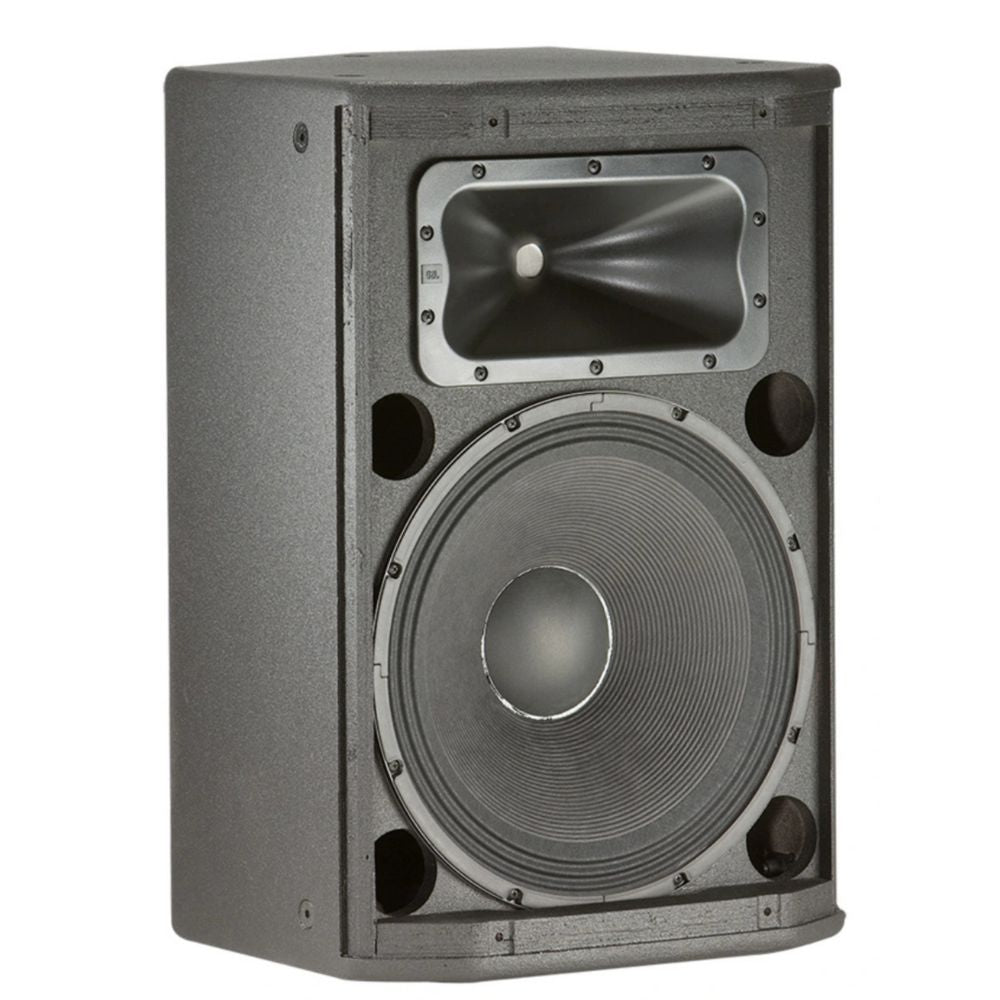

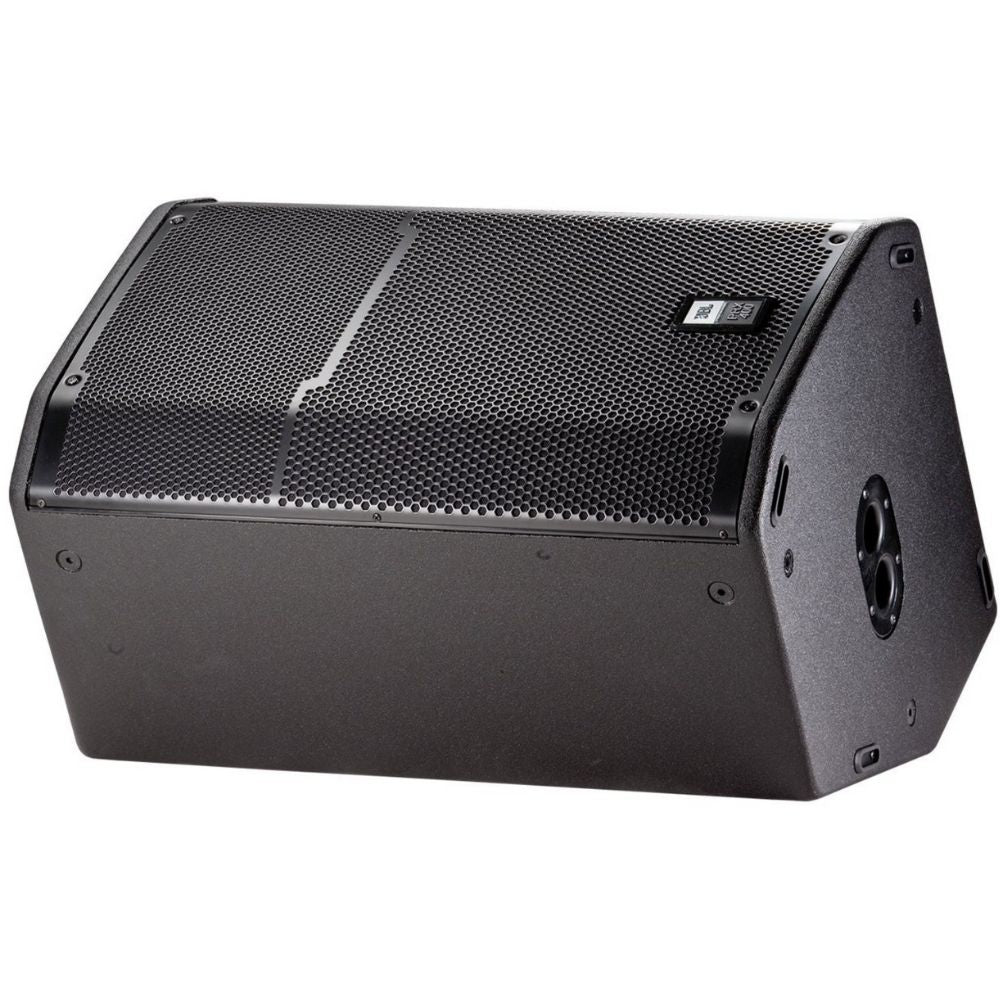

The black PRX415M Two-Way 15" Passive Speaker by JBL has an asymmetrical enclosure shape, allowing it to be used as an FOH main or a wedge monitor. The PRX415M houses a 15" woofer and a 1" polymer diaphragm compression driver for 300W of continuous power capacity. The 90 x 50° horn provides smooth, even coverage in both vertical and horizontal orientations.

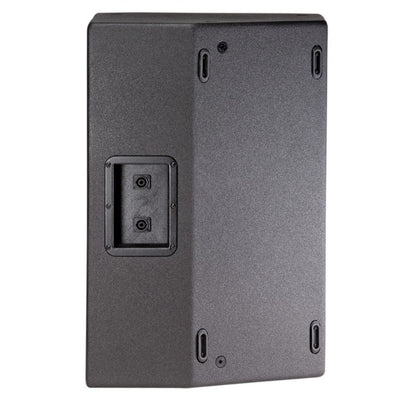

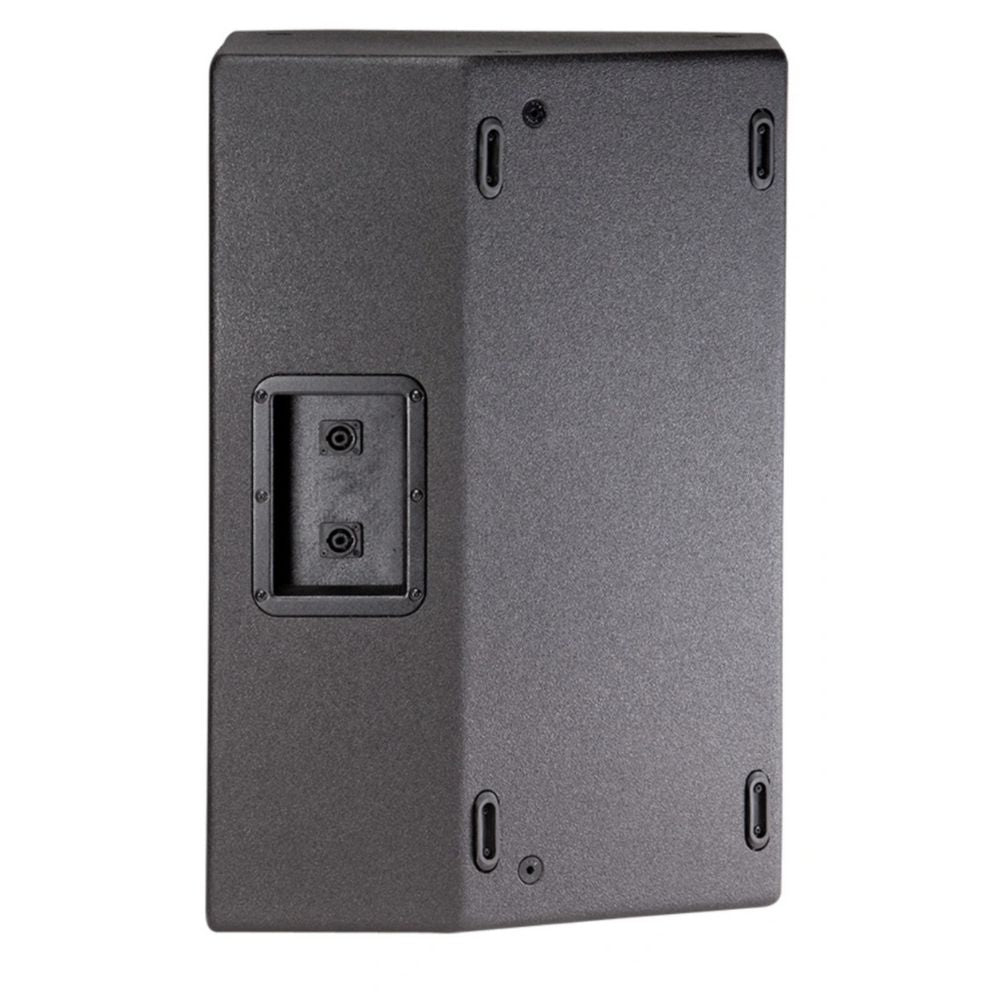

The PRX415M features combo connectors that accept both Speakon NL-2 and 1/4" TS connectors. A passive crossover network provides accurate sound reproduction. For use on a tripod or over a subwoofer, JBL's dual angle pole mount socket is integrated into the cabinet design. The socket can tilt down by 10°, allowing a mounted speaker to still obtain optimum audience coverage.

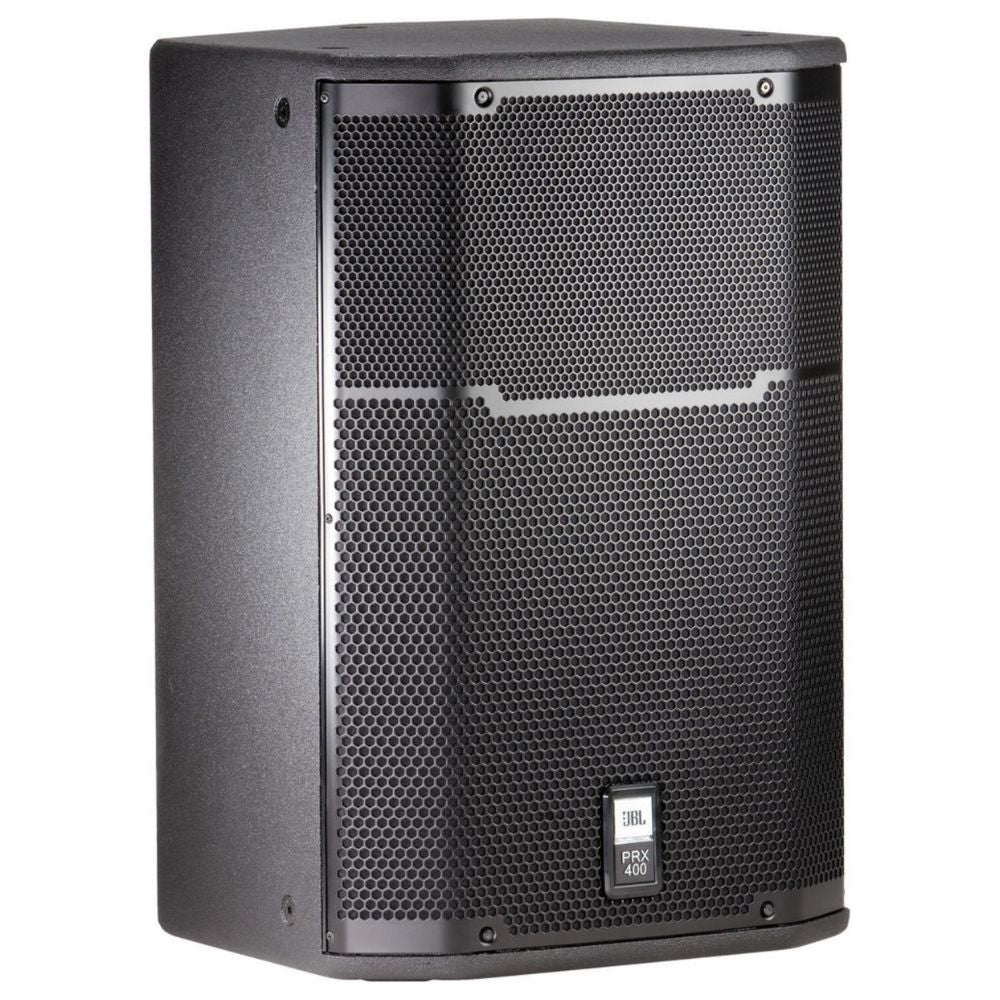

The enclosure is constructed of birch/poplar multi-laminate hardwood and coated in JBL's rugged DuraFlex finish. The distinctive 16-gauge steel grille is CNC-machined for precision. The grilles are internally lined with an acoustically transparent screen to provide additional driver protection and give a professional appearance.
JBL PRX415M
Key Specifications
General / Configuration
Speaker Type
Passive Loudspeaker
Configuration
2-Way
Enclosure Type
Sealed
Nominal Impedance
8 Ohms
Power Handling
Total Passive Power Handling
300 W RMS
600 W Program
1200 W Peak
Drivers
LF Driver
1x 15" / 38 cm Woofer
HF Driver
1x 1" / 25.4 mm Polymer Compression Driver
Performance
Frequency Range (-10 dB)
55 Hz to 19 kHz
Frequency Response (±3 dB)
66 Hz to 16 kHz
Maximum SPL
128 dB (Peak)
Speaker Sensitivity
98 dB SPL
Coverage Angle
90° H x 50° V
Crossover Frequency
2200 Hz
Connectivity & Physical
Audio I/O
2x Combo speakON-1/4" TS Input
Mounting
Stand Mount: 2 x 1.38" / 35 mm Dual-Angle Pole Socket (Bottom)
