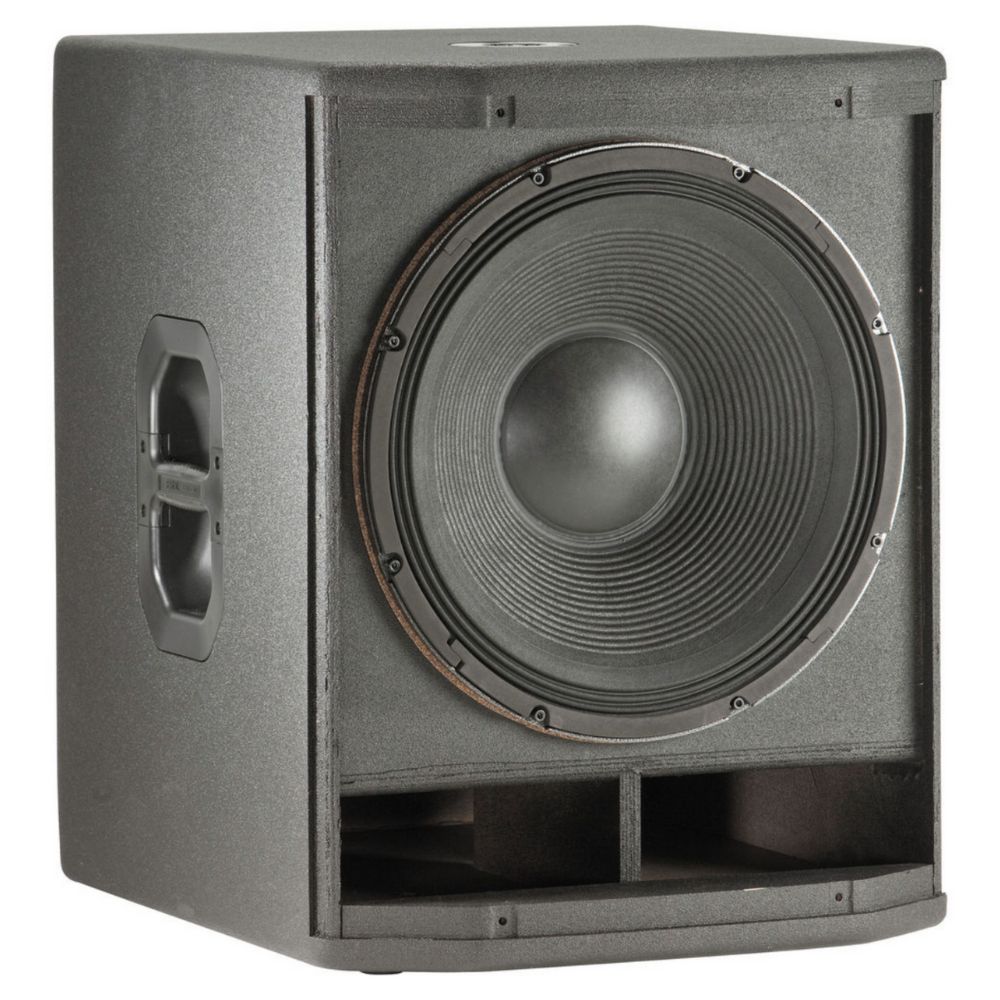

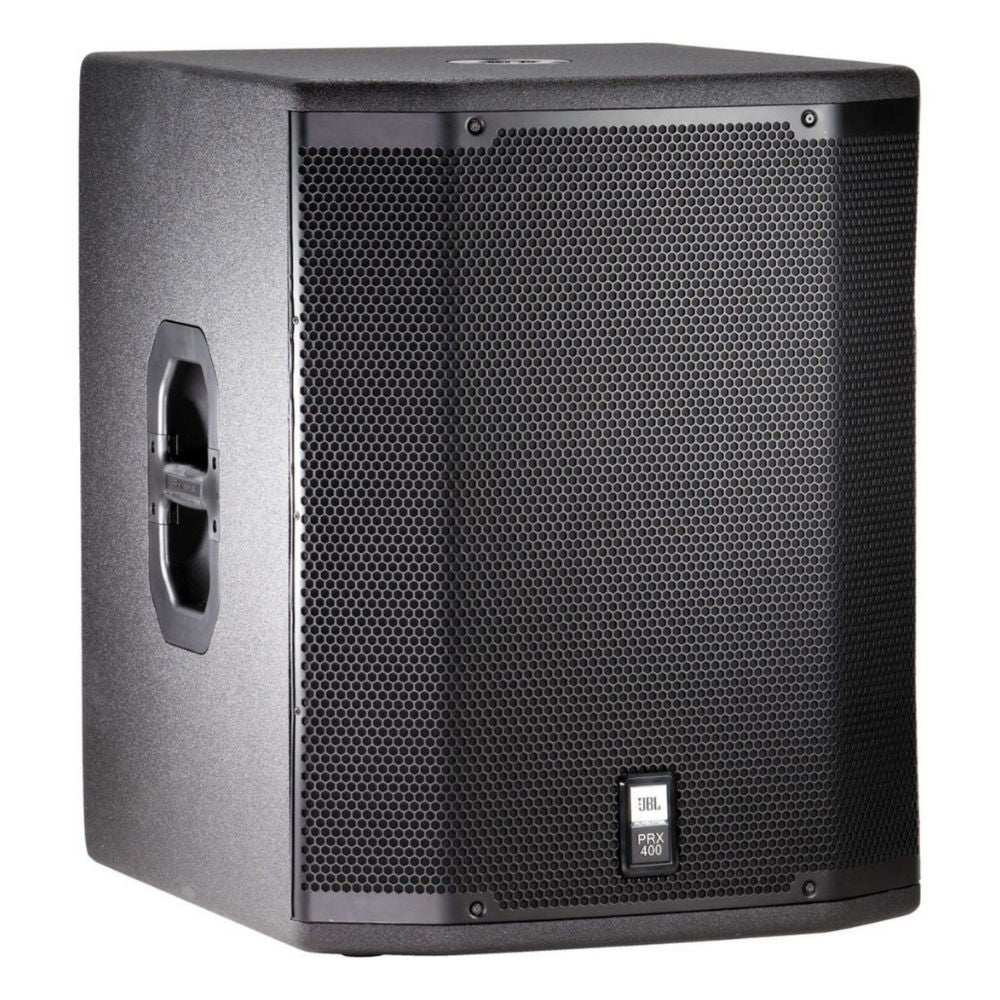

The PRX418S Passive 18" Subwoofer from JBL features a Selenium 457 woofer in a front-loaded, vented enclosure. It can handle 800W of continuous power and up to 3200W peak. The input panel incorporates a pair of Neutrik combo jacks that accept both speakON NL-2 and 1/4" TS connectors wired in parallel. The PRX418S is supplied with pins +1/-1 connected to the woofer.The enclosure is constructed of birch/poplar multi-laminate hardwood and coated in JBL's rugged DuraFlex finish. The 16-gauge steel grille is CNC-machined for precision. The grille is internally lined with an acoustically transparent screen to provide additional driver protection and give a professional appearance.
The enclosure is constructed of birch/poplar multi-laminate hardwood and coated in JBL's rugged DuraFlex finish. The 16-gauge steel grille is CNC-machined for precision. The grille is internally lined with an acoustically transparent screen to provide additional driver protection and give a professional appearance.
JBL PRX418S
Key Specifications
Key Specs
Speaker
Speaker Type: Passive Subwoofer
Enclosure Type: Bass-Reflex
Total Passive Power Handling: 800 W RMS / 3200 W Peak, 1600 W Program
Nominal Impedance: 8 Ohms
Drivers
LF Driver: 1x 18" / 45.7 cm Woofer
Performance
Frequency Range/Response: 35 Hz to 250 Hz (-10 dB), 52 Hz to 120 Hz (±3 dB)
Maximum SPL: 124 dB SPL (Continuous), 130 dB SPL (Peak)
Speaker Sensitivity: 95 dB SPL
Signal Processing
EQ & Filters: No
Dynamic Processing: No
Connectivity

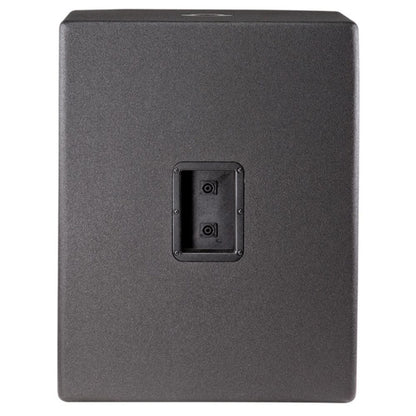

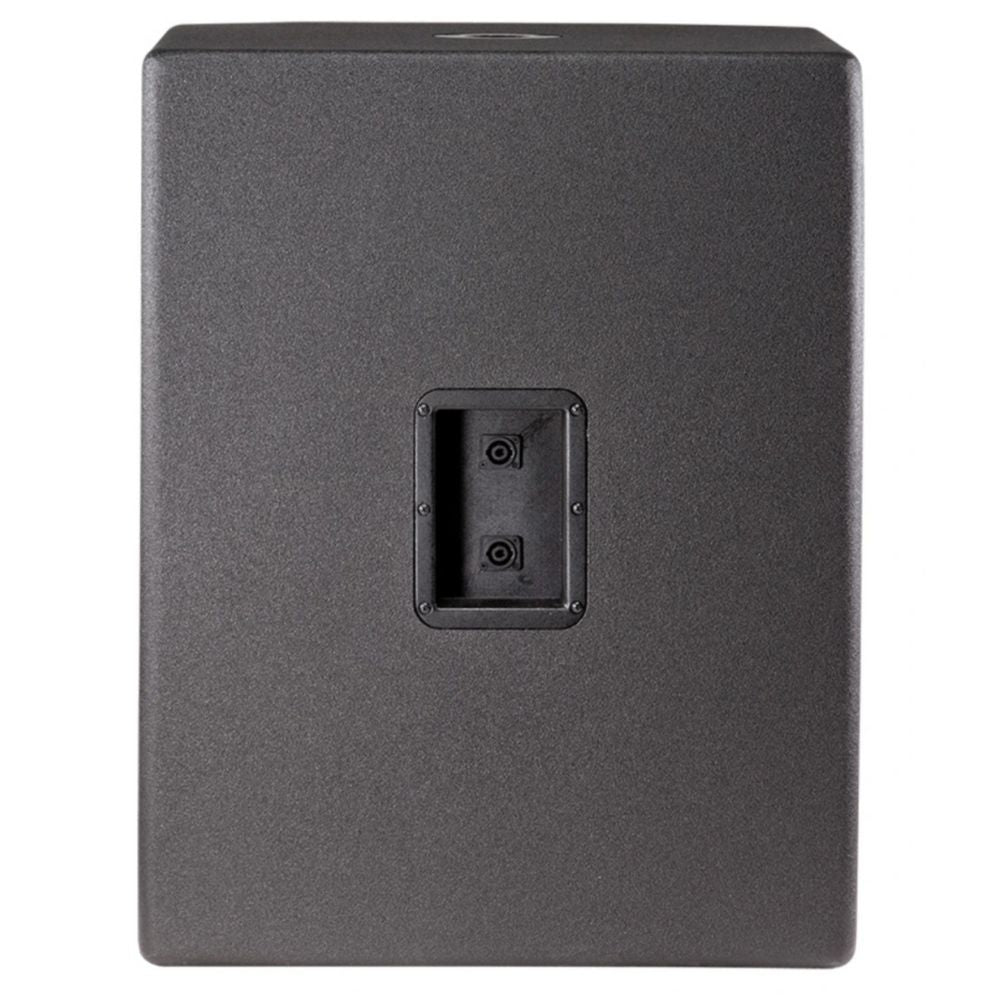

Audio I/O: 2x Combo speakON-1/4" TS Input
Physical
Color: Black
Mounting: 1 x Pole Socket - Unspecified Size
Construction Material: Perforated Metal Grille, Plywood
Environmental Resistance: No
Dimensions: 26.7 x 21.1 x 24.2" / 678 x 536 x 615 mm
